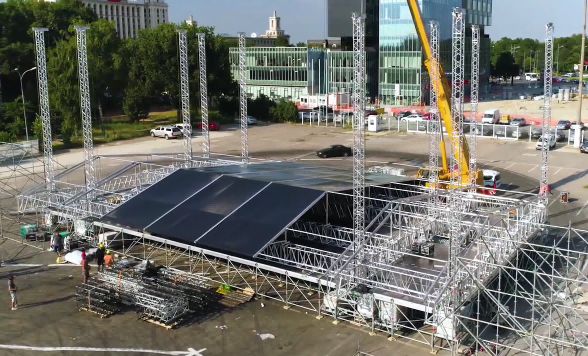

How to Install a Heavy-Duty Concert Roof Stage: 560 m² Festival System (Step-by-Step Guide)
Build a festival-grade main stage roof that supports 38.5 tons of lighting, PA systems, and LED walls — wind-rated to 109 km/h — in under 48 hours.
Why Heavy-Duty Concert Roof Stages Are Essential for Festivals
Top festivals like Rock am Ring, Pukkelpop, and SummerBreeze depend on large-scale, wind-resistant stage roofs to protect performers, equipment, and audiences. This 560 m² concert roof system (31 m × 18 m) delivers a 20 m clear span and 11 m clearance height, while supporting 38.5 tons total hanging load and exceeding European wind standards by 8%.
This complete concert stage roof installation guide shows you how to build a professional festival stage roof — from site prep to final canopy tensioning — using proven heavy-duty stage truss engineering.
Step 1: Site Survey & Pre-Planning for Concert Stage Roof Installation
Task
Specification
Stage Span
20 m (no center supports)
Clearance Height
11 m (ideal for rigging, pyro, and performers)
Total Roof Coverage
31 m (L) × 18 m (W) = 560 m²
Wind Load Rating
109 km/h (8% above Eurocode)
Soil Requirement
Minimum 150 kPa bearing capacity
Pro Tip: Use a laser level and soil penetrometer 48 hours before setup. For soft ground, install steel base plates or ground anchors to prevent settling during concert stage rigging.
Step 2: Select the Right Truss System for Heavy-Duty Stage Roofs
Component
Specification
Purpose
Towers
390 mm heavy-duty truss
Handles 50+ tons per tower in compression
Main Grid
1 m high reinforced truss
Supports 24.5 ton uniform distributed load (UDL)
Side Wings (PA Houses)
7 tons per side (14 t total)
Mount line arrays or LED video walls
Why 1 m high truss? Greater moment of inertia reduces deflection under asymmetric concert loads — critical for safe LED wall hanging or one-sided PA rigging.
Step 3: Full Concert Roof Stage Build Timeline (48 Hours)
Day 1: Tower Erection & Foundation
Lay steel base plates on laser-leveled ground.
Raise 4 corner towers using a telescopic crane (400 kg per 5 m section).
Install diagonal cross-bracing for lateral stability.
Secure with 45° guy wires to resist wind uplift.
Day 2: Main Grid & PA Wing Assembly
Lift 1 m × 1 m grid modules into position.
Secure with high-tensile spigot pins and torque to spec.
Build side PA wings (7 t capacity each).
Add catwalk grating for safe rigger access during concert lighting setup.
Final 6 Hours: Canopy Installation & Tensioning
Unroll PVC canopy from ground level.
Attach corner ratchet straps and turnbuckles.
Apply anti-pooling tension system to prevent water sagging.
Verify sag < 5 cm across entire 560 m² roof canopy.
No water pooling = no 500 kg surprise load during rain — essential for outdoor festival safety.
Safe Load Distribution: Hang 38.5 Tons on Your Concert Stage Roof
Zone
Max Load
Common Use
Center Grid
24.5 tons UDL
Concert lighting rigs, video cubes
Left PA Wing
7 tons
Line array speakers
Right PA Wing
7 tons
LED video wall or delay towers
Total Capacity
38.5 tons
Full festival production loadout
Safety Rule: Never exceed 80% of rated load during load-in or rehearsals.
Wind & Weather Protection for Festival Stage Roofs (109 km/h Rated)
Exceeds Eurocode EN 1991-1-4 by 8% for temporary demountable structures.
Guy wires + ballast blocks (concrete or water) on every tower.
Live anemometer monitoring during performance.
Storm Protocol:
80 km/h → Lower lighting rigs
100 km/h → Evacuate stage immediately
Tools & Crew for Professional Concert Roof Installation
Item
Quantity
100-ton Telescopic Crane
1
Certified Riggers (ETCP or equivalent)
6–8
Laser Level + Anemometer
1 each
Torque Wrench (M20 bolts)
2
Ratchet Straps + Turnbuckles
16
Final Pre-Soundcheck Checklist for Concert Stage Roof
All bolts torqued to 450 Nm
Canopy tension uniform (no wrinkles or low spots)
Wind speed < 60 km/h
Load cells on PA hangs (recommended)
Emergency strike plan printed and briefed
Conclusion: Build a Pro-Level Festival Stage Roof
A heavy-duty concert roof stage is more than steel and fabric — it’s engineered reliability. With a 20 m clear span, 38.5 ton hanging capacity, and 109 km/h wind rating, you can install a festival main stage roof that withstands storms, supports full production, and sets up in under 48 hours.
Ready to plan your large-scale concert stage build?
Contact a certified stage engineering firm for consultation and custom load calculations.
