packing weight:1000kg
packing volume:9cbm
290mm spigot box truss 0.5m 6pieces
290mm spigot box truss 3m 6pieces
290mm spigot box truss 2.5m 7pieces
290mm spigot box truss 1m 4pieces
290mm spigot box truss 2m 4pieces
290mm spigot box truss 3m 4pieces
290mm spigot ladder truss 3m 4pieces
top section 4p
sleeve block 4p
steel base 4p
manual hoist 4p
sling fibre 4p
hinges 16p
long outrigers 16p
2 ways spigot square corner 4p
3 ways spigot square corner 2p
3m 50mm round tube 4p
double clamps 8p
single clamp with half connectors 16p
top cover cloth 1p
Fast Assembly System: Utilizes a spigot connection mechanism and manual hoists for quick setup and teardown, significantly reducing labor time on-site.
Sloped Roof Design: The intentional height difference (6m front to 5m back) ensures efficient drainage and protection against the elements during outdoor use.
Comprehensive Stability: Includes essential safety components such as steel bases, long outriggers, hinges, and sleeve blocks to ensure a secure and level foundation.
Modular Construction: Engineered with standard 290mm box and ladder truss segments, allowing for easy transportation and compatibility with other Dragon Stage elements.
Weather Protection: Comes complete with a durable top cover cloth to shield equipment and performers from sun and rain.
Technical Specifications

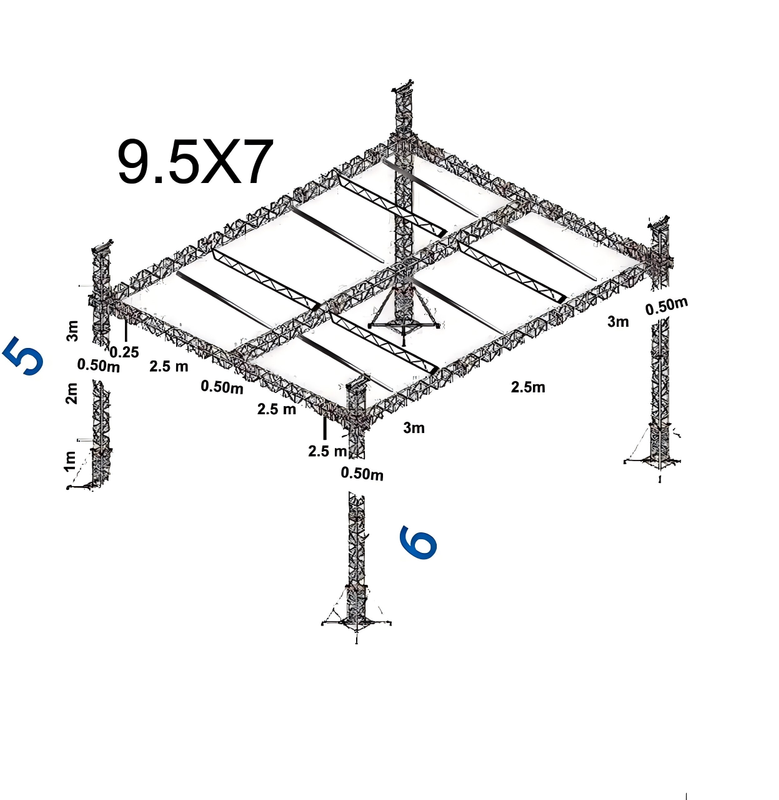

Dimensions: 9.5m (Length) x 7m (Width)
Operational Height: 6m (Front) / 5m (Back)
Main Structure: 290mm Spigot Box Truss
Packing Weight: 1000kg
Packing Volume: 9cbm
Material: High-strength Aluminum Alloy
Load Hoisting: 4x Manual Hoists with sling fibers
Support System: 4x Steel Bases with 16x Long Outriggers
