A Comprehensive Guide to Typical Truss Designs and Popular Sizes

Truss systems are an essential component in the world of event staging, construction, and exhibition setups. They provide the structural support needed for various elements such as lighting, sound systems, and stage backdrops. Here, we'll explore the typical truss designs, their most popular sizes, and the different types of trusses available.

Stage Truss Designs

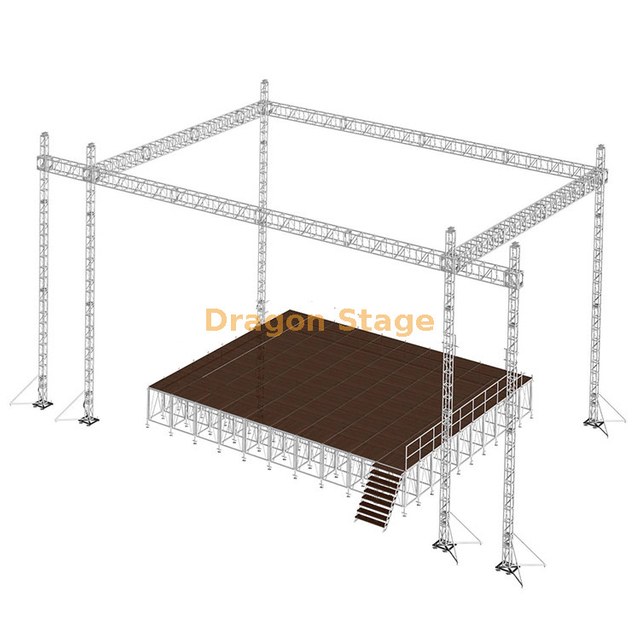

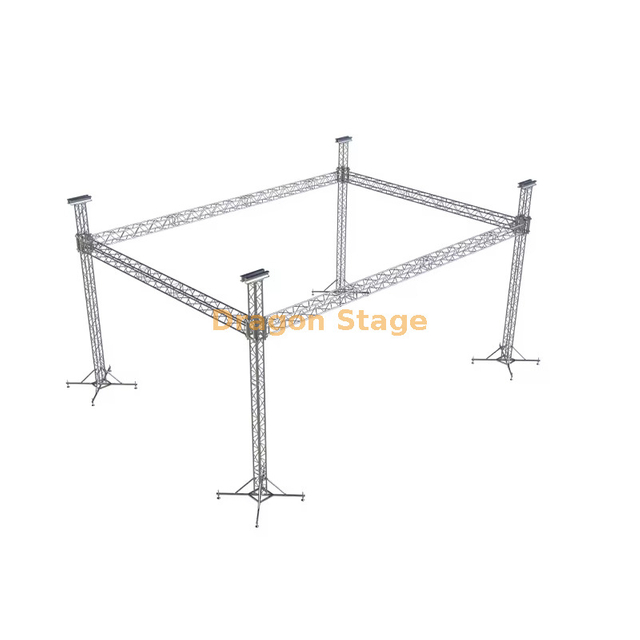

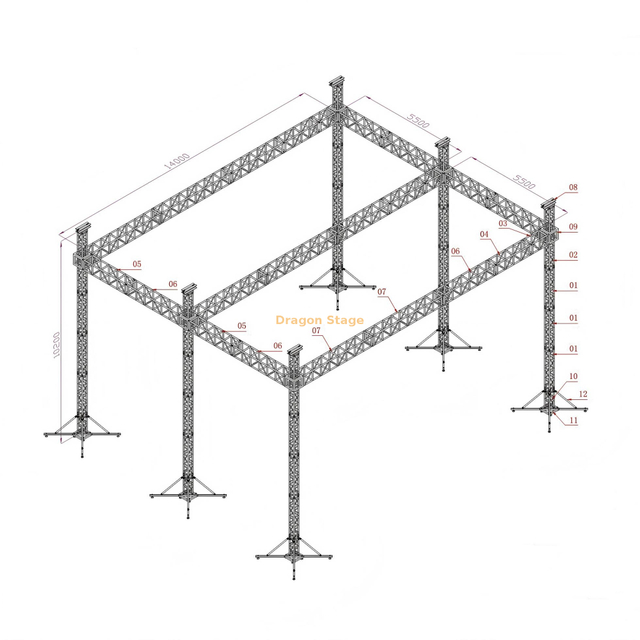

Non-Roof Truss

Non-roof trusses are versatile structures that are often used for supporting lighting fixtures, banners, and other stage elements that don't require a roof-like cover. They come in a variety of lengths and widths, with popular sizes ranging from 20 feet to 40 feet in length and 18 inches to 36 inches in width. Their simple design makes them easy to install and configure for different event setups.

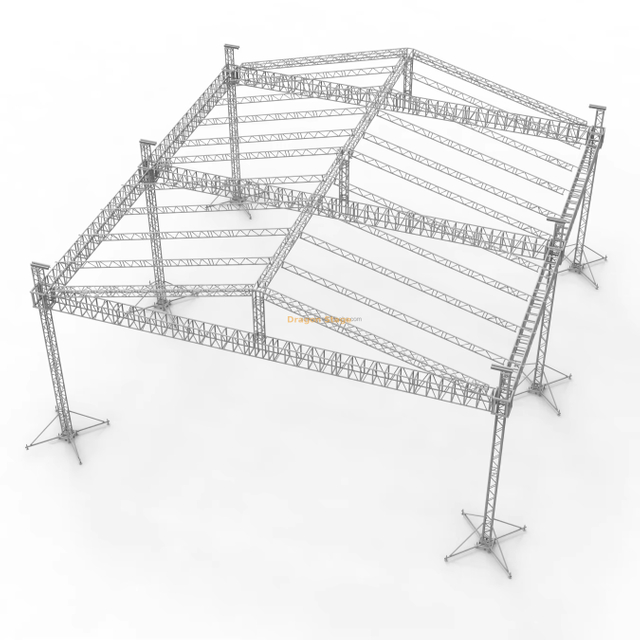

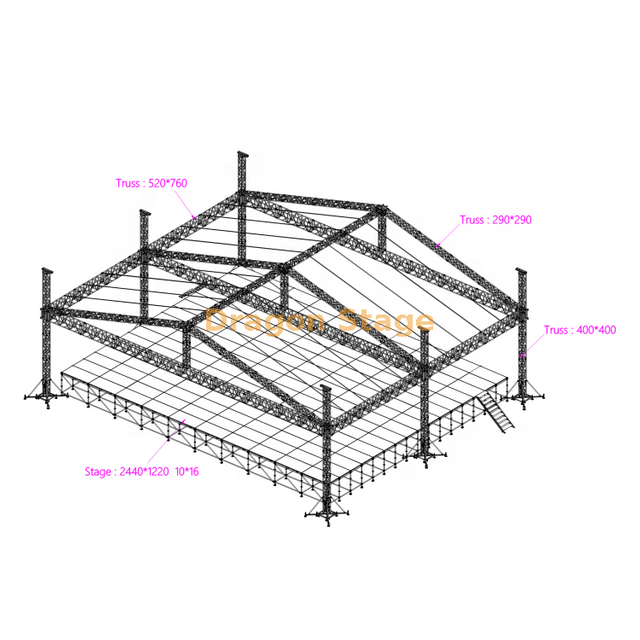

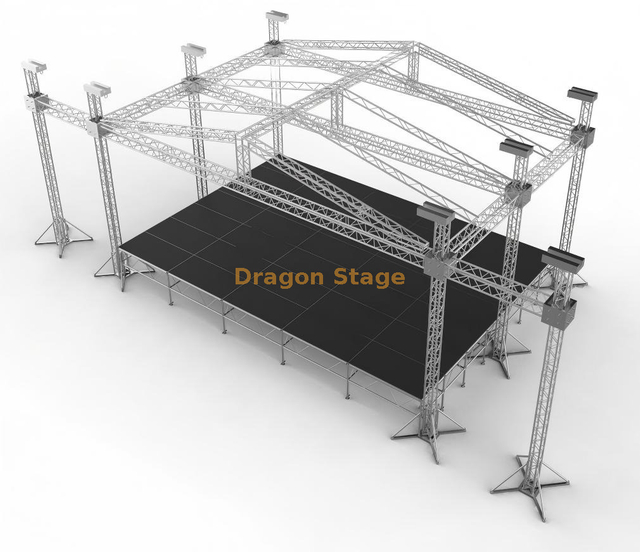

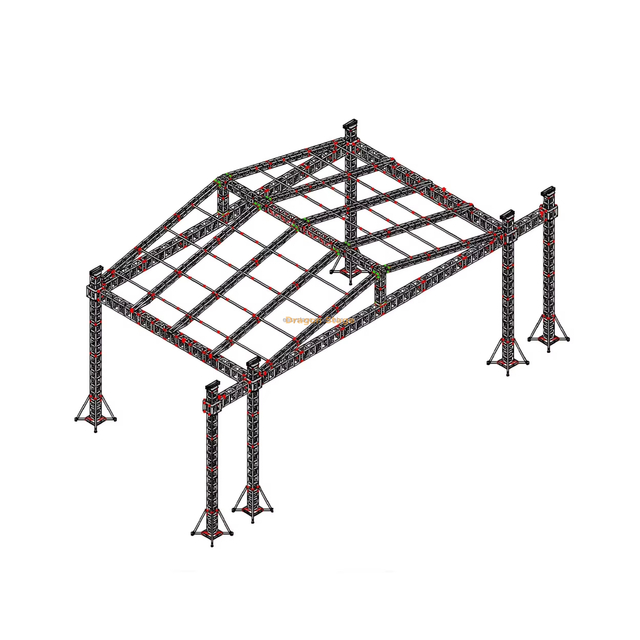

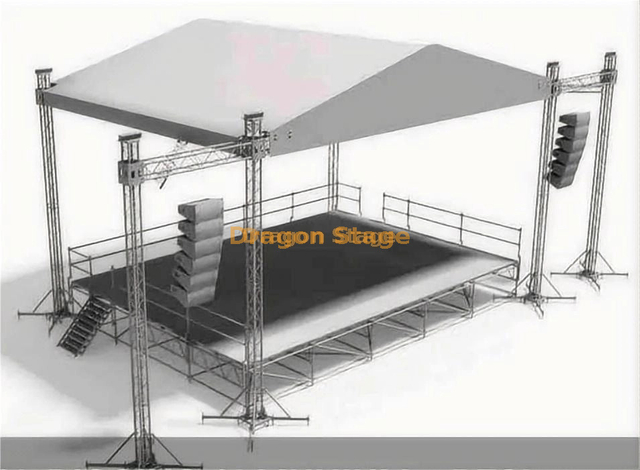

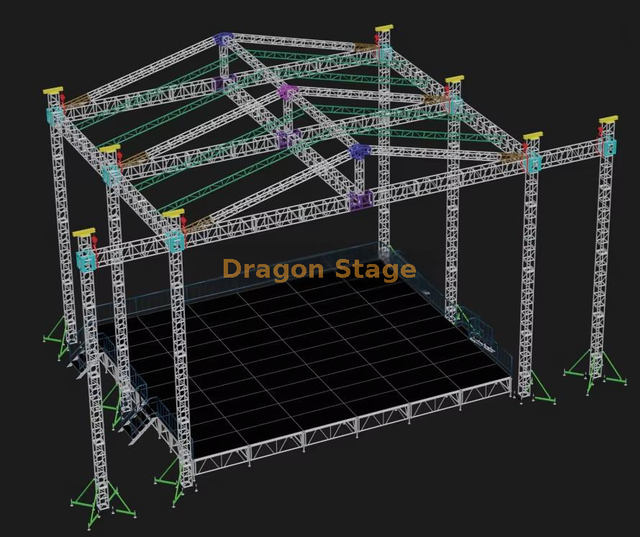

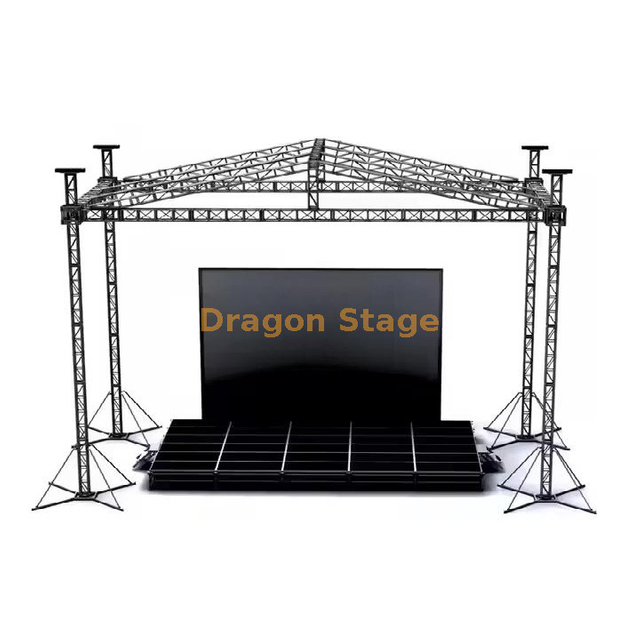

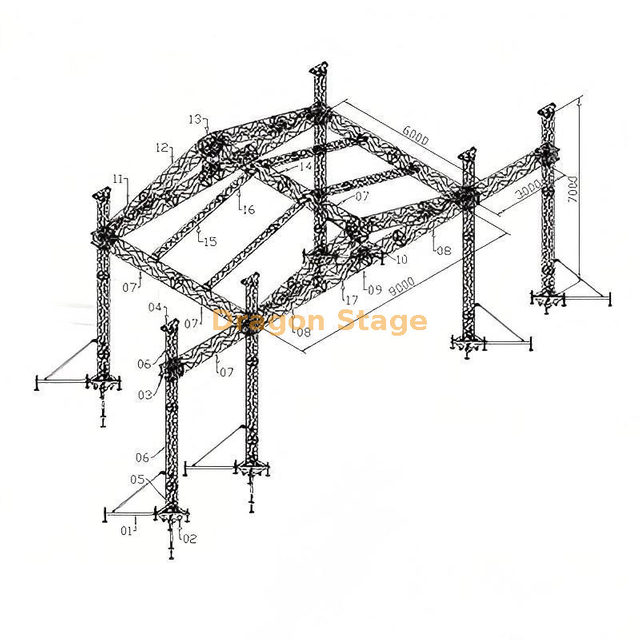

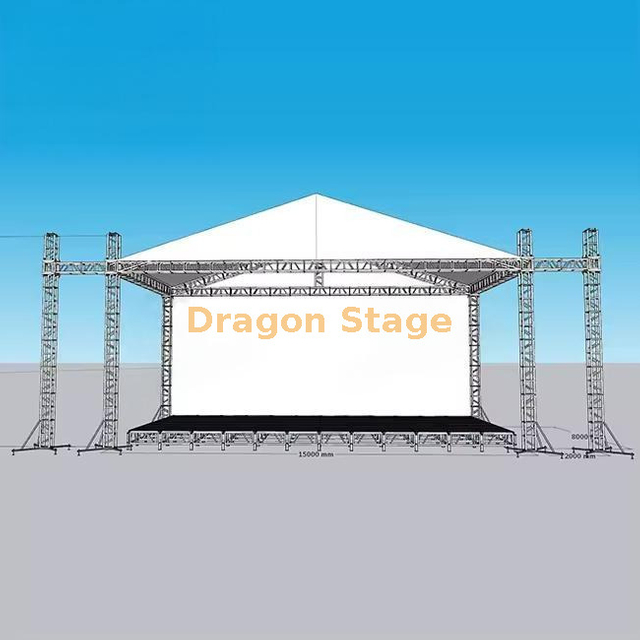

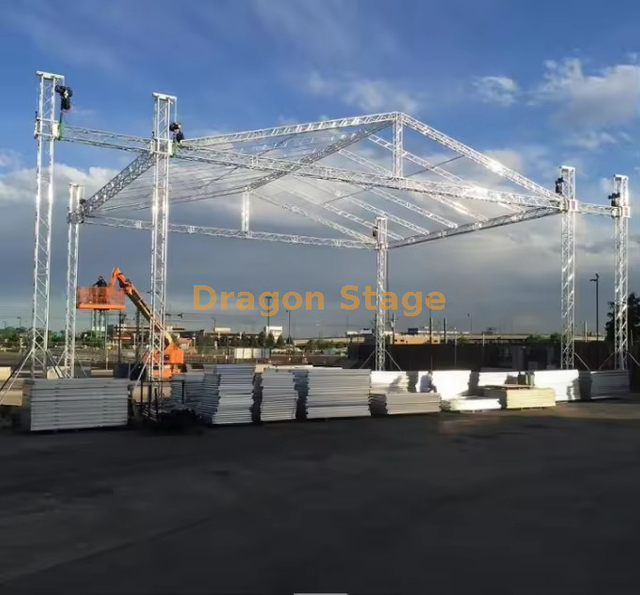

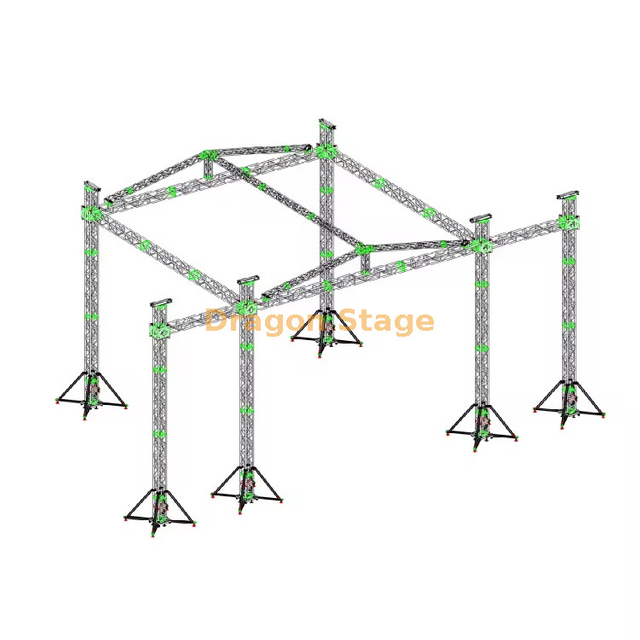

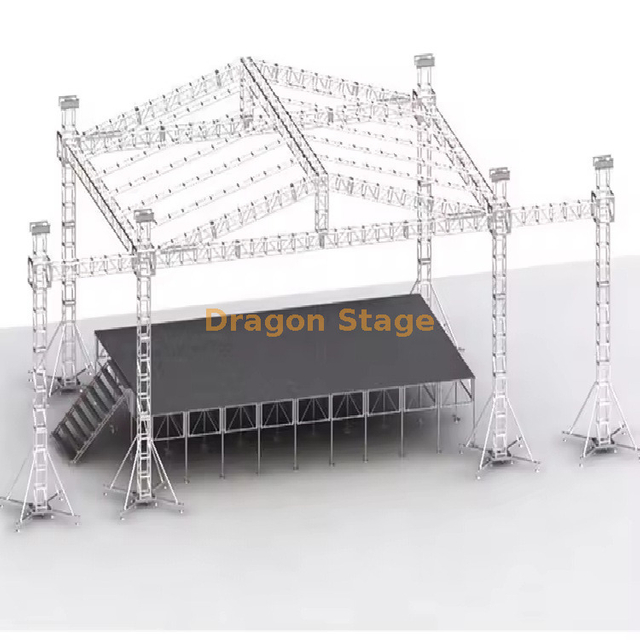

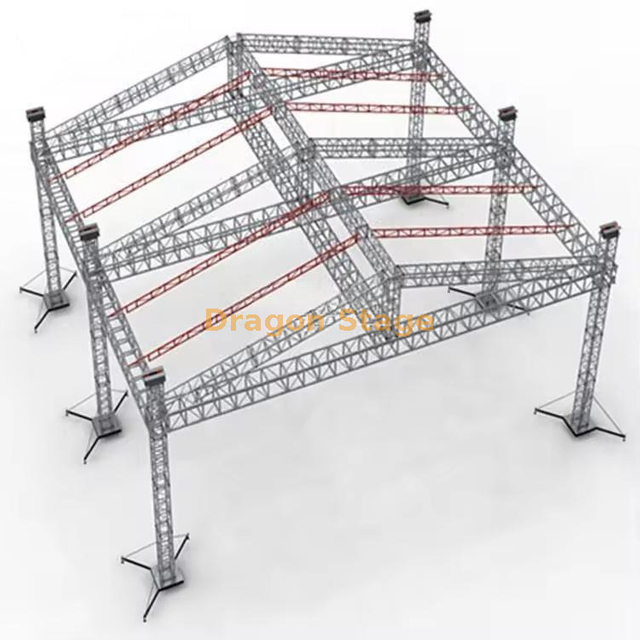

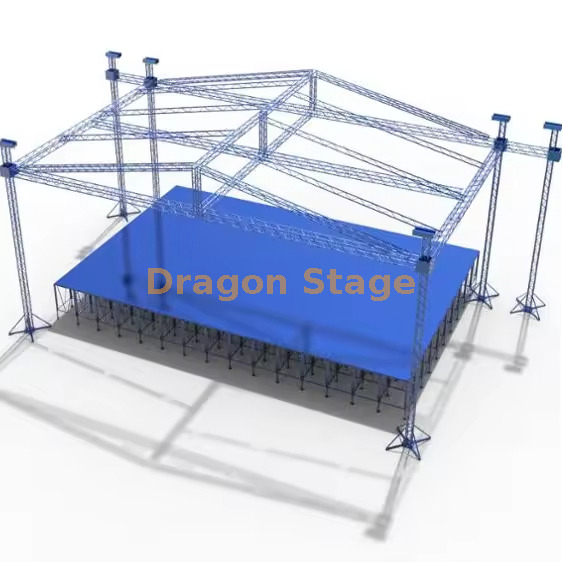

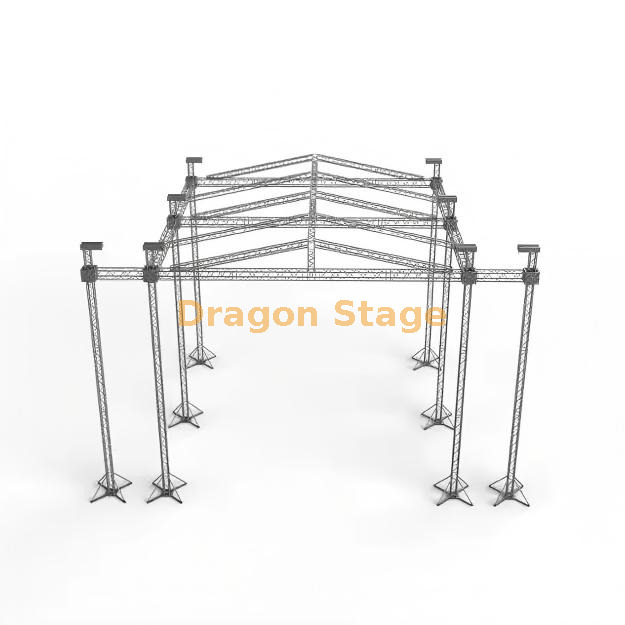

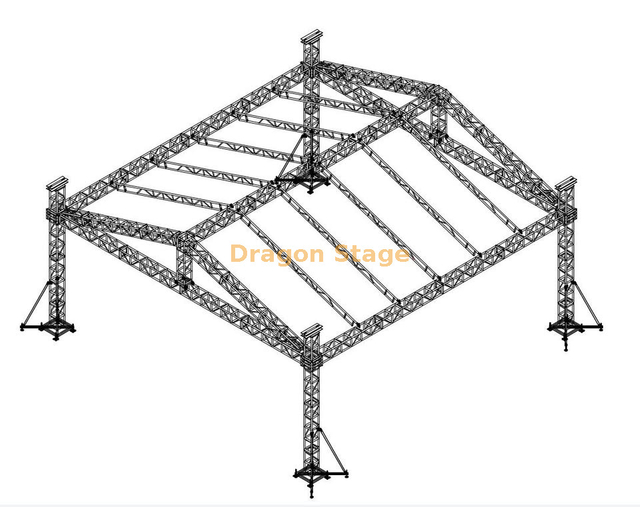

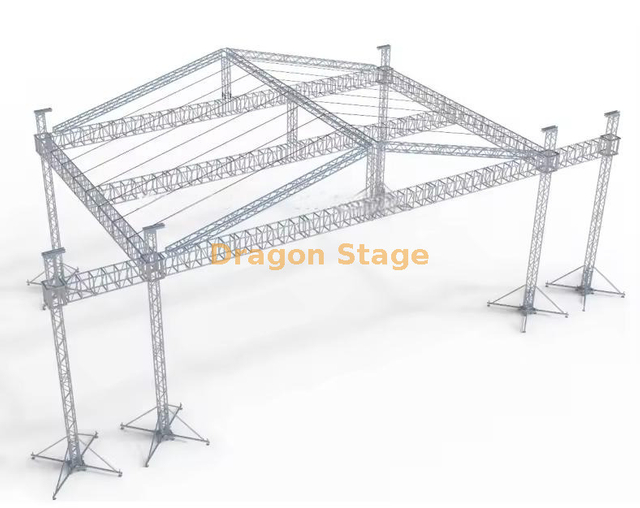

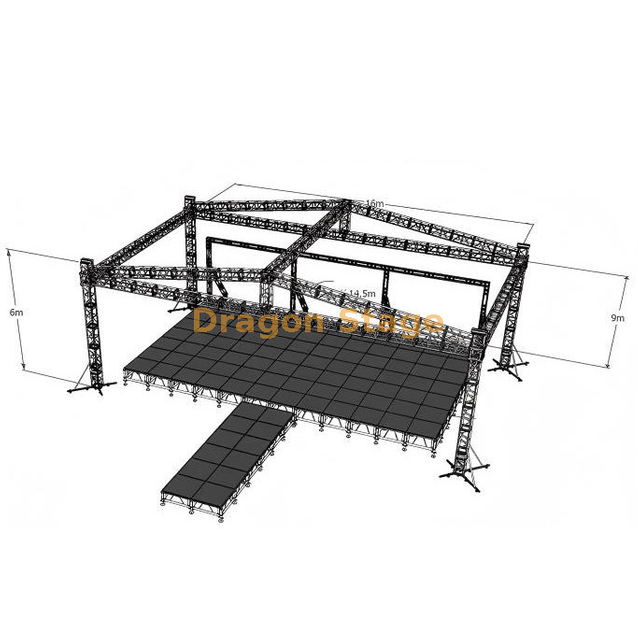

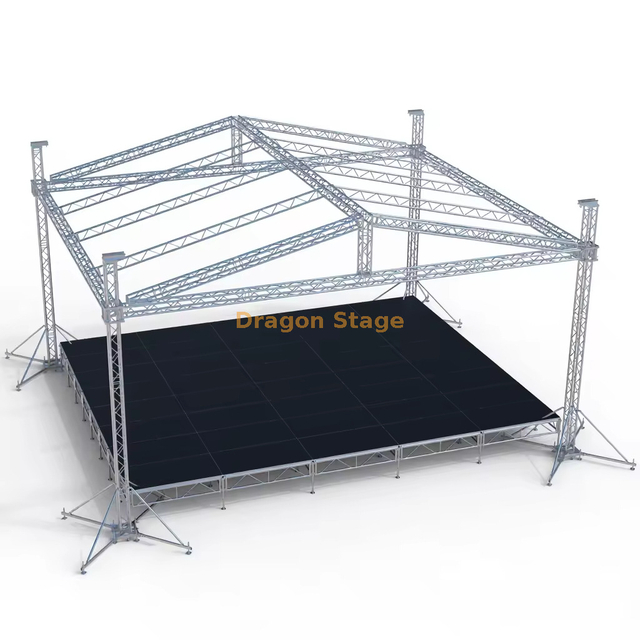

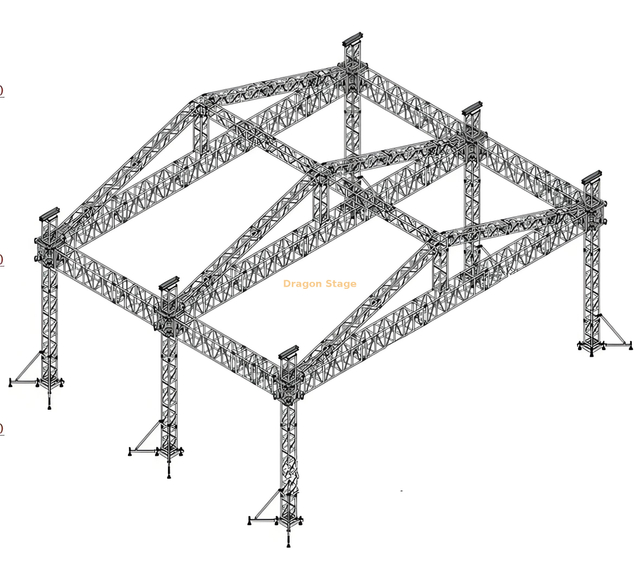

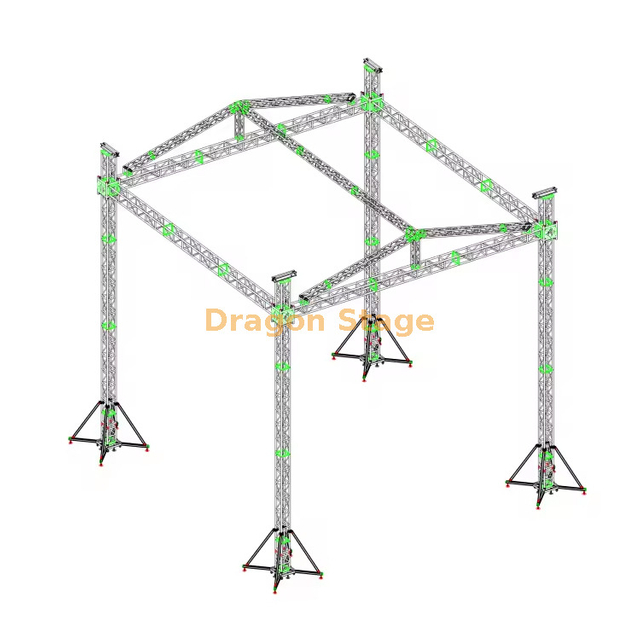

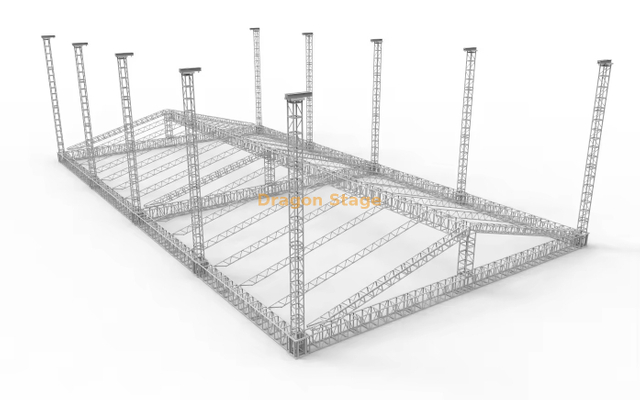

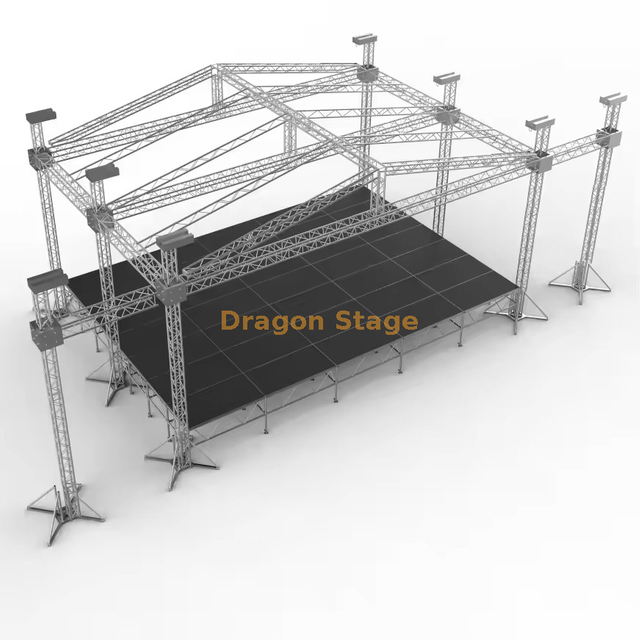

Triangle Roof Truss

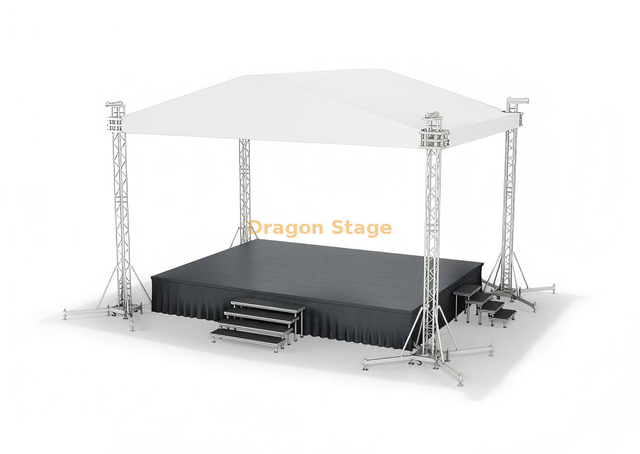

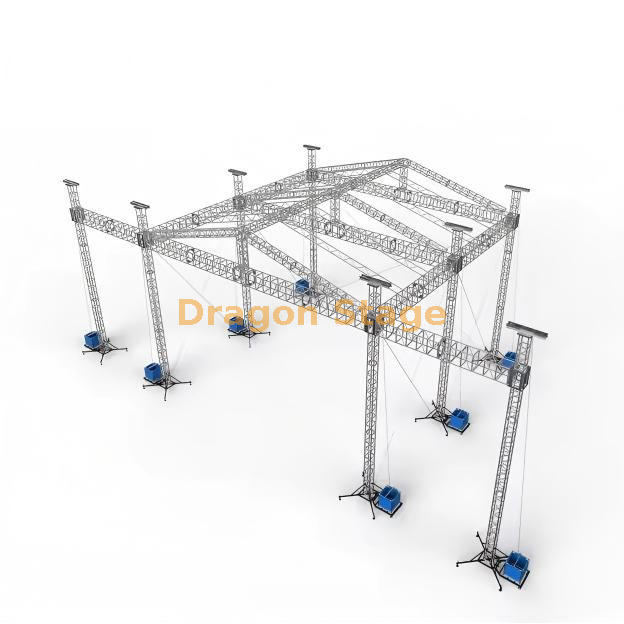

The triangle roof truss is a classic design that provides excellent stability and strength. Its triangular shape distributes weight evenly, making it ideal for supporting heavier loads like large lighting rigs or stage roofs. Common sizes for triangle roof trusses include lengths of 10 feet to 30 feet and depths of 24 inches to 48 inches. The sloping sides of the triangle also allow for better water runoff in outdoor events.

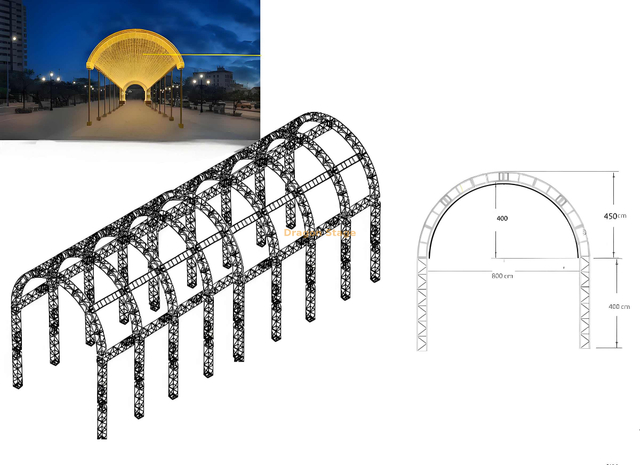

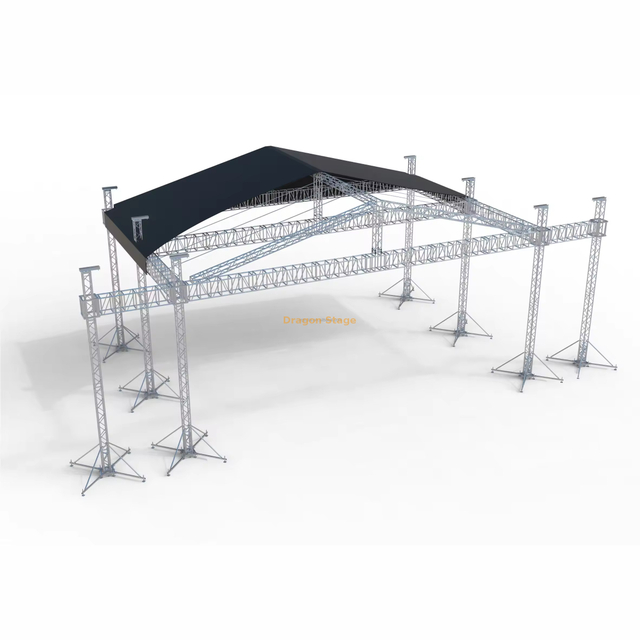

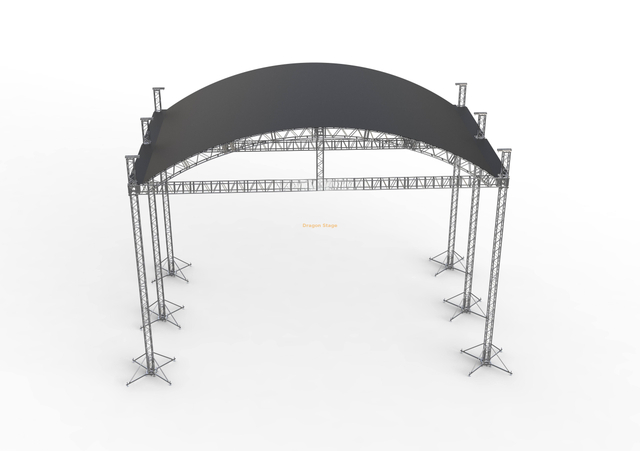

Curved Roof Truss

Curved roof trusses add a touch of elegance and visual appeal to any stage or event setup. They are often used in high-profile events, concerts, and exhibitions where a unique and stylish look is desired. Popular lengths for curved roof trusses can range from 15 feet to 50 feet, and the curvature can be customized to fit the specific requirements of the event. These trusses are typically more complex to install but offer a stunning visual impact.

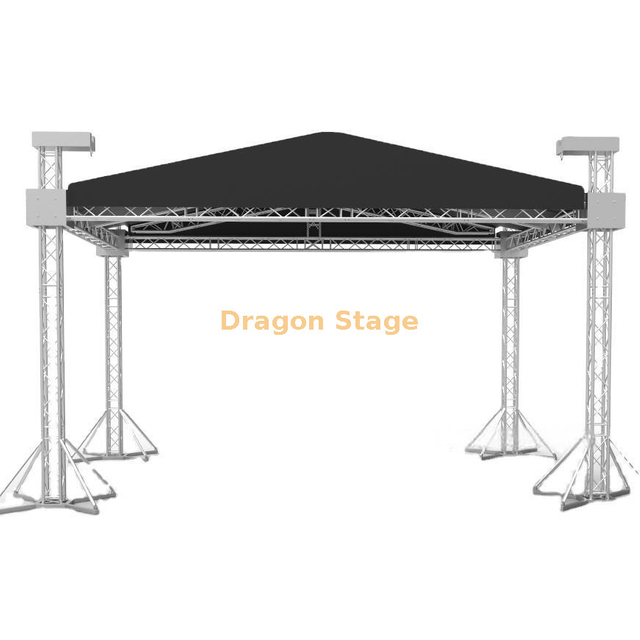

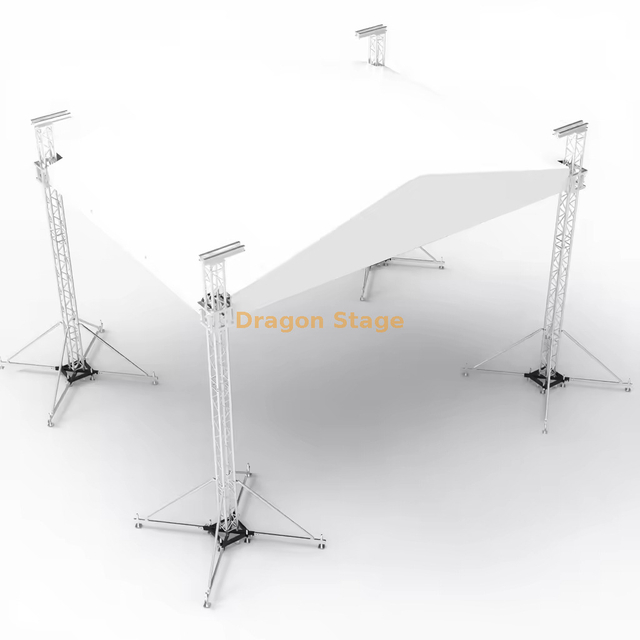

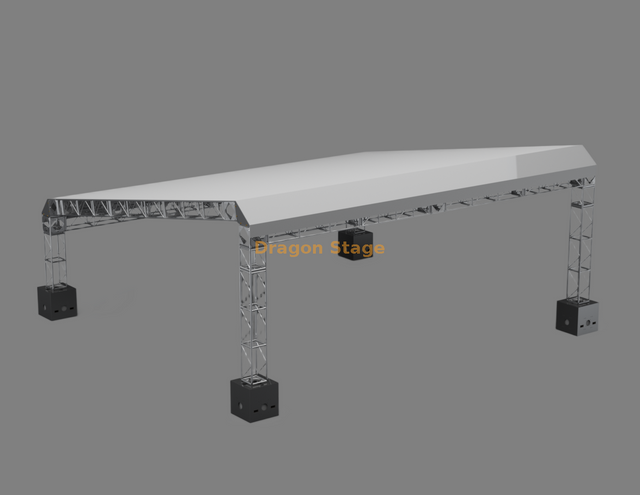

Flat Roof Truss

Flat roof trusses are a practical choice for events where a flat surface is needed for mounting equipment or creating a backdrop. They are commonly used in indoor venues and exhibitions. Popular sizes for flat roof trusses include lengths of 12 feet to 40 feet and widths of 20 inches to 40 inches. Their flat design allows for easy installation of lighting, screens, and other stage elements.

Other Types of Trusses

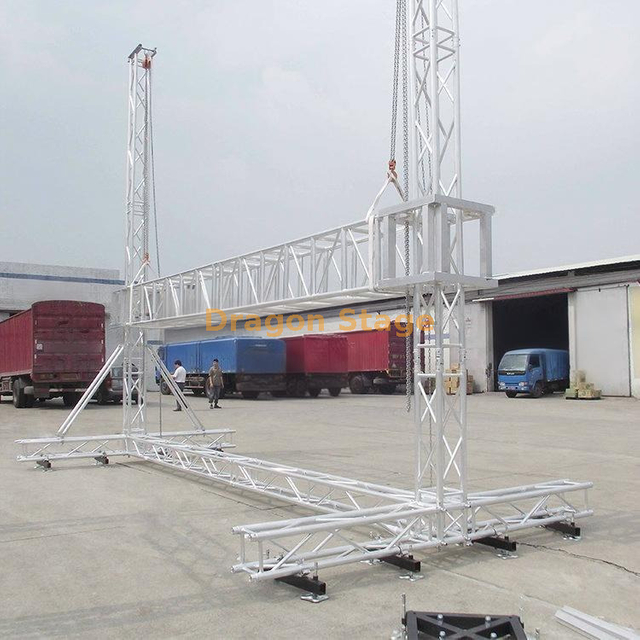

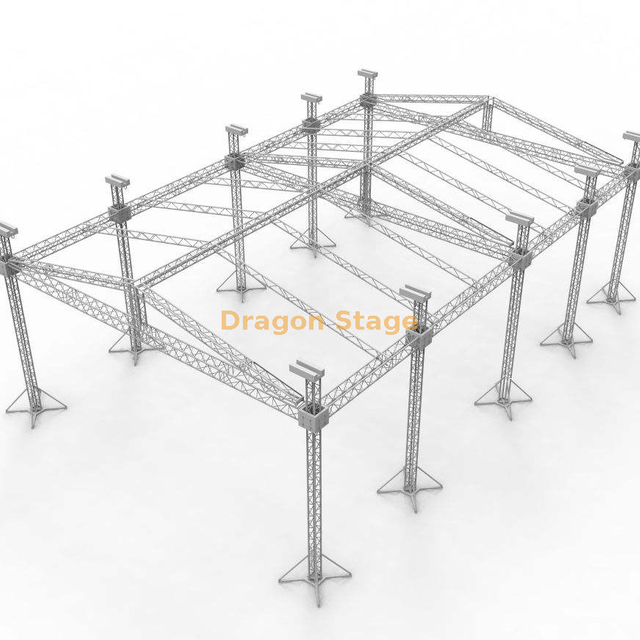

LED Ground Support Truss

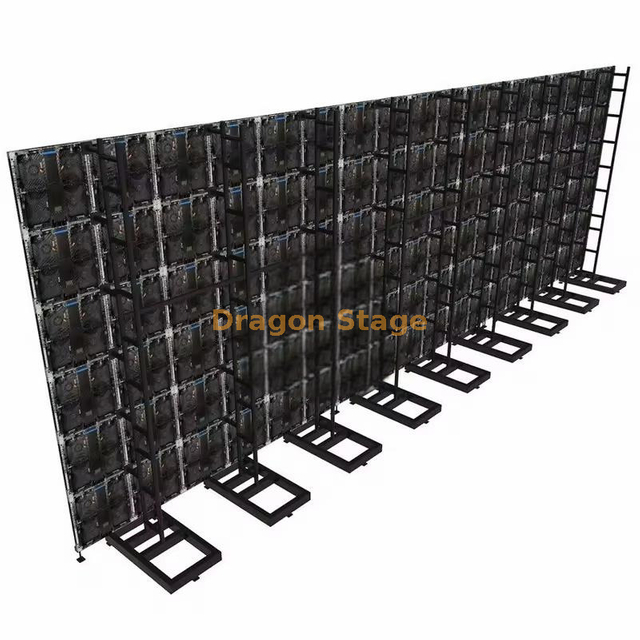

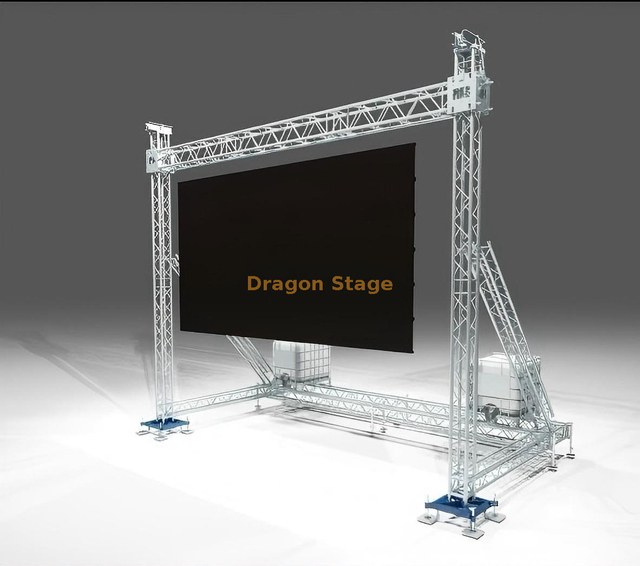

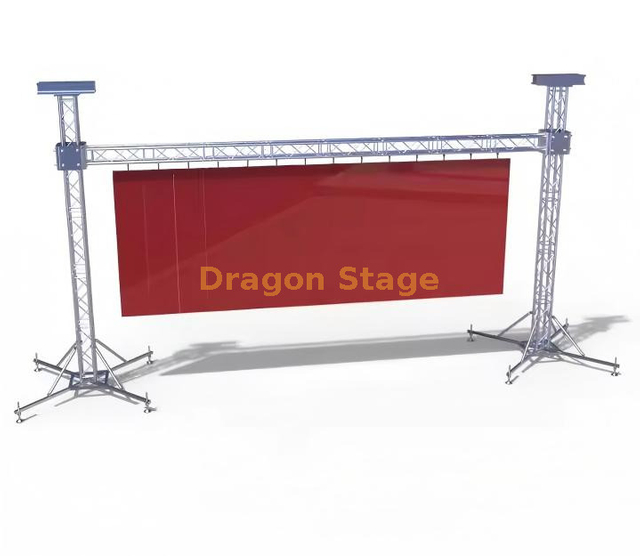

LED ground support trusses are specifically designed to support LED screens and lighting systems that are placed on the ground. They are usually shorter in height compared to other trusses and come in lengths of 8 feet to 20 feet. These trusses are essential for creating a stable base for large LED displays at events such as concerts, sports games, and corporate presentations.

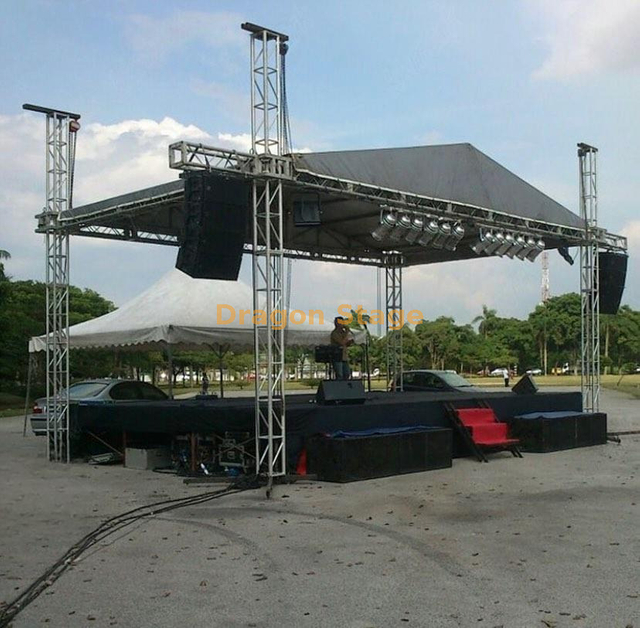

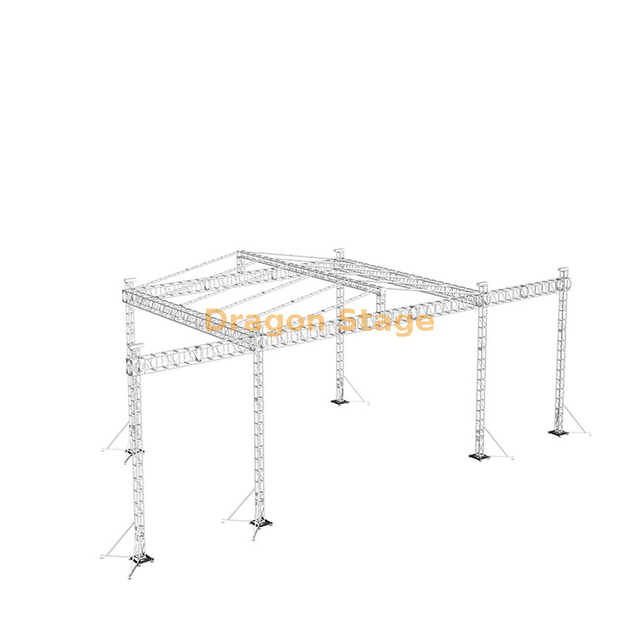

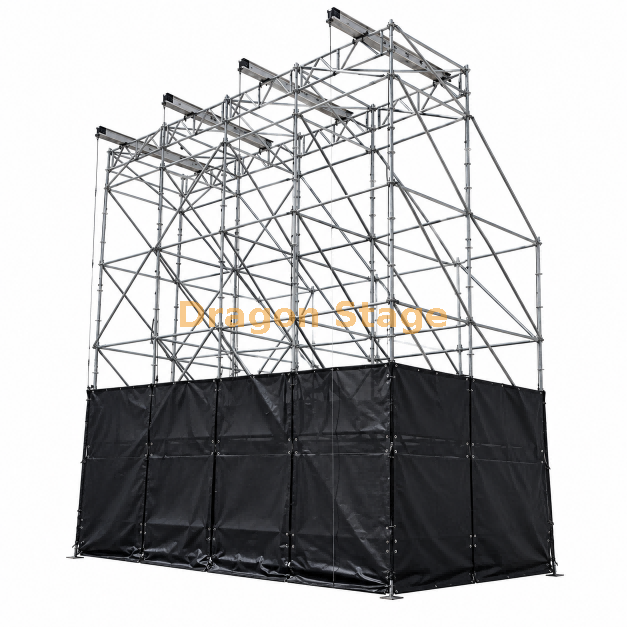

PA Tower Truss System

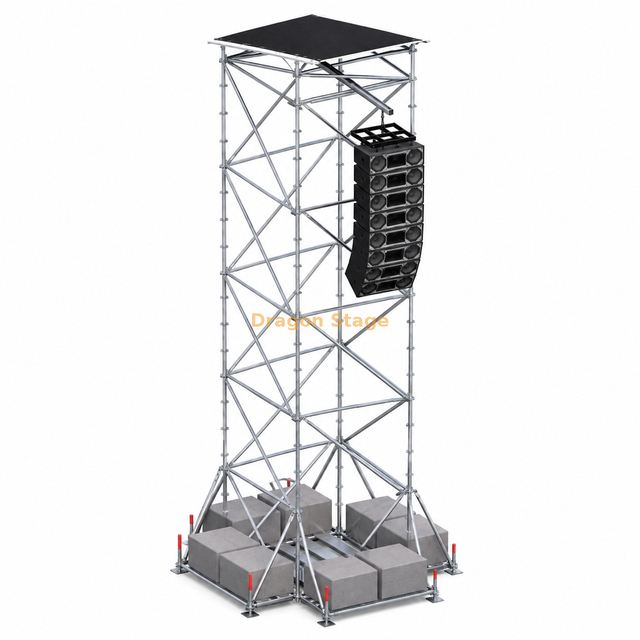

The PA tower truss system is used to support large sound systems, especially in outdoor events or large venues. These trusses are tall and sturdy, with popular heights ranging from 20 feet to 50 feet. They are designed to hold heavy speakers and other audio equipment, ensuring that the sound is distributed evenly throughout the venue.

Gentry Truss System

The Gentry truss system is known for its strength and durability. It is often used in industrial applications and large-scale events. The trusses in this system come in various sizes, with lengths commonly ranging from 15 feet to 60 feet and widths of 24 inches to 60 inches.

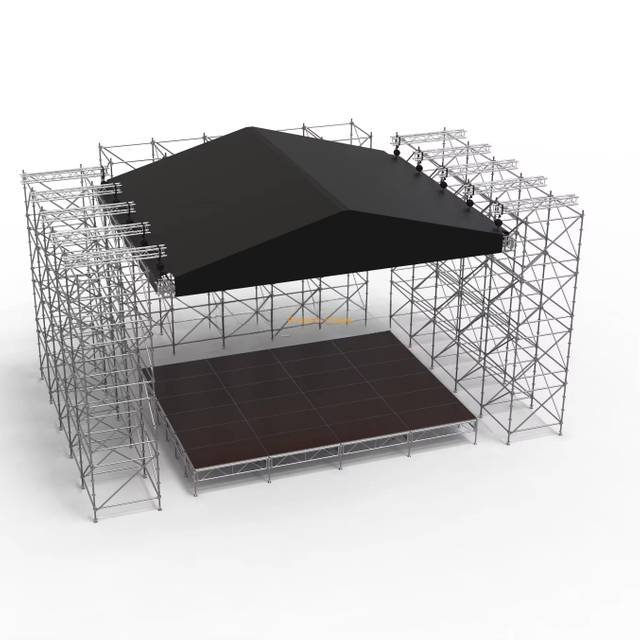

Layher Truss System

The Layher truss system is a high-quality, modular truss system that is popular in the event and construction industries. It offers a wide range of sizes and configurations, with lengths from 10 feet to 50 feet and depths from 18 inches to 48 inches. The system is known for its ease of assembly and disassembly, making it a favorite among event organizers.

Custom Truss System

Custom truss systems are designed to meet the specific needs of a project. They can be tailored in terms of size, shape, and functionality. Whether it's a unique stage design or a specialized exhibition booth, custom trusses can be fabricated to fit the exact requirements, with sizes and configurations varying widely based on the client's specifications.

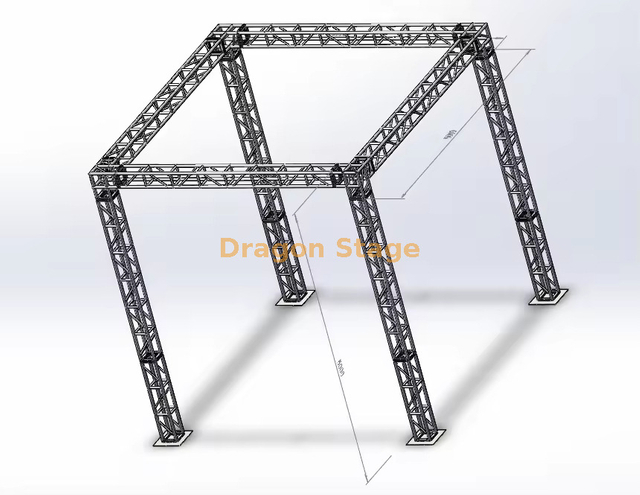

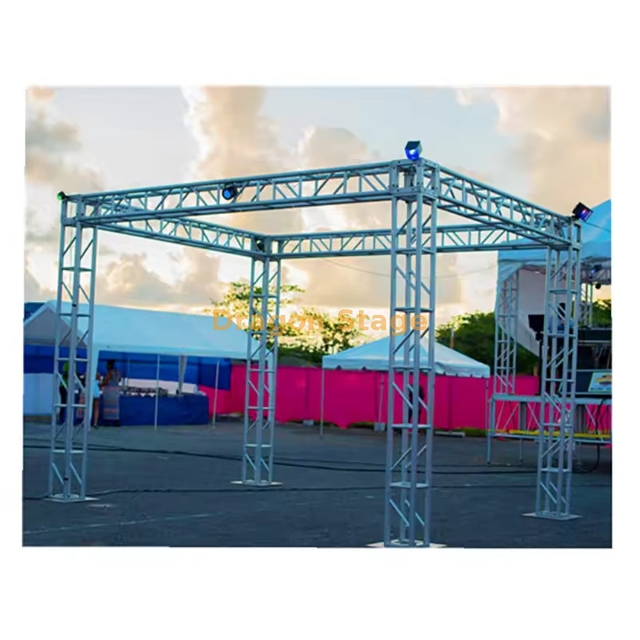

Exhibition Booth Stand

Exhibition booth stands are truss structures used to create the framework for exhibition booths. They come in various sizes, with common lengths ranging from 8 feet to 20 feet and widths of 10 feet to 30 feet. These trusses are often used to support signage, displays, and other booth elements.

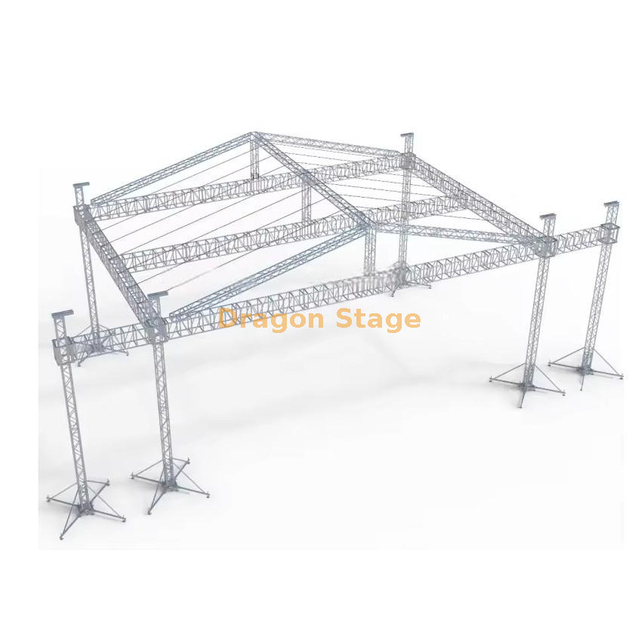

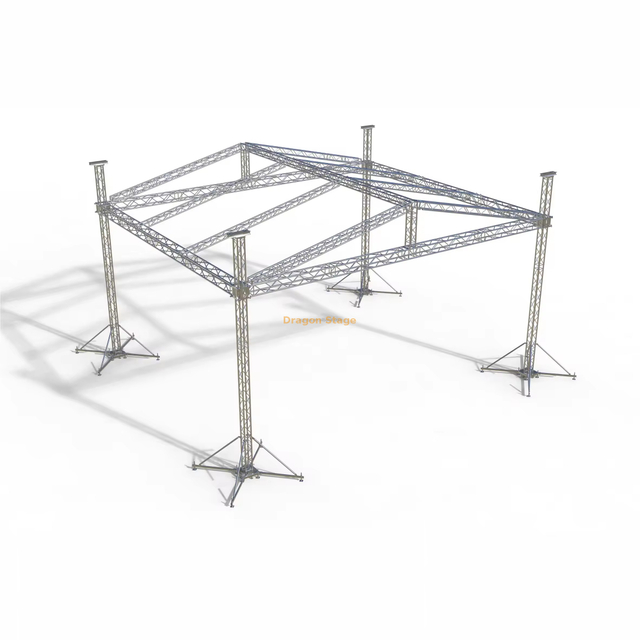

Standard Spigot Truss

Standard spigot trusses are a popular type of truss that uses spigot connectors for assembly. They are available in a range of sizes, with lengths from 10 feet to 40 feet and widths of 18 inches to 36 inches. The spigot connectors make the truss easy to assemble and disassemble, making it a practical choice for events that require frequent setup and teardown.

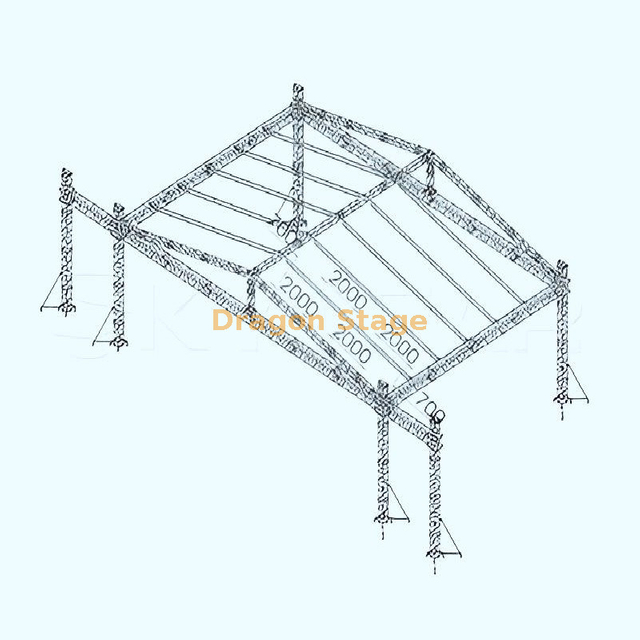

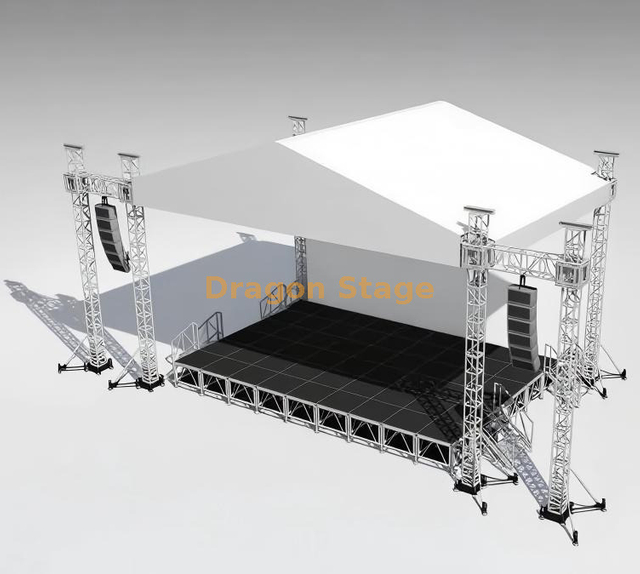

Standard Bolt Truss

Standard bolt trusses, as the name suggests, are assembled using bolts. They are known for their strength and stability. Popular sizes for standard bolt trusses include lengths of 12 feet to 50 feet and widths of 20 inches to 48 inches. These trusses are often used in more permanent installations or in events where a higher level of structural integrity is required.

Truss System Accessories

Truss Corner Connector

Truss corner connectors are used to join truss sections at right angles. They come in different sizes and styles to fit various truss systems. These connectors are essential for creating complex truss structures and ensuring the stability of the overall setup.

Truss Tower Elements

Truss tower elements are used to build truss towers, which are often used for supporting lighting, cameras, or other equipment at elevated positions. These elements come in various sizes and configurations, allowing for the construction of towers of different heights and shapes.

Lighting Hook Clamp

Lighting hook clamps are used to attach lighting fixtures to trusses. They are available in different sizes to accommodate various types of lighting equipment. These clamps provide a secure and easy way to mount lights on trusses, ensuring that they are properly positioned for optimal lighting effects.

Lighting Clamp

Lighting clamps are similar to lighting hook clamps but are designed for different types of lighting fixtures. They offer a more versatile way to attach lights to trusses, with some models allowing for adjustable angles and positions.

Boom Arm

Boom arms are used to extend the reach of lighting fixtures or other equipment from the truss. They come in various lengths, with popular sizes ranging from 2 feet to 10 feet. Boom arms are essential for creating unique lighting setups and for positioning equipment in hard-to-reach areas.

In conclusion, understanding the different types of truss designs, their popular sizes, and the available accessories is crucial for creating a successful event or installation. Whether you're a professional event planner, a contractor, or an exhibitor, choosing the right truss system and accessories can make all the difference in achieving your desired results.
