EVENT SUPPORT SYSTEM

Pipe and Drape System

Create professional event backdrops, temporary partitions and adaptable venue spaces

with a modular pipe and drape system designed for flexible setup and repeated use.

Pipe and Drape System for Modular Backdrop and Space Division in Events

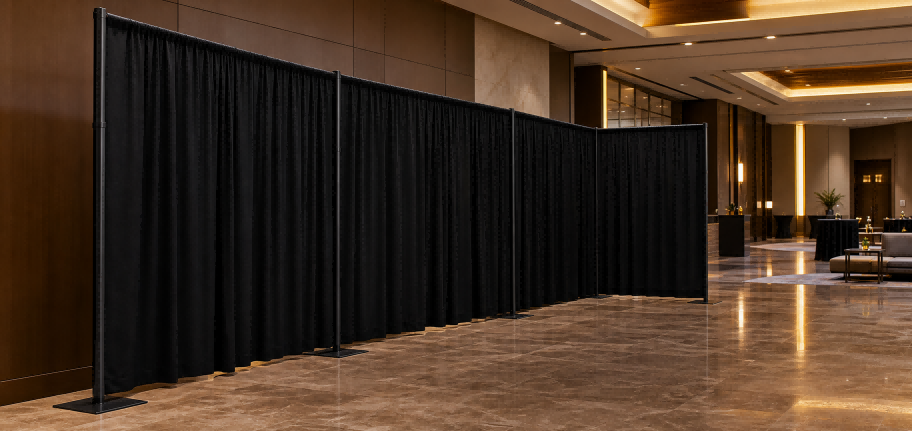

A pipe and drape system is a freestanding modular solution used to create temporary backdrops, partitions, exhibition booths, backstage areas and decorative event spaces. A typical configuration combines weighted base plates, vertical uprights, horizontal drape supports and fabric panels to form a clean visual boundary without permanent construction.

Its modular structure allows the height, width and layout to be adapted to different venue requirements. Individual sections can be arranged as straight walls, corners, U-shaped enclosures or multi-section partitions. This follows the same adaptable principles described in our Modular System Logic.

Why Choose a Pipe and Drape System?

Flexible Configuration

Adjustable components make it possible to create backdrops and partitions in different heights, widths and layouts. The same component set can support weddings, exhibitions, conferences, hotel functions and temporary production areas.

Efficient Installation

The system is assembled from separate modular components and does not require permanent modification to the venue. A well-planned configuration can be installed, dismantled and reorganized efficiently. Learn more about our approach to modular system installation.

Reusable Components

Uprights, drape supports, bases and accessories can be transported, stored and reused for different event layouts. This makes the system practical for event rental companies, venues and production teams that frequently reconfigure temporary spaces.

Professional Space Presentation

Fabric panels conceal service areas, equipment and unfinished venue surfaces while creating a consistent visual background. Different fabric colors, finishes and levels of opacity can be selected to suit the event design.

Application-Based System Planning

The appropriate configuration depends on the required dimensions, fabric weight, layout and installation environment. Base stability and component selection should be evaluated together instead of treating each part as an isolated product. See our guidance on safety standards and engineering constraints, or explore our wider range of event equipment and support solutions.

Need help defining the right configuration? DragonStage can provide an engineering solution based on your venue, layout and application requirements.

Pipe and Drape System Components

A complete pipe and drape system is built from compatible components that work together as one freestanding structure. Uprights determine the height, crossbars define the width, bases provide stability, and drapes create the finished visual surface. Accessories can then be added to support different layouts, transport requirements and event applications.

Selecting each component separately without considering the complete configuration may result in poor compatibility or insufficient stability. The system should therefore be planned according to its dimensions, layout, fabric and installation environment.

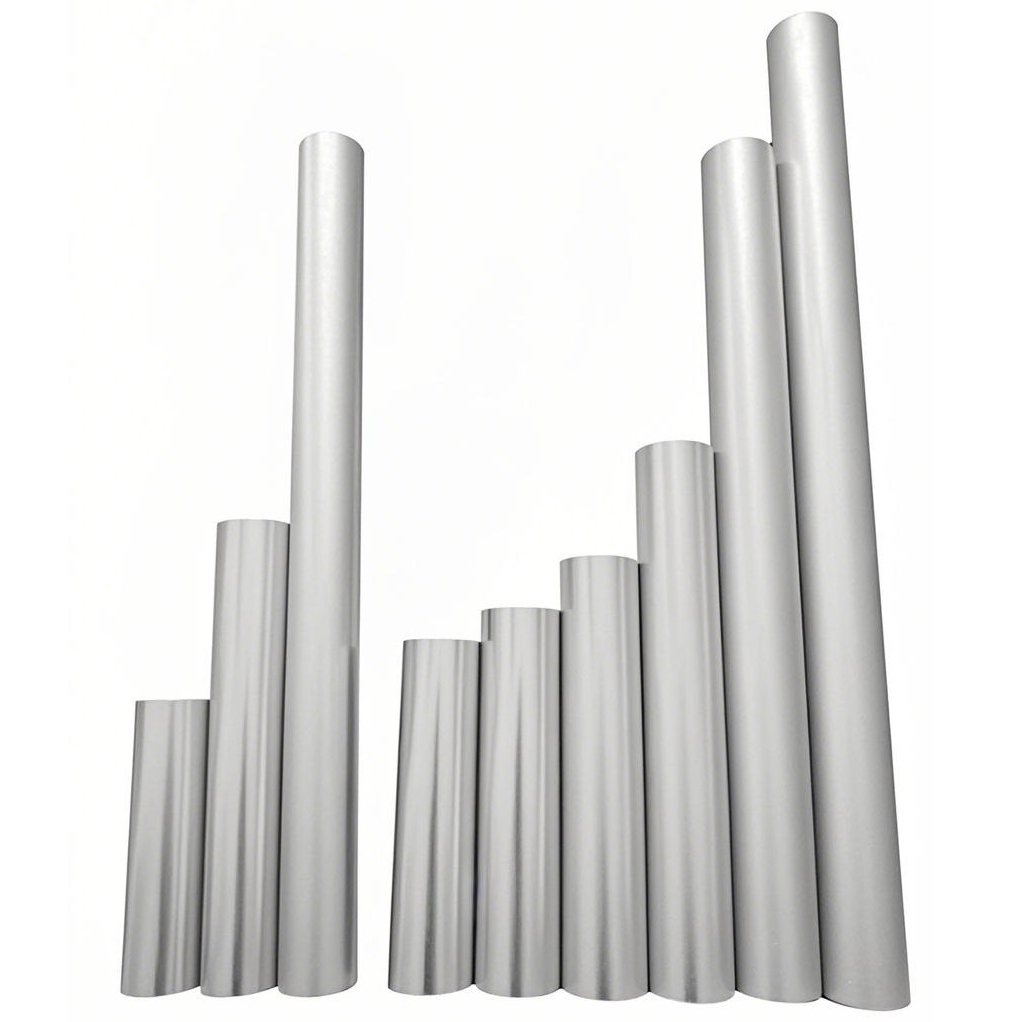

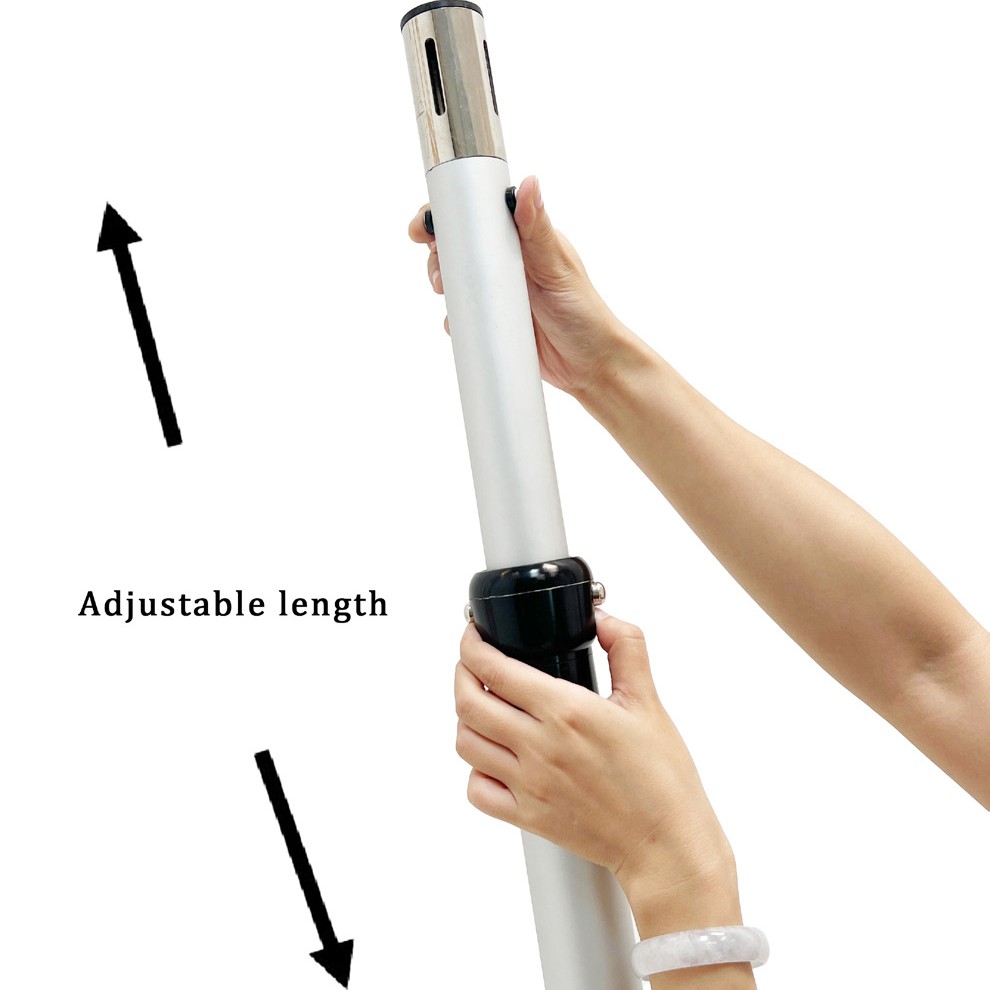

Adjustable Uprights

Uprights are the vertical supports of the pipe and drape system. Each upright connects to a weighted base and provides the attachment point for one or more horizontal crossbars.
Telescopic uprights allow the system height to be adjusted for different applications, from lower exhibition partitions to full-height event backdrops. Fixed-height versions may also be used where consistent dimensions and repeated layouts are required.
Key considerations include:
* Required system height
* Upright adjustment range
* Material and component weight
* Crossbar connection method
* Number of connection directions
* Frequency of assembly and transport
Aluminum uprights are commonly selected for portable event systems because they combine manageable weight with resistance to corrosion. Material selection should still be based on the intended configuration and use conditions. More information is available in our material and component knowledge resources.

Height (ft)	Height (m)	Weight (kg)	Weight (lb)
3′–5′	0.9–1.5	1.16	2.55
4′–7′	1.2–2.1	1.47	3.24
5′–8′	1.5–2.4	1.68	3.70
6′–10′	1.8–3.0	1.99	4.38
7′–12′	2.1–3.6	2.29	5.04
8′–14′	2.4–4.2	2.60	5.73
9′–16′	2.7–4.8	2.96	6.53
10′–18′	3.0–5.4	3.21	7.07
11′–20′	3.3–6.0	3.51	7.74

Height (ft)	Height (m)	Weight (kg)	Weight (lb)
4′–10′	1.2–3.0	2.44	5.37
5′–11′	1.52–3.35	2.75	6.06
6′–14′	1.82–4.26	3.29	7.25
7′–17′	2.13–5.18	3.79	8.35
8′–20′	2.43–6.0	4.30	9.47
9′–23′	2.74–7.0	4.80	10.58

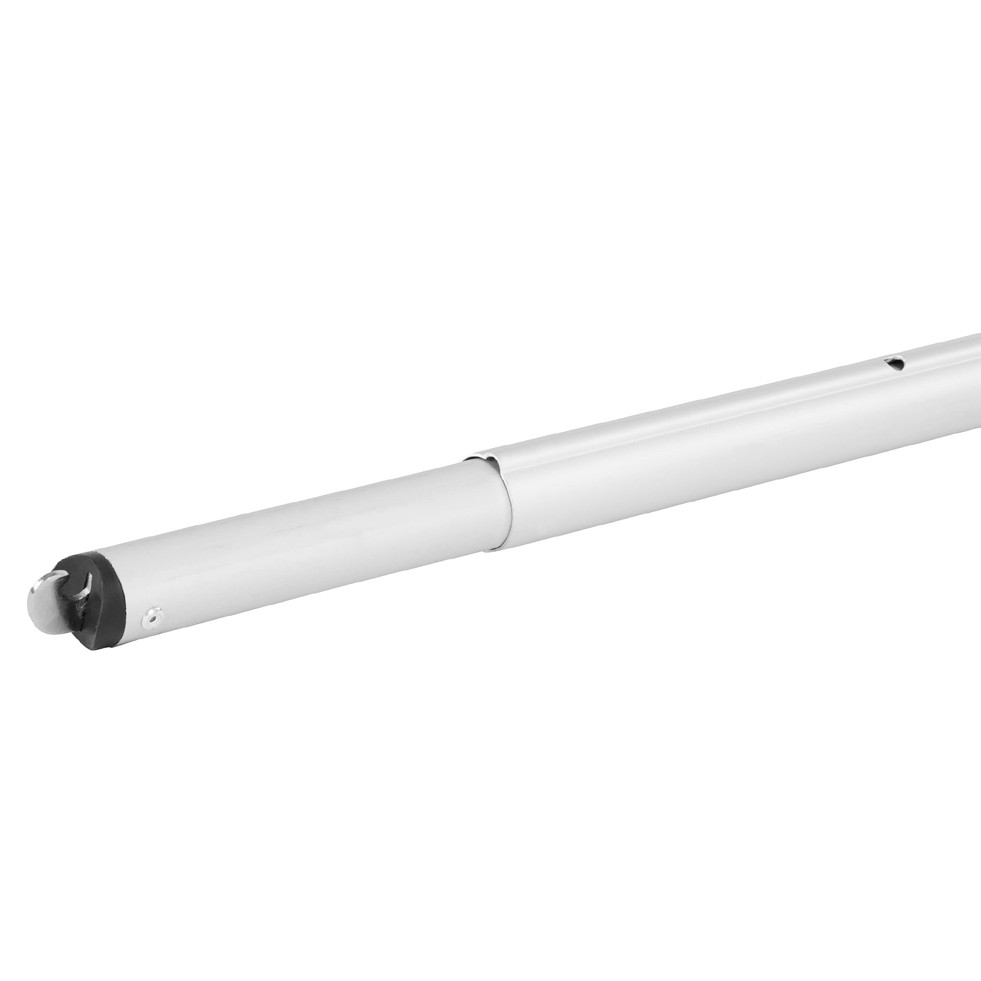

Crossbars and Drape Supports

Crossbars—also called drape supports—connect adjacent uprights and carry the fabric panels. They define the width of each pipe and drape section.
Adjustable crossbars make it possible to change the span between uprights, helping the same system accommodate different room dimensions and layouts. Several sections can be connected to create straight walls, corners, U-shaped spaces or larger temporary enclosures.
When selecting a crossbar, consider:
* Required section width
* Adjustment range
* Fabric weight and fullness
* Connection compatibility
* Number of connected sections
* Intended straight or angled layout

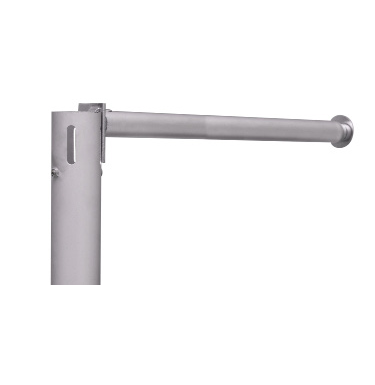

The crossbar should connect securely to the upright using the connection method designed for the system. Components from unrelated systems should not be assumed compatible. Learn more about the importance of coordinated components in our connection and material system guide.

Width (ft)	Width (m)	Weight (kg)
2′–3′ — stops at 3′	0.6–0.91	1.16
3′–5′ — stops at 5′	0.9–1.52	1.47
4′–7′ — stops at 6′ and 7′	1.2–2.13	1.68
5′–8′ — stops at 8′	1.52–2.4	1.99
6′–10′ — stops at 6′ and 10′	1.82–3.04	2.29
7′–12′ — stops at 10′ and 12′	2.1–3.6	2.60
8′–14′ — stops at 10′, 12′ and 14′	2.4–4.2	—
9′–16′ — stops at 12′, 14′ and 16′	2.7–4.8	—
10′–18′ - stops at 12′, 14′, 16′ and 18′	3.0–5.48	—
6′–14′ - stops at 6′, 8′, 10′, 12′ and 14′	1.82–4.26	—
7′–16′ - stops at 10′, 12′, 14′ and 16′	2.13–4.87	—
8′–10′ - 3-piece special drape support	2.43–3.0	3.51

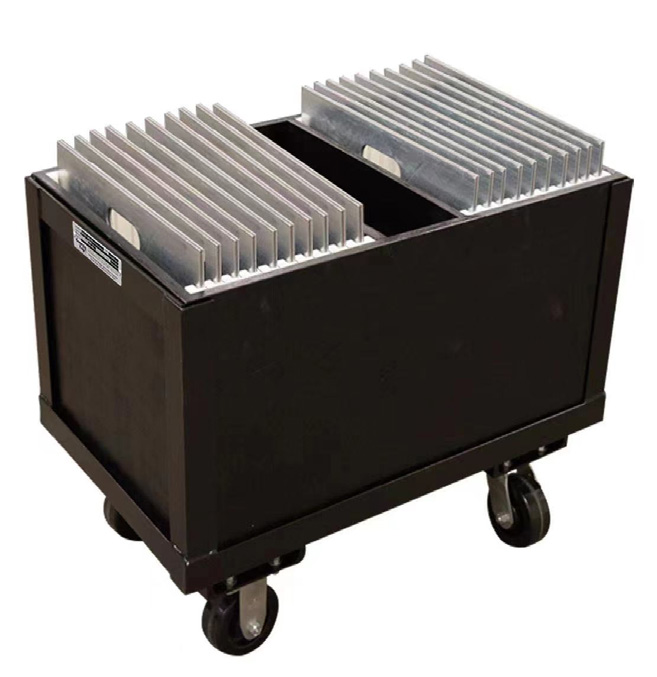

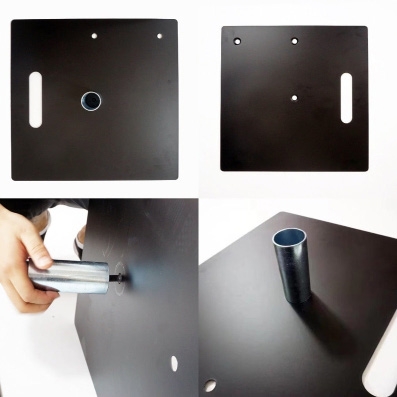

Base Plates and Additional Weights

Base plates support the uprights and stabilize the freestanding structure. Each upright must be installed on a compatible base, with the plate positioned flat on a suitable surface.
Base selection is influenced by:
* Overall system height
* Width of each section
* Fabric type and weight
* Straight, angled or enclosed layout
* Public access around the installation
* Indoor airflow or outdoor wind exposure
Taller configurations and heavier fabrics generally require a more substantial stability solution. Additional weights may be used where specified, but adding weight does not automatically make an unsuitable configuration safe.
Base plates should remain level, unobstructed and protected from accidental movement. For a more detailed explanation of the factors involved, see how to calculate steel or aluminum base weight.

Size (in)	Size (mm)	Thick (mm)	Weight (kg)
14″ × 16″	356 × 405	4	2.55
15″ × 15″	380 × 380	4	4.60
18″ × 18″	450 × 450	5	7.46
18″ × 18″	450 × 450	8	12.0
18″ × 18″	450 × 450	10	14.5
20″ × 20″	500 × 500	5	9.50
20″ × 20″	500 × 500	8	13.8
20″ × 20″	600 × 600	5	14.8
24″ × 24″	600 × 600	10	27.8

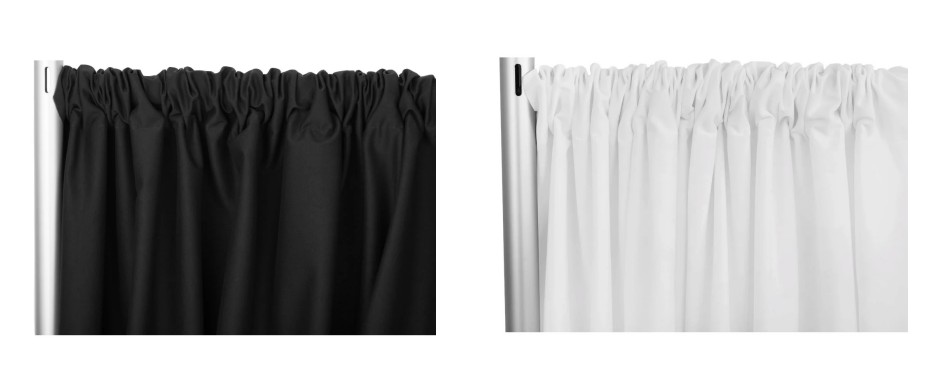

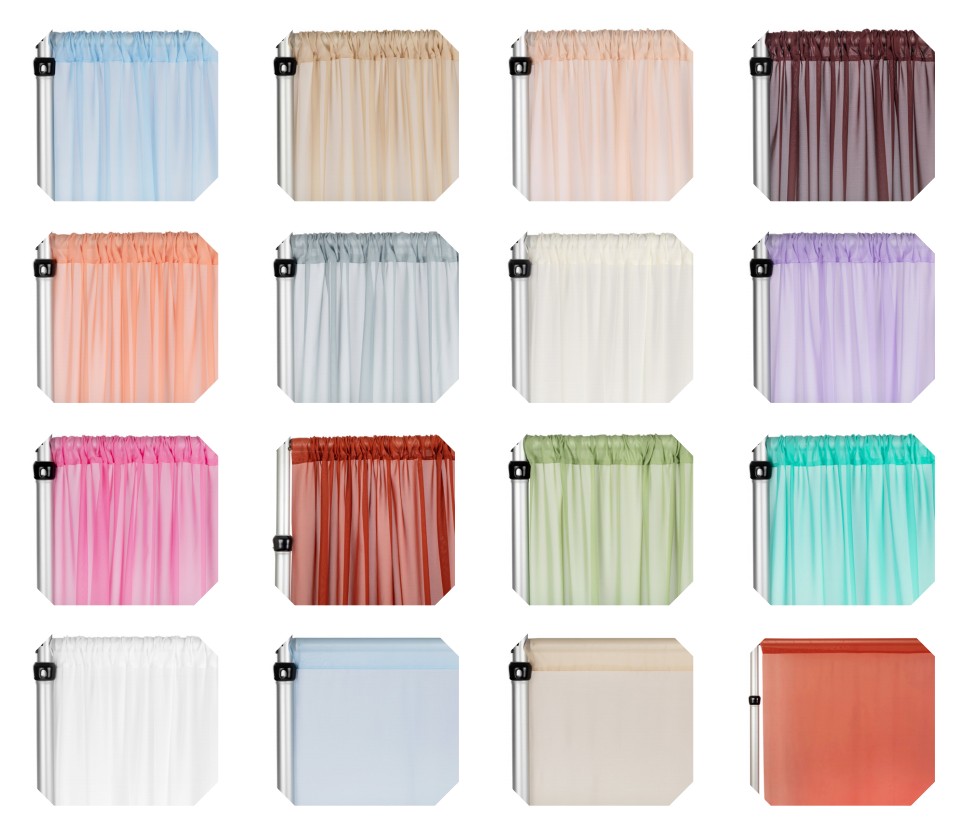

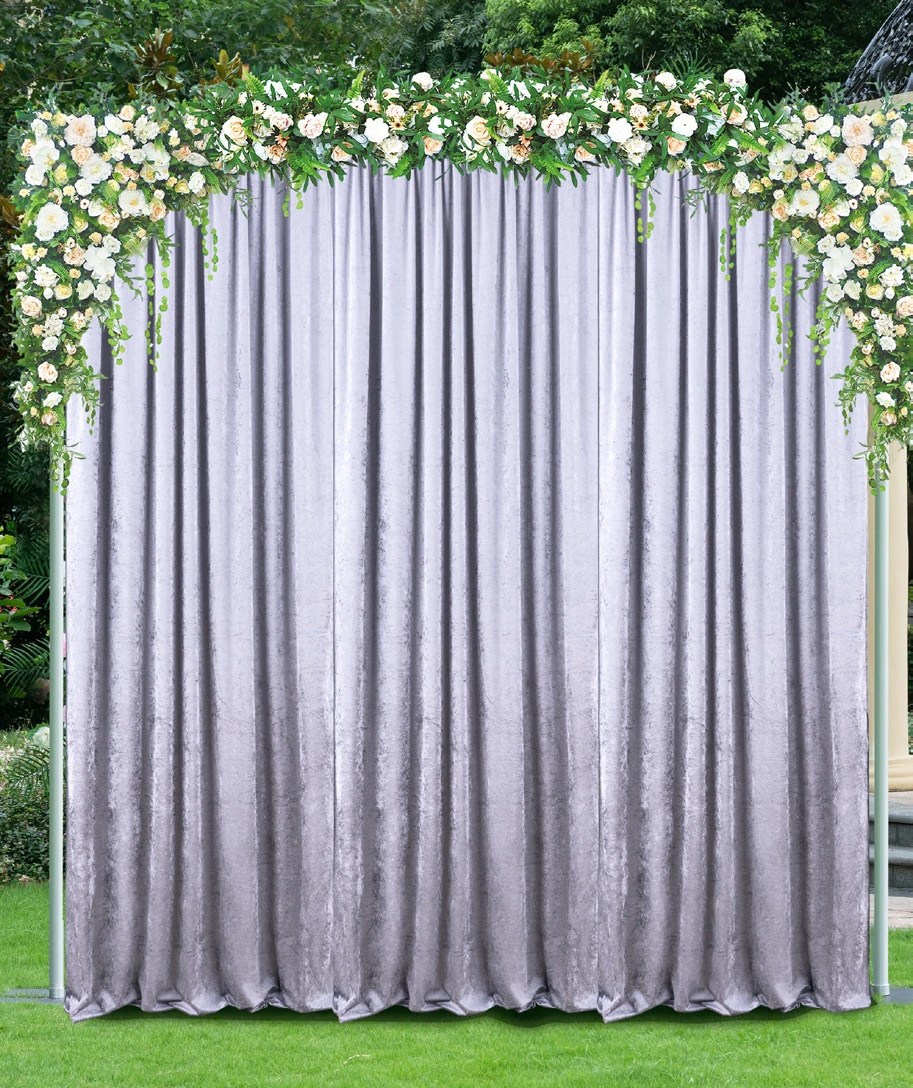

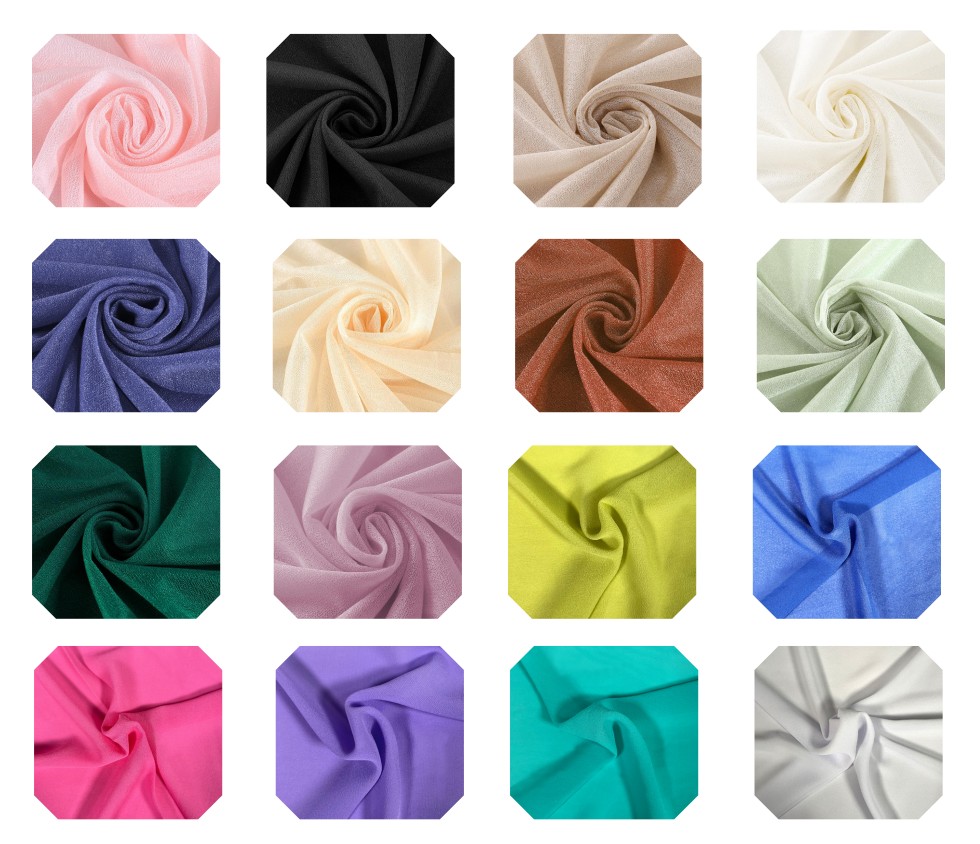

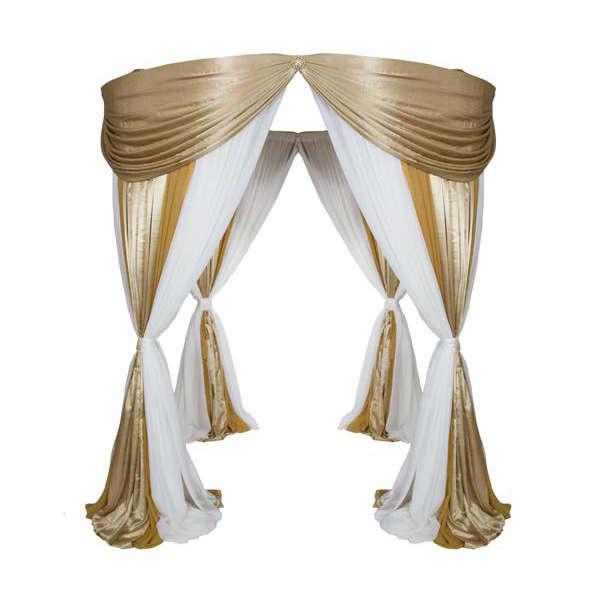

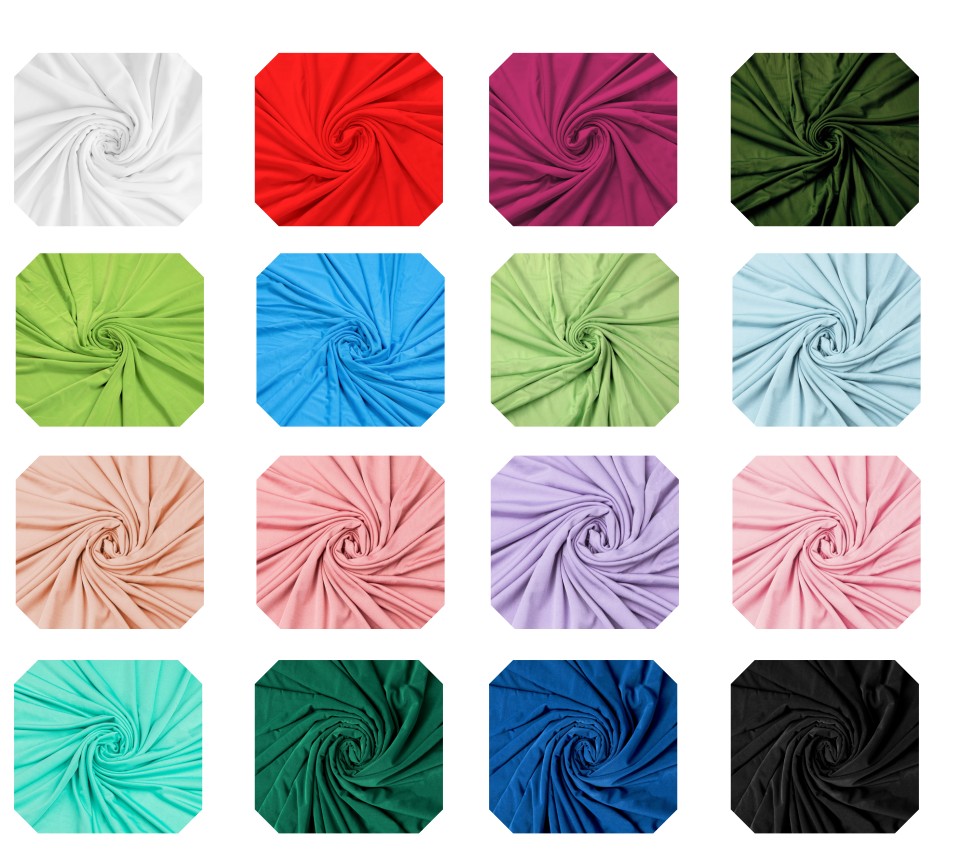

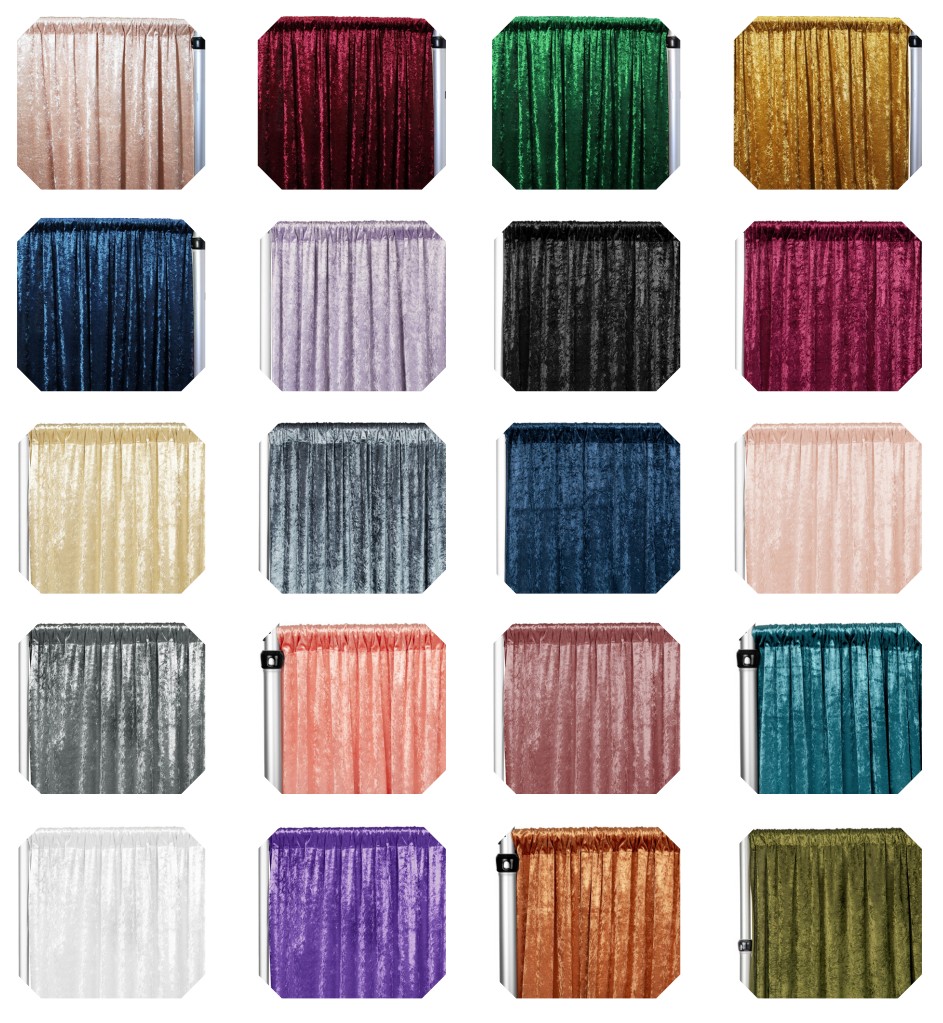

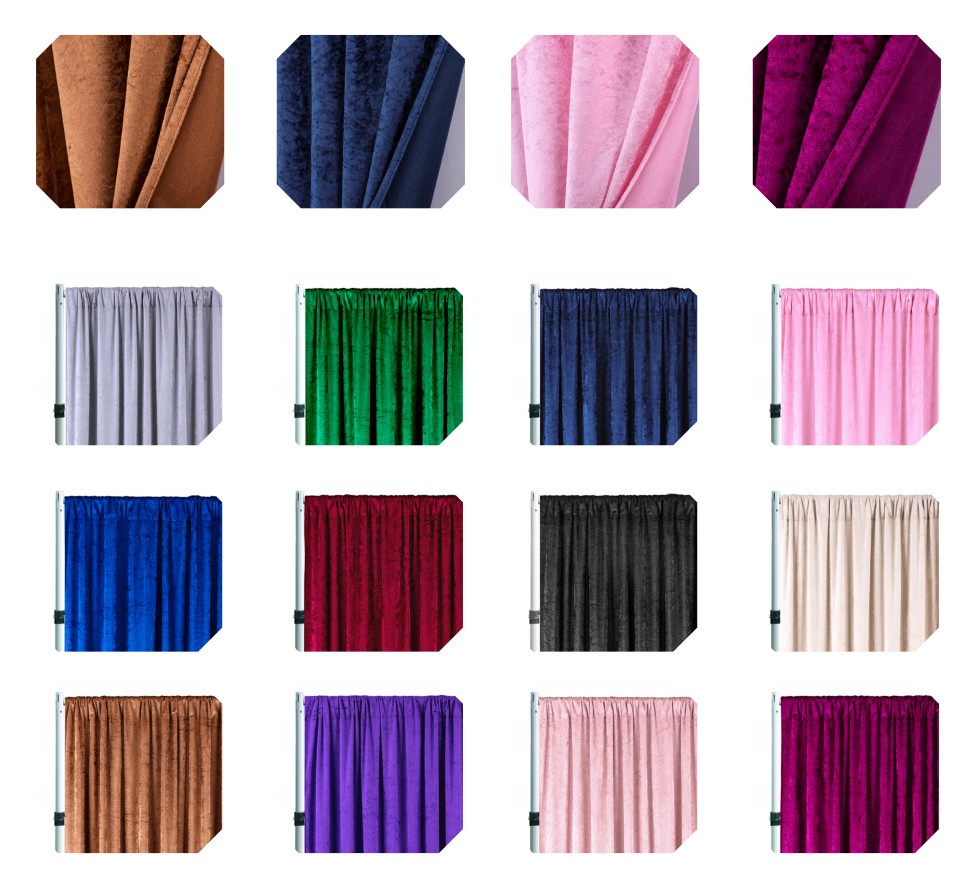

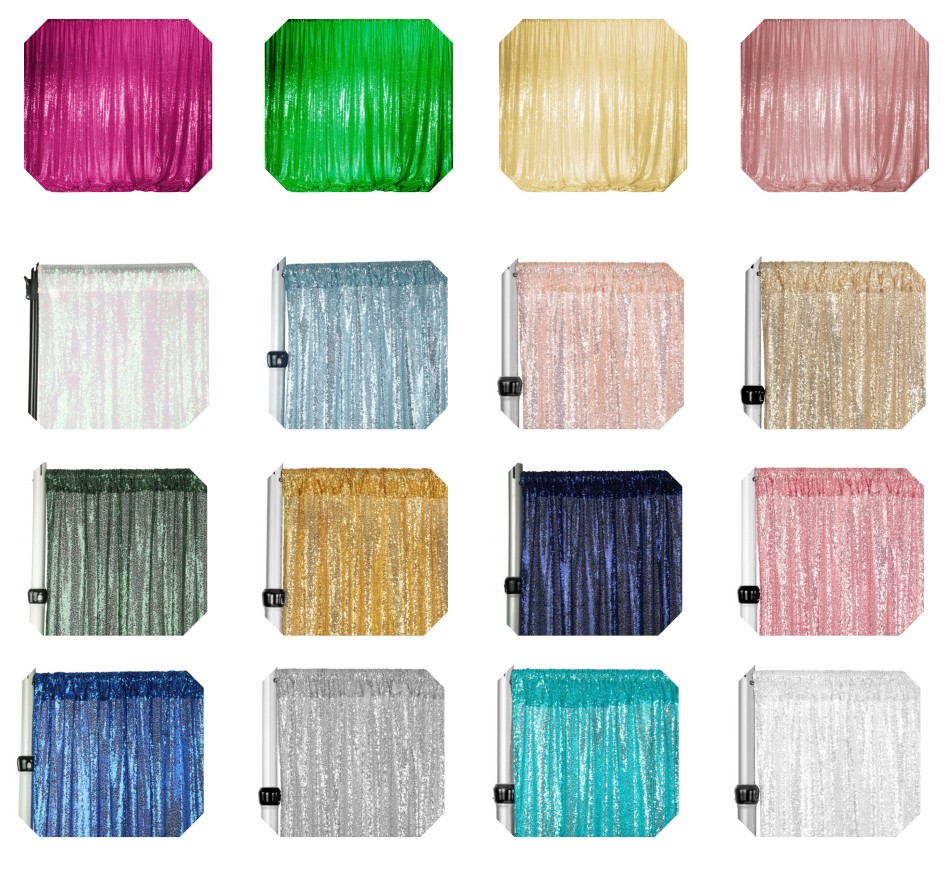

Drapes and Fabric Panels

Accessories expand the system’s layout and improve handling, storage and repeated installation. The accessories required will depend on how the system is used.

Common options may include:

* Multi-direction upright connectors
* Corner and angled-layout fittings
* Upright extensions
* Additional base weights
* Fabric tie-backs and clips
* Transport bags
* Storage racks and trolleys
* Replacement connection parts

Only accessories designed for the selected system should be used. Connection dimensions, locking methods and load behavior can vary between component families.

Transport and storage accessories are particularly useful for rental inventories because they help protect finishes, reduce missing parts and organize components by size. Related storage and transport options can be found within our wider range of event equipment and support solutions.

Plan the Components as One System

The correct combination of uprights, crossbars, bases, drapes and accessories depends on the complete application—not on one component alone. Share your required height, total length, layout, venue type and fabric preference, and DragonStage can help organize a suitable engineering solution.

LEARN MORE

Eight Pipe and Drape Configurations and Backdrop Frames

Modular uprights, crossbars, curved supports, bases and accessories can be combined into a wide range of temporary event structures. Some configurations create functional partitions and enclosed spaces, while others are designed primarily for decorative backdrops, ceremonies and event displays.

The following eight categories represent the principal layouts and frame styles available within the system range. Final dimensions, connections, base selection and accessories should be determined according to the complete structure, decorative materials and installation environment.

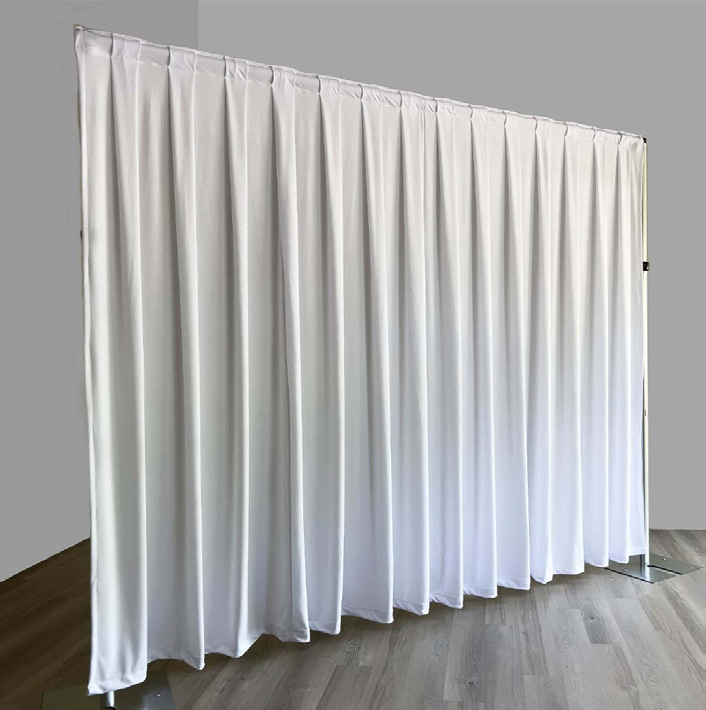

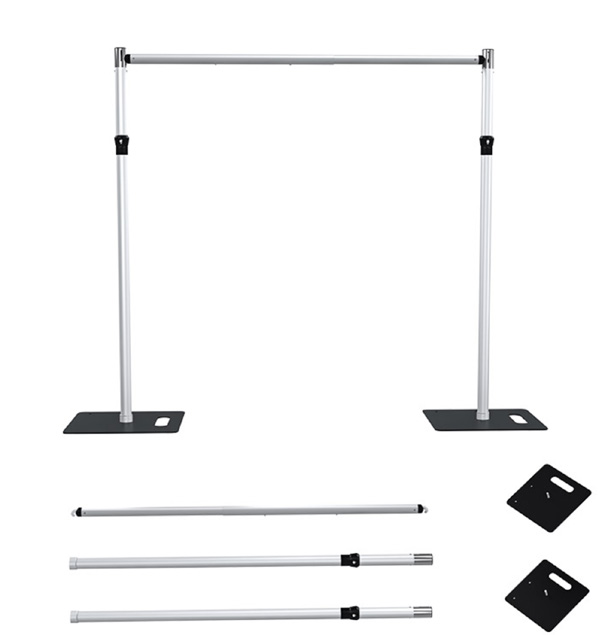

Straight Backdrop

A straight backdrop is the simplest pipe and drape configuration. Multiple sections are connected in one continuous line to create a temporary visual background or partition.

Suitable for:
* Conference stage backgrounds
* Wedding ceremony backdrops
* Photography backgrounds
* Media and interview areas
* Temporary room division
* Equipment and service-area screening

The system can consist of one section for a compact backdrop or several connected sections for a longer temporary wall. Section width, upright height and fabric fullness can be adjusted to suit the required presentation.

For longer installations, the complete line should remain properly aligned, and every upright must use a suitable base.

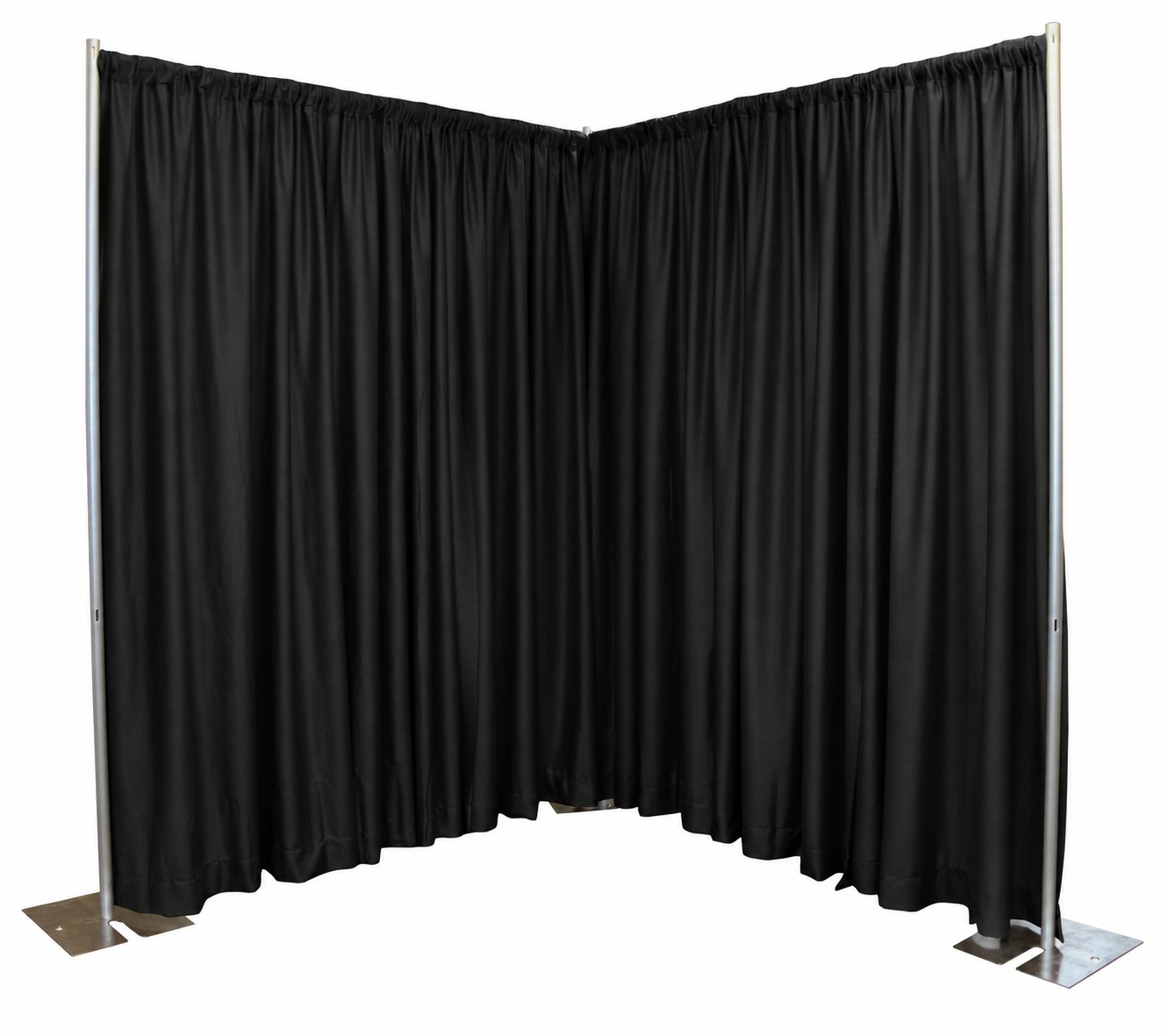

L-Shaped Corner Partition

An L-shaped configuration connects two pipe and drape walls at an angle, usually forming a 90-degree corner. It creates more privacy than a straight backdrop while using fewer components than a complete enclosure.

Suitable for:
* Backstage corners
* Registration areas
* Temporary storage zones
* Changing spaces
* Equipment screening
* Venue service areas

The corner connection must be compatible with the upright and crossbar system. Both sides of the layout should be stabilized as part of one configuration rather than treated as two unrelated walls.

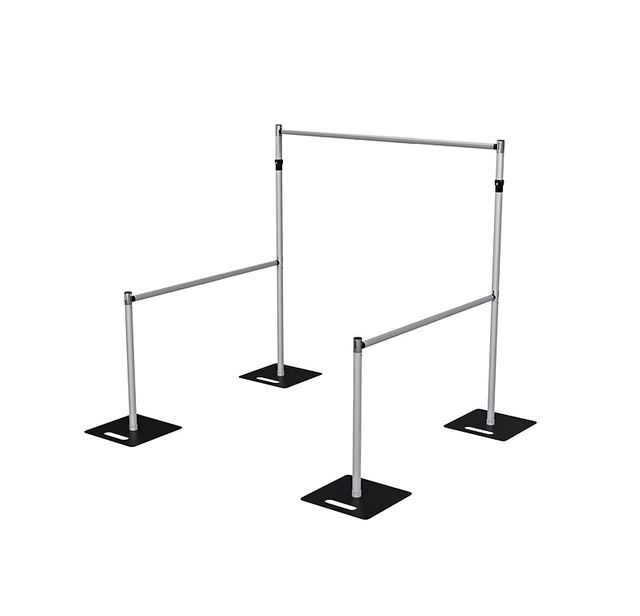

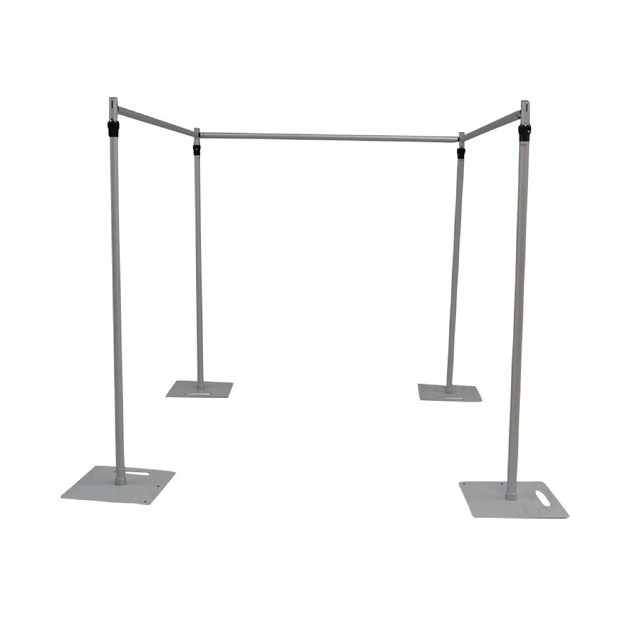

U-Shaped Enclosure

A U-shaped configuration uses four corner uprights and three connected sides to create a partially enclosed temporary space. The front remains open for entry and exit.

Fabric panels can be installed along the back and both sides to provide privacy and visual separation.

Suitable for:

VIP reception areas
Temporary meeting rooms
Dressing and changing areas
Exhibition booths
Product presentation zones
Backstage preparation areas

The width of the opening and the depth of the side walls can be adjusted according to the available space and access requirements.

Wider, taller or more heavily dressed enclosures may require additional uprights, suitable bases or other stabilizing measures. This configuration can also support temporary planning for exhibitions and trade shows.

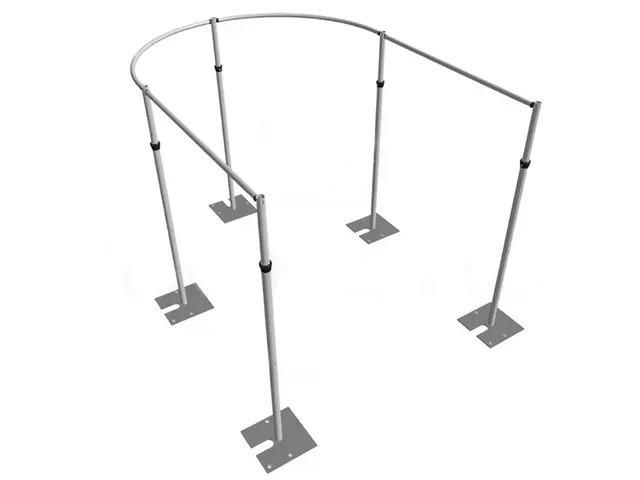

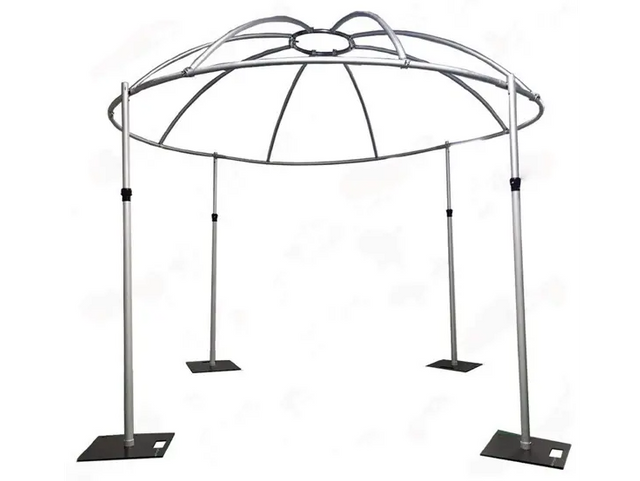

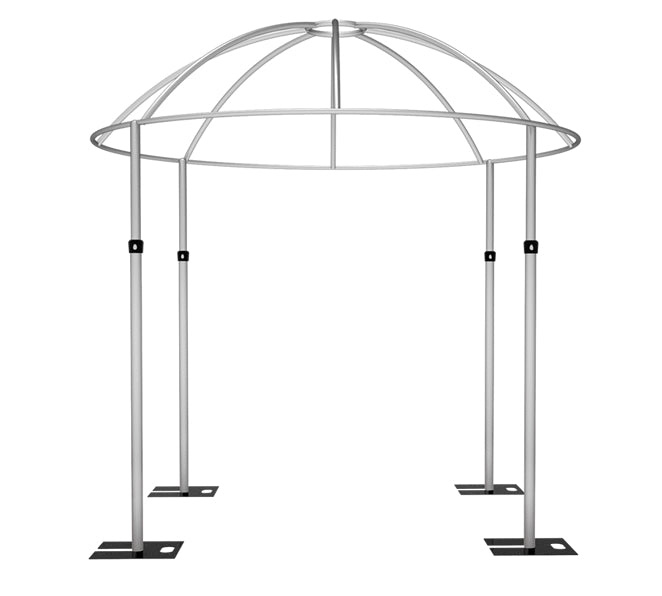

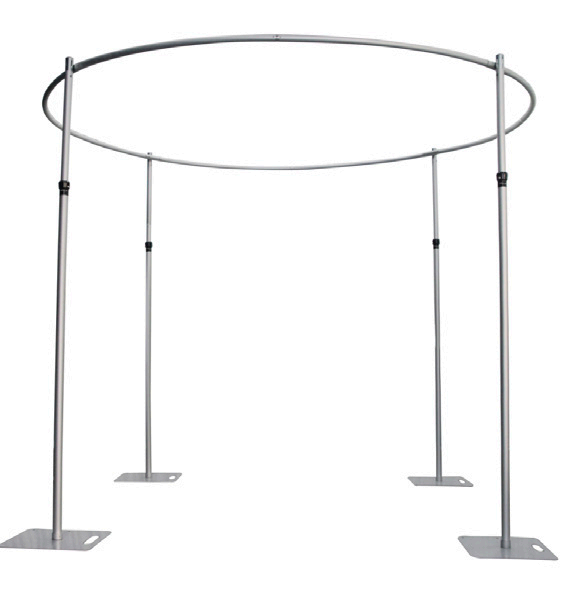

Curved and Circular Systems

Curved systems use purpose-made curved horizontal supports instead of standard straight crossbars. The curved components can form a semicircular wall, a partial arc or a complete circular enclosure.

Available forms may include:

Shallow curved backdrops
Semicircular partitions
Circular changing areas
Round exhibition spaces
Curved ceremony backgrounds
Circular decorative enclosures

A semicircular system may use several uprights positioned along the curve. A complete circular layout uses multiple supported curved sections to create an enclosed or nearly enclosed space.

These configurations should not be confused with segmented backdrops made from multiple straight sections. Curved systems require compatible curved supports, connection points and base positions designed for the selected diameter.

Suitable for:

Wedding ceremonies
Circular photo areas
Product displays
VIP spaces
Temporary changing rooms
Immersive event environments

Curved systems are particularly useful for creating distinctive wedding and ceremony environments.

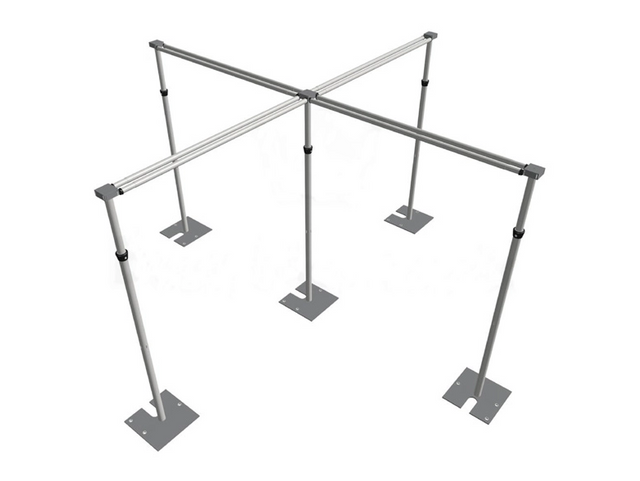

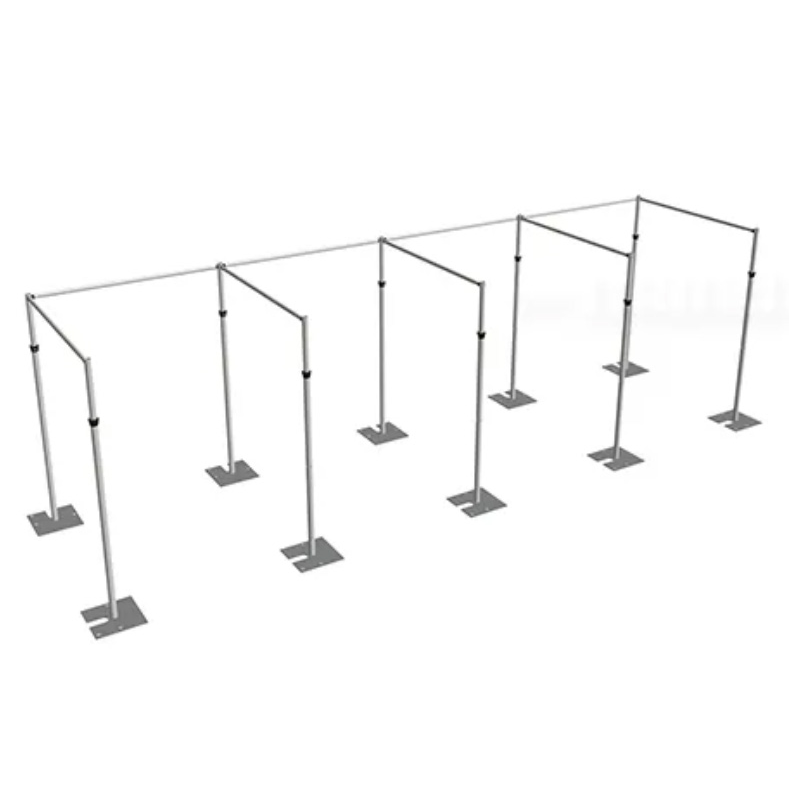

Exhibition Booth and Grid Layouts

Multiple uprights and crossbars can be organized into repeated booth layouts, cross-shaped dividers or larger grid systems. These configurations divide an open floor into several temporary spaces using a coordinated component layout.

Suitable for:

Standard exhibition booths
Multi-booth installations
Trade-show aisles
Shared display areas
Temporary meeting spaces
Product demonstration zones
Storage and service-area screening

A typical exhibition booth may combine a back wall with two shorter side walls. A cross-grid configuration can create four adjoining sections from a shared central connection.

Repeated dimensions make it easier to organize components, installation sequences, replacement parts and rental inventory.

When planning multiple booths, consider:

Aisle width
Entrance positions
Emergency routes
Neighboring booth access
Shared uprights and connections
Consistency across repeated sections

Explore related exhibition booth solutions.

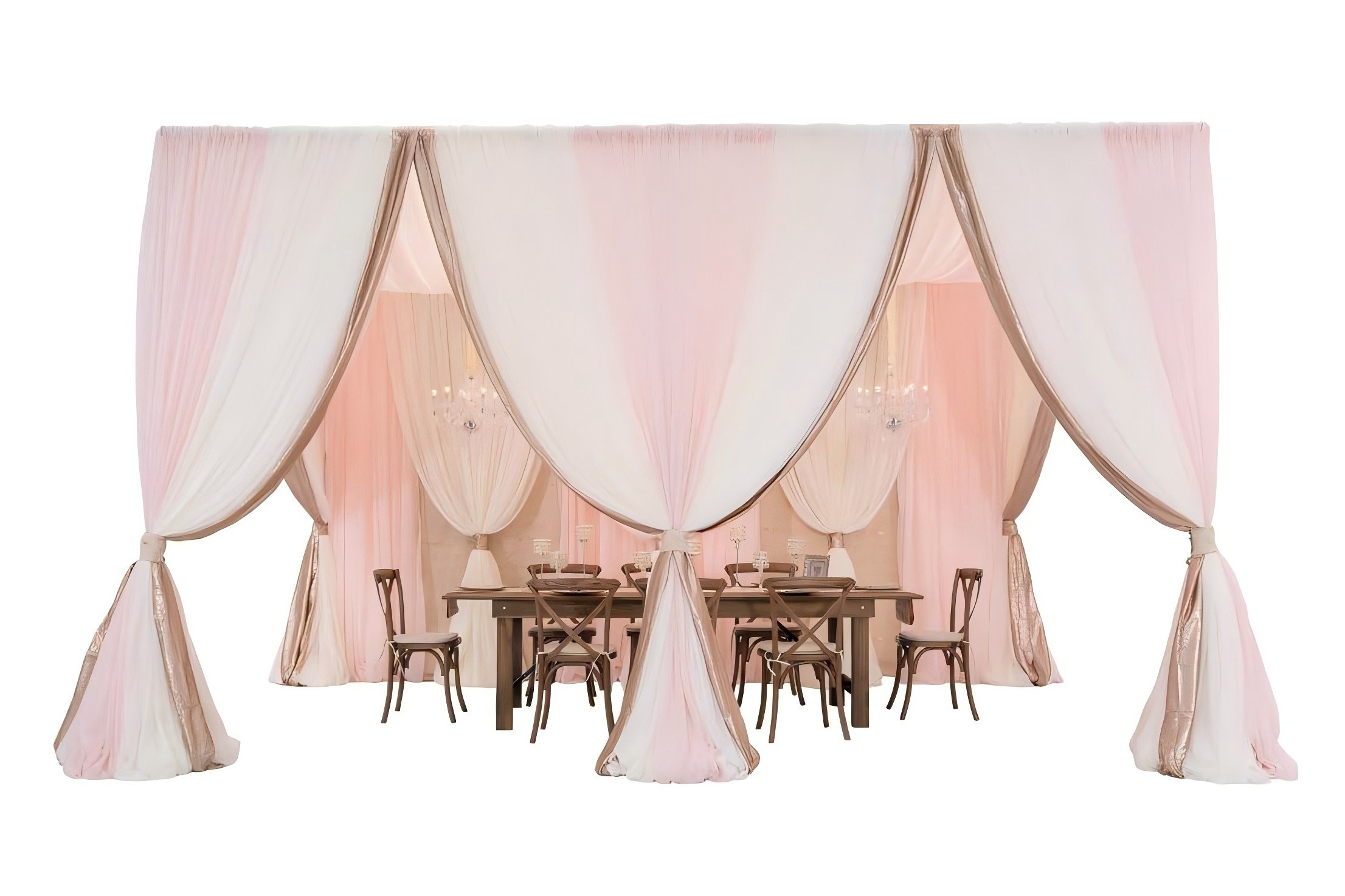

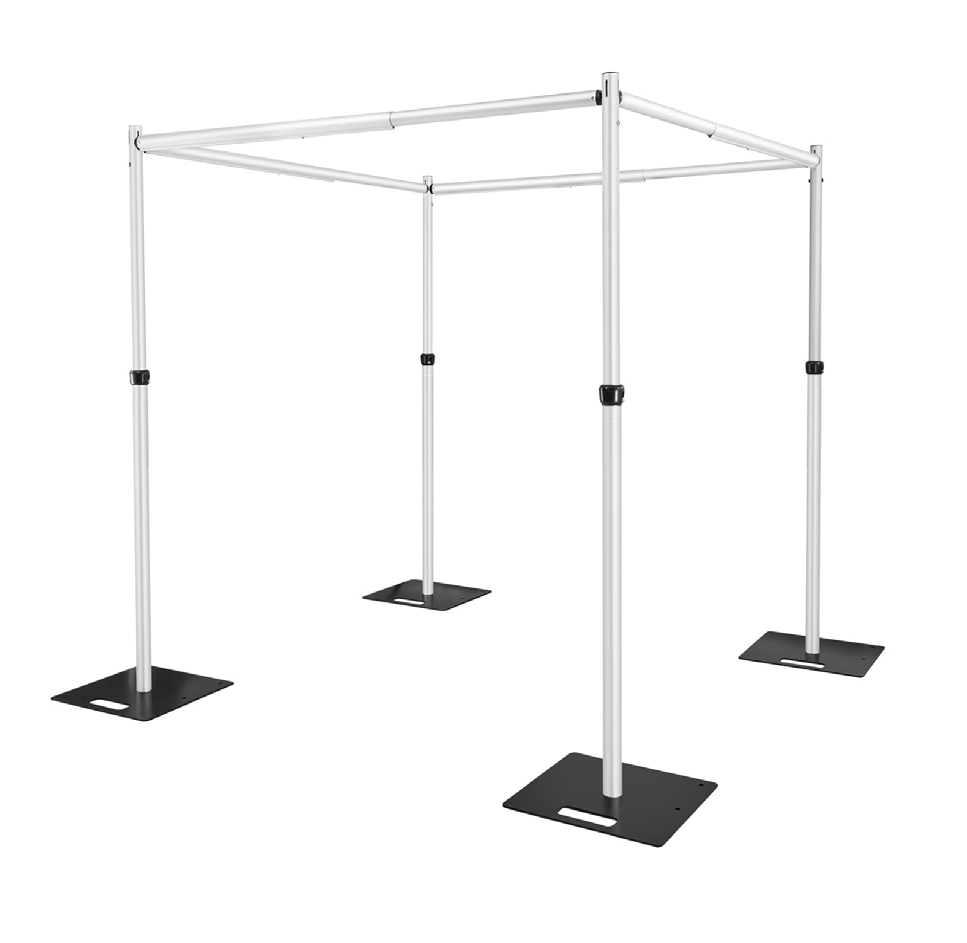

Rectangular Canopy Frame

A rectangular canopy frame uses four or more uprights connected by horizontal supports around the top perimeter. It defines a freestanding three-dimensional decorative space rather than a simple vertical partition.

Fabric or decorative materials may be installed around the sides.

Lightweight overhead decoration may only be added when the selected frame and connections are specifically designed for that purpose.

Suitable for:

Indoor wedding decoration
Banquet feature areas
Ceremonial spaces
Lounge and VIP zones
Decorative photo areas
Indoor product presentations

The top frame changes how the structure behaves and should be planned as a complete rectangular system. Upright positions, base selection, connection direction and decorative load must be considered together.

A rectangular canopy frame is not an event tent or structural roof. It should not be presented as weather protection or assumed suitable for outdoor use.

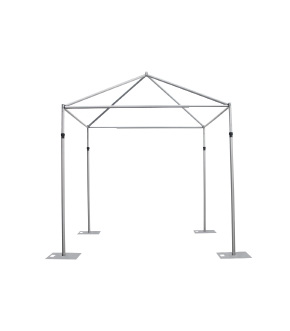

Peaked Canopy Frame

A peaked canopy frame adds inclined upper supports to form a central ridge or decorative roof-like shape. This creates a more architectural appearance than a flat rectangular canopy.

Suitable for:

Wedding ceremony features
Indoor ceremonial structures
Decorative entrances
Banquet installations
Themed event environments
Fabric-draped feature areas

The sloped upper members must connect through compatible fittings and be supported by the complete upright and base arrangement.

Because the elevated frame may carry fabric, flowers or other decorative materials, the total decorative weight and component compatibility must be confirmed before installation.

A peaked canopy is intended as a decorative indoor frame. It is not a structural tent, outdoor roof or weather-resistant shelter.

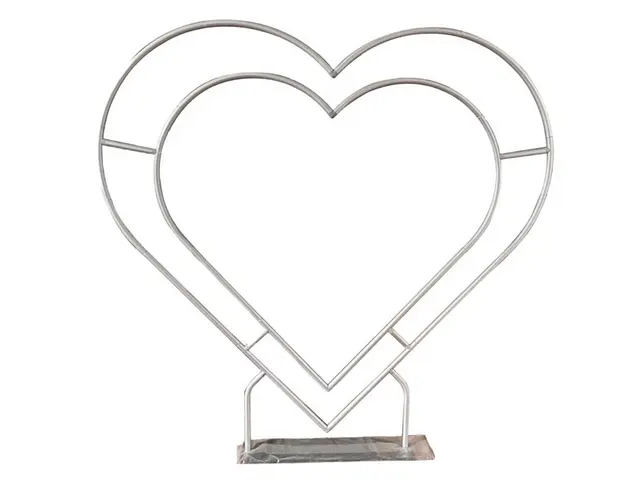

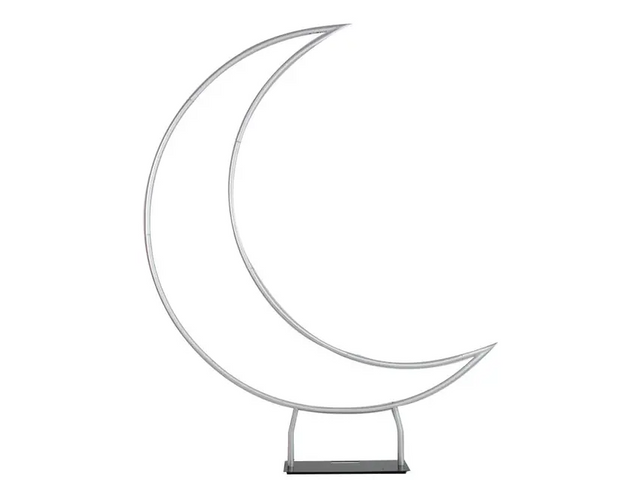

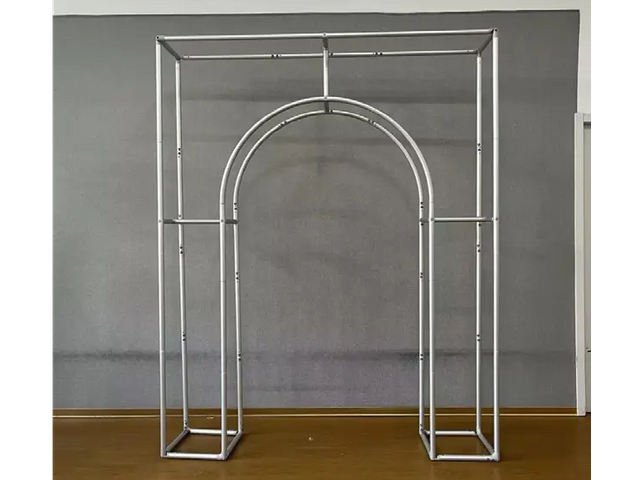

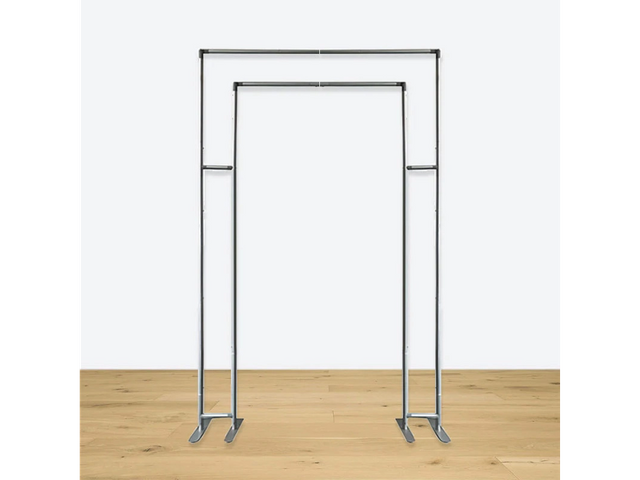

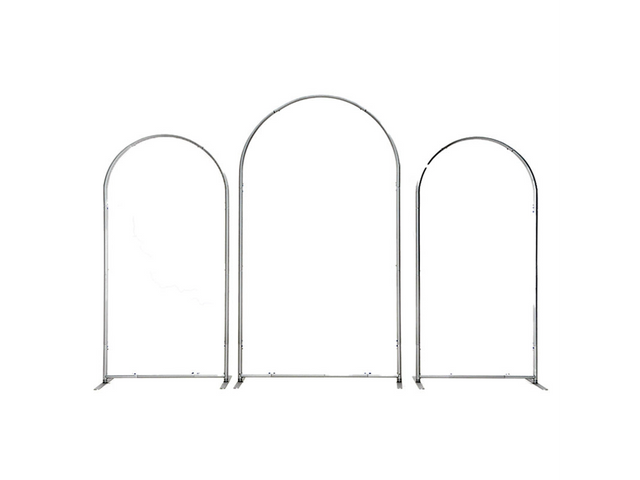

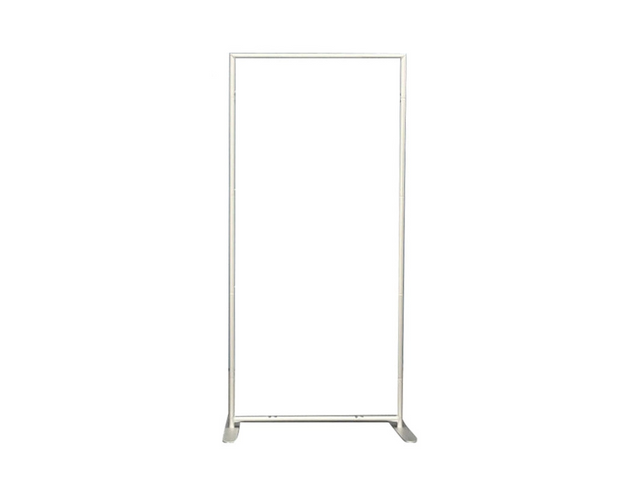

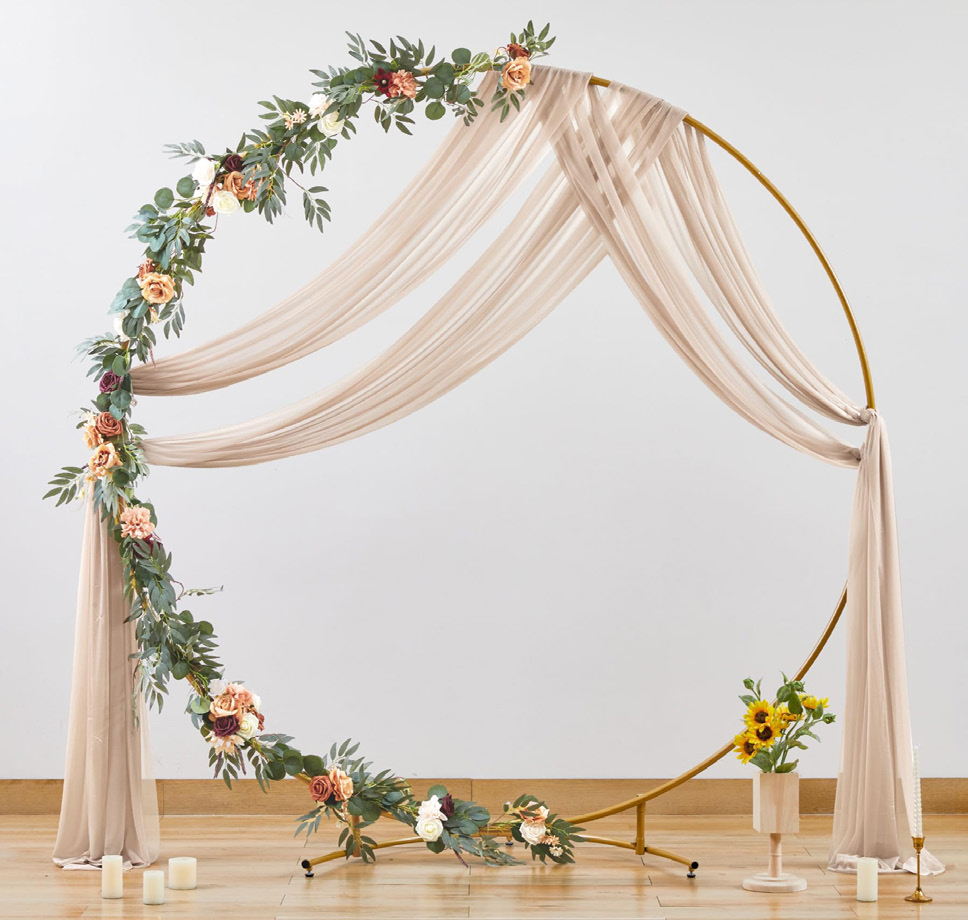

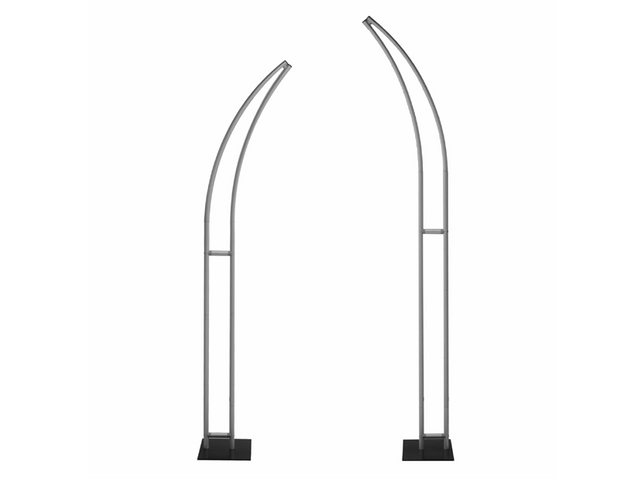

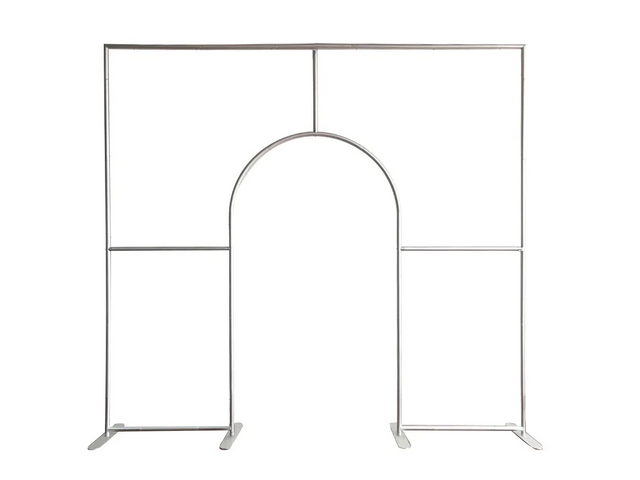

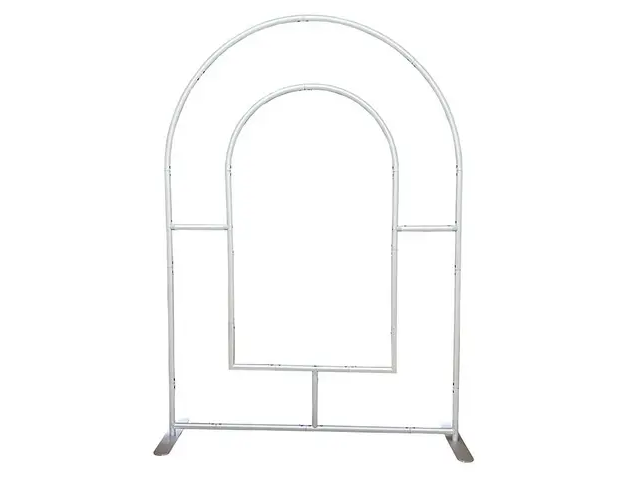

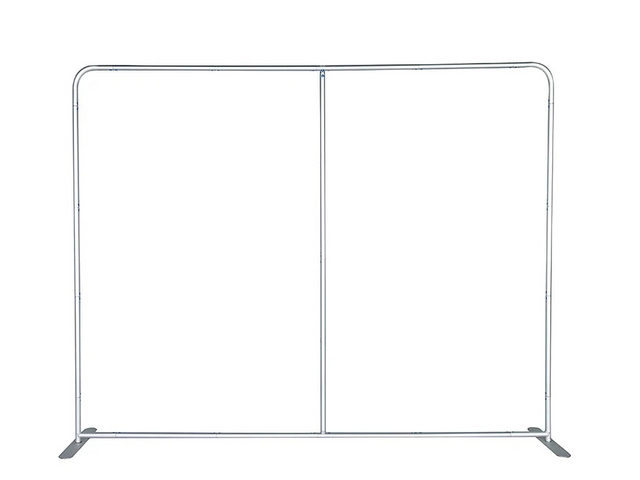

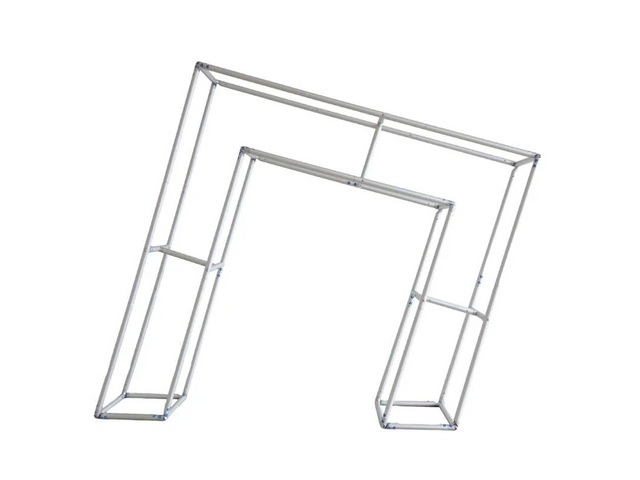

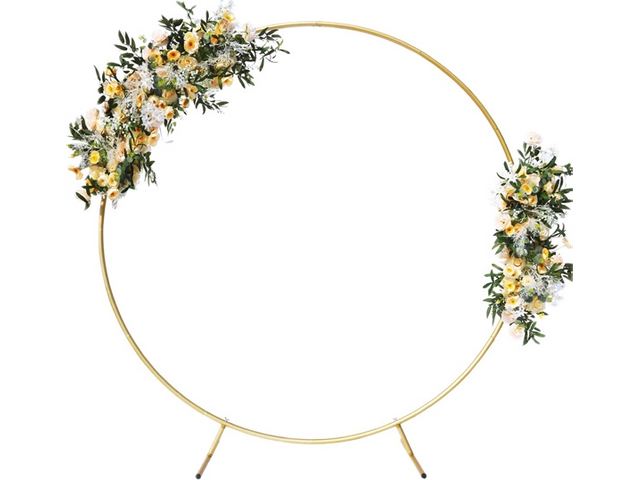

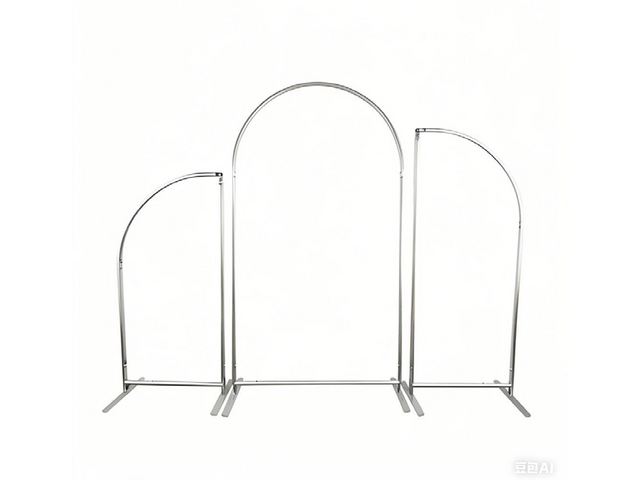

Custom Decorative Backdrop Frames

In addition to conventional pipe and drape partitions, custom decorative frames can be used to create more distinctive event backgrounds and display structures.

Available forms may include:

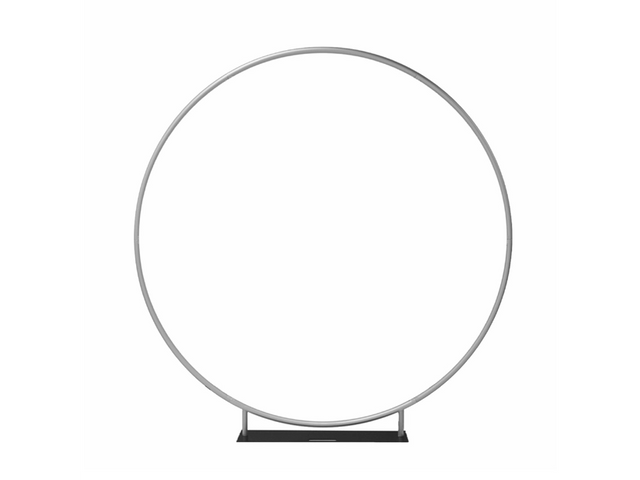

Circular backdrop frames

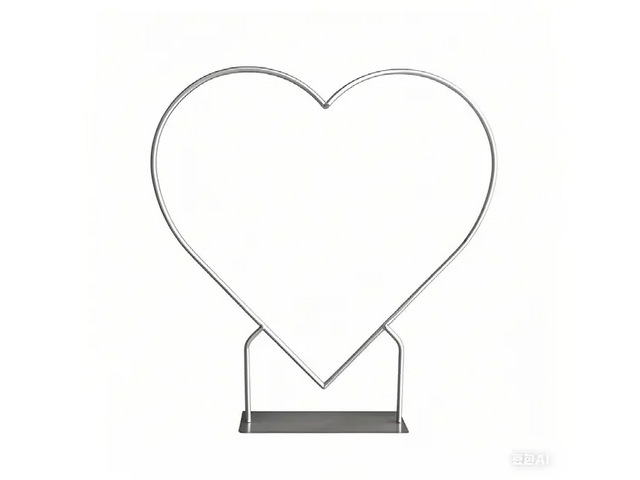

Heart-shaped frames
Butterfly-style display frames

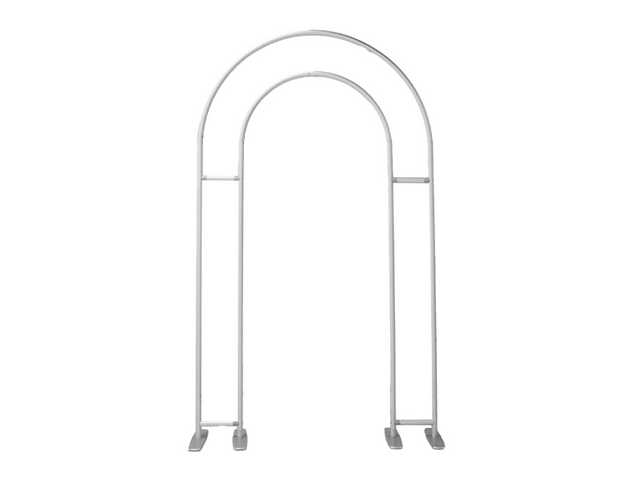

Single arch frames
Multi-panel arch arrangements

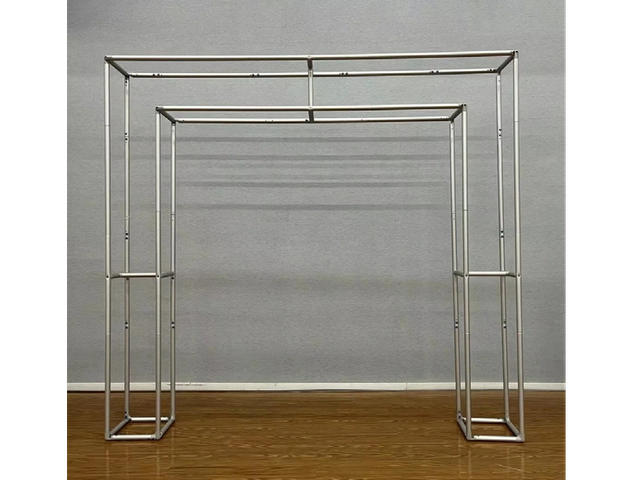

Layered rectangular backdrops
Combined arch and rectangular structures
Custom curved or geometric designs

These products differ from traditional pipe and drape walls. They are generally intended to support flowers, lightweight fabrics, signage and other decorative elements rather than create continuous temporary partitions.

Suitable for:

Wedding ceremony backdrops
Photo and video areas
Floral installations
Brand activations
Decorative entrances
Product display backgrounds
Custom event themes

The frame shape, dimensions, base design and connection method should be selected according to the intended decoration. Flowers, signs and fabric still add weight and may affect the stability of the structure.

Complex shapes may require custom production rather than standard interchangeable pipe and drape components.

Choosing the Right Configuration

The most suitable configuration depends on:

Required height, width and overall footprint
Straight, curved or three-dimensional layout
Number of enclosed sides
Access and exit requirements
Fabric type and weight
Additional flowers, signage or decorations
Available floor area
Public movement around the structure
Indoor airflow or outdoor exposure
Installation, transport and storage requirements

Straight partitions and basic enclosures can often be assembled from standard modular components. Curved systems, canopy frames and decorative shapes may require dedicated crossbars, connectors or custom-produced frame sections.

DragonStage can help organize a practical engineering solution based on your venue dimensions, application, preferred shape and decorative requirements.

Discuss Your Required Configuration

Pipe and Drape Application Areas

Pipe and drape systems can be configured for functional space division, visual presentation and event decoration. The appropriate layout depends on the venue, required dimensions, level of privacy, decorative materials and installation environment.

The following six application areas cover many common uses for standard pipe and drape components, curved systems, canopy frames and custom decorative backdrops.

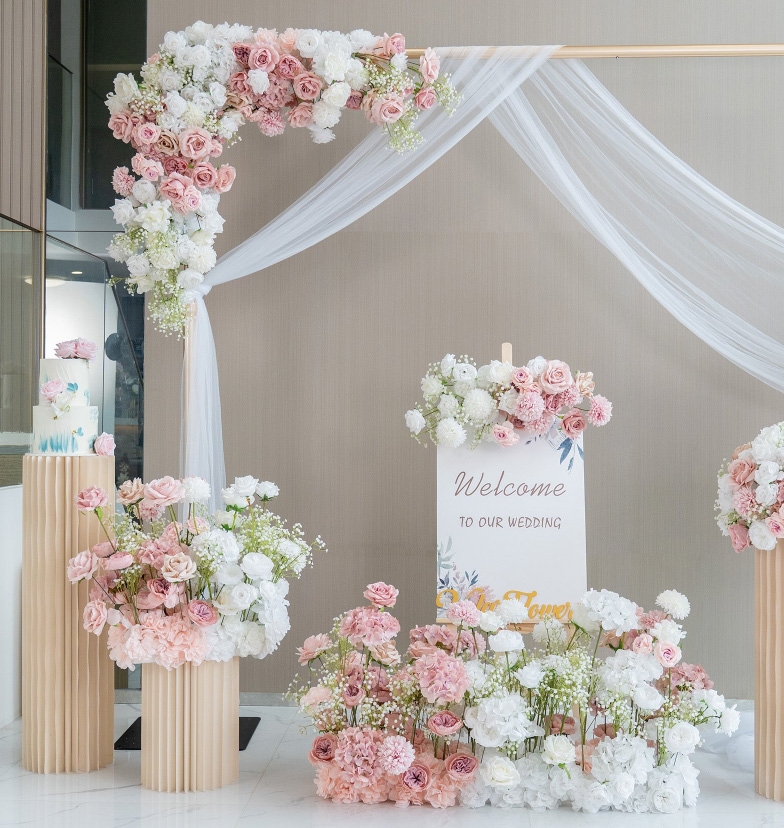

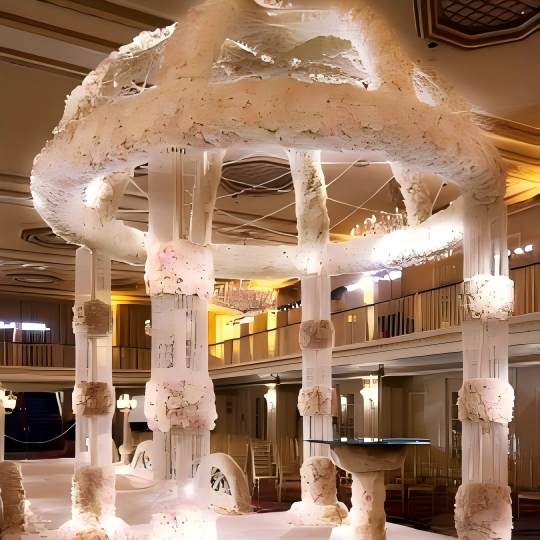

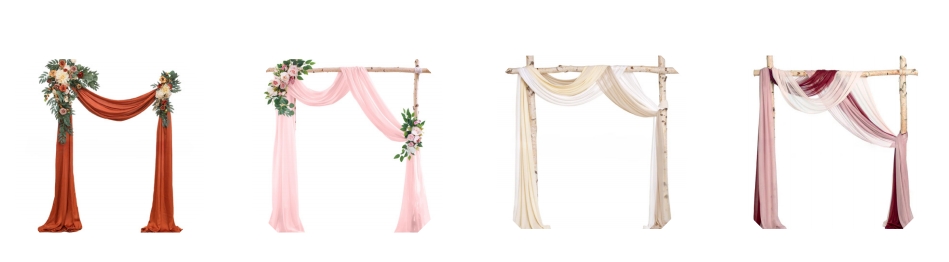

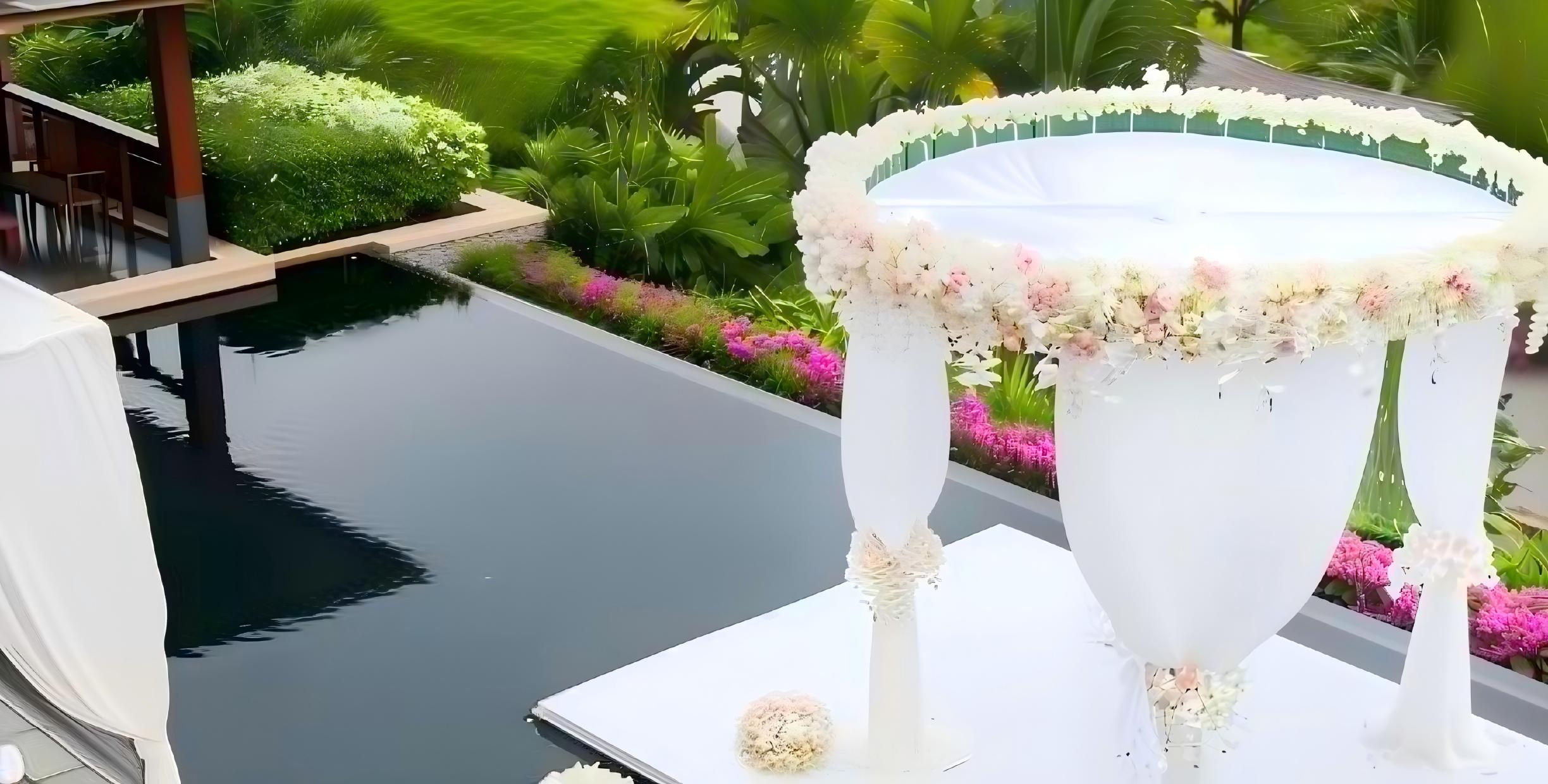

Weddings and Ceremonies

Pipe and drape systems are widely used to create ceremony backgrounds, reception features and decorative spaces. Adjustable frames allow the backdrop dimensions and layout to be coordinated with the stage, aisle, venue and floral design.

Common applications include:

Wedding ceremony backdrops
Reception stage backgrounds
Sweetheart table backgrounds
Photo areas
Decorative entrances
Aisle features
Temporary changing areas
Venue wall screening

Straight pipe and drape walls provide a clean fabric background, while circular, heart-shaped, moon-shaped and arch frames support more distinctive decorative concepts. Rectangular and peaked canopy frames can also define an indoor ceremonial or lounge area.

Flowers, signs, lighting and fabric add weight to the frame. Their positioning should therefore be considered when selecting the structure and base arrangement.

Explore more ideas for wedding and ceremony applications.

SHOP·NOW

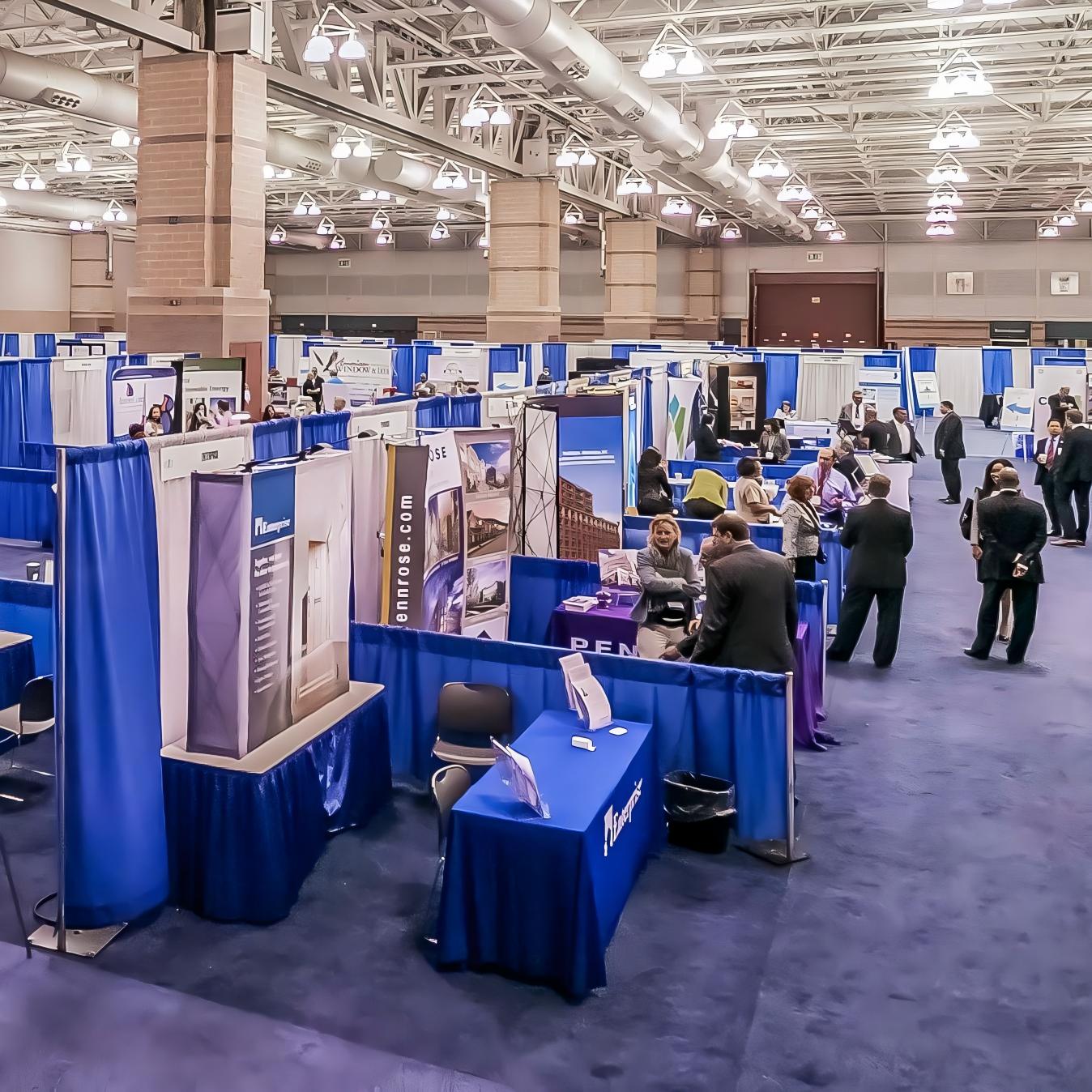

Exhibitions and Trade Shows

Modular pipe and drape components can divide an open exhibition hall into individual booths, meeting areas, storage zones and service spaces.

Common applications include:

Exhibitor back walls
Booth side walls
Multi-booth grids
Trade-show aisle divisions
Temporary meeting areas
Product display backgrounds
Storage-area screening
Registration and reception areas

Repeated booth dimensions make it easier to organize installation and rental inventory. Cross-grid layouts can create several adjoining booths from shared uprights and connection points.

The system layout should account for aisle width, booth access, emergency routes and neighboring exhibitors. Drapes and signage must remain within the permitted booth dimensions.

SHOP·NOW

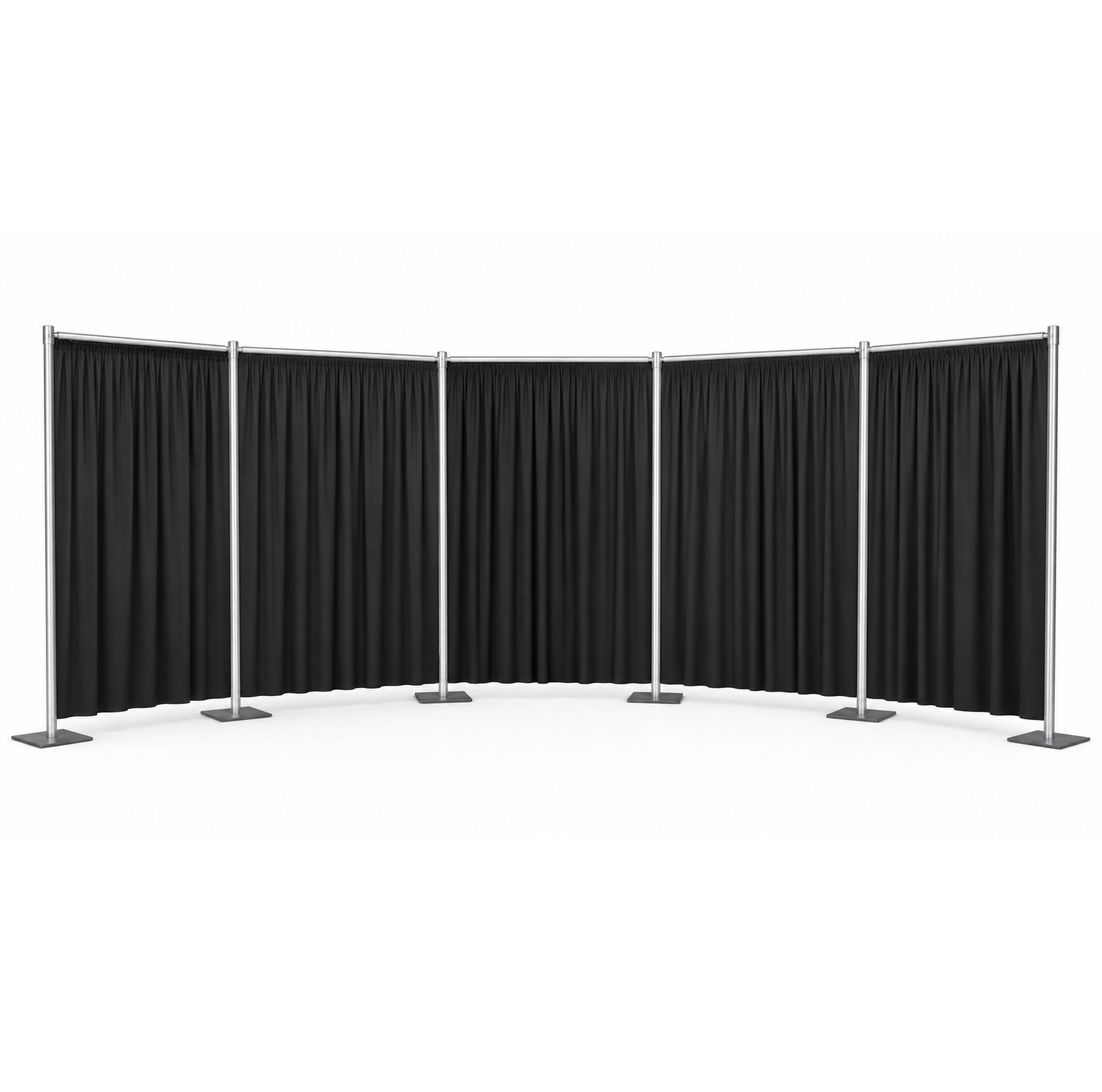

Conferences and Corporate Events

Pipe and drape systems help transform conference rooms and temporary venues into organized presentation environments. They can conceal venue surfaces, equipment and service areas while creating a consistent visual background.

Common applications include:

Conference stage backdrops
Speaker and presentation backgrounds
Media interview areas
Press walls
Registration zones
Temporary meeting rooms
Breakout-space partitions
Product-launch backgrounds

Straight backdrops are suitable for stages and media areas, while L-shaped and U-shaped configurations can create temporary rooms or screened preparation spaces.

Fabric color, opacity and lighting should be coordinated with projection screens, cameras and corporate branding. The system should not obstruct exits, ventilation, lighting equipment or venue services.

SHOP·NOW

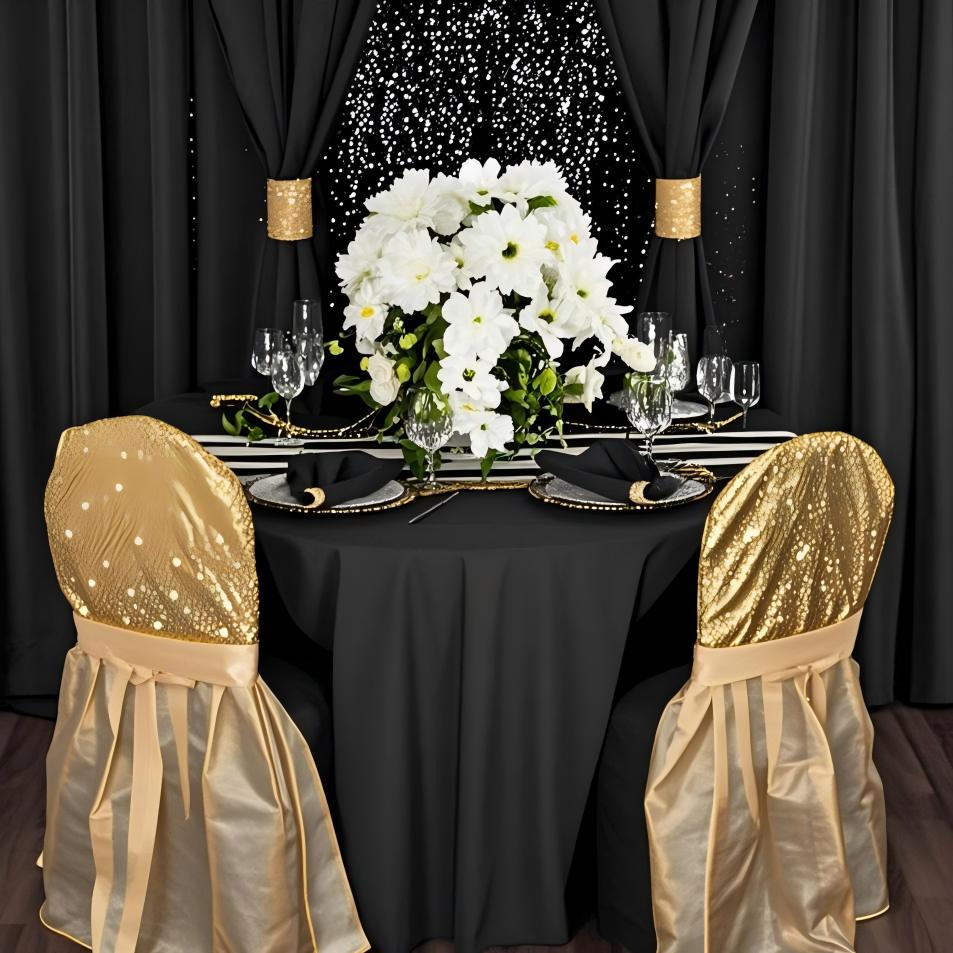

Hotels, Banquets and Event Venues

Hotels and banquet venues often need to adapt the same room for different functions. Portable pipe and drape systems provide temporary visual separation without permanent construction.

Common applications include:

Ballroom division
Banquet stage backgrounds
Service-area screening
Temporary corridors
VIP lounge areas
Ceremony spaces
Decorative room features
Concealment of unused venue sections

Reusable components allow venues to reorganize the room for weddings, conferences, dinners and private functions. Fabric finishes can be changed to suit different themes and presentation requirements.

Rectangular canopy frames, curved backdrops and decorative arches may be used for indoor feature areas. These frames should not obstruct fire equipment, emergency routes or staff access.

SHOP·NOW

Backstage and Event Production Areas

Behind-the-scenes event spaces often require temporary privacy, equipment screening and controlled access. Pipe and drape systems can create practical backstage layouts that are easy to dismantle after the event.

Common applications include:

Dressing and changing rooms
Artist waiting areas
Crew preparation zones
Equipment screening
Temporary storage areas
Backstage corridors
Catering and service-area partitions
Production office spaces

Straight walls can separate larger areas, while L-shaped and U-shaped layouts provide more private temporary rooms. Dark, opaque drapes are commonly used to reduce visual distraction and conceal production equipment.

Backstage layouts should preserve clear access to exits, cables, technical equipment and emergency routes. Related planning considerations can be found within our concert and event applications.

SHOP·NOW

Photography, Brand Activations and Decorative Displays

Backdrop systems provide a flexible foundation for photography, branded environments, product displays and interactive event installations.

Common applications include:

Photography backgrounds
Step-and-repeat media walls
Product launch displays
Brand activation zones
Promotional photo areas
Floral installations
Seasonal decorations
Social-media content spaces

Standard pipe and drape walls create large continuous backgrounds. Circular, heart-shaped, moon-shaped, arched and layered geometric frames can support more decorative concepts.

Printed graphics, signs, flowers, fabric and lighting can be incorporated according to the frame design. Decorative elements must remain compatible with the structure and should not exceed the intended capacity of the frame.

Custom shapes can be developed for a specific campaign, venue or visual theme.

Explore our wider range of event applications.

SHOP·NOW

Planning a System for Your Application

The right configuration depends on:

Application and event type
Venue dimensions
Required height and width
Level of privacy or enclosure
Fabric and decorative materials
Public access around the structure
Installation and dismantling schedule
Transport and storage requirements
Indoor or outdoor conditions

DragonStage can help organize a suitable engineering solution around your layout, application and component requirements.

Tell Us About Your Event

Material and System Selection Guide

A pipe and drape system should be selected as a complete configuration rather than as a collection of separate components. Uprights, crossbars, bases, drapes and accessories must be compatible and appropriate for the required dimensions, layout and installation environment.

Material selection affects the system’s weight, handling, appearance, durability and stability. The correct choice depends on how and where the system will be used.

Upright and Crossbar Materials

Aluminum Components

Aluminum is commonly used for portable uprights and crossbars because it offers a practical balance between strength, component weight and corrosion resistance.

Typical advantages include:

Easier handling and transportation

Suitable for repeated event setup

Resistance to normal indoor corrosion

Clean professional appearance

Compatibility with telescopic component designs

The aluminum grade, wall thickness, connection design and component dimensions all affect performance. Material type alone does not determine whether a component is suitable for a specific configuration.

Learn more from our material and component knowledge resources.

Steel Components

Steel may be used for selected uprights, decorative frames, connectors and other components where additional rigidity or manufacturing flexibility is required.

Typical characteristics include:

Greater component weight

Good rigidity for selected frame designs

Suitable for welded decorative shapes

Requires an appropriate protective finish

May increase transport and handling requirements

Steel and aluminum components should not be treated as direct replacements based only on their dimensions. Their weight, strength, connection method and structural behavior differ.

For more background, see our comparison of steel and 6061-T6 aluminum.

Base Plate Materials

Base plates are commonly made from steel because their weight contributes to the stability of the freestanding system.

Important base characteristics include:

Plate dimensions

Material thickness

Total weight

Upright connection position

Handle or carrying slot

Surface finish

Compatibility with additional ballast

A larger base is not automatically suitable for every application, and additional weight cannot correct an incompatible or poorly arranged structure.

Base selection should consider the complete height, width, layout, fabric and installation environment. See how to calculate steel or aluminum base weight for related selection factors.

Drapes and Fabric Panels

Drapes provide the visual surface of the system and may be used for decoration, privacy, light control or equipment screening.

Fabric selection should consider:

Required panel height and width

Fabric weight

Opacity

Surface texture

Color

Flat or pleated presentation

Desired fullness

Cleaning requirements

Frequency of use

Applicable venue fire-performance requirements

Lightweight Fabric

Lightweight fabric is easier to transport and may be suitable for decorative indoor backdrops. Depending on its construction, it may provide less opacity and can react more noticeably to airflow.

Opaque Event Drape

Opaque fabric is suitable for privacy screens, backstage areas and equipment concealment. Its additional weight must be considered when selecting crossbars and bases.

Velour or Heavy Decorative Fabric

Heavier decorative fabrics can create a richer visual finish and may help reduce reflected light. They also place greater demand on the supporting components and stability arrangement.

Sheer and Decorative Fabric

Sheer fabrics are often used for weddings, layered backgrounds and decorative canopy frames. They should be treated as visual materials, not structural elements.

All fabric types can react to airflow. Outdoor or semi-open installations require particular caution because the drape can create significant wind load.

Cut Velvet

Cut velvet features a dense raised surface with a soft, understated luster, giving event backdrops a refined and premium appearance.

Provides strong opacity for privacy and visual screening
Hangs with substantial weight and natural fullness
Helps create rich, deep-colored backdrops
Suitable for stages, conferences, weddings and formal events

Glitz Sequin Mesh

Glitz sequin mesh combines a lightweight mesh base with reflective sequins to create a bright, decorative surface that responds dynamically to event lighting.

Produces a sparkling effect under spotlights and ambient lighting
Suitable for parties, weddings, celebrations and commercial events
Can be used independently or layered over solid-colored drapes
Ideal for photo areas, stage backgrounds and decorative feature walls

Velvet

Velvet has a soft, smooth pile and a rich visual depth, making it suitable for elegant and formal event environments.

Creates a luxurious and polished backdrop
Provides good opacity and light control
Offers natural drape and fabric fullness
Selected washable varieties can support repeated event use
Suitable for theatres, ceremonies, stages and VIP areas

Care and washing requirements depend on the specific velvet composition and finish.

Four-Way Stretch Spandex

Four-way stretch spandex extends in both horizontal and vertical directions, allowing it to fit smoothly over compatible frames and structures.

Creates a clean, tensioned presentation
Recovers its shape after stretching
Helps reduce visible creasing when installed correctly
Available in a wide range of colors
Suitable for frame covers, decorative panels and modern event backdrops

The fabric should be matched to a frame designed for tensioned installation.

Tegoni Fabric

Tegoni fabric is intended for repeated event use where durability, practical handling and ease of maintenance are important.

Resists creasing during normal handling and storage
Designed to tolerate repeated folding and installation
Provides good resistance to wear
Offers a degree of moisture resistance
Suitable for reusable event curtains, partitions and backdrop applications

The actual water resistance, cleaning method and performance depend on the specific fabric composition and treatment.

Chiffon

Chiffon is a lightweight, semi-transparent fabric that creates a soft and flowing visual effect.

Diffuses direct light to create a warmer atmosphere
Has a delicate, smooth texture
Falls in soft, fluid lines when suspended
Suitable for layered backdrops and decorative ceiling treatments
Commonly used for weddings, ceremonies and elegant indoor events

Because chiffon is sheer, it can be layered with opaque drapes when greater privacy or light control is required.

Pearl Chiffon

Pearl chiffon combines the light, flowing character of chiffon with a subtle pearlescent sheen.

Creates a soft reflective effect under event lighting
Provides delicate movement and natural drape
Suitable for ceiling treatments, wedding backdrops and layered decoration
The sheer finish allows it to be combined with other fabrics
Hangs smoothly when correctly installed and stored

Available panel length: 6 yards, where applicable.

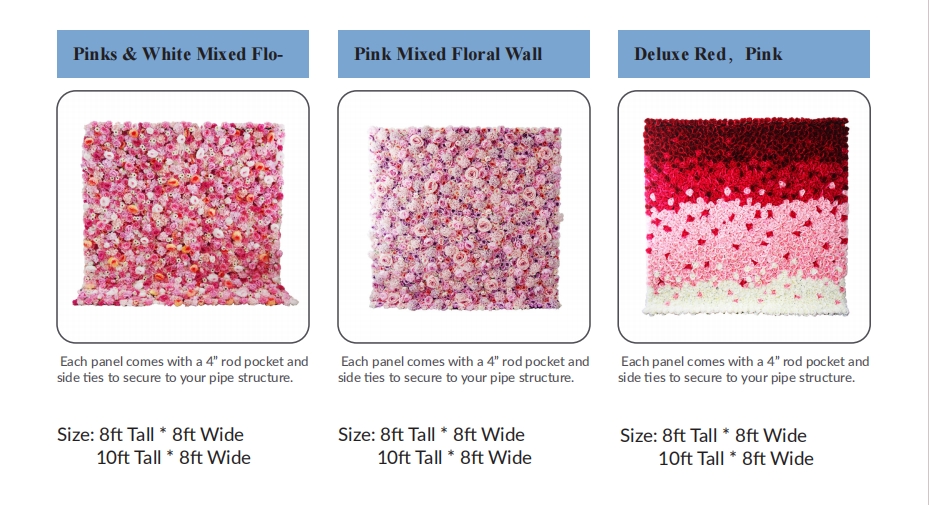

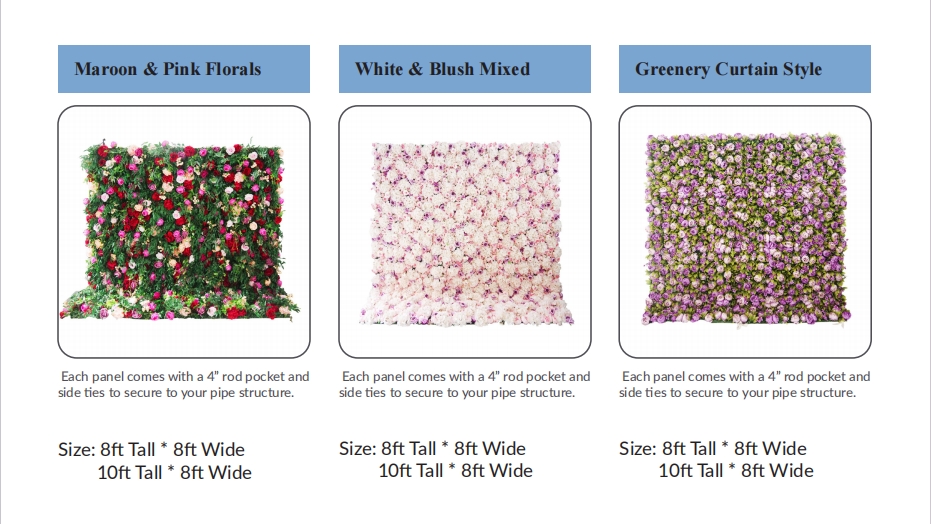

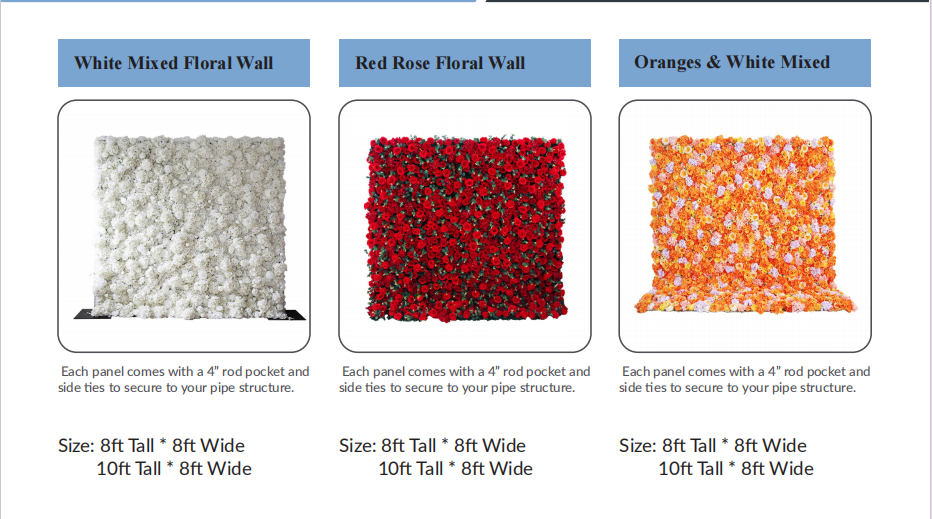

Roll-Up Floral Wall Curtain

A roll-up floral wall curtain provides a convenient decorative background for events, ceremonies and photography areas.

Creates a full floral-wall appearance with efficient installation
Can be rolled for transport and compact storage
Suitable for weddings, receptions, photo areas and brand events
Can be combined with pipe and drape frames or other compatible support systems
Reusable construction supports repeated event decoration

Flower type, density, backing material and roll dimensions may be customized according to the required visual effect.

Connections and Accessories

Connection design determines how uprights, crossbars and custom frame sections work together.

Check the following before selecting components:

Upright slot or connection type

Crossbar end fitting

Number of available connection directions

Curved support compatibility

Corner and grid connectors

Extension component compatibility

Locking or adjustment method

Replacement part availability

Components that appear similar may still use different dimensions or connection systems. Parts from unrelated product families should not be assumed interchangeable.

Learn more about coordinated components in our connection and material system guide.

Surface Finishes

The surface finish affects appearance, corrosion resistance and maintenance.

Common options may include:

Natural or silver aluminum

Anodized aluminum

Powder-coated metal

Painted steel

Galvanized steel

Polished or decorative finishes

Black hardware is visually discreet behind dark drapes, while silver or decorative metallic finishes may be preferable when the frame is intentionally exposed.

Custom decorative backdrops may also use gold, white or other colored finishes to coordinate with the event design.

How to Select the Right Pipe and Drape System

Step 1: Define the Application

First determine what the system must achieve:

Decorative backdrop
Temporary partition
Exhibition booth
Privacy enclosure
Backstage room
Indoor canopy frame
Curved or circular installation
Custom decorative display

A standard partition and a decorative wedding frame may use different component families and should not be selected in the same way.

Step 2: Confirm the Dimensions

Record the required:

Overall height
Total length
Width of each section
Number of sections
Enclosure depth
Opening dimensions
Available ceiling clearance
Installation footprint

Adjustable components should be selected according to their designed range. They should not be extended beyond their intended adjustment limits.

Step 3: Choose the Layout

Select the configuration that best fits the venue and intended use:

Straight
L-shaped
U-shaped
Curved or circular
Exhibition grid
Rectangular canopy
Peaked canopy
Custom decorative frame

The number and direction of connected sections affect the required uprights, fittings and base positions.

Step 4: Select the Drapes or Decorations

Confirm the fabric type, panel size, fullness and total weight. If the structure will carry flowers, signage, lighting or other decorative materials, include them in the planning information.

Do not evaluate only the weight of the frame. The complete installed system must be considered.

Step 5: Match the Bases to the Configuration

Base selection depends on:

System height
Section width
Frame geometry
Fabric and decorative weight
Number of connected sides
Public access
Floor conditions
Indoor airflow
Outdoor exposure

Every upright must use a compatible base unless the selected structure has a specifically designed alternative support system.

Step 6: Review the Installation Environment

Before confirming the system, check:

Indoor or outdoor location
Floor level and surface condition
Ceiling height
Doors and airflow
Emergency exits
Public circulation routes
Nearby technical equipment
Venue installation restrictions

Pipe and drape systems are primarily suited to controlled indoor environments. Outdoor installations require a site-specific assessment because fabric and decorative materials can create wind load.

Refer to our guidance on safety standards and engineering constraints.

Step 7: Plan Installation, Transport and Storage

For systems intended for repeated use, consider:

Component length when packed
Transport vehicle dimensions
Carrying bags and cases
Storage racks
Component labeling
Replacement parts
Installation crew requirements
Setup and dismantling time

A configuration that is easy to transport, organize and inspect may be more practical for a rental company than one selected only by its installed appearance.

Step 8: Confirm the Complete Component List

Before ordering, confirm:

Upright quantity and height range
Crossbar quantity and width range
Base size and weight
Drapes and fabric dimensions
Corner or multi-direction connectors
Curved supports
Extensions
Additional ballast
Transport and storage accessories
Custom frame sections

DragonStage can help review the component combination and organize an engineering solution according to your venue, dimensions and intended application.

Indoor and Outdoor Installation Safety

Pipe and drape systems are temporary freestanding structures. Their stability depends on the complete combination of uprights, crossbars, bases, drapes, accessories, layout and installation environment.

A configuration that is suitable for a controlled indoor venue should not automatically be considered suitable for outdoor use.

The following information provides general planning guidance. Final installation must follow the instructions for the selected system, venue requirements, applicable local regulations and any site-specific engineering or safety assessment.

Before Installation

Before assembling the system, confirm:

Required height and total length
Number and direction of connected sections
Upright and crossbar compatibility
Base size and weight
Fabric and decorative load
Floor or ground conditions
Indoor or outdoor location
Public access around the structure
Emergency exits and circulation routes
Nearby doors, ventilation and technical equipment
Venue approval or permit requirements

All components should be inspected before installation. Bent uprights, damaged crossbars, deformed bases, worn connectors or missing locking parts should not be used.

Follow the approved installation methodology for modular systems.

Indoor Installation

Indoor venues generally provide more controlled conditions, but correct base selection and positioning remain essential.

Use a Suitable Floor Surface

Install the system on a firm, level and stable surface. Base plates should sit flat on the floor without rocking, tilting or resting on cables, carpet edges or uneven materials.

Do not use loose objects to level a base plate unless they form part of an approved installation method.

Position Every Base Correctly

Each upright must be connected to a compatible base unless the selected frame uses another specifically designed support arrangement.

Bases should be positioned according to the complete layout. They should not be turned or relocated only to make them less visible if doing so reduces stability.

Consider Indoor Airflow

Air movement from doors, loading entrances, air-conditioning outlets and large ventilation systems can affect drapes.

Fabric can behave like a sail even indoors. Tall backdrops, long fabric runs and enclosed layouts require additional attention near strong airflow.

Keep Exit Routes Clear

Pipe and drape systems, bases, fabric and accessories must not obstruct:

Emergency exits
Exit signs
Fire extinguishers
Alarm points
Sprinklers
Fire doors
Accessible routes
Venue service access

Fabric should not extend into walkways or create a hidden trip hazard. Public circulation routes must remain clear throughout installation, use and dismantling.

Check Fabric Requirements

Confirm whether the venue requires documentation for the flame-propagation performance of drapes and decorative materials.

Requirements vary by country, venue and event type. Do not describe a fabric as flame-retardant or compliant unless suitable documentation is available for the specific material.

Cleaning, washing, coating or long-term use may affect some fabric treatments. Confirm whether retesting or renewed documentation is required.

Control Decorative Loads

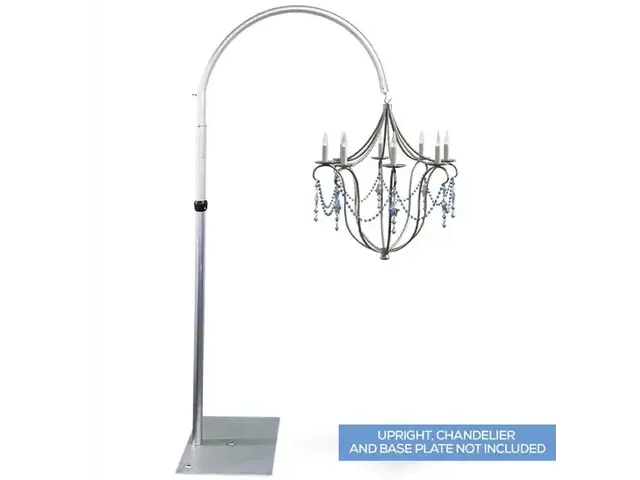

Flowers, signs, lighting, chandeliers and layered fabrics add weight and may create eccentric loads.

Decorative items should only be attached at approved points. Standard crossbars, curved supports and canopy frames should not be used for suspended loads unless they are specifically designed and assessed for that purpose.

Outdoor and Semi-Open Installation

Standard pipe and drape systems are primarily intended for controlled indoor use. Outdoor and semi-open environments introduce wind, rain, uneven ground and rapidly changing weather conditions.

Do Not Assume an Indoor System Is Suitable Outdoors

Outdoor installation should only proceed when:

The system is intended for outdoor use
The complete configuration has been assessed
Suitable ballast or anchoring has been specified
Ground conditions have been checked
Weather conditions can be monitored
A shutdown and removal plan is in place
Local requirements and venue rules have been satisfied

Adding unverified weight to an indoor configuration does not automatically make it safe for outdoor use.

Treat Drapes as Wind-Exposed Surfaces

Fabric significantly increases the area exposed to wind. The force on the system depends on more than the forecast wind speed.

Relevant factors include:

Drape height and total area
Fabric opacity and permeability
Direction of the wind
Surrounding buildings
Open doors and passageways
Exposure at the site
Gusts and sudden weather changes
Shape of the complete layout

A U-shaped, circular or enclosed configuration may behave differently from a straight backdrop. Wind can approach from any direction and should not be assumed to act only on the front of the drape.

Establish Weather Limits Before Use

Outdoor event planning should define in advance:

Who monitors the weather
Which forecast and on-site information will be used
The operating wind limit
The action level for removing drapes
The action level for closing the area
Who has authority to stop use
Where people should move if conditions become unsafe

Operating limits should come from the system documentation or a qualified site-specific assessment. Do not invent a universal wind-speed limit for all pipe and drape configurations.

Monitor Conditions Continuously

Weather should be reviewed before installation and monitored throughout the event.

Stop using the system and follow the approved action plan when:

Conditions approach the defined operating limit
Gusts cause visible movement or instability
Bases begin to shift or lift
Uprights lean
Crossbars or connections move
Drapes pull strongly against the structure
Thunderstorms or other hazardous weather approach
Responsible site personnel instruct that the area be closed

Removing the fabric may reduce wind exposure, but it does not confirm that the remaining frame is safe to leave in place.

Rain and Water Exposure

Rain can increase the weight of some fabrics and decorative materials. Wet surfaces may also reduce friction beneath base plates and create slip hazards around the installation.

Electrical equipment, lighting and powered decorations require separate weather protection and electrical safety planning.

Outdoor Canopy Restrictions

Rectangular, round and peaked decorative frames must not be treated as tents, weather shelters or structural roofs unless they are specifically designed and approved for that use.

Adding overhead fabric can create uplift and lateral forces. A decorative indoor canopy frame should not be covered and used outdoors as rain or sun protection.

Bases, Ballast and Anchoring

Base selection should consider:

System height
Crossbar span
Number of connected sections
Fabric weight and area
Decorative loads
Layout geometry
Public access
Floor or ground conditions
Environmental exposure

Additional ballast must be positioned so that it cannot slide, damage the base connection or create a trip hazard.

Do not suspend weights from crossbars or uprights unless the system is specifically designed for that method. Do not rely on furniture, equipment cases or unrelated event products as improvised ballast.

Ground anchors should only be used where permitted and when their capacity and installation method have been confirmed.

See the factors involved in base-weight selection.

Public Areas and Access Control

Where visitors can approach the system:

Keep base plates visible or safely protected
Prevent climbing, pulling and unauthorized adjustment
Keep children away from unsupported decorative elements
Do not allow guests to lean against the drapes
Protect exposed connection points
Maintain clear circulation space
Use barriers or supervision where necessary

Bases and accessories should not create unexpected changes in floor level. If a base is covered, the covering must not conceal a trip hazard or interfere with inspection.

Safety for Custom Backdrop Frames

Heart-shaped, circular, moon-shaped, arched and layered backdrop frames are primarily decorative structures.

Before use, confirm:

Correct assembly of every frame section
Full engagement of connectors
Stable contact between the feet and floor
Total flower, fabric and signage weight
Load distribution across the frame
Absence of sharp or unfinished edges
Clearance from guests and circulation routes
Compatibility of any hanging accessories

Large floral arrangements can create uneven loading. Decorations concentrated on one side may require a different support arrangement from a symmetrically decorated frame.

Inspection Checklist

Before Opening the Area

Check that:

Every required base is installed
All uprights are vertical
Crossbars are fully connected
Adjustment mechanisms are secured
Curved sections are correctly joined
Fabrics are properly supported
Drapes do not interfere with bases
Decorative items are securely attached
Exits and walkways remain clear
No component is visibly damaged
The system does not move under normal site conditions

During the Event

Inspect the installation periodically and after:

Accidental contact
Layout changes
Fabric replacement
Addition of decorations
Door or ventilation changes
Weather changes
Any visible movement

If the configuration changes, the original safety assumptions may no longer apply.

After the Event

During dismantling:

Remove decorations and fabric before releasing structural connections
Prevent components from falling or swinging
Keep the work area separated from guests
Inspect components for damage
Store parts by type and size
Remove damaged components from service
Record missing or replacement parts

Important Safety Limitations

Pipe and drape must not be used as:

A crowd-control barrier
A fall-protection system
A load-bearing wall
A climbing frame
A structural roof
A weather shelter
A support for unapproved suspended equipment

Never exceed the designed adjustment range of uprights or crossbars. Do not combine unrelated components merely because they appear to fit.

For more information, review our safety standards and engineering constraints.

Request a Site-Specific Review

For tall systems, outdoor use, public-occupancy installations, heavy decoration, overhead elements or unusual layouts, obtain a project-specific review before installation.

DragonStage can help organize an engineering solution based on the system dimensions, layout, venue and intended use.

Review Your Installation Requirements

FAQ

Pipe and Drape Planning Resources

Use these guides to understand system layouts, component selection, installation and event applications.

What Is a Pipe and Drape System?

Understand how uprights, crossbars, bases and drapes work together to create a temporary freestanding backdrop or partition.

Status: New article recommended

How to Choose Pipe and Drape Height, Width and Base Weight

Learn which dimensions and installation factors should be confirmed before selecting a system.

Read the Base-Weight Guide

Straight, Curved or Enclosed: Which Layout Should You Choose?

Compare straight backdrops, L-shaped partitions, U-shaped enclosures and curved systems.

Explore Modular System Logic

How to Install a Modular Pipe and Drape System

Review component inspection, installation order, alignment and final checks.

Read the Installation Methodology

Indoor and Outdoor Pipe and Drape Safety

Understand airflow, wind exposure, bases, ballast, exit routes and the limitations of decorative frames.

Review Safety Standards and Engineering Constraints

How to Plan a Wedding or Exhibition Backdrop

Select a suitable frame, fabric and layout according to the venue and visual concept.

Explore Application and Scenario Planning

Explore More Planning Resources

Knowleges About Pipe and Drapes System

Stage lights common lamp positions and lamps

First, the commonly used tight of the stage light should be a professional stage light configuration, first understand the commonly used optical positions of the stage luminaire, which is an important part of the configuration.

What is the use of studio light hook and how to choose it

Light hooks are often used for projects such as virtual studio lighting or campus TV lighting or stage lighting. So how to choose the lamp hook? What are your specific requirements?The first is load-bearing. Studio lights sometimes meet high-power spotlights and flat lamps. For the sake of safety, t

The differences between moving head light and beam light

Beam lights and moving head lights are widely used in stages, bars, conference venues and other places, and are used in many areas of design. So what is the difference between beam light and moving head light? Where are beam lights and moving head lights used in stage lighting design? Let's talk wit

what are differences between COB light source and LED light source

The principle is different Cob light source: The high light efficiency integrated surface light source technology in which the LED chip is directly attached to the mirror metal substrate with high reflectivity. LED light source: integrates computer technology, network communication technology, imag

what is COB light source

COB light source introduction COB light source is a high-efficiency integrated surface light source technology in which the LED chip is directly attached to a high-reflectivity mirror metal substrate. This technology eliminates the concept of brackets, no electroplating, no reflow soldering, and no

The role and classification of stage lights in stage performances

The role of stage lighting in the stage performance

Anti-shock technology of flight case

The anti-vibration packaging of the flight case is also called the buffer packaging, which has a key influence in various packaging methods. Commodities go through a series of transportation, storage, stacking, loading and unloading from the production to the first application, and they are placed i

LED par light plastice case 8in1 (6).jpg

Professional knowledge of maintenance of flight cases

Air box is a new type of packaged goods that can not handle the traditional simple wooden packaging box transportation, which can not handle the shortcomings of new technology products in the whole process of long-distance freight, which cannot be reasonably maintained and poor controllability.Next,

what Measures are used to improve the firmness of flight case

The use of the air box has brought a lot of convenience. In the past, many companies always had some concerns when they wanted to consign valuable products. They were afraid that the items would be bumped during transportation. The firmness of the air box was very good, which avoided the damage to t

How to maintain the aluminum flight case?

1. The surface is slightly oxidized and can be carefully wiped with flour and toothpaste.2. The place where the aluminum box is placed should be ventilated. The oxide on the surface of the aluminum box will gradually fall off with the increase of use times, which needs regular maintenance.3. After t

Professional knowledge of maintenance of flight cases

Flight case is a new type of packaging product that replaces transportation due to the traditional simple wooden packaging box transportation that cannot solve the shortcomings of new products that cannot be effectively maintained and poor safety performance during the entire process of long-distanc

What is the function of the plastic flight case?

The main purpose of plastic flight cases in the world economy is changing with each passing day. This must dictate that the products in the industrial production industry are becoming more and more modern, and the products with higher and higher technical content clearly propose higher safeguards fo
