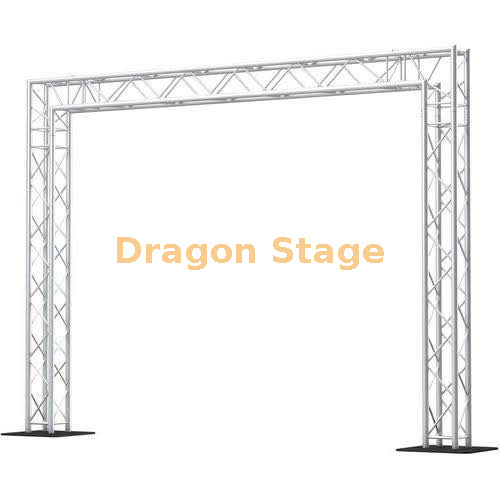

Professional Typical Gentry Truss System: Precision Portal & Goal Post Solutions

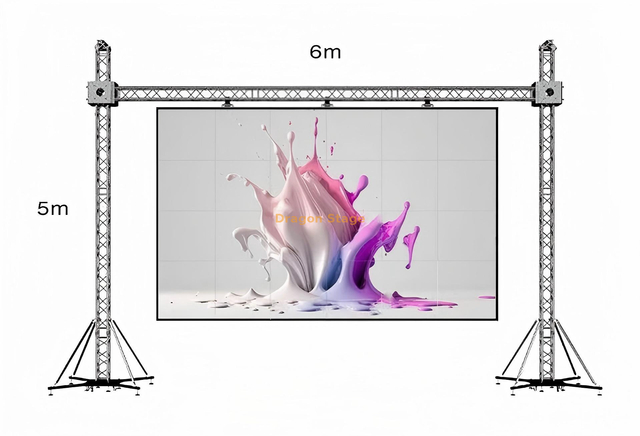

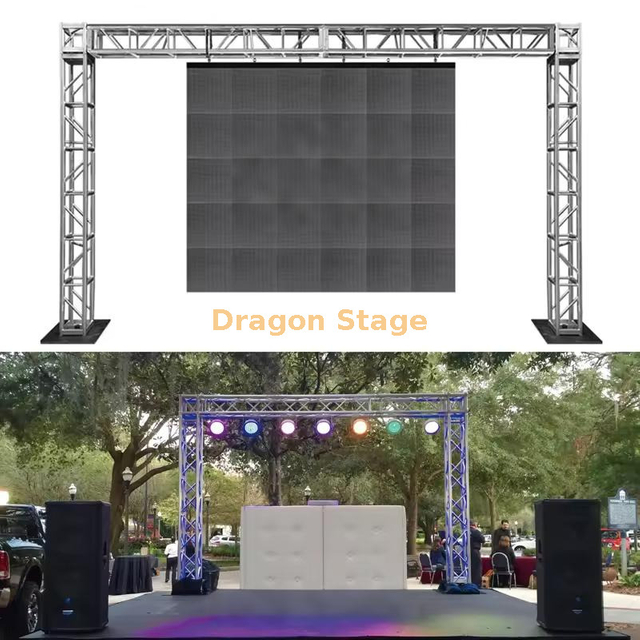

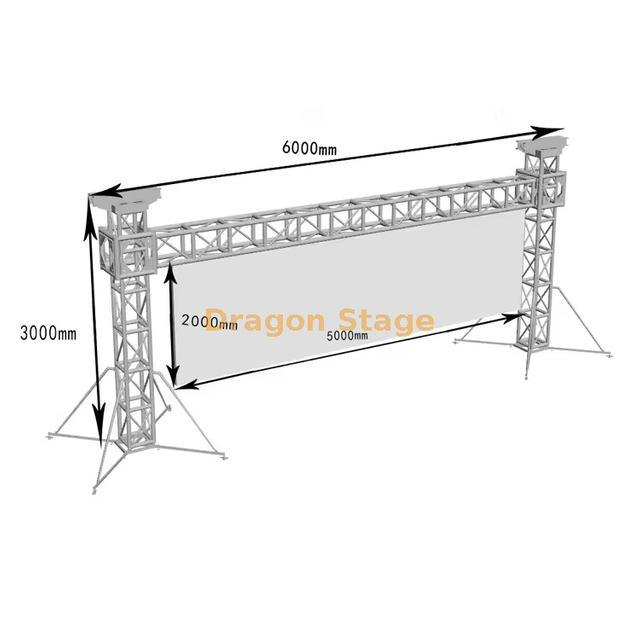

At Dragonstage, we manufacture and wholesale the Typical Gentry Truss System, the industry's most reliable solution for rapid-deployment overhead support. Often referred to as a Goal Post Truss or Gantry System, this portal-frame architecture is engineered from high-strength T6-6082 aluminum to provide a stable overhead span supported by two vertical columns. We provide a dedicated custom service to manufacture feature portable mobile gentry truss systems, specifically designed for LED screen hanging, start/finish lines, and intimate stage lighting rigs where a full four-post roof is not required.
Engineering Logic of the Gentry Portal Frame
The mechanical advantage of the Typical Gentry Truss System lies in its Portal Frame Stability. By utilizing heavy-duty base plates and reinforced corner blocks, the system converts vertical gravitational loads from lighting and audio gear into manageable axial forces. This streamlined design is a fundamental example of Structural Functions, offering a low-maintenance solution that excels in both indoor and outdoor environments while ensuring the Longevity and Safety of Structures.
Key Technical Advantages
Technical Comparison: Gentry (Goal Post) vs. 4-Post Box Truss
| Feature | Typical Gentry (Goal Post) System | Standard 4-Post Box Truss |
| Footprint | Linear (Space Saving) | Rectangular (Large Area) |
| Setup Time | Ultra-Fast (2 Columns) | Moderate (4 Columns + Roof) |
| Primary Use | LED Screens / Finish Lines / Backdrops | Full Concert Stages / Roofs |
| Stability Logic | Weighted Base / Outriggers | 4-Point Self-Stabilization |
| Maintenance | Lowest (Minimal Components) | Moderate (Multiple Junctions) |
To ensure your specific span meets global safety requirements, please consult our Load Capacity / Load Analysis guide.
Diverse Applications for Global Event Solutions

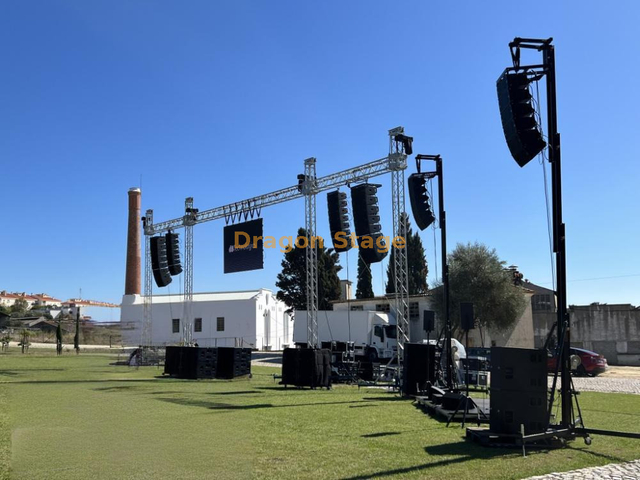

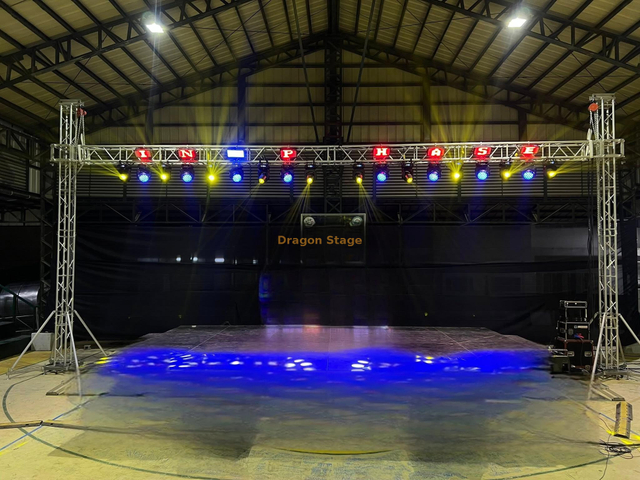

The Typical Gentry Truss System is a versatile foundation for any professional production. In the Exhibition & Trade Show & Brand Solutions sector, it is used to create grand entrances and high-visibility signage points. For the Concert & Event Stage industry, it serves as the essential support for line-array speakers and mid-stage lighting borders.
By following our professional Installation Methodology, a small crew can deploy a professional portal in minutes. Its clean, industrial look allows it to blend into corporate settings or be used for Simple Church Decorations where a safe overhead rigging point is needed on a budget. For those deciding on the right truss type, our guide on What is a box truss used for? provides further context on choosing between portal and box designs.
Maintenance and Safety Protocols

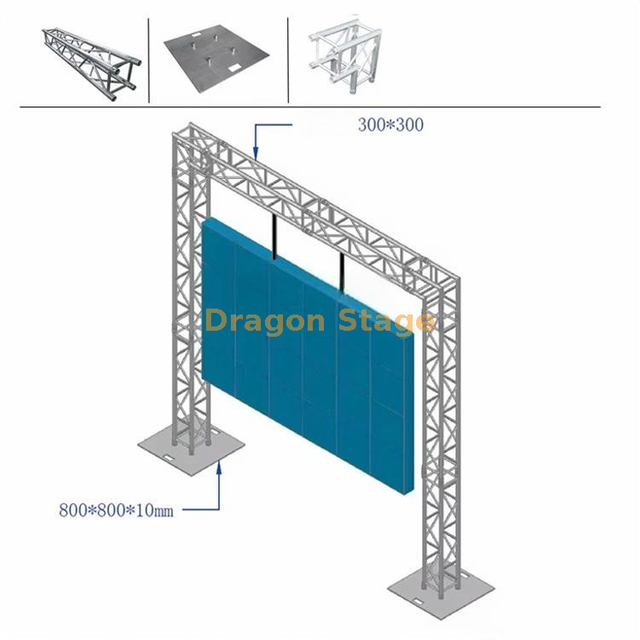

Base Plate Anchoring: Ensure the base plates are either bolted to the floor or sufficiently weighted with ballast to prevent tipping during high-wind outdoor use.
Corner Connection Audit: Regularly inspect the 90-degree corner blocks or "T-joints" for weld integrity to ensure the horizontal span remains level.
Proper Handling: To extend the service life of your aluminum gantry, follow the Best Practices for Proper Handling and Maintenance.
