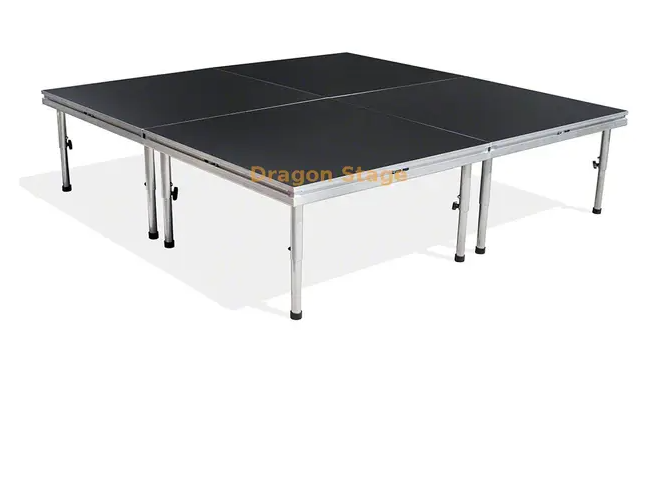

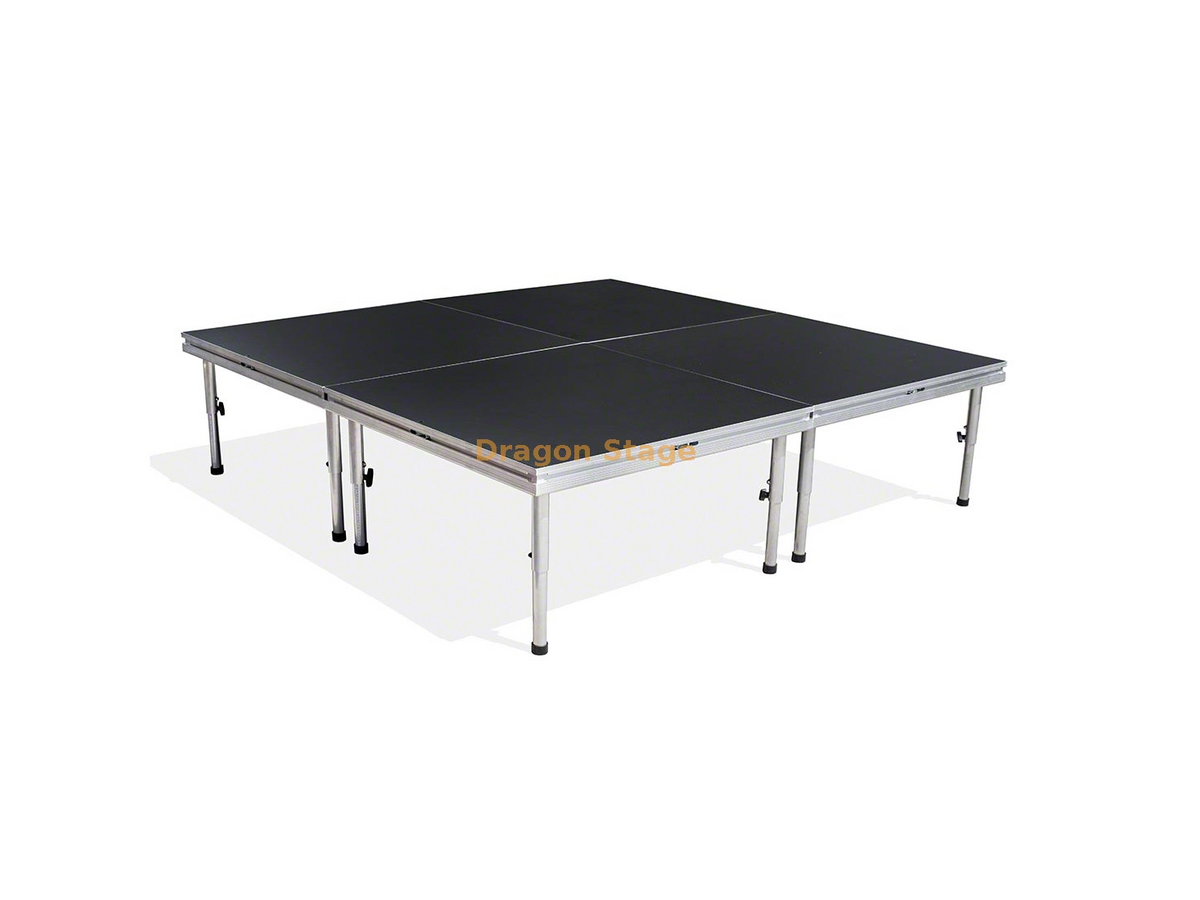

Quick Stage System

How the Quick Stage Works

A Quick Stage normally consists of an aluminum platform supported by four stage legs. The deck transfers its load directly through the legs to the ground.

Its component logic is relatively simple because each standard platform normally uses its own supporting legs.

Main Advantages

• Fast assembly and dismantling;
• Fewer structural components;
• Easy for new event teams to understand;
• Convenient for regular rectangular layouts;
• Suitable for repeated rental use;
• Easier component counting and inventory management;
• Relatively compact support system.

Main Limitations

• Available height ranges depend on the leg design;
• Independent legs provide less integrated lateral support than a fully braced frame;
• Ground level differences must be carefully managed;
• Larger and higher outdoor stages may require a more integrated support system;
• It is not automatically suitable for every heavy-duty or complex project.

Typical Applications

• Weddings;
• Hotel events;
• Conferences;
• Church activities;
• School performances;
• DJ events;
• Indoor presentations;
• Small and medium temporary stages.

You can review standard product configurations in our Typical Quick Stage, including both metric and imperial platform systems.

For international metric projects, the Typical Quick Stage 2x1m provides a common modular format. For North American projects, the Typical Quick Stage 4x4ft provides smaller panels that are easier to handle and rearrange.

Quick Stage Selection Summary

Choose Quick Stage when your priority is:

Fast installation, a straightforward rectangular layout, regular stage height and easy transportation.

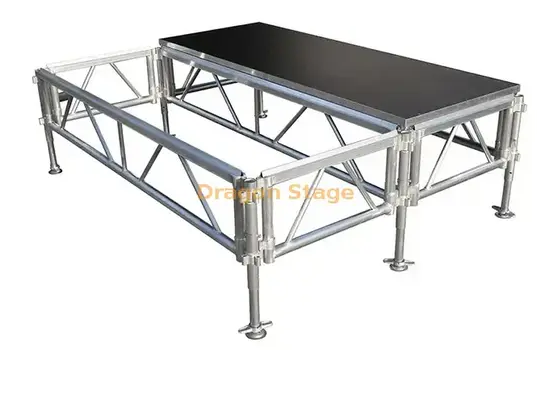

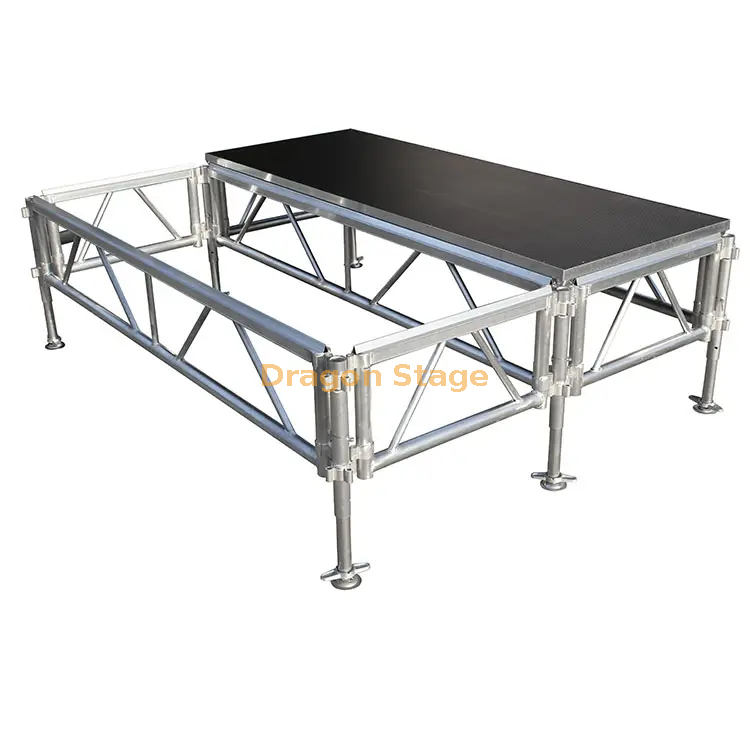

Brace Stage System

How the Brace Stage Works

A Brace Stage uses stage decks, legs, adjustable feet and connecting braces to form an integrated supporting frame.

Unlike a Quick Stage, its supporting components are not calculated simply by multiplying the number of decks by four. Adjacent stage platforms may share legs, braces and connection points.

The exact component quantity depends on:

• The number of deck rows;
• The number of deck columns;
• The direction in which the decks are installed;
• The overall stage dimensions;
• The stage height;
• The brace length;
• The edge and corner configuration;
• Stair and guardrail positions.

This shared structural logic can reduce unnecessary duplicate support members while creating a more connected framework.

Main Advantages

• More integrated supporting structure;
• Better lateral stability than independent-leg systems;
• Adjustable stage heights;
• Suitable for larger modular layouts;
• Shared braces and support points between adjacent platforms;
• Appropriate for repeated professional event use;
• Better suited to configurations that require a strong structural frame.

Main Limitations

• More components than Quick Stage;
• Component calculation is more complex;
• Assembly requires a clear sequence;
• Incorrect brace placement can affect stability;
• More storage classification and inventory management are required;
• Height and grid arrangement must be confirmed before the final component list is prepared.

Typical Applications

• Concert stages;
• Outdoor performances;
• Festivals;
• Church events;
• Touring productions;
• Medium and large rental stages;
• Platforms requiring more integrated structural support.

A detailed structural comparison is available in Quick Stage vs Brace Stage: Which Modular Stage System Should You Choose?.

You can also review the specific design logic in Why Is Our Brace Stage More Stable Than Other Designs?.

Standard metric brace-stage configurations are available through the Typical 2x1m Modular Stage.

Brace Stage Selection Summary

Choose Brace Stage when your priority is:

Greater structural integration, wider height options and a modular system for medium or large professional events.

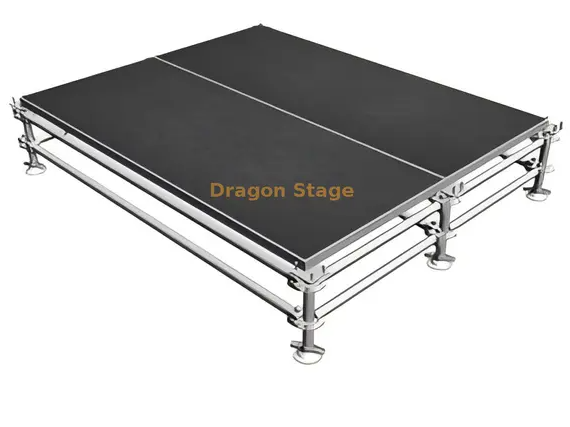

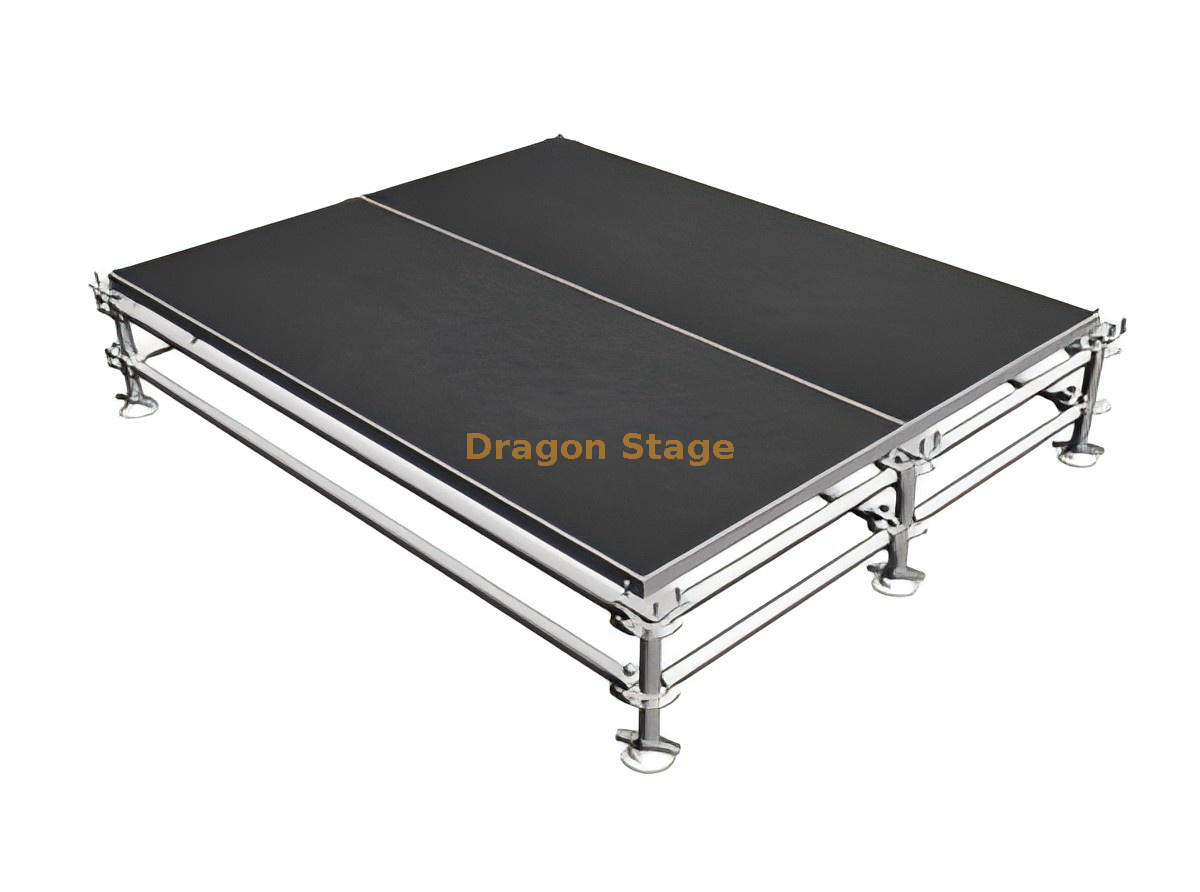

Ringlock Stage System

How the Ringlock Stage Works

A Ringlock Stage uses modular scaffold-type components to build the supporting structure beneath the stage surface.

Typical components include:

• Vertical standards or pillars;
• Horizontal ledgers;
• Transoms;
• Diagonal braces;
• Adjustable base jacks;
• Deck-supporting beams;
• Stage decks;
• Guardrails;
• Stair systems;
• Additional stabilization components.

The component logic is similar to a structural grid. Adjacent bays share vertical standards and horizontal members. The quantity therefore depends on the number of bays, bay dimensions, structure height, lift spacing and bracing arrangement.

Ringlock Stage is not merely a deck with supporting legs. It is a modular temporary support framework that receives the stage deck system above it.

A full explanation is available in Ringlock Stage System Explained: Structure, Components, Load Logic and Applications.

Main Advantages

• Suitable for large platform dimensions;
• Broad height adjustment possibilities;
• Modular bay-based structure;
• Adaptable to irregular ground and complex layouts;
• Can support platforms, stairs, walkways and related event structures;
• Suitable for projects requiring many structural levels;
• Strong scalability for large event infrastructure.

Main Limitations

• Requires more planning than Quick or Brace Stage;
• Contains more component types;
• Final quantity depends heavily on height and bay arrangement;
• Installation requires experienced personnel;
• Bracing and erection sequence are critical;
• A simplified online calculation cannot replace project-specific structural review.

Typical Applications

• Large outdoor concerts;
• Festival stages;
• High temporary platforms;
• Stadium events;
• Large LED support platforms;
• Camera and control platforms;
• Uneven-site stage structures;
• Walkways and access systems;
• Customized temporary event infrastructure.

Typical configurations can be reviewed through our Typical Layher Stage 2x1m, which uses Ringlock support logic with modular stage decks.

Ringlock Stage Selection Summary

Choose Ringlock Stage when your priority is:

Large scale, increased platform height, complex ground conditions or a customized temporary support structure.
