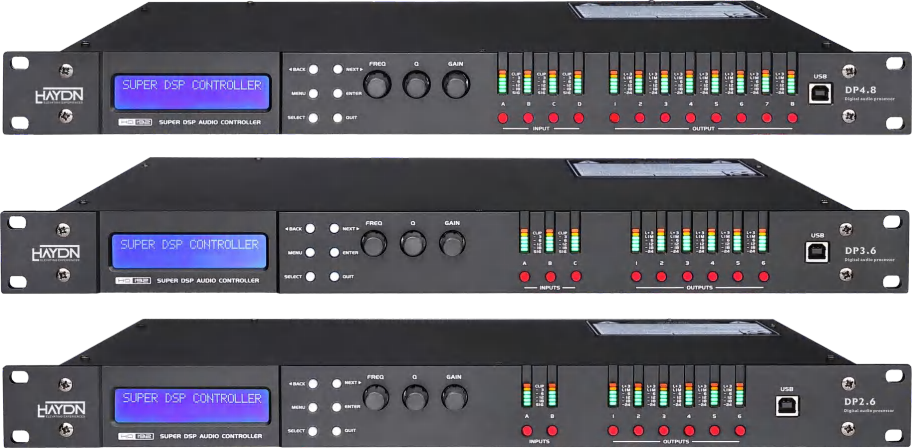

4×8 Digital Audio Processor
The 4-input, 8-output Digital Audio Processor is designed for loudspeaker management and system optimization in professional sound reinforcement applications. Utilizing a high-performance 32-bit DSP architecture with premium ADC/DAC converters, the processor delivers wide frequency response, high dynamic range, and extremely low distortion.
The processor provides comprehensive routing and loudspeaker management while maintaining a simple and efficient operating workflow. PC control software requires no installation or dedicated drivers, enabling true plug-and-play operation for quick system setup and adjustment.
Key features include:
- High-performance 32-bit DSP processing
- Professional ADC/DAC conversion
- Wide dynamic range
- Low distortion signal processing
- Flexible 4-in / 8-out routing
- Driver-free PC control software
- Simple system configuration
- Fast deployment for touring and fixed installations
Karaoke Processor
The X5 Karaoke Processor integrates professional karaoke effects with comprehensive loudspeaker processing functions, providing an all-in-one solution for KTV systems, entertainment venues, and commercial audio installations.
Built on a 32-bit DSP platform with a 24-bit audio processing architecture, the processor allows independent adjustment of music, microphone, and output channels, delivering excellent vocal clarity and balanced sound performance.
The processor includes advanced equalization and feedback suppression features for professional karaoke applications, including:
- 7-band parametric EQ for music input
- 15-band parametric EQ for microphone input
- 5-band EQ for main output
- Independent EQ for center and subwoofer outputs
- Three-level microphone feedback suppression
- Compressor, limiter, and delay functions
- 16 preset memory modes
- Administrator and user operating modes
- Full front-panel operation
- PC software configuration support
Typical applications include:

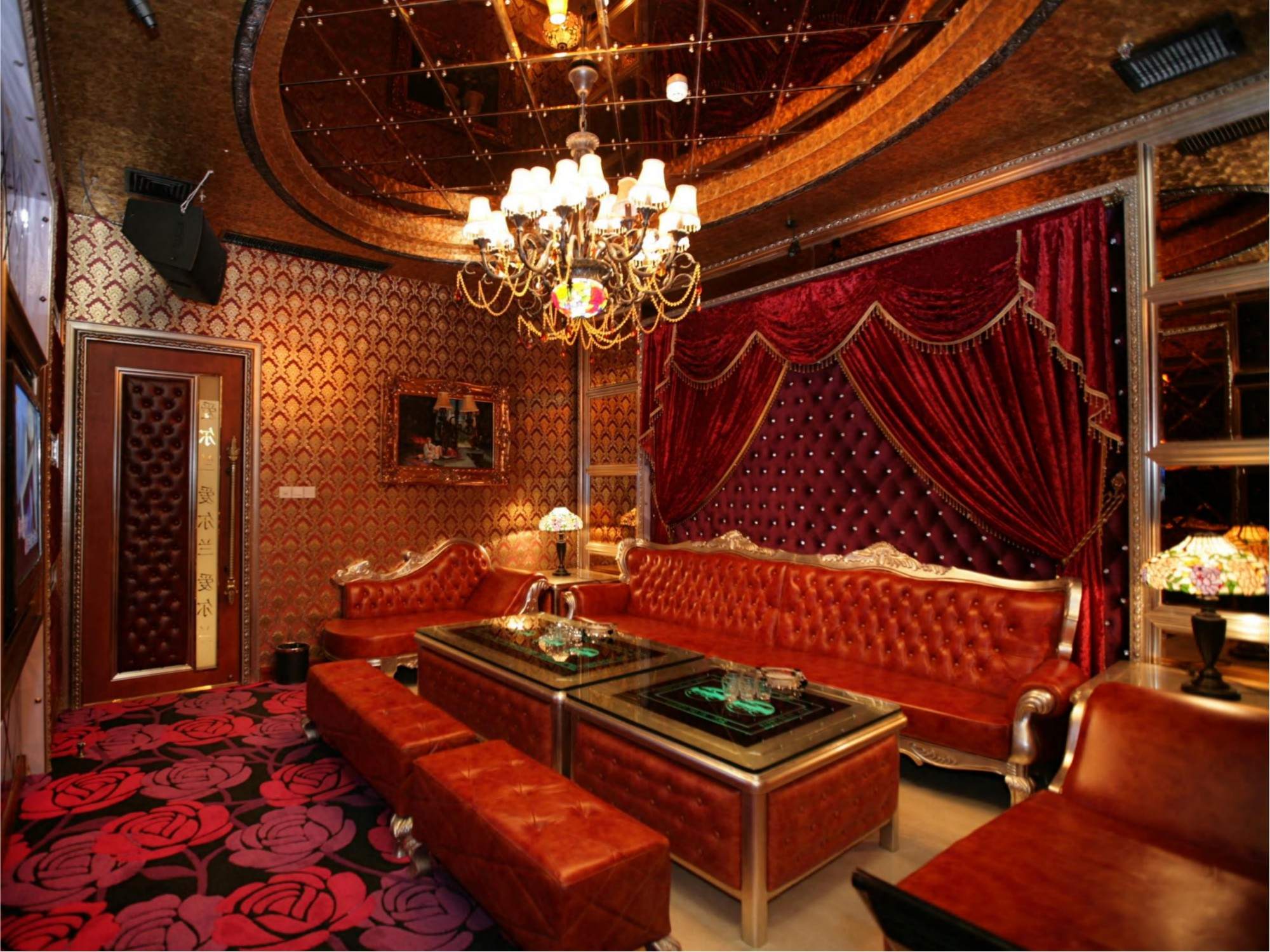

- KTV venues
- Karaoke rooms
- Bars
- Entertainment clubs
- Hospitality venues
- Private party rooms
- Commercial audio installations
Dragon Stage Engineering Note
In a professional sound system, the DSP processor functions as the system's acoustic control center. While loudspeakers determine sound reproduction, the DSP ensures proper crossover alignment, delay synchronization, equalization, and system protection.
A complete audio system typically consists of:
- Loudspeakers

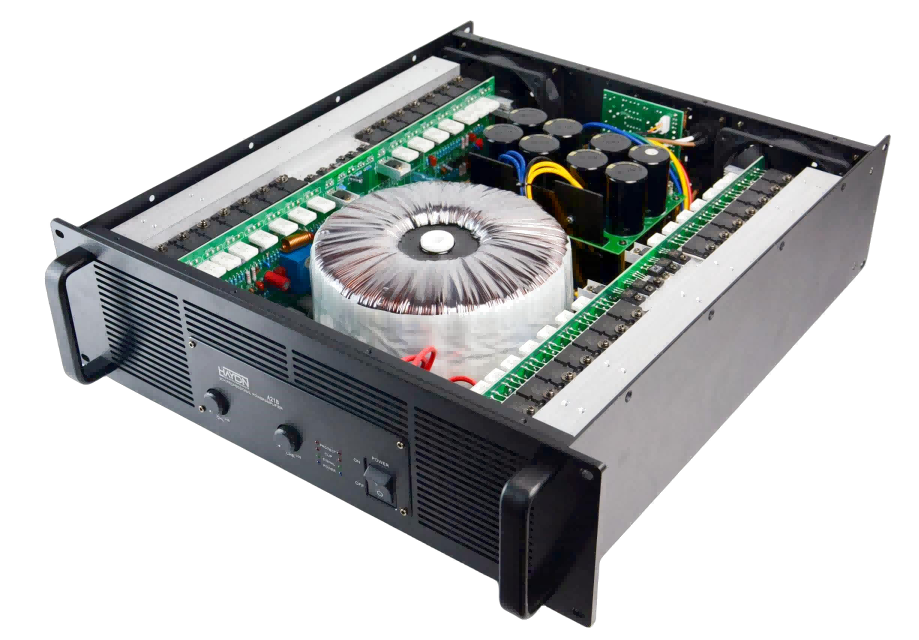

- Power Amplifiers
- DSP Processor
- Mixing Console
- Microphones
- Stage Monitoring System
Proper DSP tuning improves speech intelligibility, enhances frequency balance, protects loudspeakers from overload, and ensures consistent audio performance throughout the venue
