Ninja Warrior Truss System Design

A Ninja Warrior truss is a specialized type of truss structure used in obstacle course events inspired by the television show "American Ninja Warrior." It is designed to provide a sturdy and versatile framework for constructing challenging and dynamic obstacle courses.

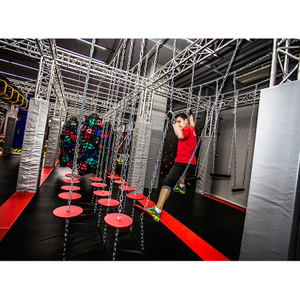

Ninja Warrior Course

Ninja Courses serve as dedicated training arenas for obstacle racing, designed to test and enhance strength, endurance, coordination, agility, and balance. Primarily tailored for teenagers and young individuals, these courses offer an engaging platform for participants to exercise, compete, and cultivate their skills within a secure environment.

The quantity of tracks and obstacles featured on Ninja Courses varies based on the location and the specific demands of customers. These courses can be seamlessly integrated with trampolines, climbing walls, exercise equipment, and other amenities, catering to both indoor and outdoor settings.

Customized, standard height:3.5M

Contact Us for More

Professional Design Team

We have an excellent design team, which can design according to customers' requirements.

Ninja Warrior Truss Elements

1. Modular Galvanized Pipe Frame: Ninja Courses consist of uniform-sized modules, allowing the creation of personalized barriers and training grounds of different sizes. The structure is expandable in any direction.

2. Adjustable Difficulty Levels: The entire barrier system can be customized to varying degrees of difficulty, providing flexibility for participants of different skill levels.

3. Dedicated Platform for Each Training Ground: Each training ground is equipped with a designated platform for a proper start and finish, ensuring a streamlined experience.

4. Safety Measures: A safety mat secures the additional platform between obstacles, and a safety floor, which could be a foam pad, inflatable cushion, or foam pit, is incorporated for enhanced participant safety.

5. Steel and Soft Mesh Safety Fencing: The Ninja Courses feature a combination of sturdy steel and soft mesh safety fencing to provide a secure and controlled environment.

6. Optional Timer and Results Screen: Upon request, a timer and a screen displaying participants' results can be included, adding an element of competition and motivation to the training experience.

Ninja Space Trail

Custom Color for Ninja Course

We have an excellent technical team, which can produce according to customers' requirements.

LEARN MORE

Color Choices for Ninja Course

We can customize the color for the ninja course items. Please choose the right color you want. and make your project unique. Here are the most selected colors.

Truss Options for Ninja Warrior Course Structures

When designing a Ninja Warrior course, the choice of truss system is as important as the obstacle design itself. Different connection methods affect not only structural performance, but also how easily obstacles, brackets and accessories can be mounted to the frame.

Dragon Stage offers three common aluminum truss options for Ninja Warrior structures:

* Plate Ended Bolt Truss (Heavy Duty Bolt Truss / Thomas Truss Style)
* Ordinary Bolt Truss
* Spigot Truss

For most Ninja Warrior applications, we generally recommend bolt-connected truss systems because the connection areas remain smooth and flush after assembly, making obstacle installation easier and safer.

Before selecting a truss system, it is helpful to understand the principles behind modular structural systems and how load analysis affects structural performance.

Plate Ended Bolt Truss (Heavy Duty Bolt Truss / Thomas Truss Style)

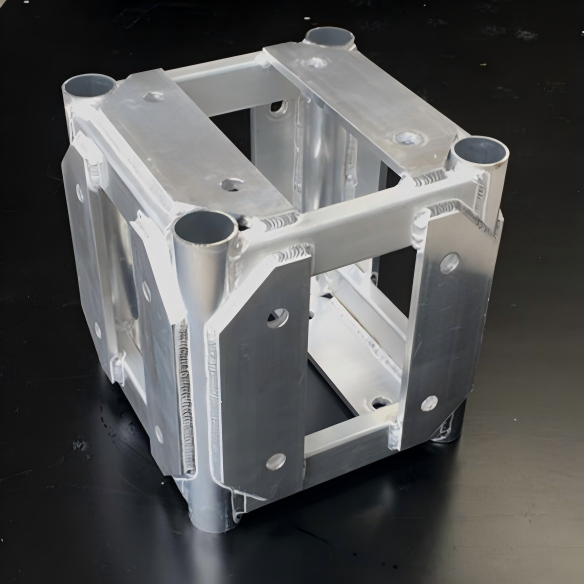

Plate ended bolt truss is the strongest and most rigid option among the three systems. Each truss section is connected through precision-machined end plates and high-strength bolts, creating a continuous structural frame with minimal movement at the joints.

Because the connection plates sit flush with the truss profile, there are no protruding pins or couplers extending beyond the frame. This smooth surface is particularly beneficial for Ninja Warrior courses where obstacles, grips, hanging bars and custom brackets are frequently mounted directly onto the truss. The unobstructed connection area allows installers to position obstacles exactly where needed without interference.

Heavy-duty bolt truss is often selected for permanent Ninja gyms, large-scale obstacle competitions and structures carrying high dynamic loads generated by swinging, jumping and climbing activities.

For projects requiring custom spans, obstacle spacing or unique layouts, our Custom Stage Production team can design a structure specifically tailored to the course requirements.

Ordinary Bolt Truss

Ordinary bolt truss uses bolted connections similar to heavy-duty bolt truss but with a lighter structural profile and simpler connection plates. It offers an excellent balance between strength, installation convenience and cost.

For many Ninja Warrior training facilities and temporary competition courses, ordinary bolt truss provides sufficient load capacity while maintaining the smooth connection surfaces that obstacle installers prefer. Since there are no external couplers or protruding connectors, obstacle mounting remains straightforward and flexible.

This type of truss is commonly used for medium-sized Ninja Warrior courses, obstacle race training centers and portable competition structures where cost efficiency is important without sacrificing usability.

To better understand how aluminum structural systems perform under different loading conditions, see our guide on 6061-T6 vs 6082-T6 Aluminum Mechanical Properties and Structural Differences.

Spigot Truss

Spigot truss is widely used in stage and event industries because of its fast assembly system. Individual truss sections are connected using conical couplers, steel pins and retaining clips, allowing rapid installation and dismantling.

However, for Ninja Warrior applications, the spigot connection hardware creates localized protrusions around the joints. While these components are structurally reliable, they can sometimes interfere with obstacle brackets, grip installations or custom attachment points positioned near the connection areas.

Spigot truss remains a good choice when rapid setup and transportation are the primary concerns, particularly for touring events or temporary obstacle courses. Nevertheless, when obstacle mounting flexibility and a clean structural surface are priorities, bolt truss systems are generally preferred.

For users unfamiliar with different connection methods, our Connection & Material System in Stage and Truss Engineering page provides a detailed explanation of truss connection technologies and their engineering implications.

Comparison of Truss Systems for Ninja Warrior Courses

Feature	Heavy Duty Bolt Truss	Ordinary Bolt Truss	Spigot Truss
Joint Surface Smoothness	Excellent	Excellent	Moderate
Obstacle Mounting Convenience	Excellent	Excellent	Good
Structural Rigidity	Excellent	Very Good	Very Good
Dynamic Load Performance	Excellent	Very Good	Very Good
Assembly Speed	Moderate	Moderate	Fast
Transport Efficiency	Moderate	Good	Excellent
Suitable for Permanent Facilities	Excellent	Excellent	Good
Suitable for Touring Events	Good	Good	Excellent

Why Bolt Truss is Usually Recommended for Ninja Warrior Courses

The primary advantage of bolt truss systems is the smooth and uninterrupted connection area after assembly. Ninja Warrior obstacles are rarely installed at perfectly regular intervals, and designers often need complete freedom when positioning hanging elements, grips, rings, bars and custom challenge modules.

A flush bolt connection eliminates interference from couplers and pins, making installation easier while providing a cleaner and more professional structure.

In addition, Ninja Warrior courses generate repeated dynamic loads rather than simple static loads. Swinging, jumping and body-weight impacts create forces that must be considered during structural design. For this reason, we strongly recommend reviewing Structural Engineering Fundamentals and Safety Standards & Engineering Constraints when planning a permanent obstacle course.

For real-world examples of custom-engineered structures, visit our Custom Cases and Architectural & Structural Applications.

Need a Custom Ninja Warrior Course Structure?

Dragon Stage specializes in modular aluminum truss structures for obstacle courses, fitness competitions, adventure parks and custom training facilities. Whether you require a permanent indoor Ninja gym or a portable competition course, our engineering team can provide structural design, load evaluation and customized manufacturing solutions.

Learn more about our:

LEARN MORE

First-class quality

This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.

Typical Ninja Truss

to explore more ideas and custom products from Dragonstage to make your events powerful.

Light-duty Truss 12'' X 12'' Plated Aluminum Square Box Thomas Truss, Tomcat Truss

Black aluminum 5ft 6ft 8ft 9ft 10ft 12'' led screen display audio dj concert event stage lighting square box screw bolted truss

This high-quality 12'' x 12'' Light-duty Aluminum Square Box Truss is designed for maximum versatility and streamlined aesthetics. Featuring a reliable plated connection system, it provides a stable and professional framework for exhibitions and trade shows and small-scale concert and event stage productions.

BS35 Screw Aluminum Lighting Truss 350x350mm

Section:Square350x350mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6
This premium 350x350mm Aluminum Lighting Truss is engineered for high-capacity loads and superior stability. Featuring a secure screw connection system, it is the ideal choice for professional lighting truss setups. Its lightweight yet robust aluminum construction ensures rapid installation for any concert and event stage.

BS40 Aluminum Roof Screw Lighting Truss 400x400m

Section:Square400x400mm
Inclined tube: 25x2.0mm
Main tube:50x3.0mm
Braces:50x2.0mm
Material: Aluminum 6061-T6

This versatile 400x400mm aluminum roof screw lighting truss is the industry standard for medium-to-heavy stage rigging. Engineered for exceptional durability, this high-performance aluminum truss system supports heavy lighting and audio equipment with ease. It is the perfect foundation for building safe, professional modular stage systems for any event.

BT30 Aluminum Triangle Bolt Truss

Aluminum Tri Truss

Section:Triangular300x300mm
Inelined tube: 25x2.0mm

Main tube: 50x3.0mm
Length:0.5/1/2/3/4m
Braces: 30x2.0mm
Material:Aluminum 6061-T6

This high-quality Aluminum Triangle Bolt Truss offers a sleek, space-saving design without compromising on structural strength. Perfect for exhibitions and trade shows, its reliable bolt-connection system ensures a secure fit for hanging equipment, making it a versatile solution for modern concert and event stage setups.

1
2
»

Reference Case

Here are the cases for rock solid warrior, ultimate obstacles, ultimate ninja, backyard kids ninja, kids action park ninja, spartan race, ninja fitness, spartan trainning, extreme sports and so on

First-class quality

This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.

Typical Ninja Warrior System Items

to explore more ideas and custom products from Dragonstage to make your ninja worrior system unique.

Sparta Competition Stand Warping Curved Wall Three Groups

this is Sparta Competition Stand Warping Wall Three Groupswith weticle ladders and handrails on top , max height 2m and can be custom produced as client need.

Customized Fitness Training Stand Obstacle Challenge Triangle Stool

this is Customized Fitness Training Stand Obstacle Challenge Triangle Stool made of wooden and anti-slip clothing cover.

Spartan Children's Physical Training Hanging Ring

this is Spartan Children's Physical Training Hanging Ring, it made of two parts, ring and chain on top attached to rack system.

Free Design Parkour Ninja Course Orange Pendulum

this is Free Design Parkour Ninja Course Orange Pendulum, it is swinging around the central point.

Product filter

Yellow Truss Column Wrapped Protective Pad, Anti-collision Filling Pad

inner sizes 30*30cm, height 1.5m

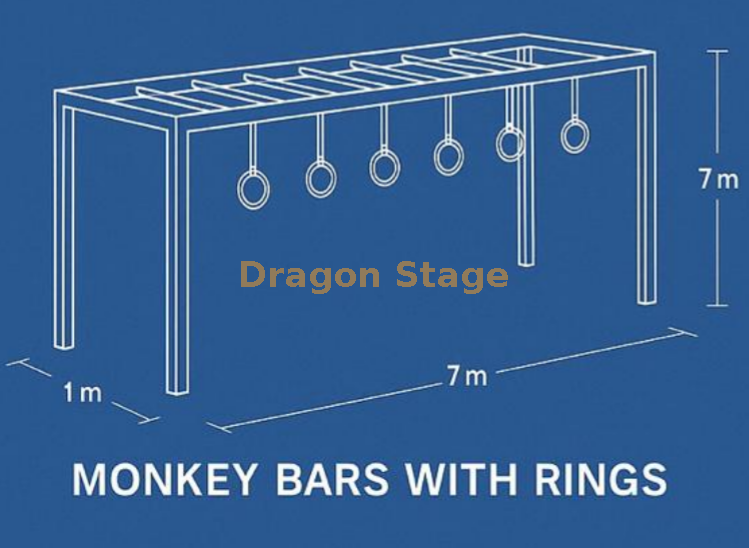

Ninja Physical Trainning Set Monkey Bars with Rings 7x1x7m

It is a kind of Ninja Physical Competition truss system

Bars spacing: 100cm apart

Bars length: 1.6m long

High and Low Island Jump Black + Red

this is Ninja Extreme Challenge Obstacle Elements, it is Up and Down High and Low Island Jump, it is in Black + Red, A set of 4 pieces.

Island Hops-Ascending

Ninja Equipment Log Grip

Ninja Equipment Log Grip/ hanging sand bag

Gym Equipment Ninja Grip Ball Red + Blue+ Black

this is Outdoor and Indoor Gym Equipment Ninja Grip Ball, one Set of 18 pieces in Red, Blue, and Black.

the price only for 18 pieces with chains or slings.

Ninja Warrior Fitness Track Level Equipment T-Nut Wingnut Swing Short/Long

Ninja Competition Ring Slider

this is Ninja Competition Ring Slider, it is made of steel materials. it is made up of rings and custom snaky slider pipe.

Ninja Warrior Equipment Unstable Straight Cloud Ladder

unstable bridge 2m long and 55cm wide

Ninja Warrior Mat Decor Four Fold Mat

10m long 3m wide 0.2m thick

Competition barrier PVC covered foam gymnastics collision safety mat Floor roll over protection landing ninja warrior mat decor four fold mat

Ninja Race Warriors Swinging Gloves Red

Ninja Obstacle Track Comprehensive Physical Training Equipment Fitness Ninja Race Warriors Swinging Gloves Red / Swinging globes

Ninja Warrior Physical Fitness Equipment Wooden Rings

Ninja Track Challenge Winding Wheel

this is Ninja Track Challenge Winding Wheel / Fidget Spinner, it is made of steel with 3 rings together for training.

Ninja Warrior Equipment Combo Cliff

Red Parkour Challenge Obstacle Combination Prop Psychological Behavior Training Field Combination Training Equipment Ring Slider

Red Parkour Challenge Obstacle Combination Prop ring slider

Psychological Behavior Training Field Combination Training Equipment Ring Slider

2poles, 2 rings and 3m long

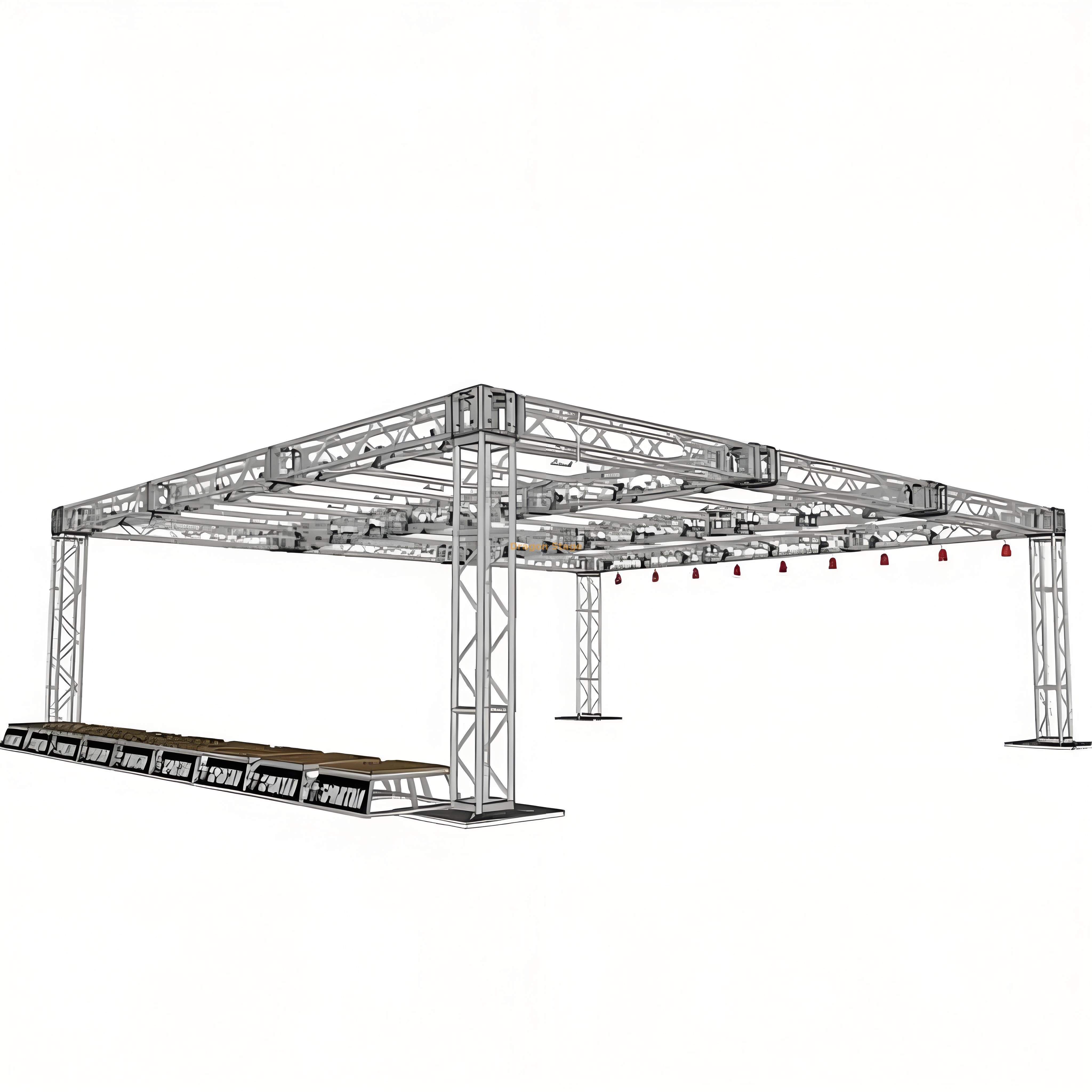

Ninja Monkey Bar Truss Frame System 5.1x4.5x3m

This is the Ninja Monkey Bar Truss Frame System

total sizes are 5.1x4.5x3m

bars length 2m and spacing 1m

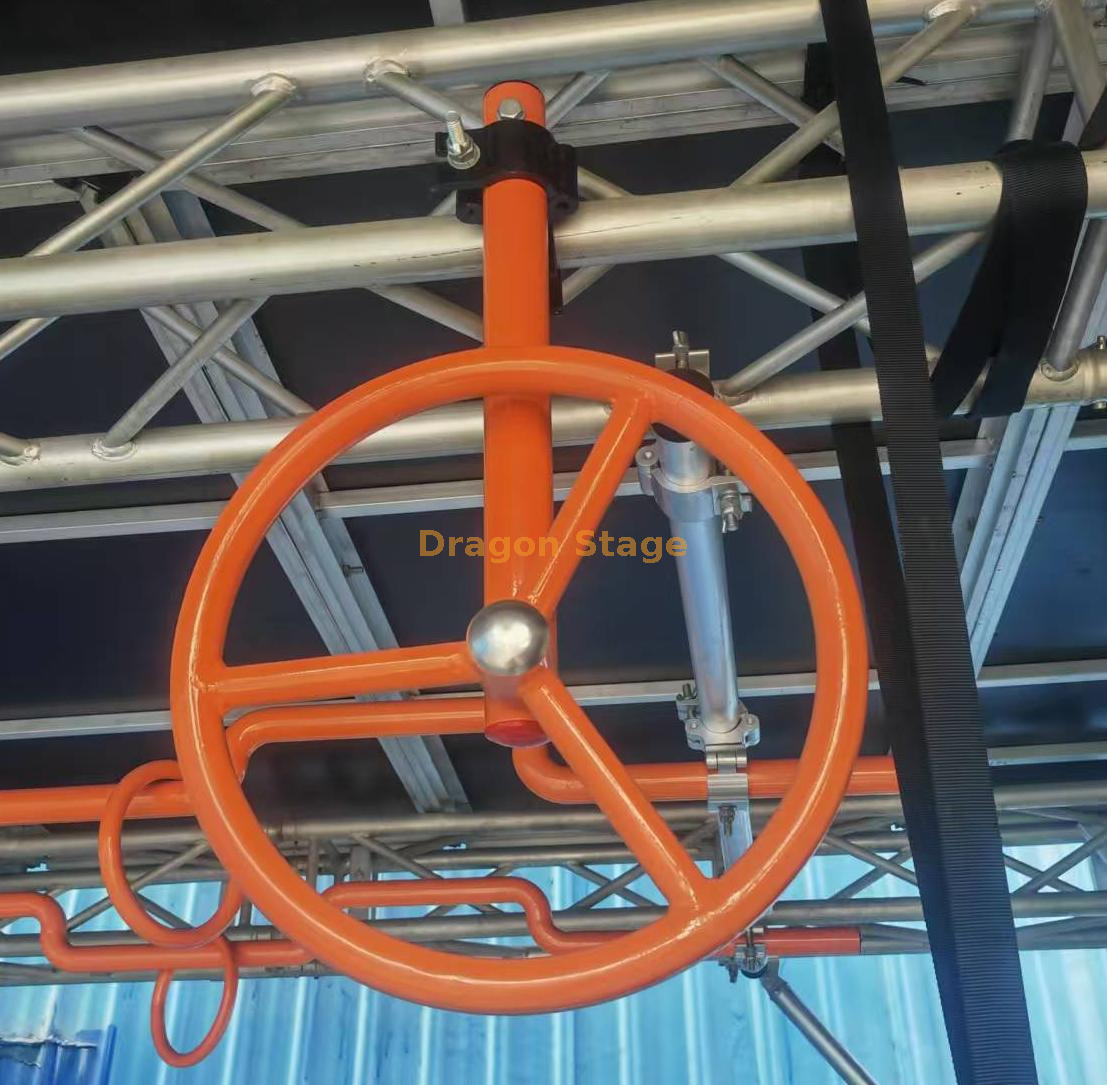

Ninja Physical Training Equipment Side Mounted Wheel

Ninja Obstacle Track Sparta Physical Training Equipment Youth Comprehensive Upper Limb Strength Challenge Fitness Hall Side mounted Wheel

Ninja Warrior Fidget Spinner

Ninja Warrior Fidget Spinner in steel materal

1 piece unit price

Ninja Track Challenge Wooden Gymnastics Rings

this is Ninja Track Challenge Wooden Gymnastics Rings, it is Workout for Home Gym Fitness, Perfect for Muscle Up, Pull Up & Strength Training.

the price is for one pair / 2 pieces

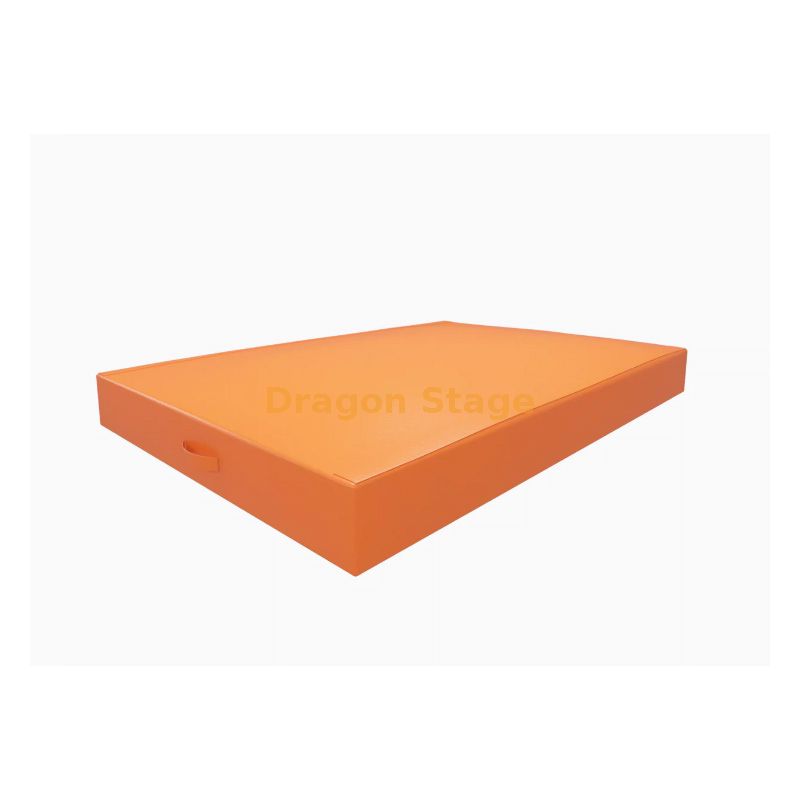

Ninja Warrior Fitness Track Protection Sponge Pad Orange 2.44x1.22m
