Layher Truss

We have a highly skilled team to produce and build Layher truss system for large outdoor events and concerts

Layher truss, also known as Layher All-round Truss, is a type of steel modular truss system that is widely used in the large-scale entertainment, and event industries. The Layher truss is a versatile system that can be easily assembled and disassembled, making it a popular choice for temporary structures such as stages, lighting rigs, speaker tower, led supports, audiences seats, dj booth, and exhibition stands. The Layher truss is made of high-strength steel and features a unique rosette joint system that allows for quick and secure connections between truss sections. This system provides high stability and load-bearing capacity, while also offering a high degree of flexibility in terms of design and configuration. With its many advantages, the Layher truss is a popular choice for professionals in a wide range of industries who require a safe, reliable, and flexible truss system.

dragonstage layher truss

dragonstage layher truss

dragonstage layher truss

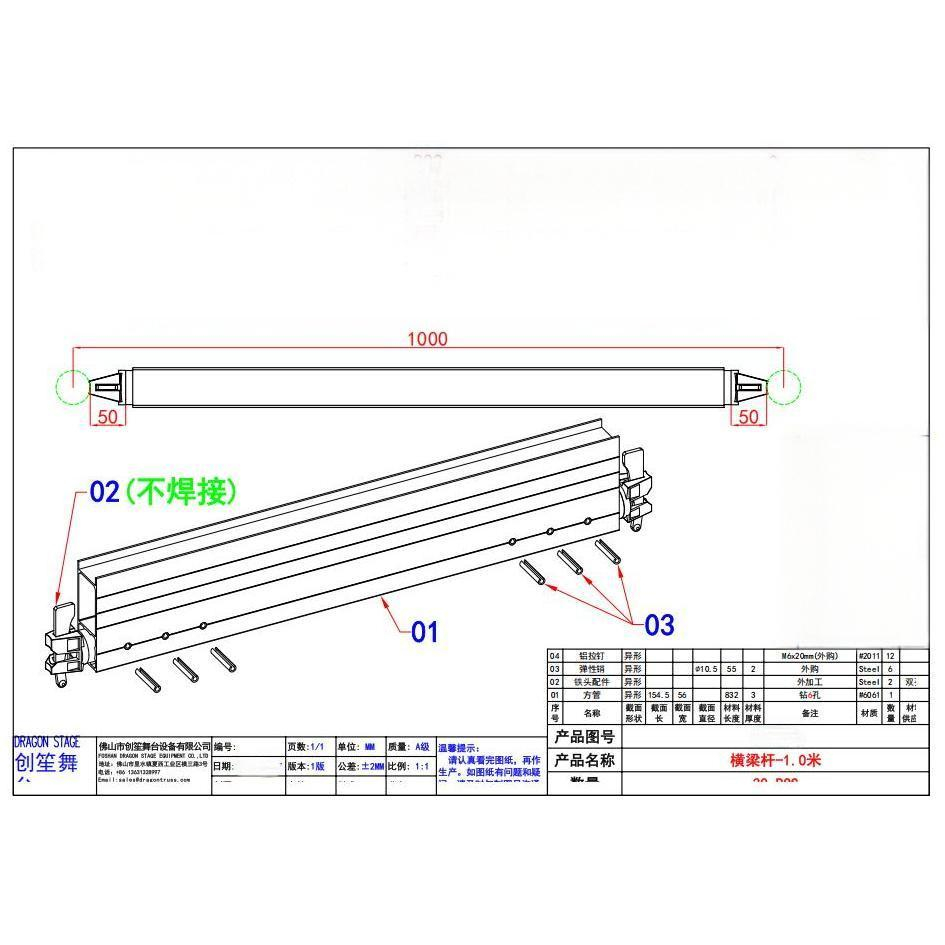

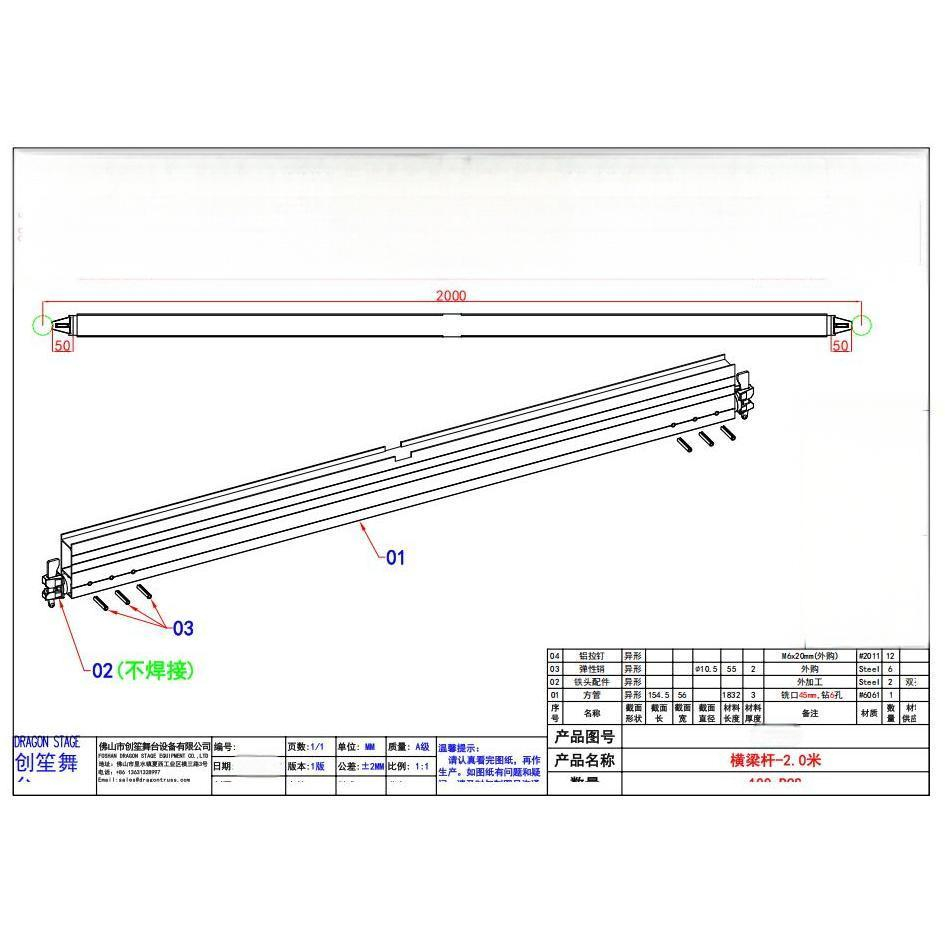

Layher truss horizontal pipe

View More

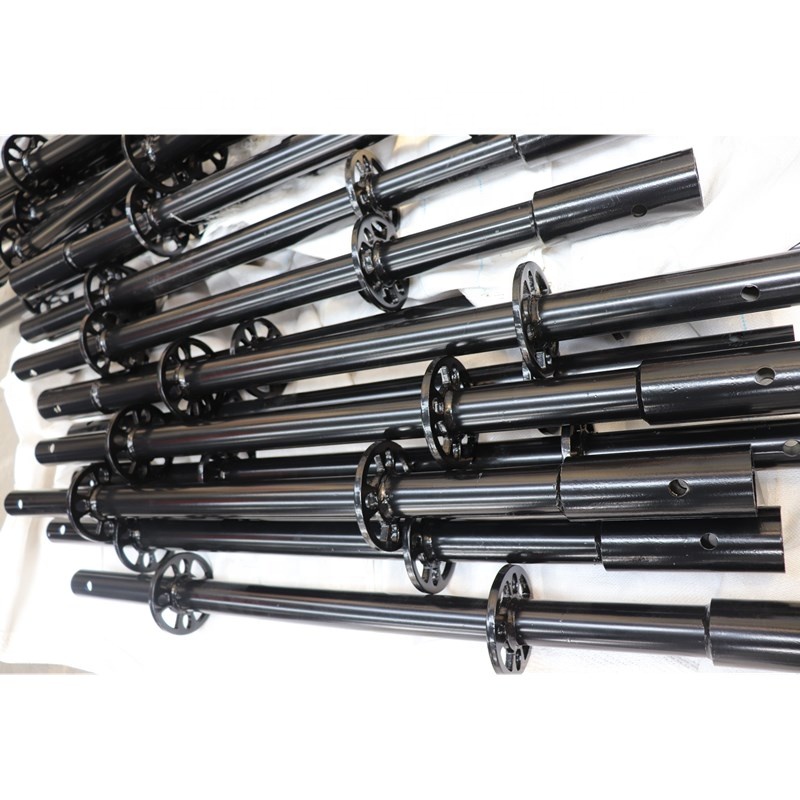

Layher truss pillar

View More

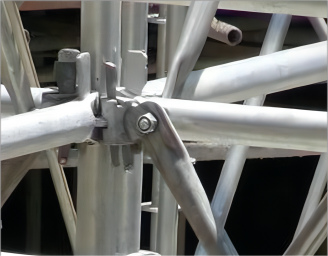

Layher truss diagonal pipe

View More

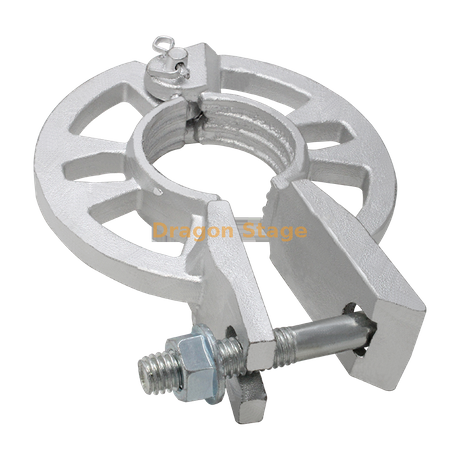

Layher truss disk & clip lock

View More

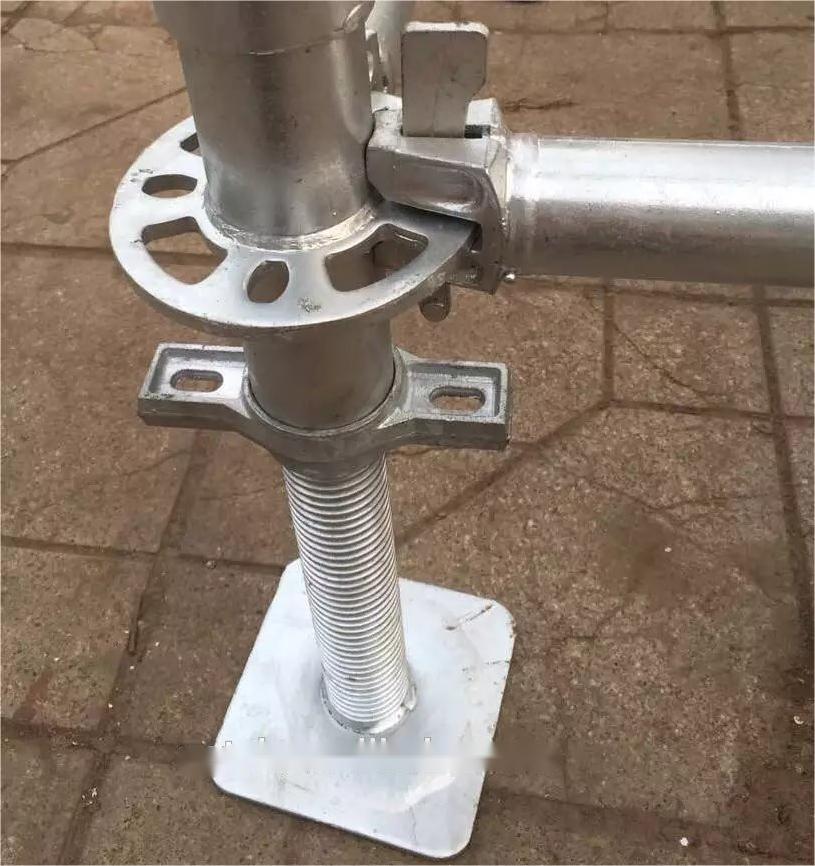

Layher truss adjustable base & joint pipe

View More

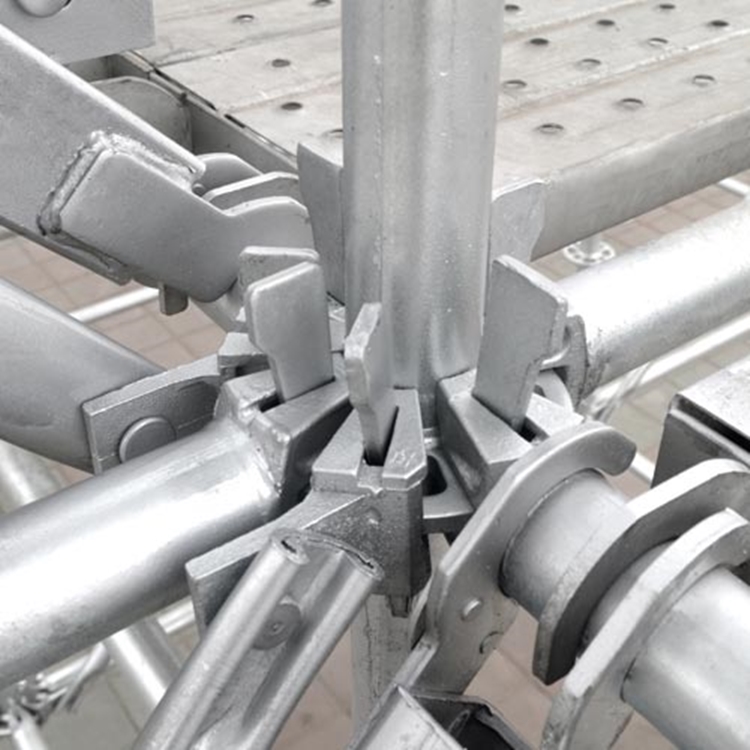

Layher truss disk & locks

View More

dragonstage layher truss

dragonstage layher truss

dragonstage layher truss

The Evolution of Layher Truss: Unveiling the Multifunctional Event Layher Truss System

The journey of the Event Layher Truss from a typical structure to a multifunctional design marvel showcases the ever-evolving nature of event production. Its newfound flexibility, coupled with easy installation and adaptability to various accessories, has elevated the standards for stage setups. As the event industry continues to embrace innovation, the Event Layher Truss stands as a testament to the transformative power of design in creating unforgettable experiences for audiences worldwide.

Unlocking Design Possibilities:
This truss system's newfound adaptability empowers event planners to create distinctive and captivating structures, deviating from the limitations of traditional designs.

Versatility through Accessories:
The integration of various accessories and parts enhances the Event Layher Truss, making it a multifunctional powerhouse that seamlessly accommodates stage equipment, including sound and lighting.

Ease of Installation:
A standout feature is the user-friendly nature of the system, simplifying the installation process and saving time and resources for event organizers.

Revolutionizing Events:
With enhanced design and multifunctional capabilities, the Event Layher Truss has revolutionized the event industry. Its dynamic canvas for creativity allows organizers to experiment with layouts and create immersive experiences.

The foundational component of the Layher truss pillar's adjustable base, the base collar plays a crucial role. Its primary purpose is to ensure that the first layer of the Layher system's truss is perfectly leveled, preventing tilting and potential falls as the system is assembled to greater heights. While one might argue that long pillars can also serve this purpose, the efficiency of using the base collar becomes evident during leveling tasks with machinery. To expedite the process, two individuals collaborate: one operates the level machine, while the other follows instructions to precisely adjust the level of the initial Layher disc. This streamlined approach becomes particularly advantageous when working with 2-meter trusses, as their weight and complexity can make the task challenging for a smaller team, potentially necessitating the involvement of three or four individuals.

Layher Pillar Base Collar

The Horizontal-Diagonal Ledger serves as a crucial assembly aid, ensuring precision in establishing rectangularity in the ground plan. Its primary function is to facilitate the creation of a straight and square configuration for each layer of the truss cubical system, resulting in a consolidated and uniform Layher truss system across all six faces.
In addition to its role in ensuring geometric integrity, the horizontal-diagonal braces offer valuable bracing effects in various structures. The O-ledgers' horizontal-diagonal configuration is designed with straight-welded wedge heads to achieve a square ground plan. Alternatively, obliquely welded wedge heads are incorporated when aiming for a rectangular ground plan. This versatile design accommodates different structural requirements, providing adaptability and efficiency in the assembly process.

Horizental-Diagonal Ledger

Full Staging & Platform

Layher truss is a popular choice for constructing staging and platforms due to its durability and versatility. Layher truss is a type of modular scaffolding system that can be assembled quickly

and easily, making it ideal for temporary structures like staging and platforms. Those are the main parts of an outdoor event stage. It is the backbone for all stage equipment in the whole stage design. Due to its strength, durability, versatility, lightweight design, and safety features. Layher truss offers a flexible and customizable solution to nowadays large-scale concerts or events.

Key Benefits of Using Layher Truss for Full Staging and Platform Construction

Our Layher truss can be built in kinds of stage, it can completely consistent with the designer's concept, it also can be built in a fast way beyond expectations, gives strong and wind stand structure.

Strong and durable: Layher truss is made from high-strength aluminum or steel, which makes it strong and durable. This means that it can support heavy loads and withstand harsh weather conditions.
Modular design: Layher truss is designed in a modular format, which means that it can be easily assembled and disassembled to create different configurations. This makes it ideal for constructing customized staging and platforms to suit your specific needs.
Versatile: Layher truss can be used to construct a wide range of structures, including stages, platforms, grandstands, and support towers. It is also compatible with a variety of accessories, such as handrails, stairs, and safety gates.

Lightweight: Despite its strength, Layher truss is lightweight and easy to transport. This makes it ideal for use in temporary structures that need to be set up and dismantled quickly.
Safe and reliable: Layher truss is designed to meet strict safety standards and is engineered to provide a safe and reliable working platform. This makes it a popular choice for events and shows where safety is a top priority.

TheLayher stages are highly versatile and can be used both indoors and outdoors. With its modular construction feature, it is possible to construct small podiums for fashion shows, music performances, or even giant concert stages. The use of weather-resistant materials such as aluminium, hot-dip galvanized steel, and coated plywood panels ensures that the components are suitable for various weather conditions. The Allround stage can also be easily adapted to uneven surfaces, making it highly convenient. Moreover, the podium surface has a permissible loading capacity of up to 7.5 kN / m², while the height can be up to 10 m depending on the structural strength requirements on site and designer, or equipments suppliers.

Layher podiums and stages offer a secure performance area that meets all necessary requirements. We utilize series manufacturing and maintain high delivery readiness, enabling you to reduce costs and achieve economic success. Additionally, we excel at creating tailor-made special solutions whenever they are required, which is one of our core strengths.

The Layher seating stands are known for their sturdy material, excellent workmanship, long-lasting durability, quick assembly, and low transport volume. These important characteristics make the layher stands ideal for use in different locations. The lightweight and easy-to-assemble individual parts can be installed manually, as shown in the picture. The modular design of the seating stands also allows for easy adaptation to local conditions, and ensures it for public assembly places.

The Layher FOH Tower Kit System offers the ideal solution for your Front-Of-House needs. Its clever use of materials allows for swift and effortless assembly. The design is both practical and visually appealing, with meticulous attention given to every detail. The system can support up to three levels without the need for a central support, and is fully enclosed with keder tarpaulins.

The Layher video wall assembly system provides concert-goers with an up-close view of performers at major outdoor events. The system can withstand strong winds and it does not need to remove the video screen. Furthermore, the bolt-free pin and wedge connection technology allows for quick and easy assembly without using a crane.

First-class quality

This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.

Typical Layher Truss Parts & Cases

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

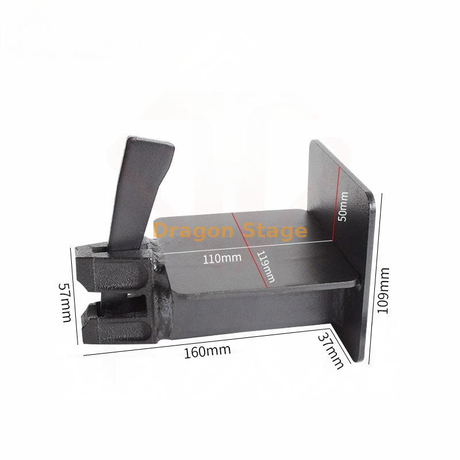

Layher Truss Large Led Wall Support Holder

Layher Truss use large sizes Led Wall Support Holder 160mm

Layher Allround Large LED Wall Support Holder / Ringlock LED Screen Bracket

Heavy-duty Layher LED wall support holder for ringlock/Allround scaffolding. Safe, quick-mount bracket for large outdoor LED screens & video walls.

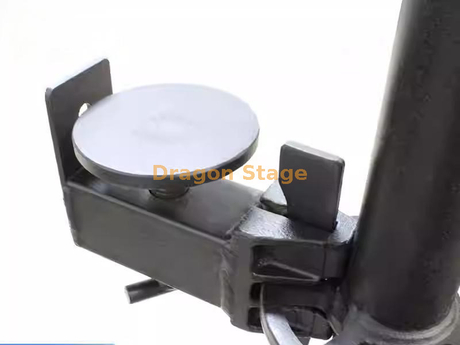

Layher Truss Adjustable Led Wall Support Holder

stage accessories adjustable screen holder and bracket, screen holder, circular bar, lock head

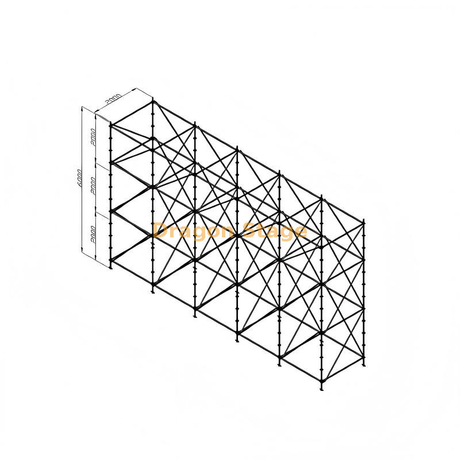

10x6m Heavy Duty Steel Layher Truss Stage Backdrop Wall

Boost your event's structural integrity with our 10m x 2m x 6m Steel Layher Truss Wall. Engineered for maximum stability and easy assembly, this professional-grade modular system is perfect for outdoor concerts, LED screen mounting, and heavy-duty stage backdrops. Durable, safe, and versatile.

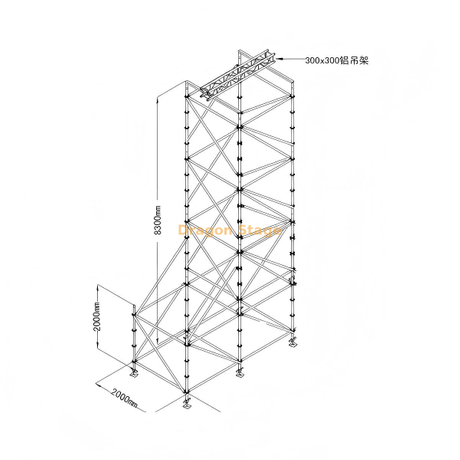

8m High Professional Customized Speaker Hanging Layer Truss

Secure your audio production with our 4m x 2m customized speaker hanging layer truss. Standing 8m high, this heavy-duty steel scaffolding tower features a reinforced ring-lock design for massive line array suspension. Engineered for maximum stability and high-load capacity at outdoor concerts, festivals, and stadium event productions.

price not include truss on the top.

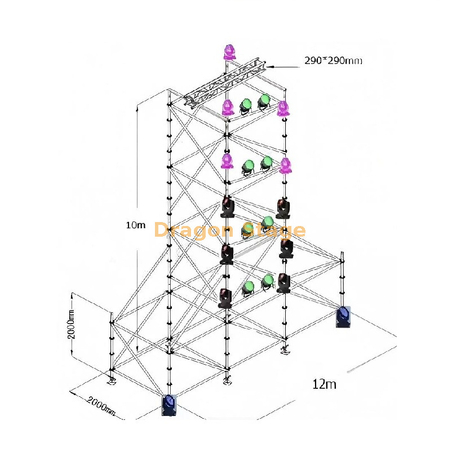

12m Professional Steel All-Around Concert Scaffolding System

Secure your audio-visual production with our 12m x 2m steel all-around concert scaffolding system. Standing 10m high, this heavy-duty Layher truss tower is engineered for massive speaker line arrays and multi-tier lighting effects. Ideal for stadium concerts and large outdoor festivals requiring maximum structural load capacity and stability.

the price not include the truss on the top.

Professional LED Display & Lighting Suspension Hoist Bracket

Professional Special Suspension Bracket for LED Display and Mobile Lighting - Heavy-Duty Screen Hoist Arm Compatible with Layher Scaffolding and Round Pipe Truss Systems

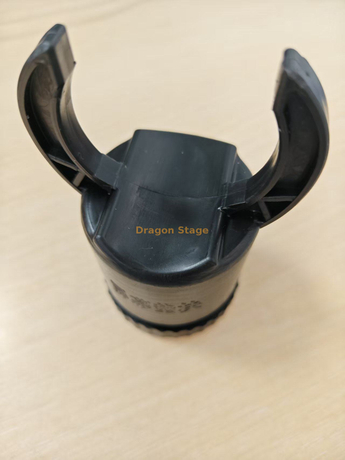

Professional LED Screen Truss Pad Block Mounting System

Professional Rental LED Screen Pad Block Mounting System - Precision Adjustable Spacing Bracket with Locking Nut for Stage Truss Video Wall Installation

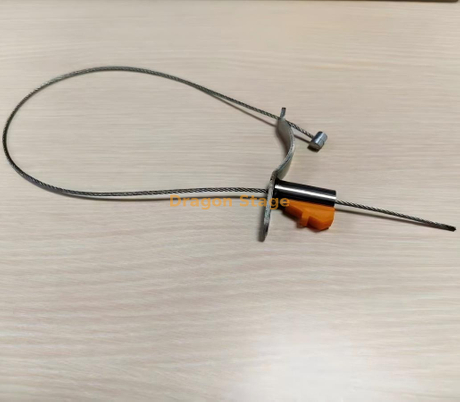

Professional LED Screen Truss Steel Wire Rope Bundling Tool

Professional LED Screen Truss Steel Wire Rope Buckle Bundling Tool - Heavy-Duty Auxiliary Tightening Strap with Secure Locking Buckle for Stage Display Installation

Layher Stage Types

Fork Connector Layher Stage

This is the most common and selected type of layher stage. It has fork at each vertical truss top to connect adjacent stage decks.
Steel Beam Connector Layher Stage

This is steel beam connector has a slot on the top, it help the workers to put 2 adjacent decks to fit in and make the total deck as a perfect whole.

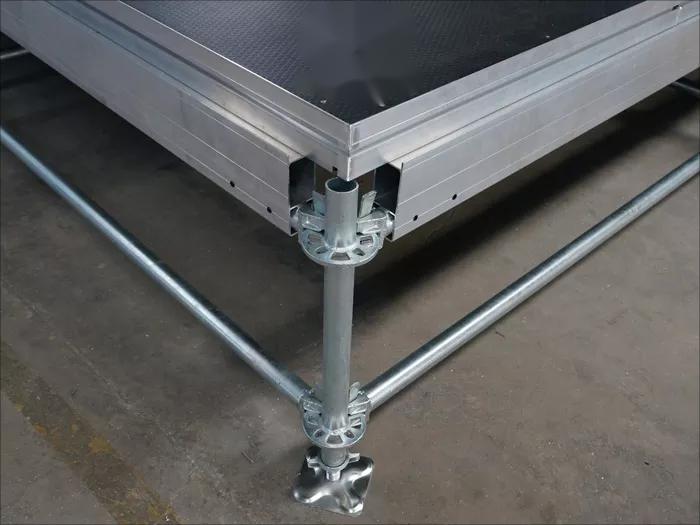

Aluminum Beam Connector Layher Stage

This is newly designed layher stage with light-weight aluminum beam connector. It is similar to above steel layher stage with steel beam which has a slot on the top.

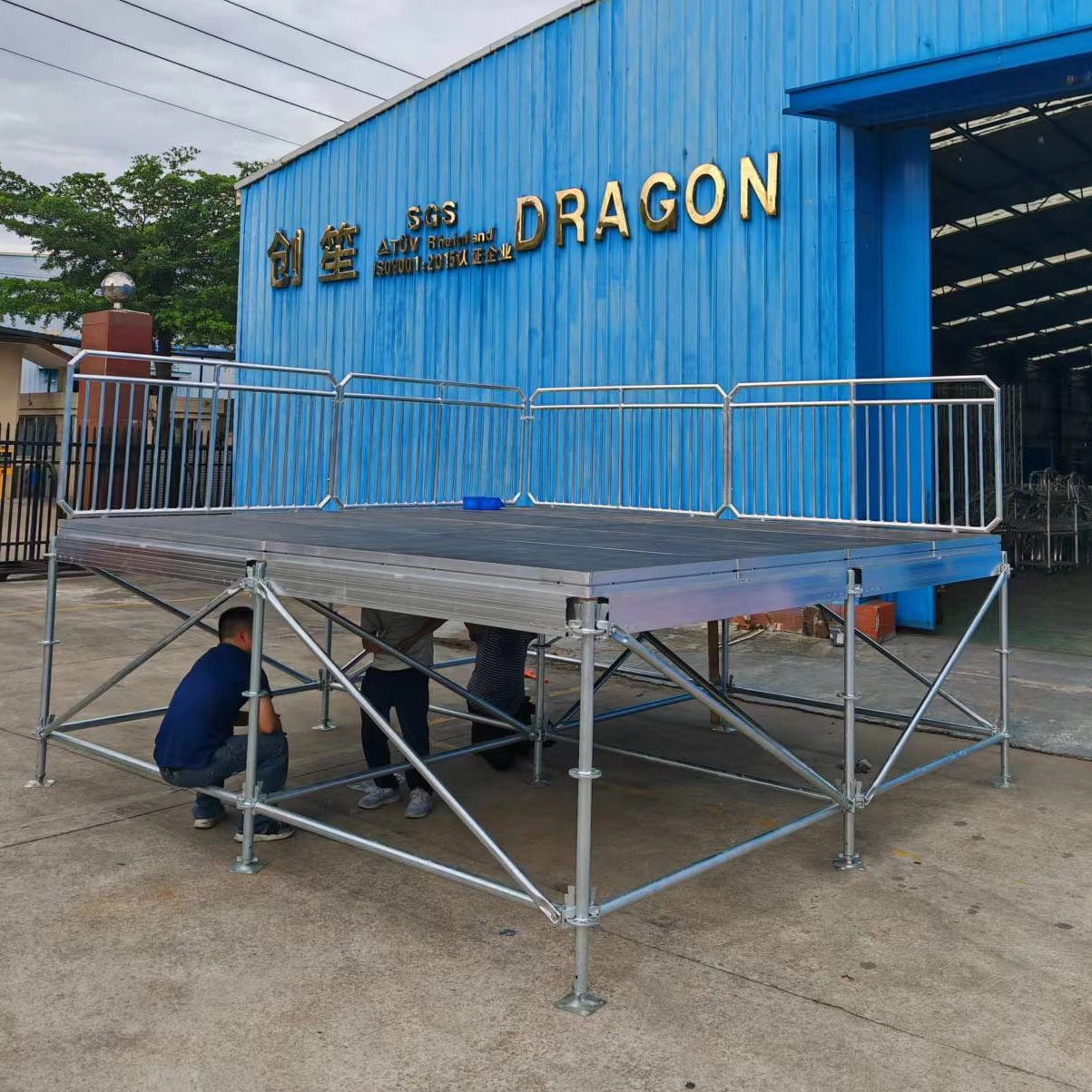

Layher Stage Guardrails

This is a stage guardrail for Layher Stage. We can custom-produce the railings to meet clients' needs.

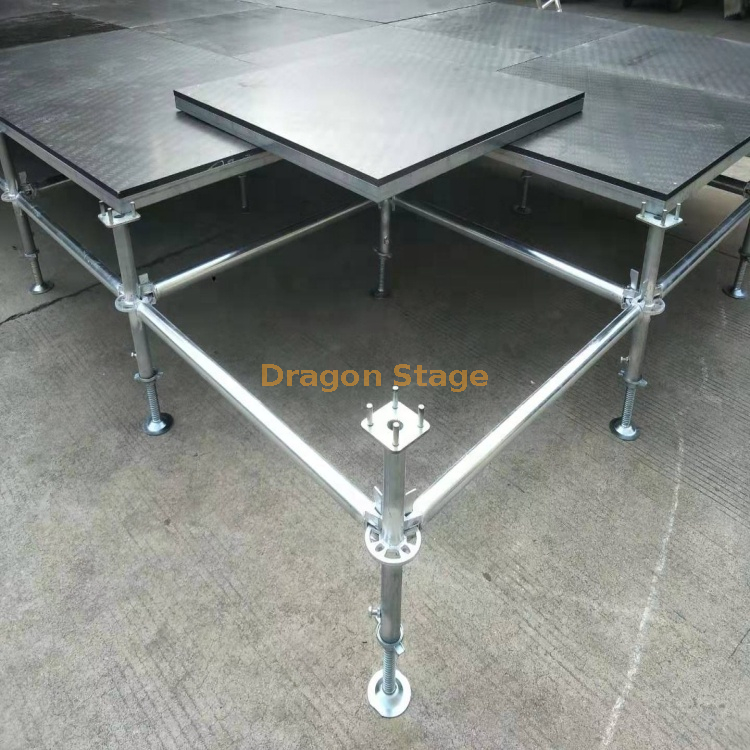

Layher Stage Platform

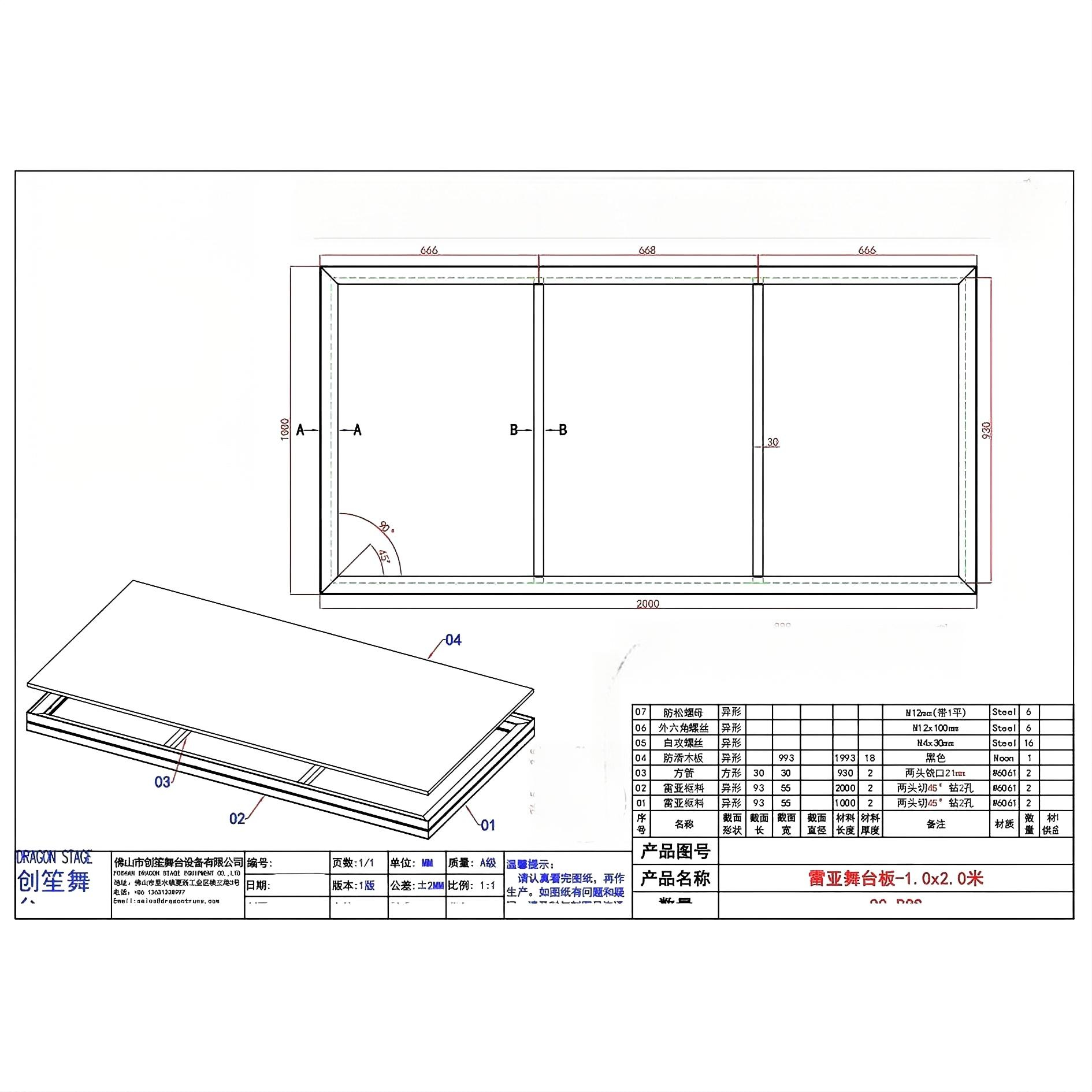

Heavy Duty 2X2m Layher Stage Deck

Layher Stage Platform Frame Custom Design

For Layher stage platform frame, you have the freedom to design your stage platform according to your requirements. Whether you need a specific size, shape, or height, Layher can accommodate your preferences. Such as edge cutting, corner fitting and different stage leg clamps （round tube and square tube）. These allow you to create a stage that perfectly fits your event space and enhances the overall experience for performers and audiences alike.

How To Place LED Screen on Layher System in Common Way

We would like to share the most common method of LED screen installation on Layher truss system

To hang the led screen, the layher truss structure have a group of top sections to hoist and motors are needed to work together after the led screen pieced up on the group.

Layher Truss Structure Before Hanging LED

Before the led screen has been correctly positioned as needed height, there are should be counter weights on the base of layher structure avoiding turn over.

LED Installed on Layher Truss Structure

Ways to Hang Line Array On Concert Layher Truss

We would like to list the most common 3 kinds of Layher truss system to hang line array sound system

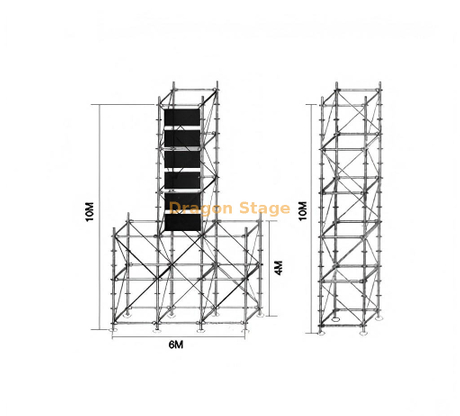

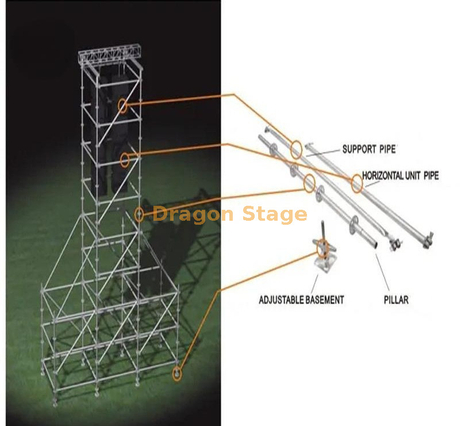

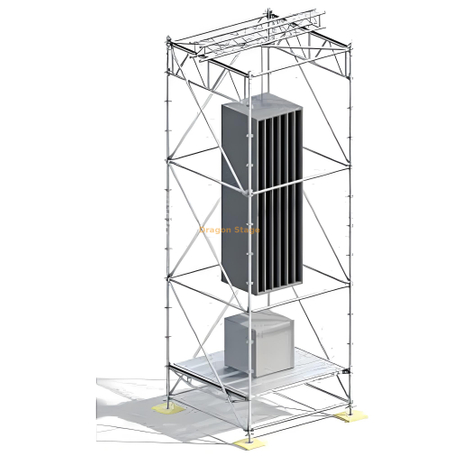

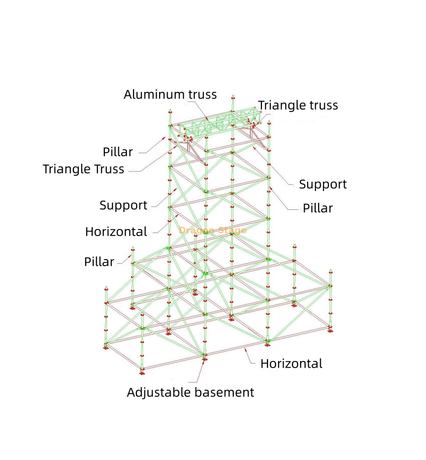

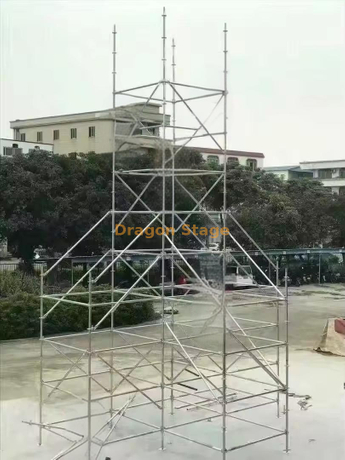

single layher tower

this single independent speaker tower structure is mostly used for small or some medium concerts

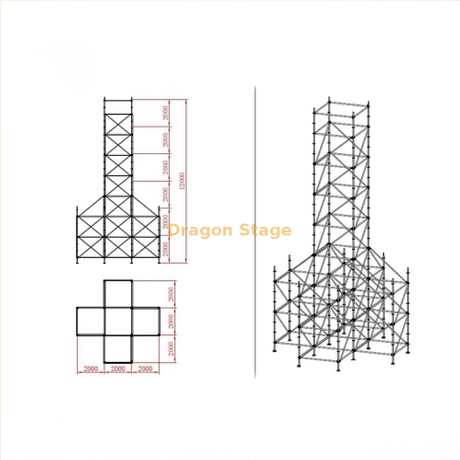

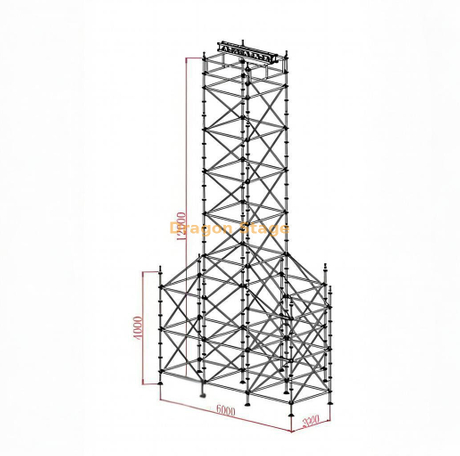

group layher tower

for more than 10 meters high and heavy line arrays, the concerts holder would use group of layher truss tower

layher tower wall

for large concerts and there would be groups of line arrays are need, the layher tower wall is a indispensable structure

Truss Hanging Line Array

it is a layher truss system and aluminum truss beam combination structure, the line array is hanging and built from trussing beam top.
Long Section Hanging Line Array

it is a layher truss system and steel long section beam combination structure, the line array is hanging and built from long section steel top.

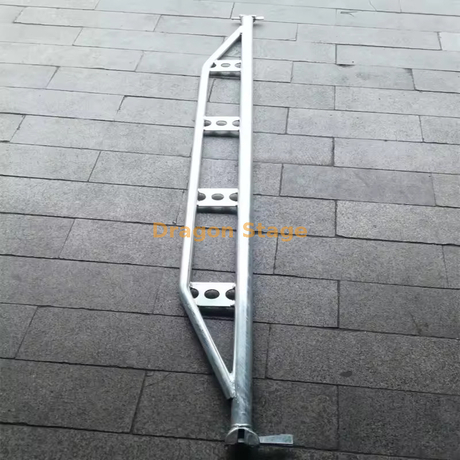

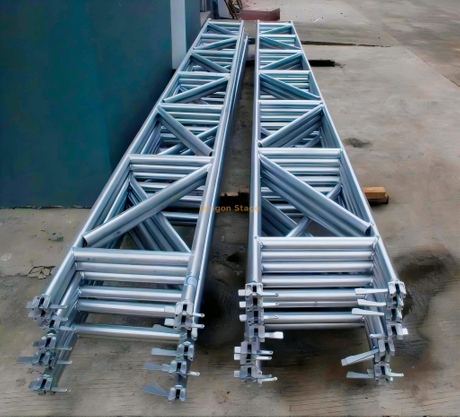

Bridge Ledger Truss

Layher Guarding Rails

This is a 1500kg loading test carried out in Dragon Stage factory for one piece 2m long bridge ledger truss. This truss is widely used for those places where heavy equipments shall be installed, such as line array, led screen and hault structures. Check the video on the right.

Contact Us

Aluminum Layher Truss

It represents a novel type of truss system. Typically, when Layher trusses are mentioned, they are associated with steel Layher trusses. Layher trusses are favored for their modular design, rapid assembly, robustness, and adaptability. However, they have a drawback - they are quite heavy to set up and transport.

to address this issue, we opted to utilize aluminum alloy instead of steel. As a result, aluminum Layher trusses inherit the advantages of steel Layher trusses while offering the benefits of being lightweight and resistant to corrosion. Although aluminum alloy may not match the strength of steel in all scenarios, in most cases, aluminum Layher trusses can effectively replace their steel counterparts.

Professional Technical Team Cases

We have an excellent technical team, which can be designed according to customers' requirements.

Important Notice Regarding Layher Truss Specifications
for DragonStage Production

Dear Valued Clients,

We hope this message finds you well. We would like to bring to your attention an essential aspect of our Layher stage production process that requires your cooperation for successful outcomes. We must obtain the full set drawing of your existing Layher truss, along with its specifications, before commencing with the production of the Layher stage. Here are the key reasons behind this requirement:

Origins and Smart Design: The Layher truss, originally developed by Layher Company in Germany, boasts a smart design that simplifies installation and connection. Initially employed in construction, it has gradually become a standard in various event setups.

Replication by Other Manufacturers: Following Layher Company's innovations, numerous factories have attempted to replicate or produce similar Layher truss systems by incorporating their ideas on connections.

Diverse Factory Specifications: Even within the same country, different factories may employ their engineers to design Layher steel trusses with varying specifications. These differences can be as subtle as a 1mm variation in length or significant disparities in connectors and discs.

Critical Compatibility: The absence of allowable error between Layher trusses from different factories underscores the importance of not risking their connection without careful consideration. Even minor discrepancies can lead to incompatible connections.

Engineer Guidance and Compatibility Assessment: To ensure the compatibility of our DragonStage with your existing Layher truss system, you must contact your Layher truss producer for the full set drawing with specifications. Our engineering team will study this information and guide the feasibility of the connection.

We appreciate your understanding and cooperation in adhering to these guidelines. Our goal is to guarantee the seamless integration of our DragonStage with your Layher truss system, and obtaining the necessary specifications is a crucial step in achieving this.

Knowlege About Our Layher Truss

we would like to share the information and news on our Layher truss production and building cases on large-scale events

How To Install Exhibition Booth with Layher Truss.jpg

How To Install A Exhibition Booth with Layher Truss

In the exhibition construction industry, safety always remains the top priority. Layher scaffolding, with its exceptional safety and stability, has become the preferred choice for numerous construction projects. Taking our liquor exhibition booth construction as an example, the entire process fully

How To Install And Fix LED Screens on Layher Truss

In modern stage design and performances, layher truss and LED screens have become indispensable combinations. They not only provide powerful visual effects but also bring immersive experiences to the audience. However, how to firmly combine these two is a process that requires professional knowledge

How are steel Layher trusses installed and what are the safety considerations that must be taken into account?

Steel Layher trusses are typically installed using a combination of specialized equipment, skilled labor, and strict safety protocols. The exact installation process will depend on the specific design of the truss and the requirements of the project, but there are some general considerations and saf

what is steel Layher truss

If you're looking for a versatile and reliable steel truss system for your next ooutdoor large scale event, look no further than Layher Truss. Layher truss is nowadays most welcome high-quality truss systems that are perfect for large event and concerts, also it has wide applications from small exhi

How To Install Led Display on The Layher Truss System

## Integrating LED Displays with Layher Truss Systems: A Comprehensive Guide to Installation MethodsThe Layher truss system, renowned for its robust construction and adaptability, provides a versatile platform for integrating LED displays in various events and installations. This essay will delve i

What are the advantages of using steel Layher trusses in construction projects?

There are several advantages of using steel Layher trusses in construction projects:High strength and load-bearing capacity: Steel Layher trusses are designed to be strong and durable, and can support heavy loads with ease.Lightweight construction: Despite their strength, steel Layher trusses are li

How does steel Layher truss differ from other types of trusses?

Steel Layher trusses differ from other types of trusses in several ways. Some of the key differences include:Modular design: Steel Layher trusses are designed to be modular, with interchangeable components that can be easily assembled and disassembled. This makes them a versatile and flexible choice

How do steel Layher trusses contribute to the overall structural integrity of a building or structure?

Steel Layher trusses are a type of prefabricated steel structure that are commonly used in construction projects to provide support for roofs, bridges, and other structures. These trusses contribute significantly to the overall structural integrity of a building or structure in several ways:Load-bea

What are some common applications for steel Layher trusses in construction projects?

Steel Layher trusses are a versatile and flexible choice for many different types of construction projects. Some common applications for steel Layher trusses include:Roof structures: Steel Layher trusses are often used to support roof structures in both commercial and residential buildings. They can

What materials are used in the construction of Layher trusses and how are they manufactured?

Layher trusses can be constructed from a variety of materials, including aluminum and steel. The specific material used in the construction of Layher trusses will depend on the specific application and requirements of the project.Aluminum Layher trusses are typically constructed from high-strength,

How do steel Layher trusses compare in terms of cost and efficiency to other types of trusses?

The cost and efficiency of steel Layher trusses compared to other types of trusses will depend on a variety of factors, including the specific requirements of the project and the availability of materials and labor. However, there are some general considerations to keep in mind when comparing steel

What are the load-bearing capabilities of steel Layher trusses and how are they tested?

The load-bearing capabilities of steel Layher trusses will depend on a variety of factors, including the specific design of the truss and the materials used in its construction. Generally, steel Layher trusses are known for their high load-bearing capacity and strength, which make them a popular cho

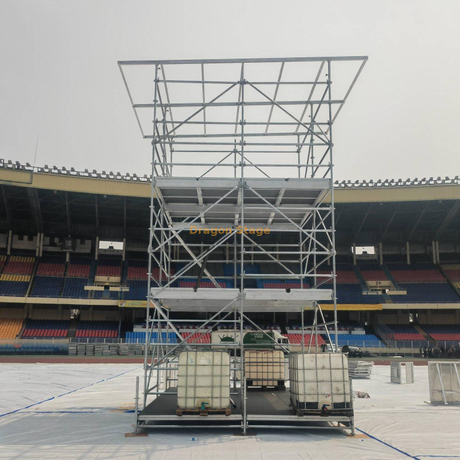

what is FOH in layher truss

FOH stands for Front of House, which refers to the area where the mixing console and sound equipment are located in a live event or concert. In the context of Layher truss, FOH may refer to the placement of a truss system at the front of the stage to support lighting and sound equipment, as well as

What is steel Layher truss and what are its main features?

A steel Layher truss is a type of Layher truss that is constructed using steel components rather than aluminum. Steel Layher trusses offer several advantages over aluminum Layher trusses, including greater strength and durability, as well as the ability to support heavier loads.The main features of

how to produce steel layher truss for event

Producing steel Layher trusses for events follows a similar process to producing steel Layher trusses for construction projects. However, there are some additional considerations that need to be taken into account when producing trusses specifically for events, such as the need for easy assembly and

Tackling the Bending Issue of Layher Rod: Ensuring Structural Stability and Safety

During the construction or usage process, it was discovered that the Layher rod had exhibited a bending phenomenon. As an important supporting and connecting component, the bent Layher rod affected the stability and safety of the overall structure. For this maintenance, a hydraulic jack was selected

How Steel Clear Arch Roof Truss Combine with Layher Stage

How Steel Clear Arch Roof Truss Combine with Layher StageIn the world of event staging and construction, innovation is key to creating memorable and functional spaces. One such innovation is the combination of a steel clear arch roof truss with a Layher stage system. This unique pairing offers a ble

Introducing The Next-Gen Adjustable LED Screen Bracket

Revolutionizing Event Installations: Introducing the Next-Gen Adjustable LED Screen Bracket In the fast-paced world of event production, efficiency and precision are paramount. Ensuring flawless visual displays—whether for concerts, exhibitions, or corporate stages—often hinges on reliable infrastr

1
2
»

How Stage Constructed for Kinshasa Maajabu Mike Kalambay - Live Explo Célébration on 27th 2024

Dragonstage produced and give instructions on the construction of Stage for Kinshasa Maajabu Mike Kalambay - Live Explo Célébration on 27th 2024.
for future large outdoor stage construction work, we made videos and pictures to explain.
