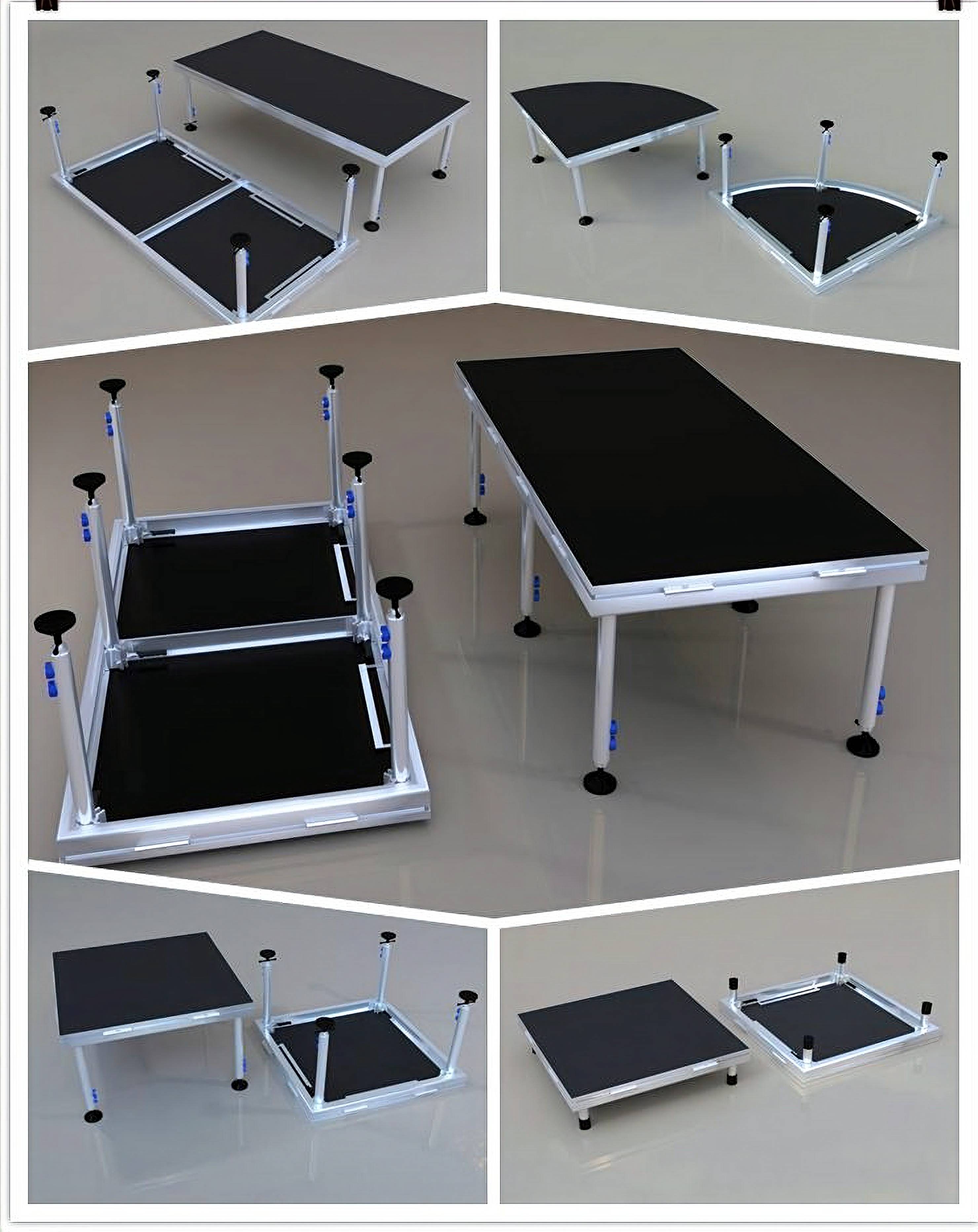

Quick Stage
Quick Stage
  • Name Feature
    this quick stage from our dragon stage is also called the quickly assemble stage.
    it is mainly pieced up by one deck and 4 legs.
    it is easy to install and dismantle in quick way.
  • Specifications

    the quick stage in the market mainly is 2.44x1.22m (4x8ft) and 1.22x1.22m (4x4ft),

     while 1x2m ( 3.3x6.6ft ) and 1x1m ( 3.3x3.3ft ) also are welcome by some client.

  • Height
    there are various heights are available to the quick stage
    a. 0.2-0.3m; b. 0.4-0.6 m ; c. 0.6-1m; d. 1-1.5m
  • Load Capacity
    600kg/sqm
  • Material

    aluminum alloy

  • Characteristics

    simplicity design,Easy and quick to install and dismounting, durable and high loading capacity.
    Adjustable height and use with hand railing, stage stair

  • features of aluminum quick stage
    more about our stage
    the quick stage is made of aluminum alloy, it has simple design for its whole structure, thus it is easy to learn how to piece the stage up, as soon as its appearance.
    the stage mainly includes stage topping ( stage deck/ stage platform), stage leg two parts, its relevant parts include stage rails, stage stair, and stage skirting as same as the modular stage.
    the quick stage is named as its fast installation feature. its erection way is simple as its design and stable as the modular stage. it suitably used for Events, parties, concerts, exhibitions, catwalk fashion show, weddings, etc.
  • stage structure
    stage topping, stage leg, stage levelling feet, leg clamp
    MS01 Simple quick Assembly stage
  • relevant stage components
    stage rails, stage stair, stage skirting

    quick stage skirting railsquick stage stairs

  • stage topping material selection
    there are various topping materials to choose

    Thickness:18mm
    1:plywood topping :red,black,brown colour
    2:Fibre glass topping: all kinds of color
    3:Tempered glass topping
    4:Baboo plywood topping

    board material

  • stage topping shape selection
    Trapezoid,Ellipse,Circle,Square,T-shape,Irregular shapes and custom shape

    church stage and chorus risers (1)

  • stage stair selection
    there are 2 kinds of stage to choose

    a. Fixed stair: 2 Floors; 3 Floors; 4 Floors; 5 Floors; Customized

    b. Foldable stair: 2 Floors; 3 Floors; 4 Floors; 5 Floors; Customized

    stage stair selection

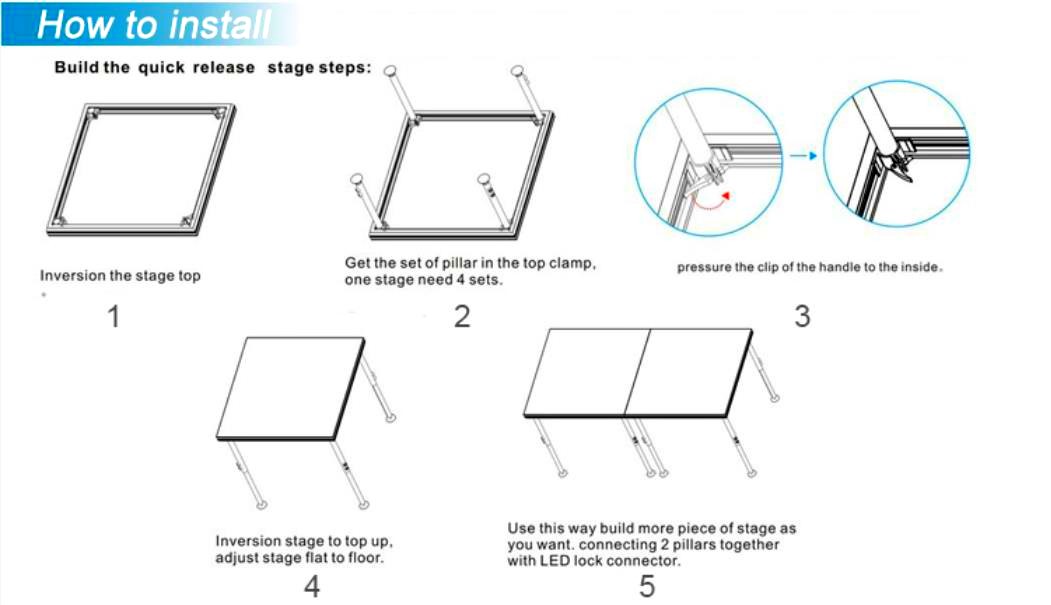

  • how to assemble modular stage
    assembly steps
    install quick stage
  • stage deck structure selection
    simple deck and strong deck
    strong deck quick stagealuminum portable Square Stage
  • feature design
    stage leg clamp and locking device

    quick stage locking device

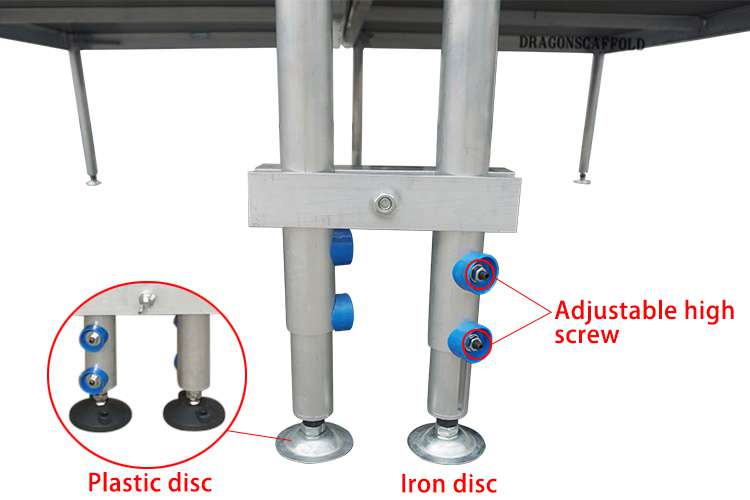

    quick stage leg clamp
  • stage feet disc selection
    plastic feet disc, iron feet disc, caster feet
    plastic feet(1)iron feet(1)caster leg

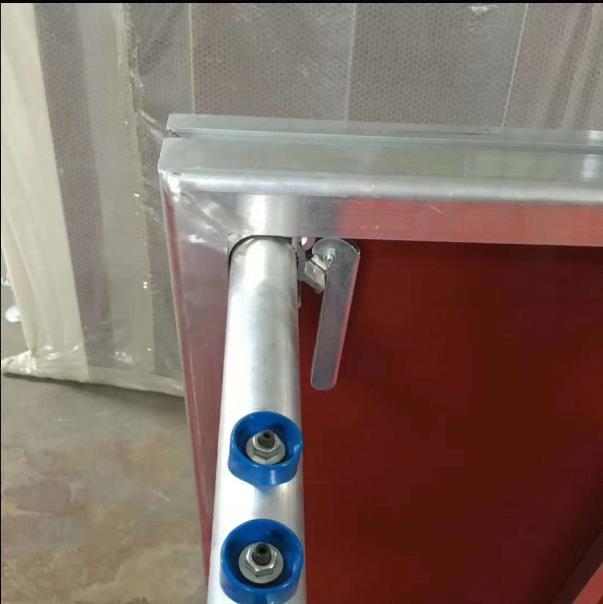

  • stage leg locking design
    how quick stage leg locked
    locking deviceleg locking design
quick stage deck connection way
underbeneath steel clamp                                       built-in hook                                            built-in inserter


steel clamp under the deck

built-in hook


quick stage built in inserter
FEET OPTIONS
Specialized in product & Expertise in type
This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.
telescopic feet
SPECIALIZED For SLOPING FLOOR
This adjustable telescopic legs can be adjustable from 0.2-0.3m, 0.3-0.6m, 0.6-1m, 1-1.5m. also we can custom produce other length as clients' need. its feet is a swivel device can be functionally used on sloping floor, especially for those swimming pools have sloping base.
TUV Tests on Aluminum Quick Stage
We have an excellent technical team, which design and produce high quality quick stage for events according to customers requirements.

aluminum quick stage before TUV test
TUV testing on aluminum quick stage



TUV SUD Certification and Testing (China) Co., Ltd. Guangzhou Branch carried the tests based on "general terms and conditions".

1. Description of test subject:

product name: aluminum quick stage

2. Dimensions:

overall dimensions 2.44m L x 1.22m W

frame & transom  aluminum alloy

panel laminated plywood T18.0 T85.0 NON slip

leg profile Dia.50mm

During the test,the specified loads were applied and deformations were measured 5 minutes after load and 5 minutes after load removal.

3. Uniformly distributed load (UDL)
The stage was supported by four poles at four ends.A specified nominal load was uniformly distributed according to Figure1. on the stage and the deflection under this loading condition was measured accordingly.

4. Test information

Surface Area, (m2) 2.97

UDL, (kg/ m2) 404

Total load applied, (kg) 1200

Measured deflection, (mm) 27

Residual deflection, (mm) 3

5. Test result

No visible damage was found during and after test.

Quick Stage Tutorial
Professional Techincal Team
how to get a custom quick stage
