packing weight:12600kg
packing volume:46cbm
| Item | Specification | Quantity |
| Steel Layer assembly stage | Aluminium Topping: 3.3x6.6ft
(1x2m) | 18mm Anti slip plywood | 180 pcs |
| Standard,LR1, L:2000mm | 110 pcs |
| Standard(base)-265mm | 110 pcs |
| Ledger, LR2,L:2000mm | 299 pcs |
| Ledger, LR2,L:1000mm | pcs |
| Brace, LR3,L:1500x2000mm | 199 pcs |
| Aluminium Beam clamp, 2m | 99 pcs |
| Aluminium Beam clamp, 1m | pcs |
| Stage adjustable base | 110 pcs |
| Aluminium Stage Stair（2m width) | 18mm Anti slip plywood | total | 8 | steps | 2 pcs |
packing weight:3350kg
packing volume:57cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 20.00 m Beam(front) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 18pcs |
| 2.00 m | 50×4.0 | CS520×760 | 3pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| 18.00 m Beam(side) | 3 sets | 3.00 m | 50×4.0 | CS520×760 | 18pcs |
| 2.00 m | 50×4.0 | CS520×760 | 0pcs |
| 1.00 m | 50×4.0 | CS520×760 | 0pcs |
| beam cube | Spigot cube 520x760 | 6pcs |
1. Dragon stage brand, Load:1000kg,
2. Chain length:25m,
3. lifting speed:4m/min,
4. 380V-3phrase-50HZ
5. Double brake
6. G100 load chain, meeting 8:1/10:1 safety factor.
7. With 0.5M 4Pin-16A Europe plug
8. waterproof: IP54 | 6pcs |
| 1control 8pcs, with Handle case | 1pcs |
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| Roof Pillar | 3 sets | 2.00 m | 50×3.0 | CS289×289 | 3pcs |
| 18.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 0pcs |
| 10.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs |
| 2.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.20 m | 50×3.0 | CS289×289 | 6pcs |
| 10.20 m Ladder truss | 14 sets | 3.00 m | 50×3.0 | CL30,289*50 | 28pcs |
| 2.00 m | 50×3.0 | CL30,289*50 | 14pcs |
| 2.20 m | 50×3.0 | CL30,289*50 | 14pcs |
| Roof Components |
| roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs |
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs |
| Connect plate with clamp | 3pcs |
| Single clamp | 28pcs |
| Double clamp | 12pcs |
| roof canopy material:pvc, Blue Colour or customized. | 525.76 | 1pcs |
packing weight:27150kg
packing volume:43cbm
| Item | Specification | Quantity |
| Layer truss | Horizontal Pipe, L:2M | 1658 pcs |
| Diagonal Pipe, LR3,L:2.44M | 1460 pcs |
| Pillar,LR1, L:2m | 702 pcs |
| adjustable base,LR4, H:0.25m | 123 pcs |

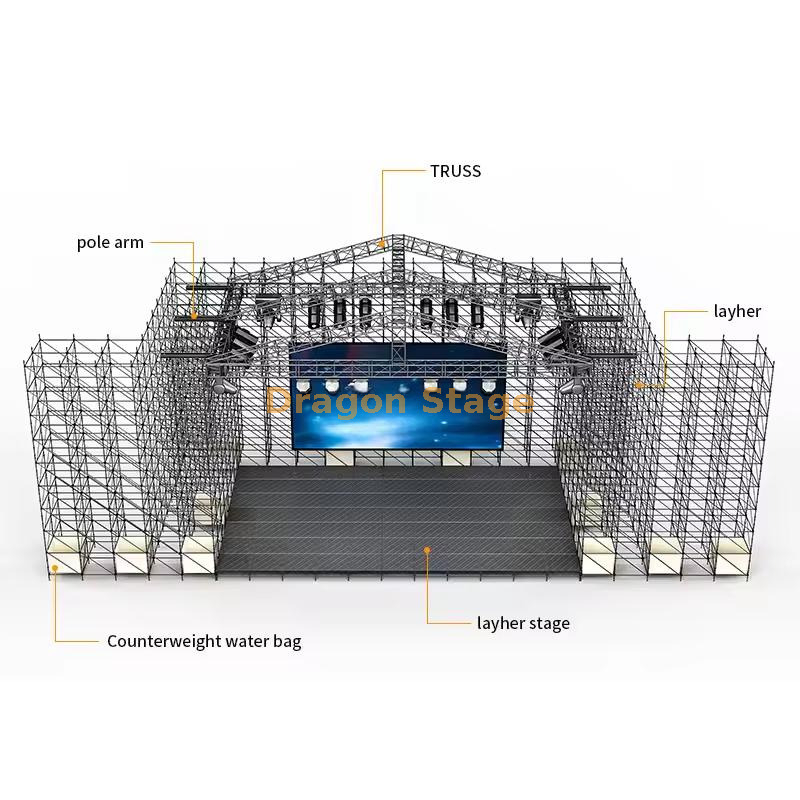

The 20m × 18m Layher Stage + Full Aluminum Roof Truss Hybrid System is the gold standard for major outdoor concerts, festivals, and televised events. Combining the unmatched strength and modularity of genuine Layher all-round scaffolding with a high-performance aluminum spigot/bolt roof truss, this complete solution delivers a massive 20-meter-wide × 18-meter-deep performance platform surrounded by 12-meter-high Layher truss walls and two giant 10-meter-wide side wings.
Perfect for supporting enormous LED video walls, multiple line-array PA clusters, complex lighting rigs, and special effects while maintaining total ground-supported stability using counterweight water bags or ballast. The integrated pole arms and extensive rigging points give production teams unlimited creative freedom.
Fast to erect, fully certified (TUV/SGS), and trusted worldwide by top touring productions – this is the ultimate turnkey stage system when only the biggest and most reliable will do.
