Layher stages are equally suitable for use inside halls and marquees as they are for outdoor use. The components make up a construction kit, allowing the building of a small podium for fashion shows, for a music performance, or for a giant concert stage.

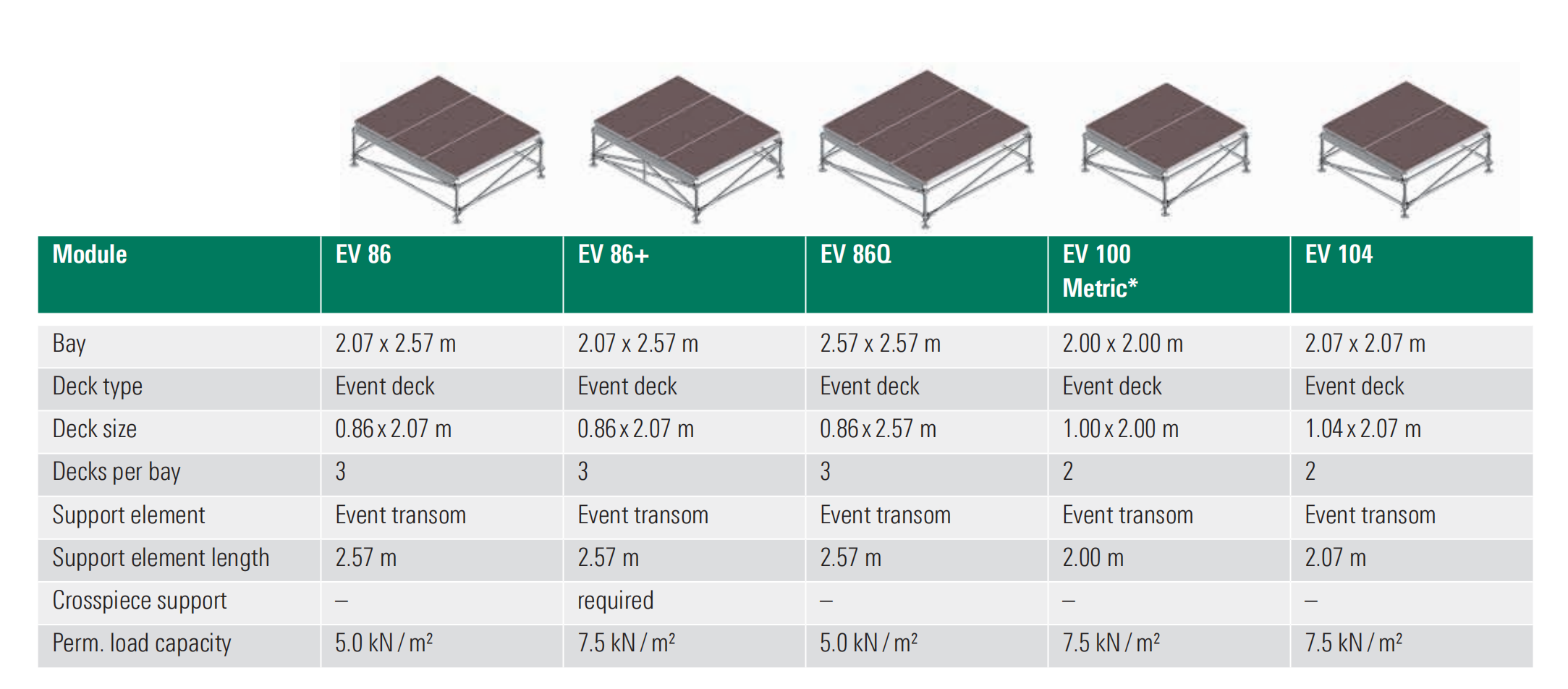

Layher Stages System Modules EV86, EV86+, EV86Q, EV100, EV104: Versatile, Modular Solutions for Temporary Structures
Introduction
The Layher Stages System is a cornerstone of Layher’s innovative event and construction solutions, engineered to deliver unmatched flexibility, speed, and safety for temporary stages, podia, and platforms. Modules EV86, EV86+, EV86Q, EV100, and EV104 represent a range of configurations tailored to diverse event requirements, combining premium materials (aluminum, hot-dip galvanized steel, and coated plywood panels) with modular design principles. These systems are ideal for concerts, festivals, exhibitions, and corporate events where rapid deployment and structural integrity are critical.
Key Features
Premium Materials
Aluminum Frames: Lightweight, corrosion-resistant, and easy to transport.
Hot-Dip Galvanized Steel Tubes (48.3 mm diameter): Ensure exceptional durability and weather resistance for long-term outdoor use.
Coated Plywood Panels: Non-slip, waterproof surfaces (18–25 mm thick) in black or natural finishes, compliant with fire safety standards.
Modular Design
EV86/Q: Compact modules for low-height stages (e.g., fashion shows).
EV100/104: Elevated platforms for grandstand seating or VIP areas.
Interchangeable Components: Adapt to uneven terrain with Layher’s Allround Base and adjustable rubber pads (minimizing floor damage indoors).
Scalability: Expand horizontally or vertically using standardized bays (e.g., 2.07 m, 4.14 m) and support elements (ledgers, diagonals).
Special Configurations:
Structural Performance
Load Capacity: Up to 7.5 kN/m² (static) and 300 kg/m² (dynamic), suitable for heavy equipment, lighting, and crowds.
Wind Resistance: Verified to withstand wind zones 1–4 (DIN EN 13814), with optional ballast systems for added stability.
Height Flexibility: Reach up to 10 meters with proper structural reinforcement.
Safety & Compliance
TÜV-Certified Stability: Engineered to meet German DIN standards and local regulations.
Guardrails & Safety Features: Integrated handrails (0.96 m high) and anti-slip surfaces ensure compliance with public assembly guidelines.
Application Diversity
Indoor/Outdoor Use: Weatherproof materials and quick-dismantle design for festivals, trade shows, or temporary auditoriums.
Customizable Options: Add roofing, LED walls, or acoustic panels using Layher’s complementary systems (e.g., Video Wall Assembly, Truss Systems).
