Ringlock Structure System

Heavy-Duty Modular Event Structures for Stages, Towers, Platforms and Public Events

Ringlock Structure System is a heavy-duty modular structural solution used for large event stages, concert platforms, grandstands, camera towers, FOH platforms, church platforms, LED support structures and temporary public event installations.

Unlike ordinary stage platforms, a ringlock structure is not only a deck support system. It is a complete modular load-bearing framework built with vertical standards, horizontal ledgers, diagonal braces, rosette connections, adjustable bases and customized top support components.

For event projects that require strength, height, modular expansion and structural stability, ringlock structure systems provide a practical solution between scaffolding technology and event engineering.

Request Project Consultation

What Is a Ringlock Structure System?

A ringlock structure system is a modular steel structure based on vertical posts, horizontal members and circular rosette connection points. Each rosette allows multiple horizontal and diagonal components to connect at fixed angles, creating a stable three-dimensional frame.

In event applications, this system can be used to build:

* Concert stage platforms

* Outdoor festival platforms

* Grandstands and audience seating structures

* Camera towers

* FOH control platforms

* Delay speaker towers

* LED screen support structures

* Church platforms

* Temporary viewing platforms

* Access platforms

* Public event support structures

The main value of ringlock structure is not only its load capacity. Its bigger advantage is that it can be adapted into many structural forms according to project size, height, site condition and usage requirement.

dragonstage layher truss

dragonstage layher truss

dragonstage layher truss

Layher truss horizontal pipe

View More

Layher truss pillar

View More

Layher truss diagonal pipe

View More

Layher truss disk & clip lock

View More

Layher truss adjustable base & joint pipe

View More

Layher truss disk & locks

View More

dragonstage layher truss

dragonstage layher truss

dragonstage layher truss

Why Choose Ringlock Structure Systems

01

High Structural Capacity

Suitable for elevated

platforms, large audience

loads and multi-level event

structures.

04

Fast Installation

Standardized components reduce assembly time and simplify logistics.

02

Modular Configuration

Flexible layouts for stages, seating systems, camera positions and support towers.

03

Long-Term Durability

Galvanized steel components provide excellent resistance to wear and outdoor environments.

Ringlock Structure Components

LEARN MORE

The Evolution of Ringlock Structure System: Unveiling the Multifunctional Event Ringlock System

The journey of the Event Ringlock structure system from a typical structure to a multifunctional design marvel showcases the ever-evolving nature of event production. Its newfound flexibility, coupled with easy installation and adaptability to various accessories, has elevated the standards for stage setups. As the event industry continues to embrace innovation, the Event Ringlock Stage system stands as a testament to the transformative power of design in creating unforgettable experiences for audiences worldwide.

Unlocking Design Possibilities:
This truss system's newfound adaptability empowers event planners to create distinctive and captivating structures, deviating from the limitations of traditional designs.

Versatility through Accessories:
The integration of various accessories and parts enhances the Event Ringlock Stage system, making it a multifunctional powerhouse that seamlessly accommodates stage equipment, including sound and lighting.

Ease of Installation:
A standout feature is the user-friendly nature of the system, simplifying the installation process and saving time and resources for event organizers.

Revolutionizing Events:
With enhanced design and multifunctional capabilities, the Event Layher Truss has revolutionized the event industry. Its dynamic canvas for creativity allows organizers to experiment with layouts and create immersive experiences.

The foundational component of the Ringlock Stage pillar's adjustable base, the base collar plays a crucial role. Its primary purpose is to ensure that the first layer of the Ringlock Stage system's truss is perfectly leveled, preventing tilting and potential falls as the system is assembled to greater heights. While one might argue that long pillars can also serve this purpose, the efficiency of using the base collar becomes evident during leveling tasks with machinery. To expedite the process, two individuals collaborate: one operates the level machine, while the other follows instructions to precisely adjust the level of the initial Ringlock disc. This streamlined approach becomes particularly advantageous when working with 2-meter trusses, as their weight and complexity can make the task challenging for a smaller team, potentially necessitating the involvement of three or four individuals.

Ringlock Stage Pillar Base Collar

The Horizontal-Diagonal Ledger serves as a crucial assembly aid, ensuring precision in establishing rectangularity in the ground plan. Its primary function is to facilitate the creation of a straight and square configuration for each layer of the truss cubical system, resulting in a consolidated and uniform Ringlock Stage system across all six faces.
In addition to its role in ensuring geometric integrity, the horizontal-diagonal braces offer valuable bracing effects in various structures. The O-ledgers' horizontal-diagonal configuration is designed with straight-welded wedge heads to achieve a square ground plan. Alternatively, obliquely welded wedge heads are incorporated when aiming for a rectangular ground plan. This versatile design accommodates different structural requirements, providing adaptability and efficiency in the assembly process.

Horizental-Diagonal Ledger

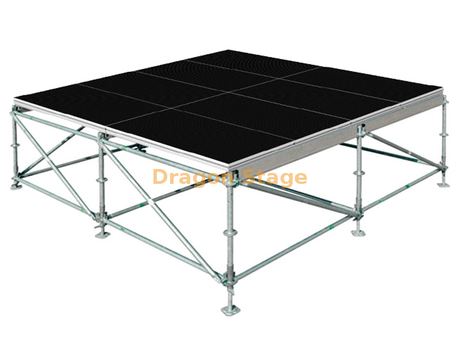

Full Staging & Platform

Ringlock Stage is a popular choice for constructing staging and platforms due to its durability and versatility. Ringlock Stage is a type of modular scaffolding system that can be assembled quickly

and easily, making it ideal for temporary structures like staging and platforms. Those are the main parts of an outdoor event stage. It is the backbone for all stage equipment in the whole stage design. Due to its strength, durability, versatility, lightweight design, and safety features. Ringlock Stage offers a flexible and customizable solution to nowadays large-scale concerts or events.

Key Benefits of Using Ringlock Structure for Full Staging and Platform Construction

Our Ringlock System can be built in kinds of stage, it can completely consistent with the designer's concept, it also can be built in a fast way beyond expectations, gives strong and wind stand structure.

Strong and durable: Ringlock Stage System is made from high-strength aluminum or steel, which makes it strong and durable. This means that it can support heavy loads and withstand harsh weather conditions.
Modular design: Ringlock Stage System is designed in a modular format, which means that it can be easily assembled and disassembled to create different configurations. This makes it ideal for constructing customized staging and platforms to suit your specific needs.
Versatile: Ringlock Stage System can be used to construct a wide range of structures, including stages, platforms, grandstands, and support towers. It is also compatible with a variety of accessories, such as handrails, stairs, and safety gates.

Lightweight: Despite its strength, Ringlock Stage System is lightweight and easy to transport. This makes it ideal for use in temporary structures that need to be set up and dismantled quickly.
Safe and reliable: Ringlock Stage System is designed to meet strict safety standards and is engineered to provide a safe and reliable working platform. This makes it a popular choice for events and shows where safety is a top priority.

The Ringlock Structure System are highly versatile and can be used both indoors and outdoors. With its modular construction feature, it is possible to construct small podiums for fashion shows, music performances, or even giant concert stages. The use of weather-resistant materials such as aluminium, hot-dip galvanized steel, and coated plywood panels ensures that the components are suitable for various weather conditions. The Allround stage can also be easily adapted to uneven surfaces, making it highly convenient. Moreover, the podium surface has a permissible loading capacity of up to 7.5 kN / m², while the height can be up to 10 m depending on the structural strength requirements on site and designer, or equipments suppliers.

Ringlock System podiums and stages offer a secure performance area that meets all necessary requirements. We utilize series manufacturing and maintain high delivery readiness, enabling you to reduce costs and achieve economic success. Additionally, we excel at creating tailor-made special solutions whenever they are required, which is one of our core strengths.

The Ringlock seating stands are known for their sturdy material, excellent workmanship, long-lasting durability, quick assembly, and low transport volume. These important characteristics make the ringlock stands ideal for use in different locations. The lightweight and easy-to-assemble individual parts can be installed manually, as shown in the picture. The modular design of the seating stands also allows for easy adaptation to local conditions, and ensures it for public assembly places.

The FOH Tower Kit System offers the ideal solution for your Front-Of-House needs. Its clever use of materials allows for swift and effortless assembly. The design is both practical and visually appealing, with meticulous attention given to every detail. The system can support up to three levels without the need for a central support, and is fully enclosed with keder tarpaulins.

The ringlock video wall assembly system provides concert-goers with an up-close view of performers at major outdoor events. The system can withstand strong winds and it does not need to remove the video screen. Furthermore, the bolt-free pin and wedge connection technology allows for quick and easy assembly without using a crane.

First-class quality

This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.

Typical Ringlock Structure System Parts & Cases

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

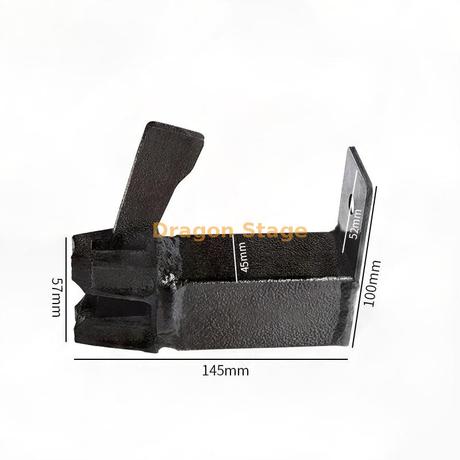

Ringlock Truss Small Led Wall Support Holder

Ringlock Truss use Small sizes Led Wall Support Holder 145mm

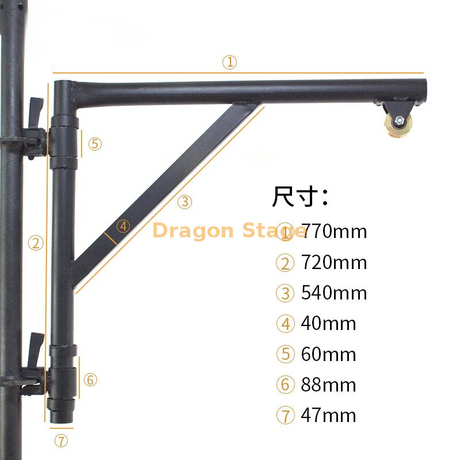

Steel Ringlock Truss Hanging Bracket

Steel Ringlock Truss Hanging Bracket 770mm wide and 720mm height

600mm wide and 550mm height

the pipe tube is 48.5x2mm

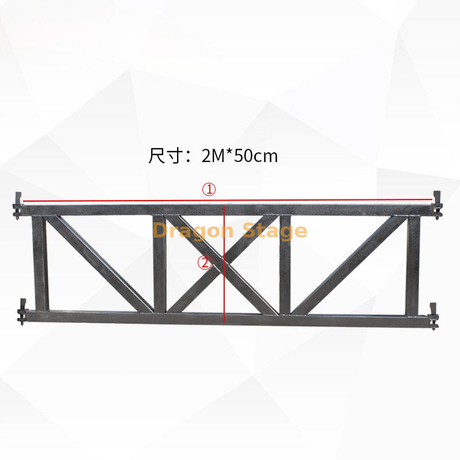

Steel Ringlock Truss Square Pipe Segment Beam 2m

Steel Ringlock Truss Square Pipe Segment Beam 2m long and 0.5m wide

the square tube is 50x50mm

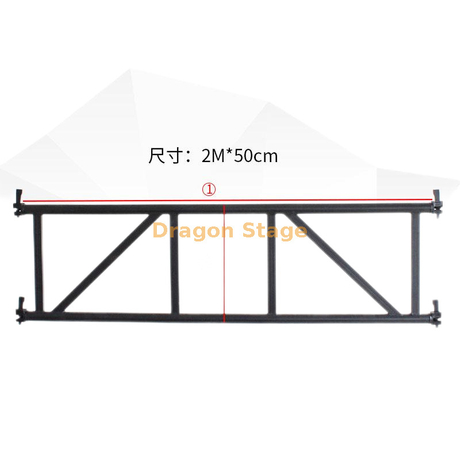

Steel Ringlock Truss Round Pipe Segment Beam

the round steel pipe is 48.5mm diamter

length of 2m and width of 0.5m

Custom Concert Outdoor Ringlock Suspending System for Line Array 10m

it is 2m wide and 4m deep and 10m high

a custom Ringlock suspending system offers a robust and adaptable solution for supporting a line array at 10m for outdoor concerts. Its unique features, including modularity, pre-engineered components, and adaptability, contribute to a safe, efficient, and reliable setup. Careful consideration of factors like load capacity, wind loads, and maintenance will ensure the system's optimal performance and contribute to a successful and memorable concert experience.

Aluminum Truss Beam Ringlock Tower for Hanging Sound Speaker 9m

The use of aluminum truss beam ringlock towers for hanging sound speakers has become increasingly popular in recent years, particularly for large-scale events and concerts. This essay will provide a comprehensive overview of this system, exploring its key components, advantages, and considerations for implementation.

Steel Ringlock Truss Wall System for Events 80x6x12m

The Steel Ringlock Truss Wall System is a versatile and efficient solution for creating temporary event walls and partitions. It is commonly used in the event industry for applications such as exhibition booths, trade shows, concerts, and other large-scale events.

Hanging Portable Led Steel Ringlock Truss 12x2m High 6m

A hanging portable LED steel Ringlock truss refers to a truss structure made of steel, typically a Ringlock scaffolding system, that is designed to support and suspend LED screens or lighting fixtures. total 12x2m high 6m.

Ringlock Stage System Types

Fork Connector Ringlock Stage

This is the most common and selected type of Ringlock Stage System. It has fork at each vertical truss top to connect adjacent stage decks.
Steel Beam Connector Ringlock Stage

This is steel beam connector has a slot on the top, it help the workers to put 2 adjacent decks to fit in and make the total deck as a perfect whole.
Aluminum Beam Connector Ringlock Stage

This is newly designed Ringlock Stage System with light-weight aluminum beam connector. It is similar to above steel Ringlock Stage System with steel beam which has a slot on the top.
Ringlock Stage Guardrails

This is a stage guardrail for Ringlock Stage System. We can custom-produce the railings to meet clients' needs.

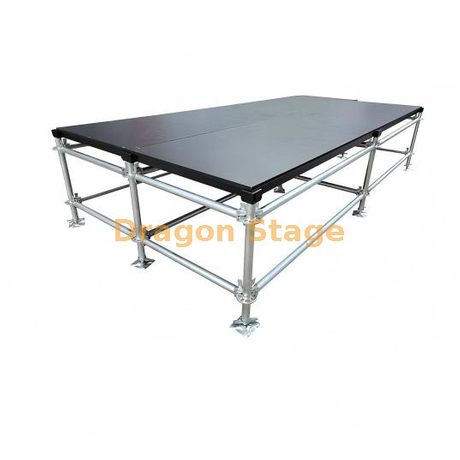

Ringlock Stage Platform

Heavy Duty 2X2m Ringlock Stage Deck

Ringlock Stage Platform Frame Custom Design

For ringlock stage platform frame, you have the freedom to design your stage platform according to your requirements. Whether you need a specific size, shape, or height, Ringlock Stage System can accommodate your preferences. Such as edge cutting, corner fitting and different stage leg clamps （round tube and square tube）. These allow you to create a stage that perfectly fits your event space and enhances the overall experience for performers and audiences alike.

How To Place LED Screen on Ringlock Structure System in Common Way

We would like to share the most common method of LED screen installation on Ringlock Stage System

To hang the led screen, the Ringlock Stage System structure have a group of top sections to hoist and motors are needed to work together after the led screen pieced up on the group.

Ringlock Structure Before Hanging LED

Before the led screen has been correctly positioned as needed height, there are should be counter weights on the base of ringlock structure avoiding turn over.

LED Installed on Ringlock Structure

Ways to Hang Line Array On Concert Ringlock Structure System

We would like to list the most common 3 kinds of system to hang line array sound system

single tower

this single independent speaker tower structure is mostly used for small or some medium concerts

group tower

for more than 10 meters high and heavy line arrays, the concerts holder would use group of truss tower

tower wall

for large concerts and there would be groups of line arrays are need, the tower wall is a indispensable structure

Truss Hanging Line Array

it is a Ringlock Stage System and aluminum truss beam combination structure, the line array is hanging and built from trussing beam top.
Long Section Hanging Line Array

it is a Ringlock Stage System and steel long section beam combination structure, the line array is hanging and built from long section steel top.

Bridge Ledger Truss & Guarding Rails

This is a 1500kg loading test carried out in Dragon Stage factory for one piece 2m long bridge ledger truss. This truss is widely used for those places where heavy equipments shall be installed, such as line array, led screen and hault structures. Check the video on the right.
