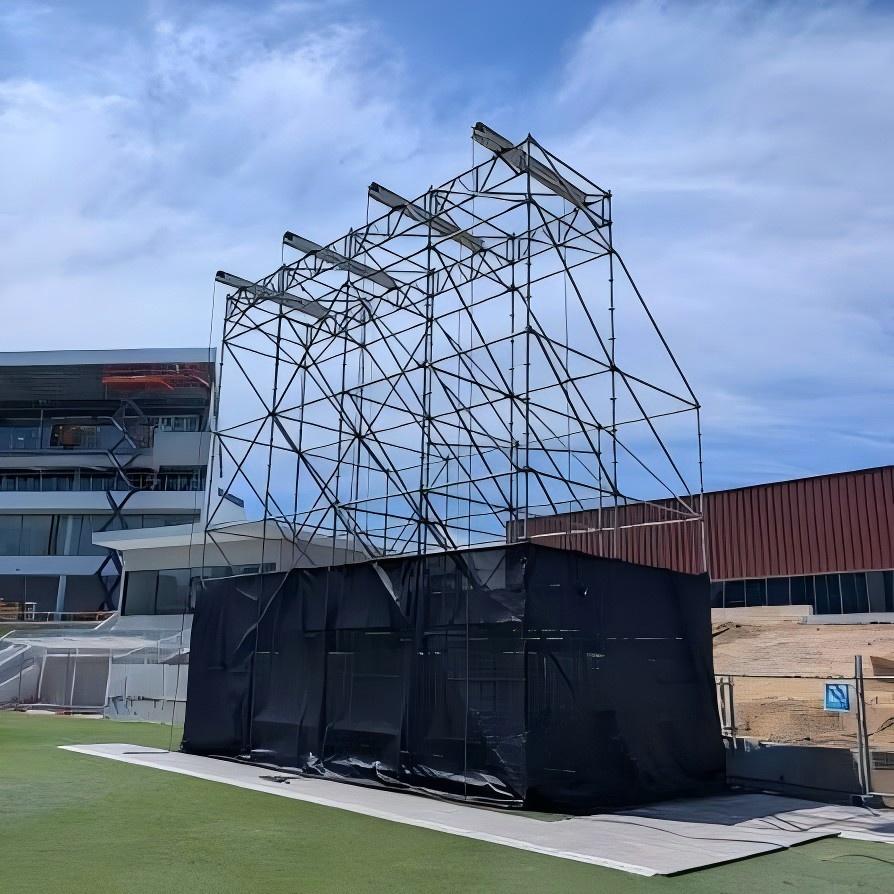

8x4x8m Double-Row Ringlock Line Array Hanging System with 4 Top Suspension Sets

packing weight：2160kg

packing volume：4.5cbm

Product Information

Product Description

The DragonStage 8m × 4m Ringlock Line Array Hanging System is designed for temporary concerts, festivals, and live-event sound systems that require several speaker hanging positions within one larger support structure.

The structure uses a double-row Ringlock Structure System:

• Front row: 8m high

• Rear row: 6m high

• Overall width: 8m

• Overall depth: 4m

The different front and rear heights create a deeper braced support layout instead of relying on a single vertical row.

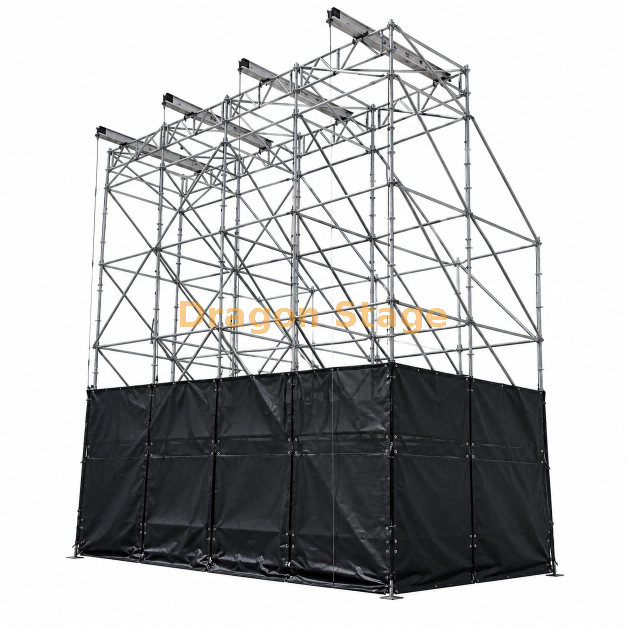

At the top, the structure includes 4 suspension assemblies, each based on a steel heavy-duty brace + top section arrangement for line array hanging.

This makes the system suitable when one event needs several line array positions across a wider stage-side or sound-support area.

For related audio applications, see Stage Sound and Concert Event.

Main Features

• 8m × 4m overall footprint

• Front Ringlock structure reaches 8m high

• Rear Ringlock structure reaches 6m high

• Double-row modular support arrangement

• 4 top line array suspension sets

• Steel heavy-duty brace + top section hanging configuration

• Suitable for multiple speaker-array positions

• Temporary modular concert structure

• Custom dimensions and hanging layouts available

Typical Applications

Concert line array support, festival PA systems, stage-side speaker suspension, touring productions, outdoor event sound systems, and temporary live-production audio structures.

Important Technical Note

The confirmed product information includes the 8m width, 4m depth, 8m front height, 6m rear height, and 4 top suspension assemblies.

The current information does not establish:

• allowable speaker weight

• allowable load per suspension point

• total structural load

• wind resistance

• ballast requirement

• anchoring requirement

• safety factor

• engineering approval

These depend on the actual line array model, cabinet quantity, hanging positions, site conditions, and final structural configuration.

FAQ

What is the overall size of this Ringlock line array system?
The structure is approximately 8m wide × 4m deep, with a maximum height of 8m.

Why are the two rows different heights?
The front row reaches 8m, while the rear row is 6m high, forming a double-row support configuration rather than a single flat tower line.

How many line array hanging positions are provided?
The current configuration includes 4 top suspension sets.

What is used at each top suspension position?
Each position uses a steel heavy-duty brace + top section hanging arrangement.

Can four different line arrays be installed?
The structure provides four suspension positions, but the actual speaker quantity and weight at each position must be confirmed according to the final project.

Can the size be customized?
Yes. Width, depth, height, tower layout, and suspension positions can be customized according to the sound-system requirement.

What information is required for quotation?
Please provide the line array brand/model, cabinet quantity, total weight at each hanging point, required hanging height, project location, and whether the installation is indoor or outdoor.
