2x4x8m Ringlock LED Hanging System with Auxiliary Ballast Tower and 400mm Cantilever Truss

packing weight:670kg

packing volume:2cbm

Product Information

Product Description

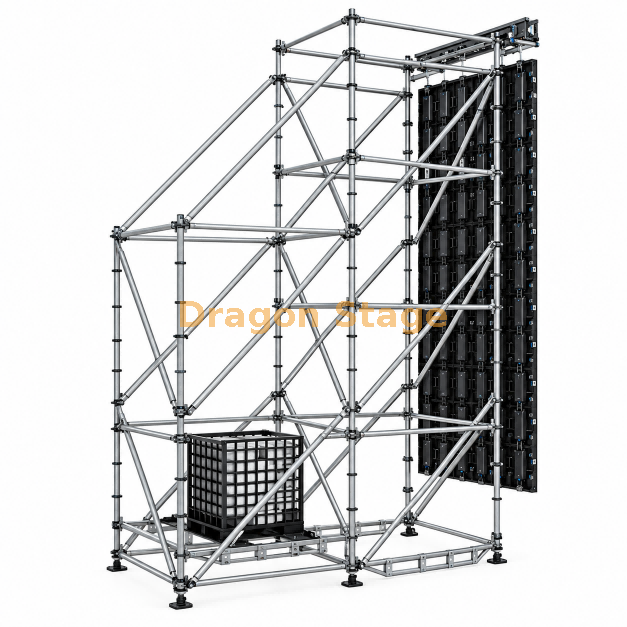

The DragonStage Ringlock LED Hanging System is designed for temporary concert and event use where the customer needs a compact but practical LED screen hanging structure.

This system uses two connected ringlock towers:

• Main tower: 8m high

• Auxiliary tower: 4m high

The total footprint is approximately:

• 2m wide

• 4m deep

The LED hanging area is arranged on the front side of the main tower. At the top, the structure uses a projecting cantilever beam combined with 400mm aluminum truss to create the hanging position for the LED screen.

The second connected tower works as an auxiliary support section and includes a ballast area at the bottom. This makes the structure more practical for temporary use where stability support needs to be considered together with the LED hanging layout.

This product is suitable for customers looking for a ringlock LED support solution rather than a simple flat truss frame. For related products, you can also view our Ringlock Structure System and Aluminum Truss pages.

Main Features

• Two connected ringlock towers

• 8m main tower for LED hanging

• 4m auxiliary tower for support and ballast arrangement

• Cantilever beam + 400mm truss at the top

• Temporary support structure for LED display use

• Ballast area located at the bottom of the second tower

• Compact layout for event and concert use

• Can be customized according to project requirements

Typical Applications

• Concert LED screen support

• Festival LED hanging structures

• Outdoor event video wall support

• Church and worship LED display support

• Temporary stage-side LED screen systems

• Touring and rental event structures

Important Note

This page describes the current product configuration based on the provided information:

• 2m width

• 4m depth

• 8m main tower

• 4m auxiliary tower

• cantilever beam

• 400mm truss

• ballast area

Actual LED weight, screen size, ballast requirement, wind condition, and site suitability should be confirmed according to the real project. This page does not automatically confirm project-specific loading approval or engineering verification. For project-based support, please also check Engineering Solution and Safety Standards & Engineering Constraints.

FAQ

What is the size of this LED hanging system?
The footprint is approximately 2m wide × 4m deep. The main tower is 8m high, and the auxiliary tower is 4m high.

What kind of structure is this?
It is a ringlock LED hanging system made from two connected ringlock towers.

What is the top hanging part made from?
The top uses a projecting cantilever beam combined with 400mm aluminum truss.

What is the auxiliary tower used for?
The second tower works as an auxiliary support tower and includes a ballast area at the bottom.

Can this system hang an LED screen?
Yes. It is designed for temporary LED screen hanging in concert and event applications.

Is ballast included in the structure design?
This configuration includes a ballast position at the bottom of the auxiliary tower. The actual ballast quantity should be confirmed according to the project.

Can the size be customized?
Yes. The tower height, footprint, truss type, LED hanging area, and support layout can all be customized.

Is this suitable for outdoor use?
It can be used for temporary outdoor events, but final suitability depends on the actual project conditions, wind exposure, and structural requirements.

What information is needed for quotation?
Please send the LED screen size, total LED weight, event location, indoor or outdoor use, required support height, and any reference drawing or site photo.

Why Choose DragonStage

• Practical experience with ringlock event structures

• Factory-based supply for stage, truss, and LED support products

• Support for customized temporary event structures

• Familiar with concert and event installation requirements

• Efficient communication for quotation and production

Inquiry Suggestion

For a fast quotation, please send:

• LED screen width and height

• total LED weight

• indoor or outdoor use

• event location

• required tower height

• preferred ballast method

• reference drawing or site photo
