Temporary events often require customized access solutions to connect different levels, provide safe pedestrian movement, and integrate with existing venues.
For this Australian project, Dragon Stage designed and manufactured a customized Ringlock access ramp system that combines modular structural support, walking surface, handrails, and staircase access.
Unlike standard prefabricated ramps, this project required a fully customized solution based on:
Site conditions
Entrance layout
Required ramp length
Safety requirements
Event environment

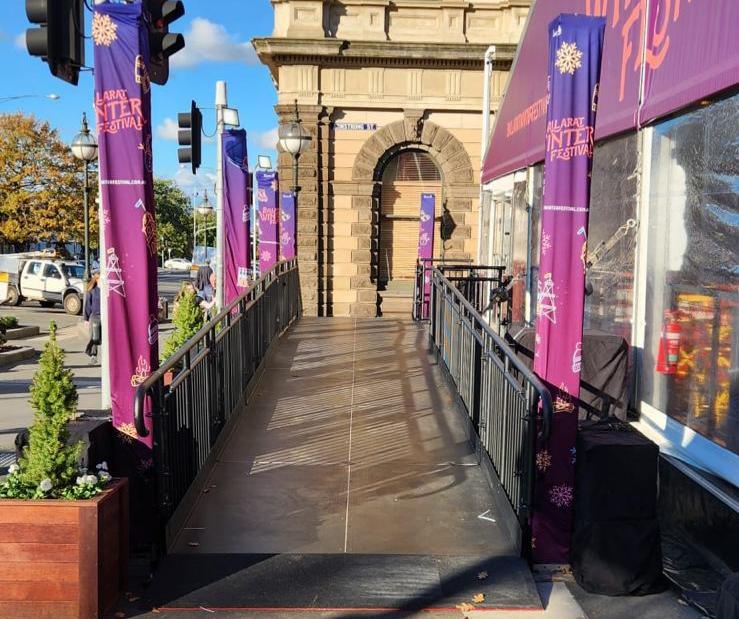

The completed structure provided a stable and professional access route for a temporary event venue.
This project demonstrates how Ringlock systems can be applied beyond traditional staging applications and become flexible solutions for temporary architectural structures.
For more information about Ringlock structures, see:

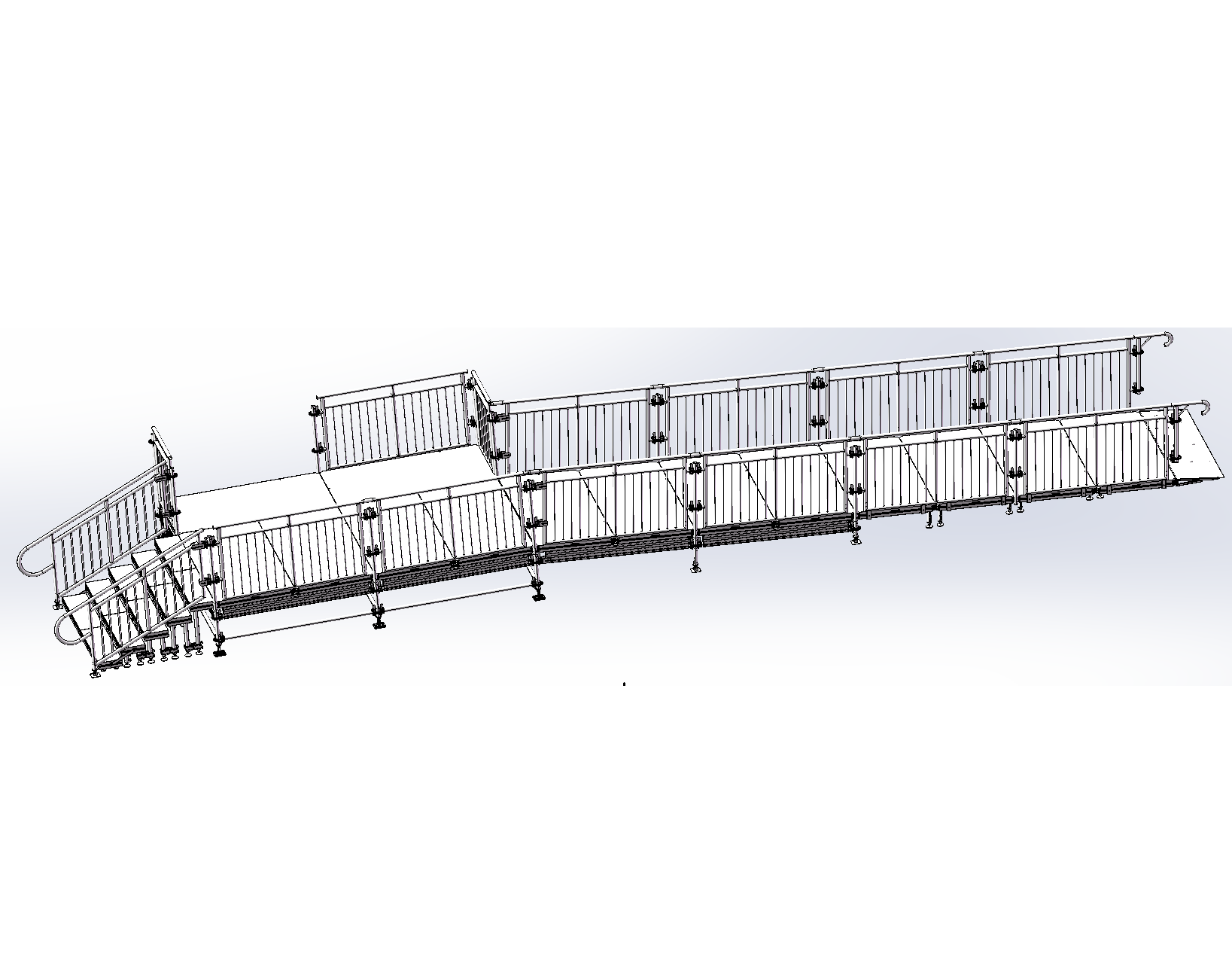

The main ramp section was designed according to the customer's site requirements.
The long modular ramp provides:
Smooth pedestrian access
Stable walking surface
Integrated safety protection
Because temporary event sites often have different elevation conditions, modular Ringlock structures provide an efficient method to create customized access solutions.
Integrated Connection Platform
A 4m × 1m connection platform was incorporated into the design.
This section works as:
Transition area
Access connection point
Structural adjustment zone
The modular design allows different sections to connect accurately during installation.
Staircase Access
One end of the structure includes a five-step staircase.
The combination of:
Ramp access
Stair access
allows the structure to serve different users and improves overall usability.
Safety Features
Full Handrail Protection
Both sides of the ramp are equipped with black handrails.
The handrail system provides:
Passenger protection
Clear boundary definition
Improved visual appearance
For temporary public access structures, safety accessories are an important part of the complete engineering solution.

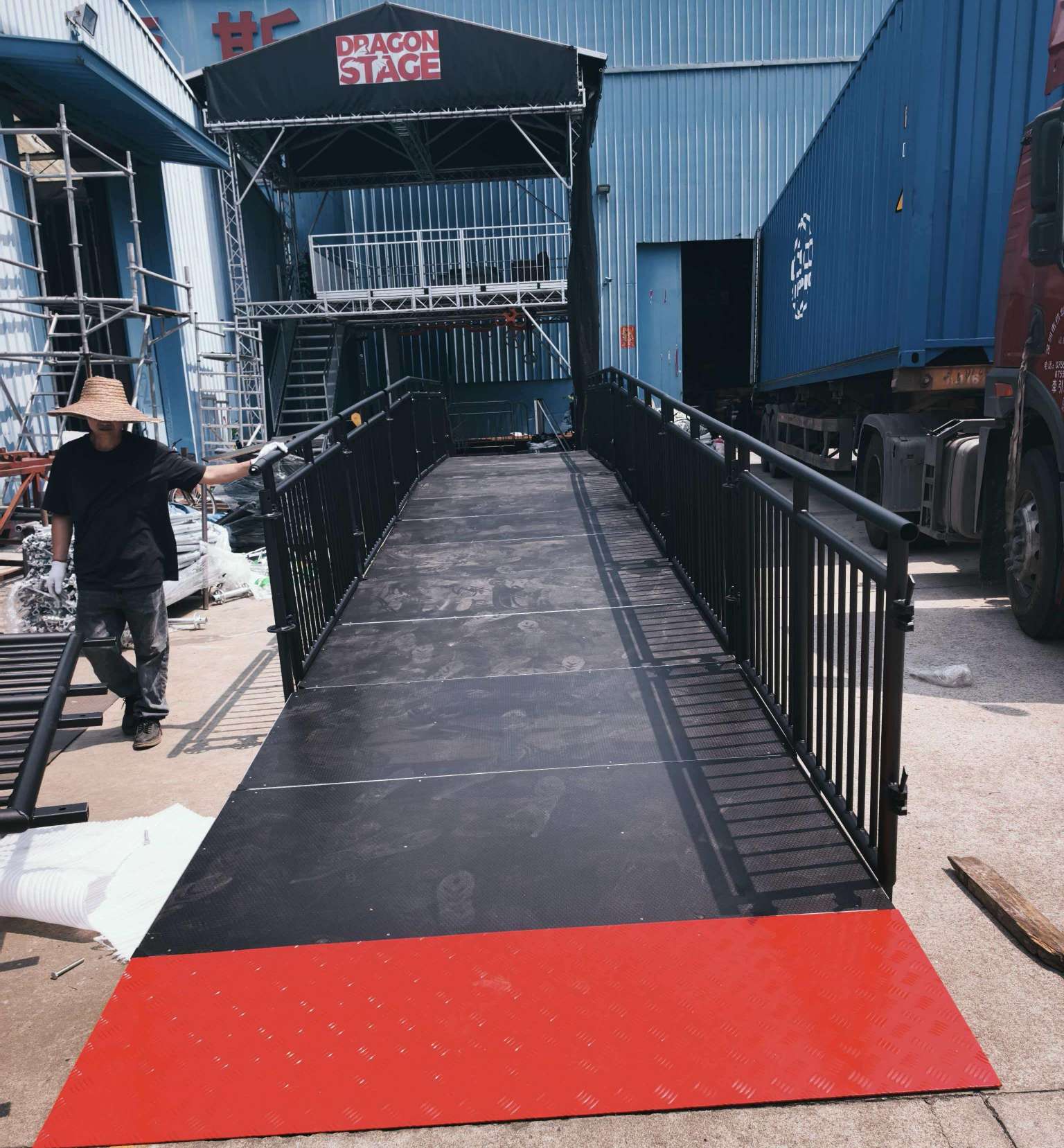

Factory Trial Assembly Before Shipment
Before delivery, Dragon Stage completed a factory trial assembly.
The process verified:
Ringlock connection accuracy
Ramp alignment
Stair connection
Handrail installation
Overall dimensions
For customized modular structures, trial assembly reduces installation risks at the customer's site.
One of the advantages of Ringlock systems is that the structure can be transported as individual components and assembled according to the final site conditions.
Yes. With proper engineering design, Ringlock systems can be customized into ramps, walkways, platforms, and access structures.
Are Ringlock structures only used for stages?
No. Ringlock systems are widely used in construction, events, exhibitions, temporary architecture, and public access applications.
Can the color be customized?
Yes. Besides galvanized finishing, customized coatings such as black finish can be provided.
Can Dragon Stage manufacture customized Ringlock structures?
Yes. We can design structures according to drawings, dimensions, and application requirements.
Conclusion
This Australian Ringlock access ramp project demonstrates the flexibility of modular temporary structures.
By combining Ringlock engineering with customized design, Dragon Stage created a practical and visually integrated access solution for a temporary event environment.
The project highlights an important principle:
Ringlock is not only a construction support system. It is also a flexible modular platform for temporary architectural applications.
