Introduction
Temporary events often require safe and reliable access solutions for guests, staff, equipment transportation, and accessibility requirements.
Unlike permanent buildings, temporary access structures must achieve a balance between:
For outdoor events, festivals, hospitality areas, temporary buildings, and public spaces, a traditional concrete ramp is usually not practical because of its permanent nature and long construction period. You can check our project case in Australia.
A modular Ringlock structure provides an alternative solution by creating a strong, adjustable, and reusable access system that can be installed and removed according to project requirements.
A typical temporary Ringlock ramp system consists of:
Steel Ringlock supporting frames
Adjustable deck support structure
Walking surface panels
Safety handrails
Connecting stairs or platforms
Through proper engineering and installation procedures, Ringlock systems can be customized into temporary ramps suitable for different heights, lengths, and event layouts.
Why Use Ringlock for Temporary Event Ramps?
Ringlock systems were originally developed as modular access and support structures for construction applications. Due to their flexibility and load-bearing capability, they are now widely used in temporary event structures.
More information about the basic structure and applications of Ringlock systems can be found in:
What Is a Steel Ringlock Structure? Applications, Advantages and Event Uses
Compared with traditional welded structures, Ringlock systems provide several advantages for temporary ramp applications.
1. Modular Design and Flexible Configuration
A temporary ramp rarely has a standard size.
The required dimensions depend on:
Because Ringlock components connect through standardized rosettes, ledgers, and braces, the structure can be adjusted according to the actual site conditions.
For example:
Short ramps can be built for small elevation differences.
Long ramps can be created by extending additional bays.
Different heights can be achieved through adjustable supports.
This modular approach allows one structural system to serve multiple projects.
2. High Load Capacity and Structural Stability
A ramp structure must safely support:
Pedestrians
Wheelchairs
Equipment carts
Temporary event traffic
The main load-bearing system consists of vertical standards, horizontal ledgers, and diagonal braces.
The load is transferred from the walking surface through the supporting frame and finally to the ground through the base support system.
For more information about Ringlock structural performance, see:
How Do Steel Ringlock Trusses Contribute to the Overall Structural Integrity of a Building or Structure
3. Fast Installation and Removal
One of the biggest advantages of Ringlock systems is installation efficiency.
Unlike welded steel structures, Ringlock components do not require:
On-site welding
Complex machining
Permanent foundations
Most connections are completed by inserting and locking components mechanically.
This makes Ringlock ramps suitable for:
4. Reusable Temporary Structure
Sustainability and cost efficiency are becoming increasingly important in event construction.
A properly designed Ringlock ramp can be:
Disassembled after the event
Transported to another location
Reconfigured for a different project
The same components can be reused for:
Temporary stages
Platforms
Walkways
FOH structures
Access systems
This makes Ringlock a practical solution for rental companies and event production suppliers.
Structural Components of a Ringlock Event Access Ramp
A temporary Ringlock ramp is not simply a sloped platform.
It is an integrated structural system consisting of several components.
1. Ringlock Supporting Structure
The supporting structure is the foundation of the ramp system.
It consists of:
The standards create the vertical load path, while the ledgers connect the frame into a stable grid structure.
Diagonal bracing improves:
A properly designed support frame ensures that the ramp remains stable during continuous pedestrian use.
More details about Ringlock manufacturing and construction can be found in:
How Are Steel Ringlock Structures Manufactured for Event Applications
2. Deck Support System
The walking surface requires a stable supporting layer.
Depending on project requirements, the deck can use:
In this Australian project, the Ringlock structure was combined with a platform deck system to create a durable outdoor access route.
The supporting beams underneath the deck distribute pedestrian loads evenly across the Ringlock frame.
3. Safety Handrails
Safety protection is an essential part of temporary ramps.
A complete ramp system normally includes:
The handrails prevent users from accidentally stepping outside the ramp edge and improve user confidence.
For public events, accessibility structures should always consider safe movement for:
Wheelchair users
Elderly visitors
Children
General audiences
4. Stair Connection
Many temporary access projects require both ramps and stairs.
A ramp provides accessibility, while stairs provide faster pedestrian movement.
A combined system can include:
Main ramp access
Connecting stair section
Landing platform
Guardrail protection
This creates a complete circulation solution rather than a single access element.
Installation Sequence of a Temporary Ringlock Ramp
A professional installation process should follow a planned sequence.
The following steps are based on practical temporary structure installation experience.
Step 1: Confirm Layout and Installation Position
Before assembly begins, the installation team should confirm:
Ramp location
Entry and exit points
Ramp direction
Ground conditions
Connection points
For customized projects, the CAD drawing should be reviewed before material installation.
The purpose of this step is to ensure that the finished ramp matches the planned site layout.
Step 2: Position Base Supports
The first structural components installed are the base supports.
The installation team sets out:
Standard locations
Base plates
Adjustable supports
Accurate positioning is important because any deviation at the base will affect the entire ramp alignment.
Step 3: Assemble Ringlock Frame
After base positioning, vertical standards and horizontal ledgers are installed.
The basic sequence is:
Install vertical standards
Connect horizontal ledgers
Add diagonal braces
Check alignment and stability
At this stage, the main structural skeleton of the ramp is completed.
Step 4: Install Additional Bracing
For longer ramps, additional reinforcement is required.
Diagonal bracing helps:
The bracing arrangement should follow the engineering design rather than being added randomly.
Step 5: Install Deck Panels
After the supporting structure is completed, the walking surface is installed.
The deck installation should ensure:
For outdoor applications, waterproof and anti-slip materials are commonly considered.
Step 6: Install Handrails and Safety Components
After the deck is completed:
Install side handrails
Secure all connections
Check railing height
Confirm user protection
This step transforms the structural frame into a safe public access system.
Step 7: Final Inspection
Before opening the ramp for public use, the installation team should complete a final inspection.
The inspection should include:
Structural Check
Connection points
Bracing system
Base stability
Safety Check
Handrails
Walking surface
Edge protection
Operational Check
A temporary structure is only successful when it combines engineering reliability with user experience.

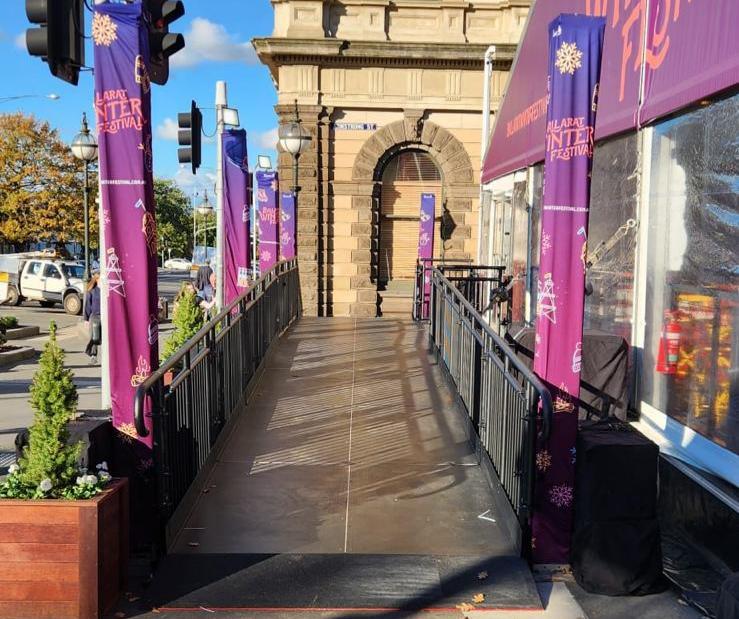

Australian Custom Ringlock Ramp Project Example
This custom Ringlock ramp project was designed and manufactured for an Australian customer.
The project included:
Approximately 14m total ramp length
Approximately 2m overall width
4m × 1m connection platform area
Black powder-coated finish
Integrated handrails
Five-step stair connection at one end
The project demonstrates how Ringlock systems can be adapted beyond traditional scaffolding applications and developed into customized temporary architectural structures.
From design drawing to factory assembly and final installation, the complete process shows the flexibility of modular Ringlock engineering.
Conclusion
A temporary event access ramp requires more than a simple inclined platform. It is a complete structural system that must consider safety, stability, installation efficiency, and future reuse.
Ringlock structures provide an effective solution because they combine:
For event organizers, rental companies, and temporary structure contractors, a professionally engineered Ringlock ramp system can provide a reliable access solution for a wide range of outdoor and temporary applications.
