Product Specifications
Item | Specification |
|---|

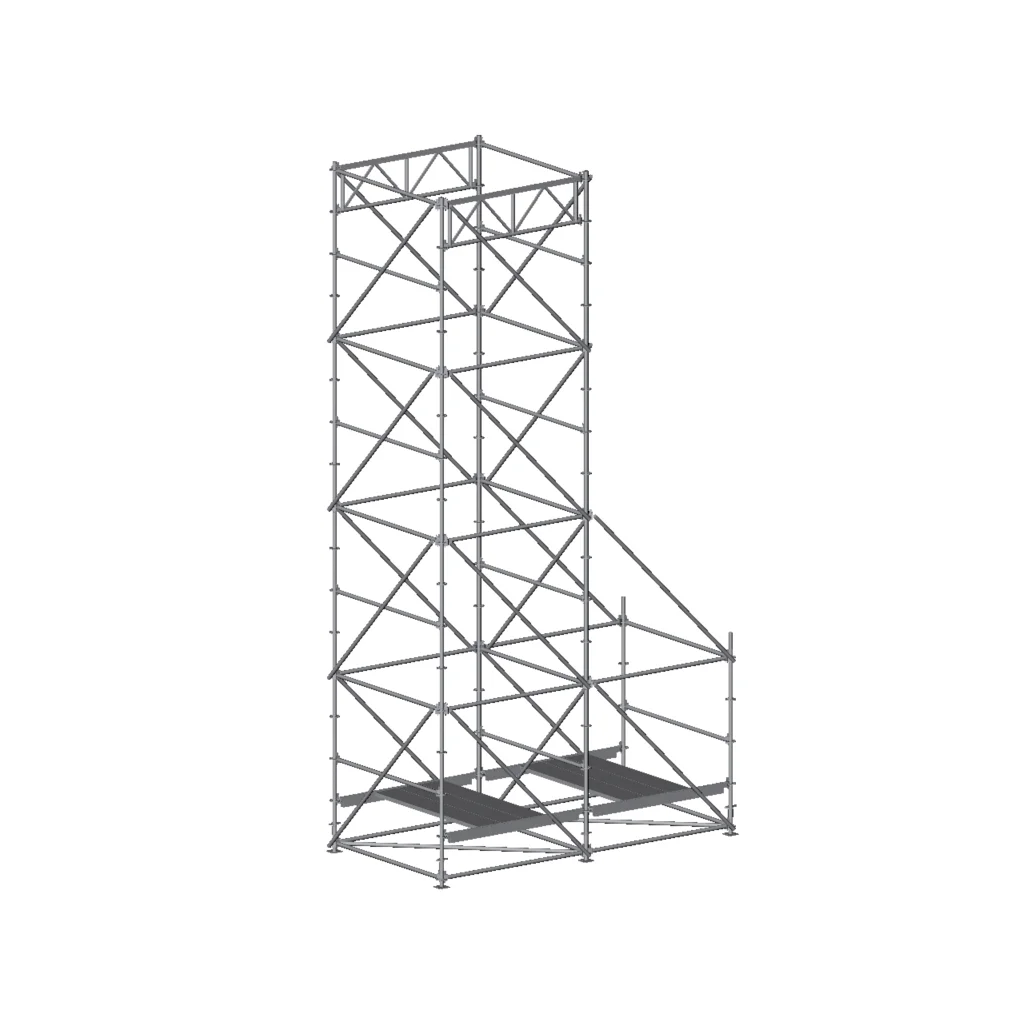

Product Type | Ringlock Line Array Speaker Hanging Tower |
Application | Concert / Festival / Live Event / Outdoor Event |
Overall Width | 4m |
Overall Depth | 2m |
Overall Height | 8m |
Main Structure | Modular Ringlock System |
Base System | Adjustable Ringlock Base |
Structure Type | Temporary Modular Tower |
Configuration | Line Array Speaker Suspension |
Product Features
With an overall footprint of 4m wide × 2m deep, this speaker tower provides a compact structural solution for concert and event sites where installation space is limited.
2. 8m High Ringlock Structure
The tower reaches an overall height of 8m, providing an elevated position for line array speaker systems and helping create a suitable speaker coverage configuration for live events.
3. Modular Ringlock Construction
The structure uses a modular ringlock system consisting of horizontal pipes, diagonal pipes, vertical pillars, adjustable bases, and steel braces. The modular components allow the tower to be assembled, dismantled, transported, and reused for different events.
5. Adjustable Base System
The tower is equipped with adjustable bases, LR4, H:0.25m, allowing the base level to be adjusted during installation and helping accommodate uneven ground conditions.
6. Reinforced Structural Configuration
Horizontal and diagonal ringlock members form the main structural framework, while additional steel braces and beam components provide supplementary structural support according to the specified configuration.
7. Suitable for Temporary Event Structures
The complete system is designed as a reusable temporary structure for concerts, festivals, touring productions, outdoor performances, and other live-event applications where line array speakers need to be supported from a freestanding tower.
packing weight:750kg
packing volume:2cbm
BOQ / Components
Item | Specification | Quantity |
|---|
Layer Truss | Horizontal Pipe, L: 2m | 35 pcs |
Diagonal Pipe | LR3, L: 2.44m | 29 pcs |
Pillar | LR1, L: 2m | 22 pcs |
Adjustable Base | LR4, H: 0.25m | 8 pcs |
Steel Braces | L: 2m, H: 0.5m | 2 pcs |
Steel Braces | L: 2m, H: 0.25m | 2 pcs |
Pallet | — | 6 pcs |
Applications
The Ringlock Line Array Speaker Hanging Tower is suitable for:
Concerts and live music events
Outdoor festivals
Touring productions
Stage and event production
Corporate events
Public performances
Temporary PA systems
Line array speaker suspension
Large outdoor entertainment events
Safety & Structural Considerations
The tower should be assembled on a suitable supporting surface and installed according to the approved structural configuration. The speaker beam, clamps, suspension points, and lifting accessories must be selected according to the actual line-array system weight and suspension requirements.
The final configuration, allowable suspended load, anchoring/ballast requirements, wind conditions, and installation method should be verified by a qualified structural engineer or competent event-structure professional before use.
FAQ
What is a Ringlock Line Array Speaker Tower?
It is a temporary modular ringlock structure designed to provide a dedicated support framework for suspending line-array speakers at concerts and events.
What type of speakers can this tower support?
The system is intended for professional line-array speaker applications. The actual compatible speaker system depends on the speaker manufacturer's rigging requirements and the final structural design.
Is the speaker included?
No. The product is the structural support system and related components. The line-array speakers are not included unless specifically stated in the quotation.
How many pallets are included?
The current BOQ includes 6 pallets.
How many adjustable bases are included?
There are 8 LR4 adjustable bases with a 0.25m height specification.
Can the tower height be customized?
Yes. The ringlock configuration is modular and can be adapted to different project heights and layouts, subject to structural verification.
Is this suitable for outdoor concerts?
It can be configured for outdoor temporary events, but outdoor use requires consideration of wind, ground conditions, ballast/anchoring, and other project-specific factors.
Does the tower have a fixed load capacity?
The BOQ provided does not specify a complete-system allowable load. The allowable line-array load must be determined from the final tower configuration and engineering verification.
