DragonStage 16x2x8m ringlock background structure combined with a 12.2x7.32m aluminum stage and a 14x10x6m aluminum bolt truss lighting roof. The system includes a 4m diameter circular truss, 1.22x1.22m stage decks, and 2 stage stairs, making it suitable for concerts, ceremonies, brand events, and temporary performance setups.

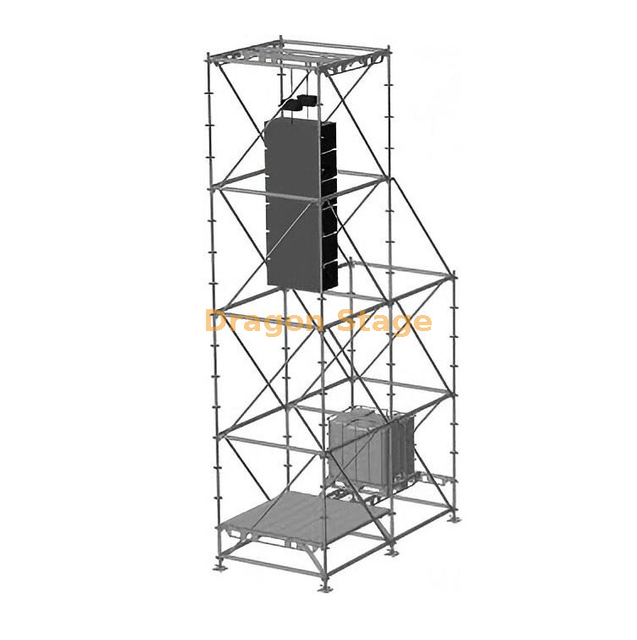

The DragonStage 2x4x8m Ringlock Line Array Hanging Tower System is a temporary event sound support structure made from two connected ringlock towers. The main tower is 8m high and the auxiliary tower is 4m high. The main tower includes a working platform at the bottom, while the auxiliary tower supports a ballast area. A steel top beam is installed above the main tower for hanging the line array speaker system.

The DragonStage 4x2x8m Ringlock Line Array Support System is a hybrid ringlock + aluminum truss structure for temporary concert and event audio support. It combines a top aluminum truss beam for line array hanging, pallet working platforms, a water-ballast support platform, a side speaker bracket with aluminum truss, and front positions for LED matrix lights. The main structure is 4m wide × 2m deep × 8m high, with an overall width of approximately 4.5m including the projecting side bracket.

The DragonStage 6m wide × 4m deep × 6m high Ringlock System for LED Screen is a temporary ground-supported structure designed for concert, event, and outdoor visual display use. It is configured for a 6m × 4m LED screen, with 4 pieces of 2.8m top sections for the upper hanging points and 3 water ballast units arranged at the bottom as counterweight support. This system combines a modular ringlock structure with a practical LED hanging layout for temporary stage and event applications.

This is a Ringlock Line Array Speaker Hanging Tower designed for temporary concert, festival, outdoor event, and live performance applications. The modular ringlock structure provides a compact and practical solution for suspending line array speaker systems where a dedicated speaker support tower is required. The overall structure is 4m wide, 2m deep, and 8m high, providing a high vertical support frame while maintaining a relatively compact footprint. The tower is constructed from modular ringlock components, including horizontal pipes, diagonal pipes, vertical pillars, adjustable bases, steel braces, and dedicated speaker-support components.

The use of aluminum truss beam ringlock towers for hanging sound speakers has become increasingly popular in recent years, particularly for large-scale events and concerts. This essay will provide a comprehensive overview of this system, exploring its key components, advantages, and considerations for implementation.

Steel Ringlock Truss Hanging Bracket 770mm wide and 720mm height
600mm wide and 550mm height
the pipe tube is 48.5x2mm

Ringlock Truss Extension Frame, total sizes are 1072x500mm.

Ringlock Truss Large Extension Frame, total sizes are 1072x1000mm.
