6x4x6m Ringlock System for 6x4m LED Screen with 4 Top Sections and 3 Water Ballasts

packing weight：1550kg

packing volume：3.5cbm

Product Brief

• Overall structure size: 6m W × 4m D × 6m H

• LED screen size: 6m W × 4m H

• Top hanging members: 4 pcs, 2.8m top sections

• Counterweight: 3 water ballast units

• Main use: temporary concert LED screen support

• Structure type: ground-supported ringlock system

Product Information

Product Description

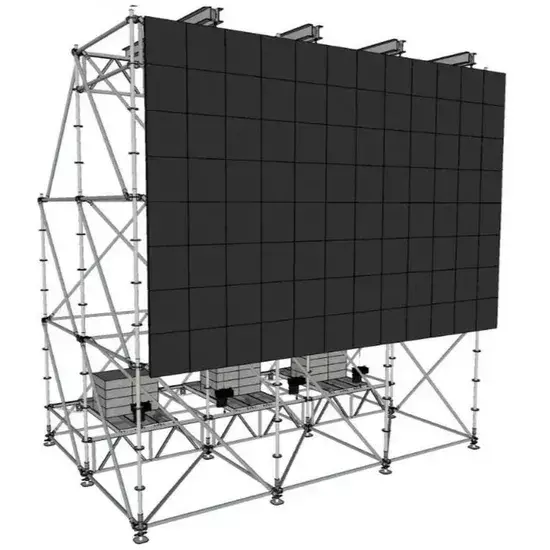

The DragonStage Ringlock System for LED Screen is a modular temporary support structure designed for events that need a freestanding LED screen installation without relying on a permanent building structure. In this configuration, the full structure measures 6 meters wide, 4 meters deep, and 6 meters high, while the LED display area is arranged at 6 meters wide and 4 meters high.

The upper part of the structure uses 4 pieces of 2.8-meter top sections as the main hanging members for the screen installation layout. At the lower rear area, 3 water ballast units are arranged as counterweight support, helping the complete system suit temporary event use where ballast-based stabilization is preferred.

This kind of product is useful for concerts, worship events, public activities, ceremonies, temporary outdoor shows, and other projects where the customer needs a practical LED support structure built from ringlock system components rather than a conventional aluminum truss frame alone.

If you are comparing different temporary screen support approaches, you can also review our Ringlock Structure System, LED Stage Truss, and Truss Towers & Pillars pages.

Main Features

• Designed for a 6m × 4m LED screen
  This structure is laid out around a practical screen size that is commonly used for medium event displays.

• Ringlock-based modular construction
  The main support body uses a ringlock system, making the structure modular, repeatable, and easier to configure for temporary event use.

• 4 top sections for upper hanging layout
  The system includes 4 pieces of 2.8m top sections arranged at the top for the LED screen support layout.

• 3 water ballast units at the bottom
  Ballast support is arranged with 3 water ballast units, which is often useful for temporary sites where a counterweight solution is preferred.

• Suitable for temporary concert and event use
  This product is meant for temporary installations, not permanent civil construction.

• Can be customized
  The overall size, screen size, hanging arrangement, ballast arrangement, and structural details can all be adjusted according to project needs.

What This Product Is Suitable For

This ringlock LED screen system can be used for:

• Concert LED screen support

• Outdoor event LED background displays

• Church and worship event video walls

• Ceremony and public activity displays

• Sports event temporary screen support

• Festival and cultural event visuals

• Exhibition and promotional video display structures

Why This Product Uses Ringlock Structure

For some LED screen projects, customers do not need a pure aluminum truss support system. Instead, they need a structure that can create more depth, a wider support base, and a practical ballast arrangement. In those cases, a ringlock system can be a useful temporary structural option.

Compared with some simpler front-frame screen supports, this type of structure gives more room for rear support arrangement, ballast positioning, and platform-style working access during installation. That is why ringlock-based LED screen structures are often discussed together with our Engineering Solution service.

Important Note About Structure and Verification

This page describes the product configuration and general application direction based on the information currently provided:

• overall size 6m × 4m × 6m

• LED size 6m × 4m

• 4 pcs top sections, each 2.8m

• 3 water ballast units

However, this page does not automatically confirm:

• allowable wind rating

• allowable screen weight

• allowable point load

• ballast sufficiency for all sites

• local compliance approval

• project-specific engineering approval

Those points depend on the final project conditions, installation location, ground condition, actual LED cabinet weight, hanging method, and local requirements. For that reason, customers with real projects should also review Safety Standards & Engineering Constraints before final confirmation.

Customization Options

We can discuss customization for:

• different overall widths and heights

• different LED screen sizes

• more or fewer top sections

• different ballast arrangements

• extra working platform or access area

• different surface finish

• additional side support details

• project-based layout revisions

If you are also considering aluminum truss alternatives, you can compare with our Aluminum Truss products.

FAQ

What is the overall size of this ringlock LED screen structure?
The overall structure size is 6 meters wide, 4 meters deep, and 6 meters high.

What LED screen size is this product designed for?
This version is configured for a 6m wide × 4m high LED screen.

How many top hanging sections are included?
This configuration uses 4 top sections, and each top section is 2.8 meters long.

What kind of ballast is used at the bottom?
This structure uses 3 water ballast units as the bottom counterweight arrangement.

Is this a permanent structure?
No. This is a temporary modular event structure intended for temporary concert and event use.

Can I change the screen size?
Yes. The structure can be customized for different LED screen dimensions and project requirements.

Can this be used outdoors?
It can be considered for outdoor temporary event use, but the final suitability depends on project conditions such as wind, site condition, screen weight, and structural verification.

Does this page confirm the maximum loading capacity?
No. This page describes the product configuration only. Final loading suitability depends on engineering review for the actual project.

Can you also provide the LED screen itself?
If needed, we can discuss the screen structure together with related event equipment, but this page mainly focuses on the temporary support structure.

What information should I send for an accurate quotation?
Please send the LED screen size, total screen weight, installation location, whether the use is indoor or outdoor, expected screen bottom height, and any reference drawings or pictures.

Why Choose DragonStage

• Factory-based supply with practical event structure experience

• Familiar with temporary stage, truss, and ringlock applications

• Can support standard and customized event structure projects

• Able to discuss combined systems such as LED wall support, stage, roofing, and related event equipment

• Focused on practical quotation and production communication

Inquiry Suggestion

If you want us to quote a similar ringlock system for LED screen, please send:

• LED screen width and height

• total LED screen weight

• indoor or outdoor use

• project location

• required total structure size

• whether water ballast or other ballast is preferred

• any sketch, drawing, or site photo

That will help us prepare a more practical quotation.
