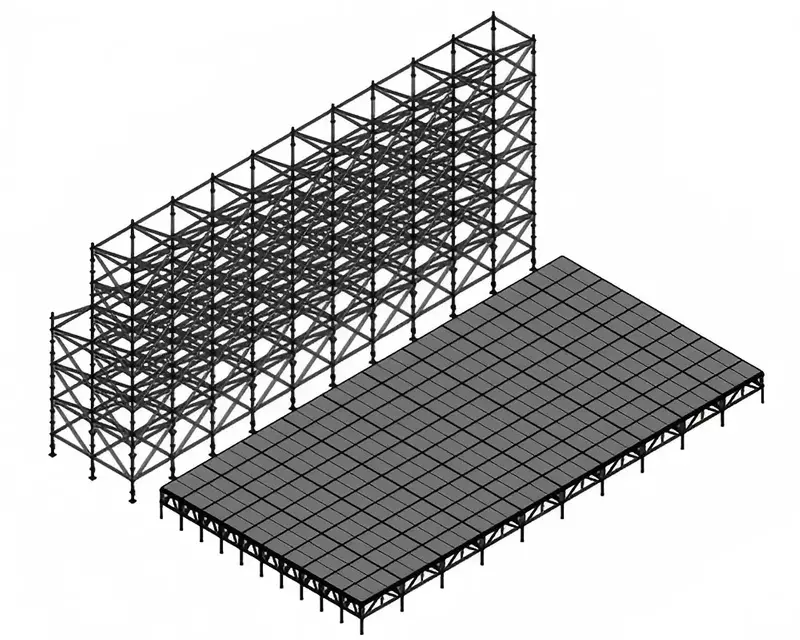

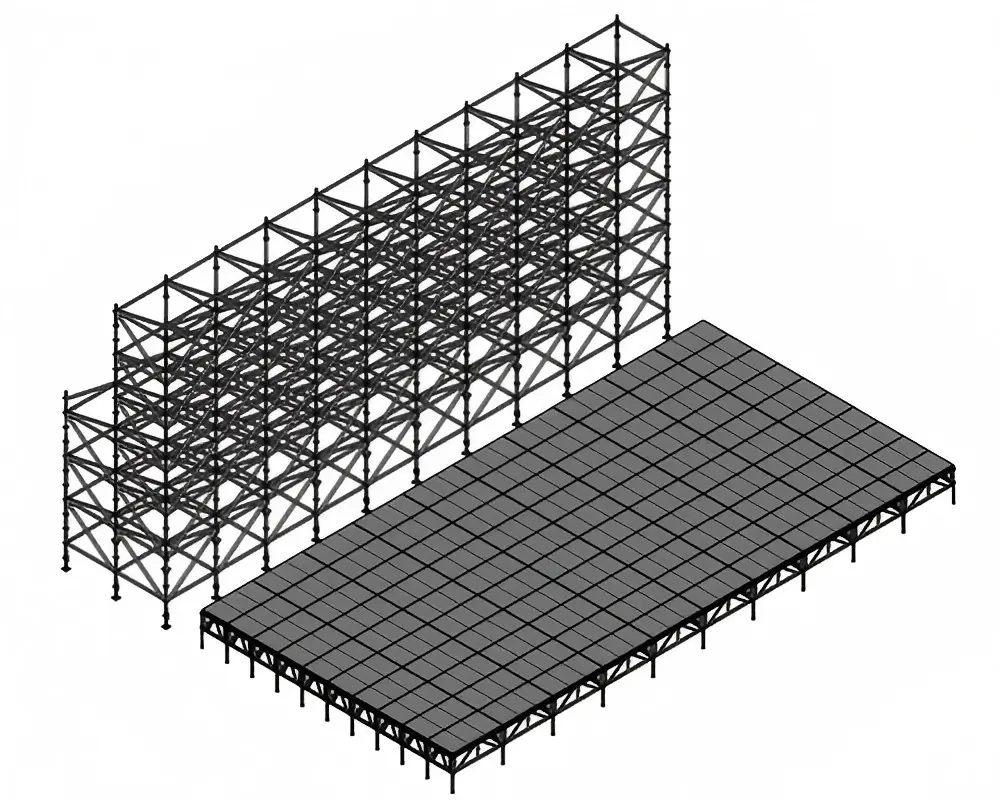

The DragonStage 20m Ringlock LED Background Wall + Aluminum Brace Stage is a combined temporary event structure designed for large concert and performance applications.

The system consists of two clearly separated but coordinated parts:

20m × 2m × 12m Ringlock LED background wall

packing weight:6066kg

packing volume:10cbm

20m × 10m × 2m aluminum brace stage with 2 aluminum stairs

packing weight:5980kg

packing volume:32cbm

The tall Ringlock structure forms the background behind the stage and provides a modular framework for LED-screen or other confirmed stage-background requirements.

In front of the wall is a large aluminum performance stage measuring 20m wide × 10m deep, elevated to 2m high and accessed through two aluminum stairs.

For related modular structures, see our Ringlock Structure System. For LED-related truss and support products, see LED Stage Truss.

Main Specifications

20m Wide × 12m High Ringlock LED Background Wall

The main visual element of this product is the large Ringlock background structure behind the stage.

Its confirmed overall dimensions are approximately:

• Width: 20m

• Depth: 2m

• Height: 12m

The 2m structural depth provides a three-dimensional Ringlock framework rather than a single flat row of standards.

The wall is assembled from modular Ringlock standards, horizontal members and bracing components to create the required overall geometry.

For customers who need other Ringlock-based event structures, see our Ringlock Structure System.

Designed as a Stage LED Background Structure

The wall is intended to sit directly behind the main performance stage and provide a large structural background area.

Depending on the final project requirement, this type of wall can be developed around:

• LED screen layouts

• Stage background systems

• Event branding

• Decorative panels

• Visual production elements

• Other confirmed event equipment

The key point is that the Ringlock wall and the LED system should not be treated as the same product.

This page describes the supporting Ringlock structure.

Actual LED cabinets, processors, power systems, hanging hardware and installation accessories are only included when specifically listed in the quotation.

20m × 10m Aluminum Brace Stage

A large aluminum brace stage is positioned directly in front of the background wall.

The confirmed stage dimensions are:

20m wide × 10m deep × 2m high

This creates approximately 200m² of stage surface area for performance and event use.

The aluminum brace stage is a separate modular stage system rather than part of the Ringlock wall itself.

This allows the two major systems to perform different functions:

Ringlock wall → background / LED-support framework

Aluminum brace stage → performance platform

For other aluminum stage configurations, see our Aluminum Stage products.

2m High Performance Platform

The stage deck is elevated to approximately 2m.

This stage height can be useful for large audience environments where the performance area needs to be raised significantly above ground level.

The current product information confirms the physical stage height but does not establish:

• allowable stage load

• performer capacity

• equipment-load capacity

• required guardrail arrangement

These should be confirmed according to the final project specification.

Two Aluminum Access Stairs

The complete configuration includes:

2 aluminum stairs

for access to the 2m-high performance platform.

Using two access points can help organize stage circulation during larger productions.

The exact:

• stair width

• number of steps

• handrail configuration

• stair position

• landing arrangement

can be confirmed during quotation according to the customer's stage layout.

Separate Ringlock and Aluminum Systems

An important feature of this product is that it does not force the entire project into one structural system.

Instead, DragonStage uses two different modular products for two different jobs:

Ringlock system
for the tall 20m × 12m stage-background structure

and

Aluminum brace stage
for the 20m × 10m performance platform.

This makes the product a combined event package rather than simply calling everything “scaffolding” or everything “stage.”

For larger concert applications using several temporary structural systems together, see our Concert Event solutions.

Typical Applications

This type of structure can be used for:

• Large concerts

• Music festivals

• Opening ceremonies

• Public performances

• Corporate events

• Outdoor shows

• LED stage backgrounds

• Temporary event productions

• Branded stage presentations

It is particularly suitable where the customer wants a large elevated stage in front of a tall structural background rather than a conventional stage with a roof.

What Is Included in This Product Concept?

The main product configuration consists of:

• 20m-wide Ringlock background structure

• 2m structural depth

• 12m overall wall height

• Modular Ringlock bracing framework

• 20m × 10m aluminum brace stage

• 2m stage height

• 2 aluminum access stairs

• Required connection components according to the final BOQ

Actual LED displays, lighting equipment, audio equipment and other production equipment should only be regarded as included when specifically stated in the quotation.

Custom Manufacturing

The 20m × 2m × 12m wall + 20m × 10m × 2m stage shown here is one specific project configuration.

DragonStage can customize:

• Ringlock wall width

• Ringlock wall depth

• Ringlock wall height

• Wall bay arrangement

• Bracing configuration

• Stage width

• Stage depth

• Stage height

• Number of stairs

• Stair positions

• LED-layout interface

• Surface finish

• Project quantity

For customized event-equipment manufacturing, see DragonStage Custom Aluminum Stage & Truss Manufacturer.

What Information Is Needed for Quotation?

For a similar Ringlock LED wall and stage package, please provide:

• Required wall width

• Required wall height

• Required wall depth

• LED screen dimensions

• LED cabinet model

• LED screen quantity

• Screen weight and installation positions

• Required stage width and depth

• Required stage height

• Number and position of stairs

• Indoor or outdoor installation

• Installation location

• Ground condition

• Available project drawing

For a 12m-high LED-support structure, the LED information is particularly important. Overall wall dimensions alone are not sufficient to determine the final structural configuration.

Important Technical Note

The confirmed product information on this page is:

Ringlock background wall: 20m W × 2m D × 12m H
Aluminum brace stage: 20m W × 10m D × 2m H
Access stairs: 2 aluminum stairs

This information does not establish:

• LED-screen allowable weight

• maximum suspended or attached load

• stage allowable load

• wind resistance

• ballast requirement

• anchoring or foundation requirement

• safety factor

• structural certification

• local approval

• engineering approval

These requirements depend on the actual LED-screen configuration, installation location, environmental conditions and final structural design.

FAQ

What is the size of the Ringlock LED background wall?

The wall measures approximately 20m wide × 2m deep × 12m high.

What is the stage size?

The aluminum brace stage measures approximately 20m wide × 10m deep × 2m high.

Are stairs included?

Yes. This configuration includes two aluminum stairs for accessing the 2m-high stage.

Is the stage made from Ringlock?

No. The background wall uses Ringlock, while the performance platform is an aluminum brace stage.

Are LED screens included?

Not automatically. This product page describes the Ringlock LED-support background structure. LED screens are only included when specifically listed in the quotation.

Why is the Ringlock wall 2m deep instead of being a single flat wall?

The current product is designed as a 2m-deep braced Ringlock structure rather than a single row of scaffold members. The exact bay and bracing arrangement follows the final design.

Can the LED wall dimensions be changed?

Yes. Width, depth, height and structural layout can be customized according to the required LED configuration and project conditions.

Can the stage size also be changed?

Yes. Stage width, depth, height, stair quantity and access arrangement can be customized.
