24m Ringlock Truss Wall with 12x12m Aluminum Roofing Stage and Two 6m Front LED Wings
50 Reviews

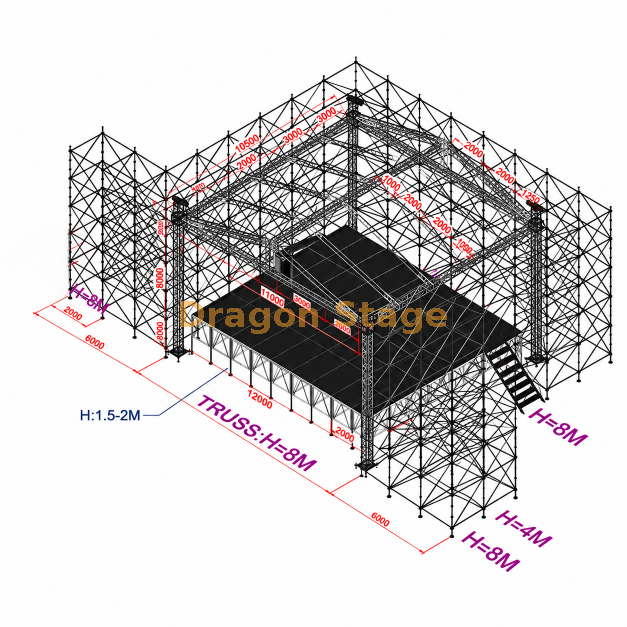

The DragonStage 24m Ringlock Truss Wall with 12x12m Aluminum Roofing Stage and Two Front LED Wings is a large concert-style event structure that combines a full Ringlock wall framework, a central aluminum roofed stage, two front LED wing structures, and two aluminum access stairs. The overall Ringlock structure measures approximately 24m wide × 14m deep × 8m high, while the central roofed stage uses a 12m × 12m × 8m aluminum truss roof frame with a 12m × 10m stage platform and two 2m-high aluminum stairs.
The DragonStage Ringlock Truss Wall + Aluminum Roofing Stage + 2 Stairs is a combined event-structure product designed for concerts, live performances, festivals, and other large temporary stage applications.
This product combines three major parts into one coordinated layout:
a surrounding Ringlock truss wall structure
a central aluminum roofing stage
two front LED wings positioned at both sides of the main stage area
The overall structure is intended for customers who need not only a stage platform and roof, but also a larger visual and functional frame around the stage for LED display, side-stage integration, and concert-style presentation.
This product is not just a simple roofed stage. The Ringlock structure expands the visual and structural scale of the project and helps create a larger event façade around the stage area.
The Ringlock portion of this product can be understood as the main wall-type surrounding structure, into which the central roofed stage and front side wings are integrated.
Compared with a standard stage-only layout, this type of structure is more suitable when the customer wants:
a bigger concert-style stage presence
side wings for LED display
a more complete background or surrounding framework
a structure that visually extends beyond the main stage roof
Because Ringlock is modular, the wall structure can be discussed in other widths, depths and heights if the customer needs a similar concept in a different scale.
Central Aluminum Roofing Stage
The middle part of the project uses an aluminum truss roofing stage.
The outer truss roof frame measures approximately:
12m width
12m depth
8m height
Inside this roofed area, the performance platform is:
12m wide
10m deep
2m high
This means the stage deck is slightly smaller than the outer roof frame, which is a practical layout for concert and event applications where the roof frame covers the performance area while leaving space for the structural relationship between the platform and the roof.
For related aluminum roof and stage systems, customers can also see our Aluminum Truss, Aluminum Stage, and Quick Stage pages.
Two Front LED Wings
A key feature of this product is the inclusion of two front LED wing structures.
Each wing is approximately:
6m wide
4m deep
8m high
These two side structures are located at the front left and front right of the main stage arrangement.
In practical event use, these side wings may be used for:
LED screen mounting
side-stage visual framing
auxiliary event display
additional branding or decorative staging use
Because the customer described them as front LED wings, this page presents them primarily as side structures related to LED display function.
For other LED-support stage products, see our LED Stage Truss page.
12x10m Main Stage Platform
The stage platform area is one of the most commercially important parts of the product.
The confirmed platform size is:
12m width
10m depth
2m stage height
This is a substantial performance area suitable for:
live bands
singers
ceremonies
presentations
performance events
festival programs
temporary concert staging
The page records the platform dimensions only. It does not claim load capacity or engineering approval without separate verified data.
If the customer needs a related stage-only solution, they can also browse our Staging and Stage Platform product categories.
Two Aluminum Stairs
The package includes 2 aluminum access stairs for the stage.
These stairs correspond to the 2m stage height and provide access to the main performance platform.
The current product information confirms:
Quantity: 2 stairs
Material: Aluminum
Stage height served: 2m
The exact stair width, step count, handrail arrangement, and landing details can be discussed during quotation if the customer needs more precise access information.
Integrated Concert-Style Event Layout
This product is best understood as an integrated concert-stage package rather than several unrelated products.
The overall layout includes:
one central aluminum roofed stage
one main Ringlock wall framework
two front LED wings
two access stairs
This combination makes the product suitable for customers who need a larger event presentation than a basic roof stage alone.
It is especially useful when the project requires:
a strong stage backdrop or surrounding framework
stage-side visual extensions
LED wing areas
a balanced concert-style front elevation
For related large event systems, see our Concert Event page.
Typical Applications
This product can be considered for applications such as:
outdoor concerts
music festivals
live performance stages
ceremony stages
public event stages
branded event productions
temporary performance venues
LED-supported stage presentations
Because of the full surrounding structural concept, it is more suitable for medium-to-large event projects than for very small stage applications.
Custom Manufacturing Options
This 24m × 14m × 8m configuration is one project-style product layout.
DragonStage can customize:
total structure width
total structure depth
total structure height
central roof dimensions
stage platform size
stage height
number of stairs
LED wing size
side-structure arrangement
cladding and screen-related layout
finish and project quantity
If you already have a stage drawing or site layout, DragonStage can use it as the basis for a customized quotation.
If the project includes LED screens, audio systems, lighting trusses, or special access requirements, these should also be clarified during quotation.
Important Technical Note
This page records the confirmed physical configuration of the product, including:
overall Ringlock structure size
central aluminum roofing stage size
stage platform size
stair quantity
front LED wing dimensions
This page does not establish:
allowable platform load
wind resistance
roof load
ballast requirement
anchoring requirement
safety factor
certification
engineering approval
local-code compliance
If the project requires engineering verification or local approval, that must be handled separately based on the final installation conditions.
FAQ
What is the total size of this structure? The overall Ringlock structure is approximately 24m wide × 14m deep × 8m high.
What is the size of the main roofed stage? The central aluminum roofing stage has an outer truss size of approximately 12m × 12m × 8m, with a 12m × 10m performance platform.
How many stairs are included? This configuration includes 2 aluminum stairs for the 2m-high stage platform.
What are the front LED wings? The product includes 2 front LED wings, each approximately 6m wide × 4m deep × 8m high.
Is the whole structure aluminum? No. This is a combined structure. The surrounding wall framework is based on Ringlock, while the central roofing stage uses aluminum truss construction.
Can the size be customized? Yes. The total structure, stage size, roof size, stage height, stair quantity, and LED wing dimensions can all be customized.
Does this product include LED screens? This page describes the structural product. Actual LED screens should only be considered included if they are specifically listed in the quotation.
Is this a standard product or a custom project product? It is best treated as a project-style custom product based on a standard DragonStage manufacturing capability.
