CSG290 Aluminum Spigot Box Truss (Pin Connected Box Truss)
Drawing Index | Configuration | Length |
|---|---|---|
2950 | Spigot Box Truss | 2.95m |

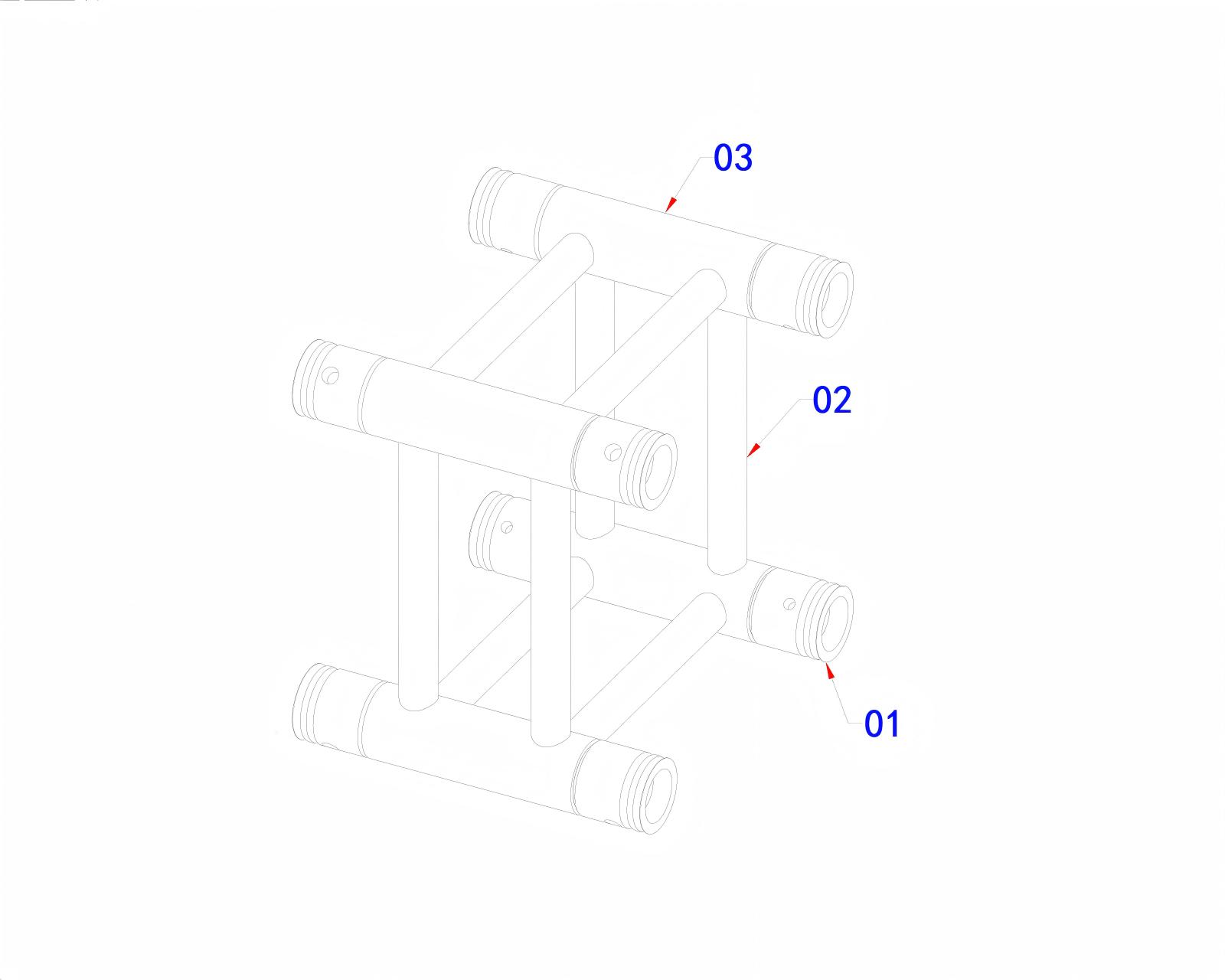

4359 | Spigot Box Truss | 0.3m |

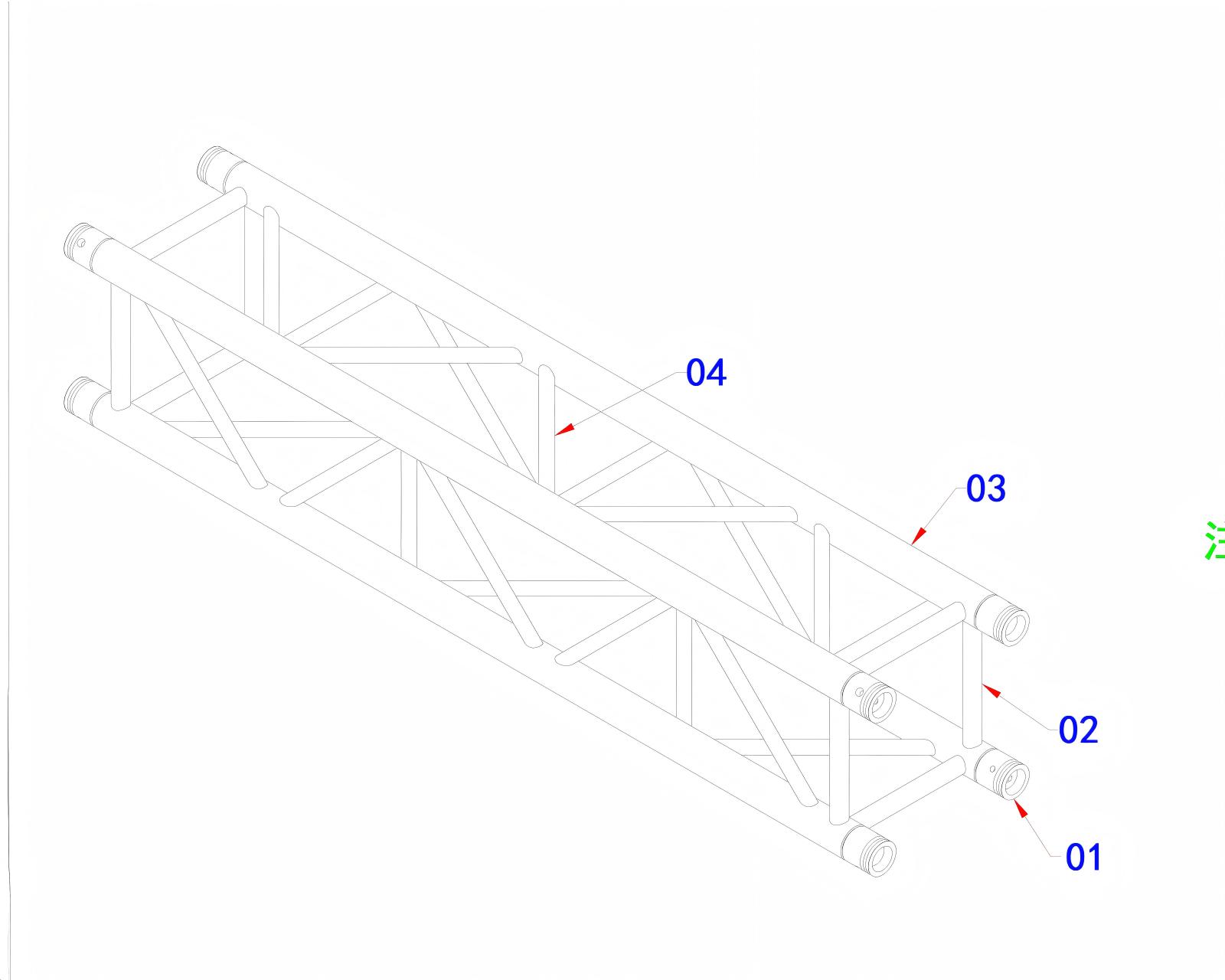

3775 | Spigot Box Truss | 1.45m |
3842 | Spigot Box Truss | 2.05m |
3842 | Spigot Box Truss | 3.25m |

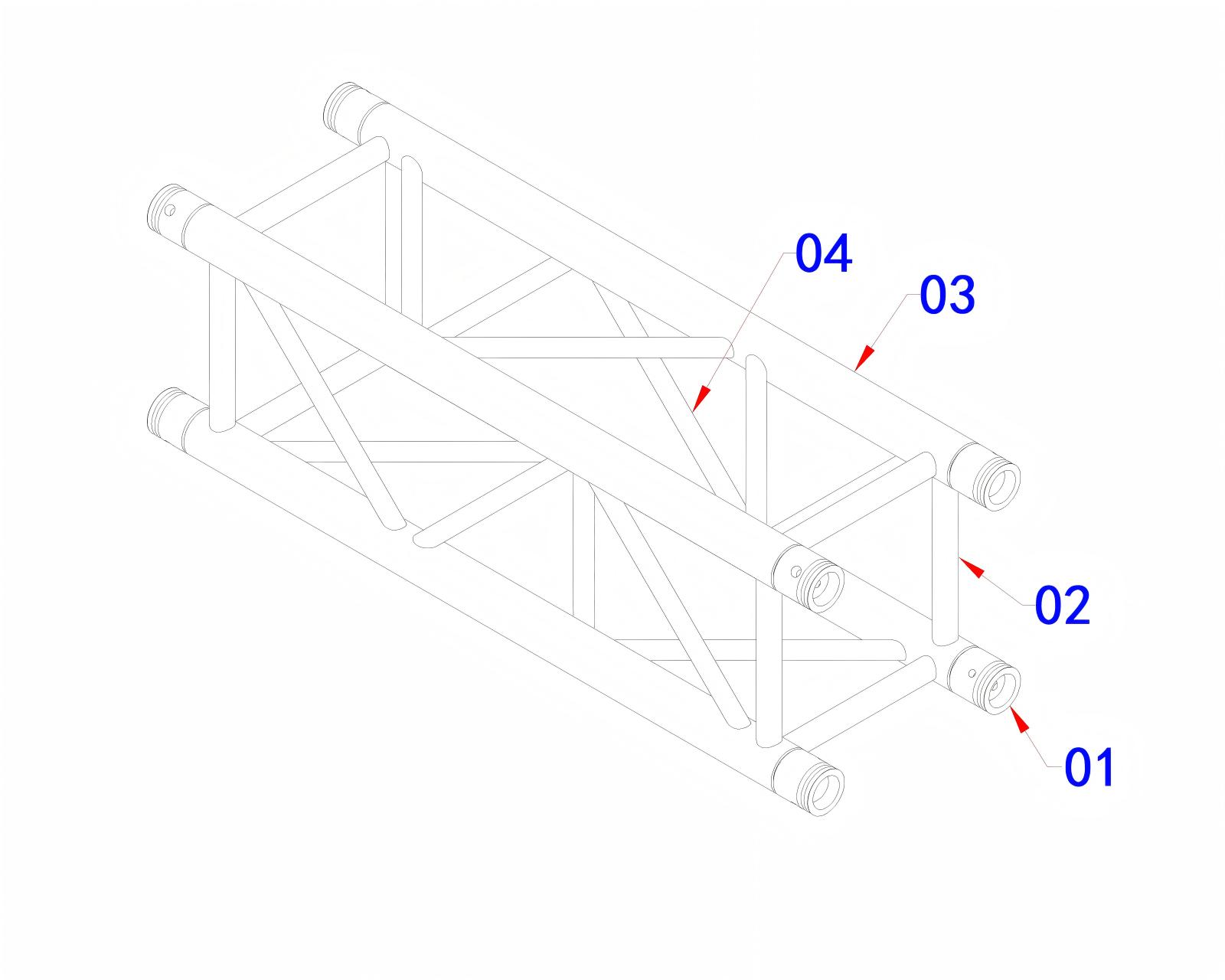

3859 | Spigot Box Truss | 0.9m |
3900 | Spigot Box Truss | 2.75m |
3925 | Spigot Box Truss | 0.64m |

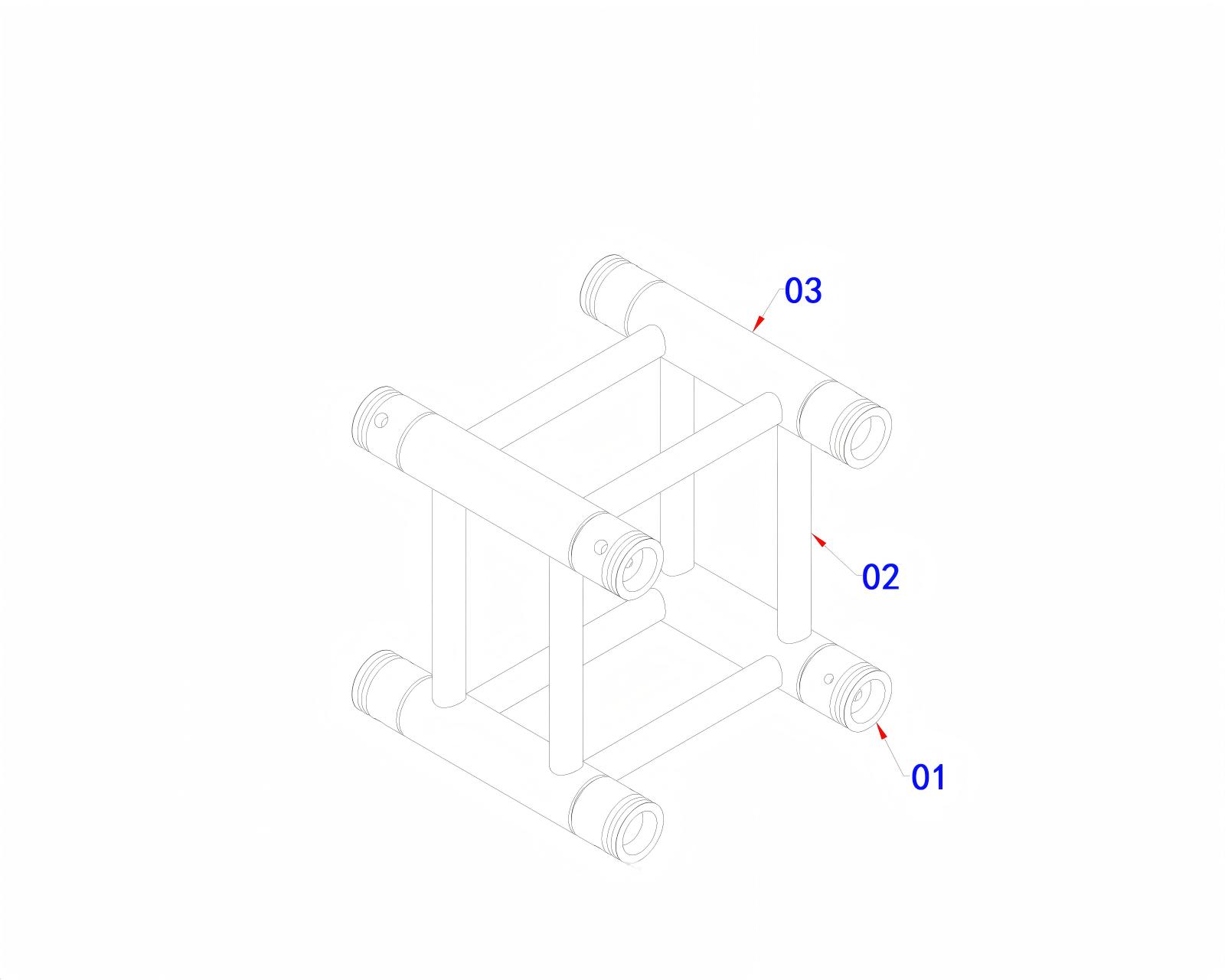

3925 | Spigot Box Truss | 0.278m |
4094 | Spigot Box Truss | 0.2m |
4110 | Spigot Box Truss | 2.25m |
4110 | Spigot Box Truss | 2.75m |
4116 | Spigot Box Truss | 1.89m |
4116 | Spigot Box Truss | 2.58m |
4212 | Spigot Box Truss | 0.5m |
4330 | Spigot Box Truss | 1.8m |
4332 | Spigot Box Truss | 2.45m |
4332 | Spigot Box Truss | 2.6m |
4332 | Spigot Box Truss | 2.31m |
Item | Details |
|---|---|
Drawing Series | CSG290 Spigot Box Truss |
Structure Type | Outdoor Roof Truss Structure / Indoor & Outdoor Lighting Structure |
Application | Outdoor Canopy Structures, Main Lighting Truss, Totem Structures, Indoor & Outdoor Event Structures |
Cross Section Width | 290mm |
Main Tube | 50mm Aluminum Round Tube |
Tube Wall Thickness | 2mm |
Truss Type | Box Truss |
Length Options | 0.2m / 0.278m / 0.3m / 0.5m / 0.64m / 0.9m / 1.45m / 1.8m / 1.89m / 2.05m / 2.25m / 2.31m / 2.45m / 2.58m / 2.6m / 2.75m / 2.95m / 3.25m |
Environment | Outdoor Roof Truss Systems, Indoor & Outdoor Lighting Structures |
Material | Aluminum Alloy |
Connection System | Spigot Pin Connection |
Drawing Type | 2D CAD Drawing |
Design Purpose | Structural components for outdoor roof systems and lighting structures |
Related Products | Standard Lighting Truss Systems and Outdoor Roof Structures |
The CSG290 aluminum spigot box truss is a modular structural truss component designed for professional event structures, lighting systems, outdoor canopy frameworks and temporary roof structures.
With a 290mm square profile, 50mm diameter aluminum round tubes and 2mm wall thickness, CSG290 provides a lightweight and flexible structural solution for applications requiring efficient transportation, quick installation and reliable performance.
The integrated spigot pin connection system enables fast assembly, convenient dismantling and flexible combination of different truss lengths according to project requirements.
Compared with ladder truss structures, the box truss configuration provides improved torsional resistance, higher overall rigidity and multi-directional stability, making it suitable for professional lighting structures, temporary outdoor structures and event applications.
Compared with single-row ladder truss systems, the box truss design provides:
Higher torsional resistance;
Better overall rigidity;
Improved structural stability;
Multi-directional load distribution;
Better performance for lighting and temporary structures.
The aluminum alloy structure provides:
High strength-to-weight ratio;
Easy transportation and handling;
Corrosion resistance for outdoor applications;
Long service life with proper maintenance;
Reduced installation workload.
The pin connection system allows:
Rapid assembly and dismantling;
Modular extension of truss systems;
Reduced installation time;
Convenient storage and transportation;
Flexible configuration for different event layouts.
Component | Description |
|---|---|
Main Chords | Four 50mm aluminum round tubes forming the primary box structure |
Cross Members | Horizontal connecting tubes maintaining the truss geometry |
Diagonal Bracing | Internal diagonal tubes improving rigidity and stability |
Spigot Connector | Integrated connection system between truss sections |
Locking Pin | Mechanical locking component for secure assembly |
Model | Profile Size | Tube Specification | Connection Type | Length | Material |
|---|---|---|---|---|---|
CSG290-0.2 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 0.2m | Aluminum Alloy |
CSG290-0.278 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 0.278m | Aluminum Alloy |
CSG290-0.3 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 0.3m | Aluminum Alloy |
CSG290-0.5 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 0.5m | Aluminum Alloy |
CSG290-0.64 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 0.64m | Aluminum Alloy |
CSG290-0.9 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 0.9m | Aluminum Alloy |
CSG290-1.45 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 1.45m | Aluminum Alloy |
CSG290-1.8 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 1.8m | Aluminum Alloy |
CSG290-1.89 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 1.89m | Aluminum Alloy |
CSG290-2.05 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 2.05m | Aluminum Alloy |
CSG290-2.25 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 2.25m | Aluminum Alloy |
CSG290-2.31 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 2.31m | Aluminum Alloy |
CSG290-2.45 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 2.45m | Aluminum Alloy |
CSG290-2.58 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 2.58m | Aluminum Alloy |
CSG290-2.6 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 2.6m | Aluminum Alloy |
CSG290-2.75 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 2.75m | Aluminum Alloy |
CSG290-2.95 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 2.95m | Aluminum Alloy |
CSG290-3.25 | 290mm | Ø50mm × 2mm wall thickness | Spigot Pin Connection | 3.25m | Aluminum Alloy |
CSG290 can be used as structural components for:
Outdoor event roofs;
Temporary canopy systems;
Festival structures;
Exhibition roof frameworks;
Custom aluminum structures.
Related:
CSG290 is also suitable for:
Main lighting truss;
Totem structures;
Concert lighting systems;
Exhibition structures;
Professional event installations.
Related:
The CSG290 adopts a spigot pin connection system.
This modular connection method provides:
Truss sections can be quickly connected without complex bolt assembly.
Different lengths can be combined to meet various event layouts and structural requirements.
Modular sections simplify packing, shipping and storage.
For outdoor structures, the final system design should consider:
Total span length;
Applied loads;
Lighting equipment weight;
Roof covering weight;
Wind conditions;
Support positions;
Ground conditions.
For large-scale outdoor structures, engineering verification should be completed according to project requirements.
Related:
CSG290 can be combined with:
Aluminum Lighting Truss Systems;
Outdoor Roof Structures;
Event Support Structures;
Custom Stage Systems.
Related:
CSG290 is mainly used for professional lighting structures, outdoor roof systems, canopy structures and temporary event frameworks.
CSG290 features a 290mm box profile using 50mm diameter aluminum tubes with 2mm wall thickness.
CSG290 uses a spigot pin connection system, allowing quick installation and dismantling.
Available standard lengths include:
0.2m;
0.278m;
0.3m;
0.5m;
0.64m;
0.9m;
1.45m;
1.8m;
1.89m;
2.05m;
2.25m;
2.31m;
2.45m;
2.58m;
2.6m;
2.75m;
2.95m;
3.25m.
Customized lengths can also be manufactured according to project requirements.
Yes. CSG290 is commonly used for outdoor roof and canopy structures. The final application should consider span, loading conditions and environmental requirements.
The drawings represent standard CSG290 aluminum spigot box truss configurations.
Actual structural performance depends on the complete system design, connection method, loading conditions, installation environment and engineering requirements.
For large outdoor structures, professional structural evaluation is recommended according to project conditions.
