Designed for the unique architectural and spatial requirements of European-style event venues, the

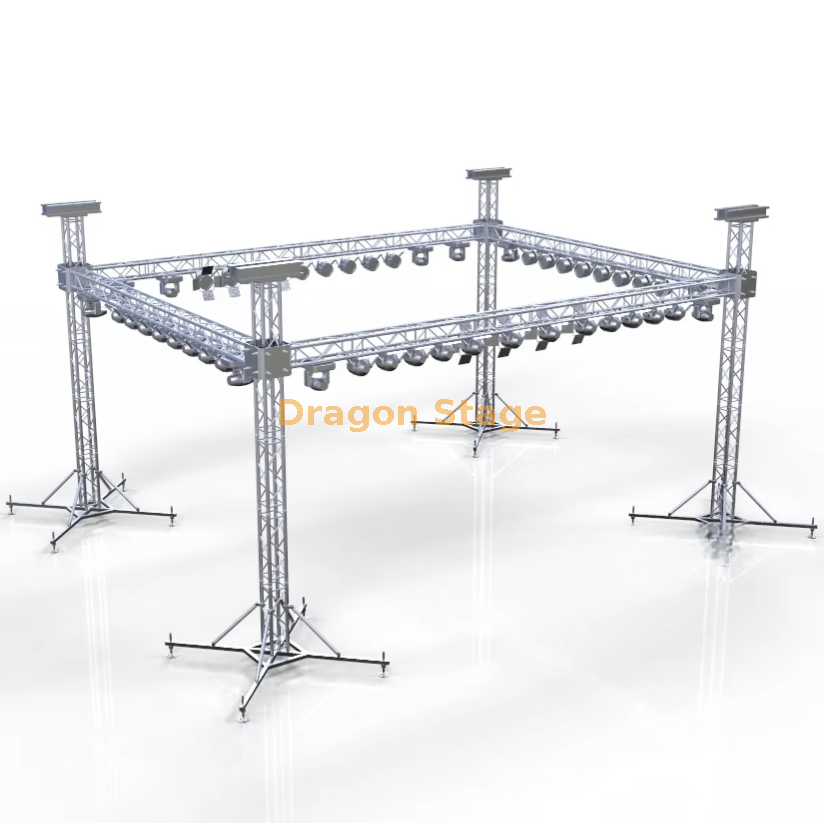

Outdoor Custom Base Plate Truss System 10x10x4m
provides a large-scale, professional framing solution for performances in open-air town squares and village settings. This system is specifically configured for stability and rapid deployment on varied outdoor surfaces
Dimensions: 10m (L) x 10m (W) x 4m (H).
Main Truss Profile: CS289x289mm square truss with 50x3.0mm main tubing.
Hardware Components: Features spigot hinge sections for easy column tilting, fiber slings for rigging, and a full set of conical couplers with safety clips.
Load Capacity: Designed to support a distributed load of approximately 550kg to 750kg depending on the specific beam configuration.
This custom system is the industry standard for French Village Celebrations and high-end outdoor tourism performances where aesthetics must meet rigorous safety engineering.
packing weight: 900kg
packing volume: 8cbm
| Item | Specification(squre truss) | Qty |
| length(M) | main tube(MM) | size(MM) |
| Beam | 3 | 50×3.0 | CS289×289 | 12 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | 4 pcs |
| Pillar | 3 | 50×3.0 | CS289×289 | 4 pcs |
| 2 | 50×3.0 | CS289×289 | pcs |
| 1 | 50×3.0 | CS289×289 | pcs |
| Tower | Spigot Sleeve Block S | 4 pcs |
| Steel Base S | 4 pcs |
| Top Section S | 4 pcs |
| Manual hoist,BA05 2Tons | 4 pcs |
| Spigot Hinge Section,Height 1m | 4 pcs |
| Fibre sling,BA04,2 tons 3m | 4 pcs |
| Long outrigger | 16 pcs |
| Truss Accessory | Conical coupler & Safrty clip & pin | whole
set |
