The DragonStage 4x4m Ringlock FOH Platform / VIP Viewing Platform is a modular elevated structure for front-of-house control use or temporary VIP viewing use. The main platform is 4m wide and 4m deep, with a 1.5m platform height and a total structure height of 4.5m. A side 2m small platform with stair access makes entry safer and more practical for event operations

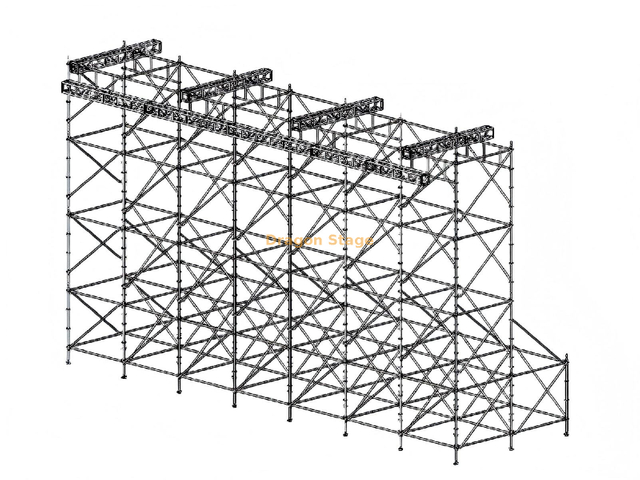

The DragonStage 14x4x8m Ringlock LED Screen Hanging Structure is a temporary concert and event LED support system built with a double-row Ringlock frame. The front row reaches 8m high, while the rear row is 2m high, creating an overall structure approximately 14m wide × 4m deep × 8m high. The upper structure includes 4 top section trusses and a 14m-long aluminum truss beam for hanging the LED screen.

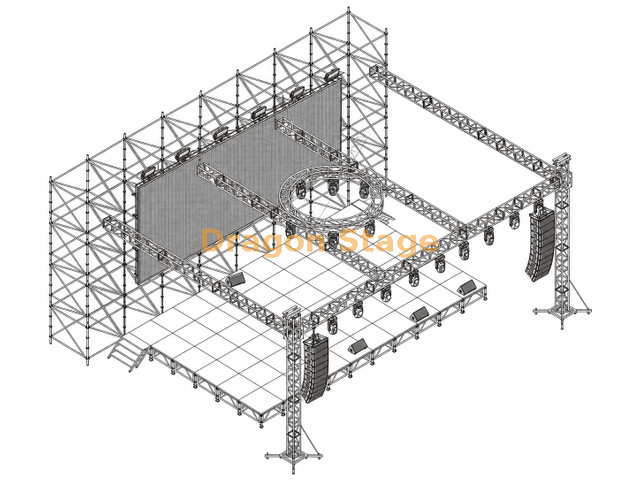

DragonStage 16x2x8m ringlock background structure combined with a 12.2x7.32m aluminum stage and a 14x10x6m aluminum bolt truss lighting roof. The system includes a 4m diameter circular truss, 1.22x1.22m stage decks, and 2 stage stairs, making it suitable for concerts, ceremonies, brand events, and temporary performance setups.

The DragonStage Ringlock LED Background Structure with Ringlock Stage is a complete temporary event system combining a 12m wide × 2m deep × 10m high LED background structure with an 8m wide × 4m deep × 2m high Ringlock stage and 2 access stairs. It is suitable for concerts, festivals, ceremonies, and temporary stage productions that need both a tall LED background support structure and an elevated performance platform.

The DragonStage 36m Ringlock Truss Wall with 21x20m Aluminum Roofing Stage is a large concert-style event structure combining a full Ringlock wall framework, a central aluminum roofed stage, two front LED wing structures, and two aluminum access stairs. The overall Ringlock structure measures approximately 36m wide × 20m deep × 10m high. The central aluminum roofing stage uses a 21m × 20m × 10m truss roof frame, with a 20m × 18m stage platform and two 2m-high aluminum stairs.

The DragonStage 24m Ringlock Truss Wall with 12x12m Aluminum Roofing Stage and Two Front LED Wings is a large concert-style event structure that combines a full Ringlock wall framework, a central aluminum roofed stage, two front LED wing structures, and two aluminum access stairs. The overall Ringlock structure measures approximately 24m wide × 14m deep × 8m high, while the central roofed stage uses a 12m × 12m × 8m aluminum truss roof frame with a 12m × 10m stage platform and two 2m-high aluminum stairs.

This 14m × 10m Ringlock concert stage system is a customized large-event stage package combining a steel Ringlock stage platform, aluminum peak roof truss, 6m-wide side structures for LED screens, and dedicated structures for line array suspension. The main performance platform measures 14m × 10m, with a requested stage height of up to 2m. Ringlock scaffolding is also used to build the surrounding support structures up to approximately 10m high, matching the main stage and the 6m-wide wings on both sides. Instead of purchasing the stage platform, roof truss, LED supports, and sound-support structures separately, customers can order them as one coordinated event-stage package from DragonTruss. For other modular stage configurations, see our Ringlock Stage System.

Steel Ringlock Event Stage 7.32x6.1m, 1m meter high with 2 stairs
this stage provides ample space for performers, speakers, and presenters to showcase their talents and engage with the audience.

Steel Layer Scaffolding Stage With Aluminum Platform: Size:9(L9.76m)*W(6.1m)
Stage Material: Aluminum alloy 6061-T6  /Plywood
Dimensions: 1.22m*2.44m
Height: 0.6m to 1.1m can be adjusted
Weight: 45-85Kg
Main tube thickness: 50*3mm;
Vice tube thickness: 40*2mm
Brace tube thickness: 20*2mm
Weight Capacity: 500KG
Color: black
