14x4x8m Double-Row Ringlock LED Screen Hanging Structure with 14m Truss Beam
50 Reviews

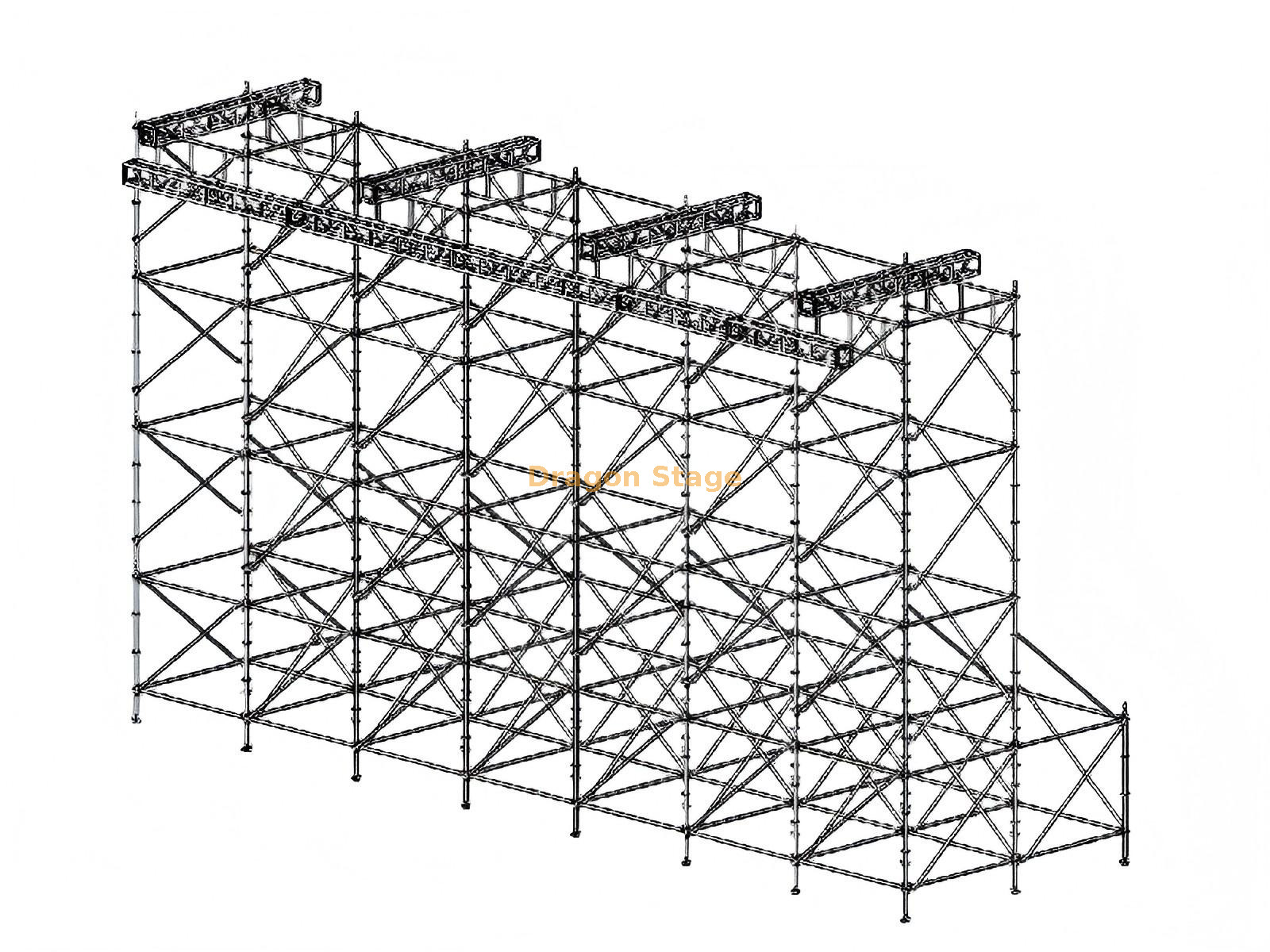

The DragonStage 14x4x8m Ringlock LED Screen Hanging Structure is a temporary concert and event LED support system built with a double-row Ringlock frame. The front row reaches 8m high, while the rear row is 2m high, creating an overall structure approximately 14m wide × 4m deep × 8m high. The upper structure includes 4 top section trusses and a 14m-long aluminum truss beam for hanging the LED screen.
The DragonStage 14m Ringlock LED Screen Hanging Structure is designed for temporary concert, festival, and live-event applications where a wide LED screen requires an independent support structure.
The rear low-level Ringlock section increases the overall structural depth and provides the second row of the support arrangement.
At the top of the system, 4 top section trusses are installed as part of the upper support configuration. A separate 14m-wide aluminum truss beam spans across the structure and provides the main hanging position for the LED screen.
For related LED support products, see our LED Stage Truss range.
Main Features
Overall structure approximately 14m W × 4m D × 8m H
Double-row Ringlock configuration
Front row reaches 8m
Rear row approximately 2m high
4 top section trusses
14m aluminum truss for LED screen hanging
Modular temporary event structure
Suitable for large concert and festival LED displays
Custom dimensions and layouts available
Typical Applications
Concert LED background screens
Festival video walls
Stage LED display structures
Outdoor event screens
Temporary visual display systems
Live-production LED support
For broader live-event applications, see Concert Event.
Important Technical Note
The confirmed configuration includes:
14m width
4m depth
8m front height
2m rear height
4 top section trusses
1 × 14m aluminum LED hanging truss
The current information does not establish:
allowable LED screen weight
allowable truss hanging load
wind resistance
ballast requirement
anchoring requirement
safety factor
engineering approval
These should be confirmed according to the actual LED screen, installation site, and final structural configuration.
FAQ
What is the overall size of this LED support structure? The overall structure is approximately 14m wide × 4m deep × 8m high.
Why does the structure use two Ringlock rows? The front row reaches 8m high while the rear row is 2m high, forming a deeper support configuration behind the main LED hanging area.
How is the LED screen hung? A 14m-long aluminum truss beam is installed across the upper structure as the main LED hanging beam.
How many top section trusses are included? The current configuration uses 4 top section trusses.
Is the LED screen included? No. The product page mainly describes the structural support system unless the LED screen is specifically included in the quotation.
Can the dimensions be customized? Yes. Width, height, depth, top support layout, and hanging-truss length can be customized.
What information is needed for quotation? Please provide the LED screen dimensions, total screen weight, installation location, indoor or outdoor use, and any reference drawing.
