10m Ringlock Line Array and LED Screen Suspension Tower with 4 Working Platforms and Ballast
50 Reviews

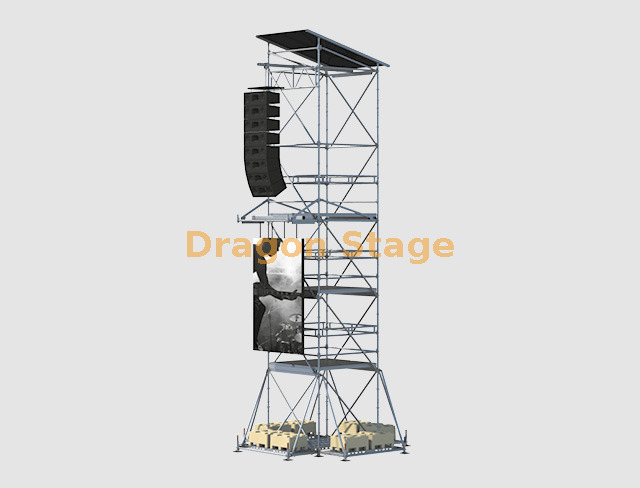

The DragonStage Ringlock Line Array and LED Screen Suspension Tower is a compact temporary event structure built with a 2m wide × 2m deep × 10m high ringlock system. It includes 4 working platforms, 4 ballast blocks at the base, a top suspension section with 2 steel heavy duty braces for line array hanging, and an extended side projection for LED screen suspension.
Ringlock Line Array and LED Screen Suspension Tower
Brand
DragonStage
Main Structure
Ringlock System
Overall Width
2m
Overall Depth
2m
Overall Height
10m
Working Platforms
4 levels
Ballast
4 units
Main Hanging Function
Line Array
Secondary Hanging Function
LED Screen
Top Hanging Structure
2 Steel Heavy Duty Braces + Top Section
LED Hanging Section
Extended Projection Section
Application
Concert / Festival / Temporary Event
Customization
Available
Product Description
The DragonStage Ringlock Line Array and LED Screen Suspension Tower is a vertical temporary event structure designed for projects that need both line array suspension and LED screen hanging in one compact tower.
The overall ringlock structure measures 2m wide × 2m deep × 10m high. It is arranged with 4 working platforms, which make the tower more practical for installation, access, and equipment handling during event setup.
At the base, the system uses 4 ballast blocks as the stabilizing counterweight arrangement shown in the project configuration.
At the top, 2 steel heavy duty braces + top section form the main hanging point for the line array system. In addition, the tower includes one protruding section designed for LED screen suspension, allowing the structure to support both sound and visual equipment within one integrated ringlock solution.
Designed for both line array and LED screen suspension
4 working platforms for access and operation
4 ballast blocks at the bottom
Top suspension area with 2 steel heavy duty braces + top section
Extended projection section for LED screen hanging
Modular temporary event structure
Suitable for concert and live-event use
Custom dimensions and layout available
Typical Applications
Concert line array suspension
LED display hanging support
Temporary outdoor event towers
Festival audio and visual support structures
Live production support systems
Touring event installations
Important Note
This page confirms the following project information:
ringlock overall size: 2m W × 2m D × 10m H
4 working platforms
4 ballast blocks
top line array hanging structure with 2 steel heavy duty braces + top section
one protruding section for LED screen suspension
The following items are not confirmed on this page and should be checked according to the final project:
exact line array weight
exact LED screen weight
allowable suspended load
wind rating
ballast calculation
anchoring requirement
engineering approval
local compliance
FAQ
What is the overall size of this ringlock tower? The overall size is approximately 2m wide × 2m deep × 10m high.
What can this tower support? This structure is intended for line array suspension at the top and LED screen hanging on the protruding section.
How many working platforms does it have? It includes 4 working platforms.
How is the line array suspended? The line array is suspended from the top section using 2 steel heavy duty braces + top section as the main hanging arrangement.
Does the structure include ballast? Yes. The base arrangement includes 4 ballast blocks.
Can the size or layout be customized? Yes. The height, platform arrangement, hanging section, and overall layout can be adjusted for different event requirements.
Is this a permanent structure? No. It is a temporary modular ringlock event structure.
