packing weight:990kg
packing volume: 8cbm
| Item |
| Specification(squre truss) | Qty |
| length | main tube(mm) | size(mm) |
| 10.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 7.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 2pcs |
| 7.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs |
| 2.00 m | 50×3.0 | CS289×289 | 0pcs |
| 1.00 m | 50×3.0 | CS289×289 | 4pcs |
| beam cube | 6 faces | CS289×289 | 0pcs |
| Frame Tower | Spigot Sleeve Block S | 4pcs |
| Steel Base S | 4pcs |
| Top Section S | 4pcs |
| Manual hoist,BA05 2Tons | 4pcs |
| Spigot Hinge Section,Height 1m | 4pcs |
| Fibre sling,BA04,2 tons 3m | 4pcs |
| Long outrigger | 16pcs |

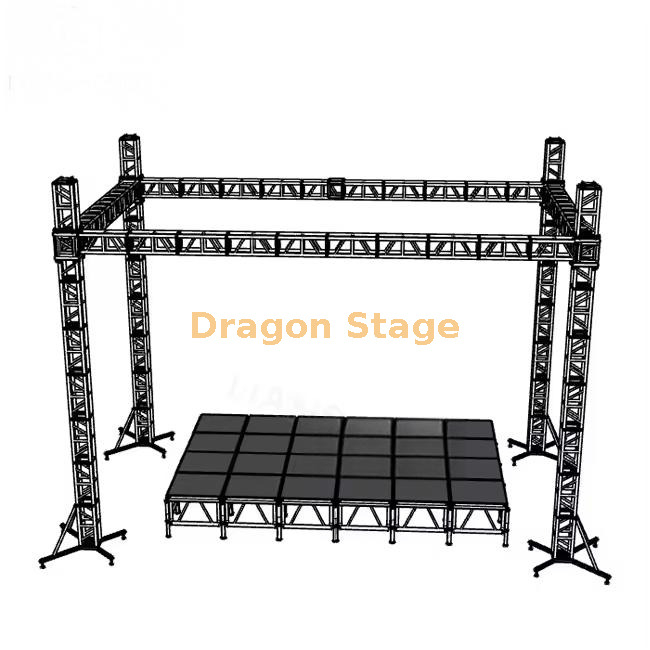

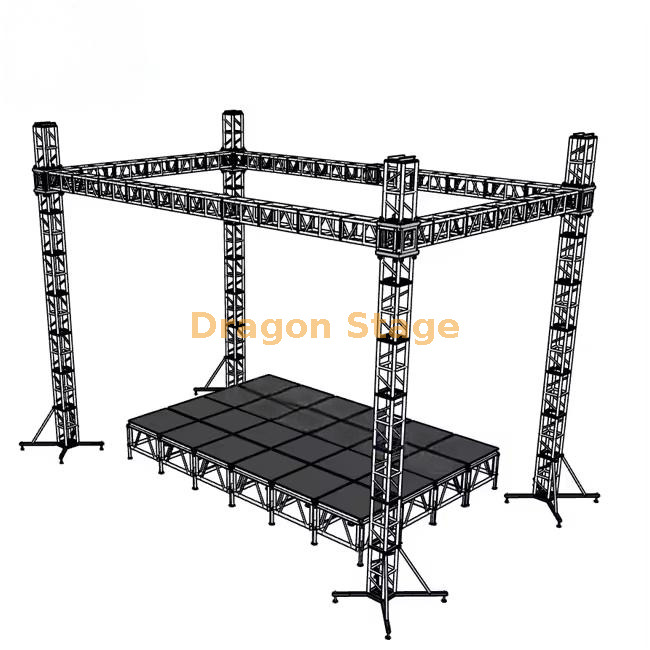

Professional 10m x 7m x 8m Aluminum Roof Truss & Mobile Stage System
Engineer your next event with confidence using our comprehensive aluminum alloy mobile stage. This system combines a massive 10m x 7m performance footprint with a versatile 8m height, providing the vertical clearance needed for high-end lighting arrays and line-array speakers.
Key Specifications & Features:
Optimal Dimensions: Large-scale 10m length and 7m depth provide 70sqm of performance space, supported by an 8m high overhead structure.
High-Grade Aluminum: Constructed from premium aluminum alloy (6061-T6/6082-T6) for extreme durability, high load-bearing capacity, and excellent corrosion resistance.
Four-Post Tower System: Includes heavy-duty lifting towers with stable outrigger bases to ensure safety and ease of assembly for the roof grid.
Modular Stage Platform: Features a reinforced, anti-slip stage floor with adjustable height legs to accommodate uneven outdoor terrain.
Production Ready: Designed specifically for the rapid setup of professional sound, lighting, and LED screens at festivals, rallies, and corporate roadshows.
