10x7x6m Aluminum Curved Roof Stage Truss System – Professional 6m High Modular Concert Lighting Rig

5 0 Reviews

Elevate your outdoor productions with this heavy-duty 10m x 7m x 6m Aluminum Alloy Curved Roof Stage Truss System. Designed for high visibility and structural integrity, this T6-grade modular rig offers rapid assembly for concerts, festivals, and large-scale exhibitions. Waterproof PVC canopy and PA speaker wing options available.

Price: ￥ 39824


Availability:



Inquire

Brand:
Dragonstage

Product Description

Take your event production to a professional level with our high-performance Aluminum Alloy Curved Roof Stage Truss. Engineered for exceptional performance and visual impact, this system provides a substantial 10m (33ft) length and 7m (23ft) depth, with a towering 6m (20ft) height to accommodate complex lighting and audio setups.

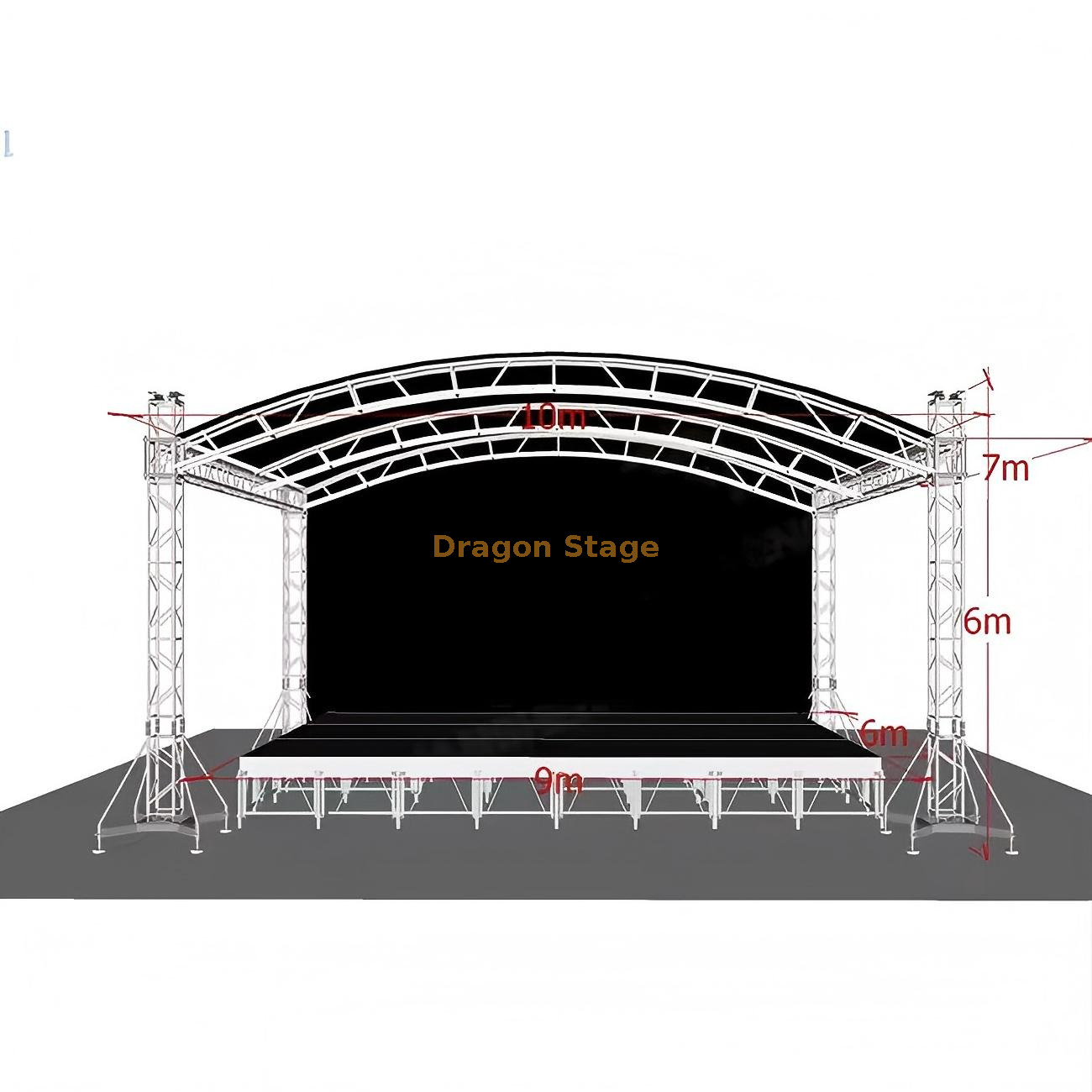

10x7x6m Aluminum Curved Roof Stage Truss System

packing weight:1030kg

packing volume:7cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Beam(front)	sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	pcs
7.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	2 pcs
6.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4 pcs
		2.00 m	50×3.0	CS289×289	4 pcs
		1.00 m	50×3.0	CS289×289	pcs
Tower	Spigot Sleeve Block S				4 pcs
	Steel Base S				4 pcs
	Top Section S				4 pcs
	Manual hoist,BA05 2Tons				4 pcs
	Spigot Hinge Section,Height 1m				4 pcs
	Fibre sling,BA04,2 tons 3m				4 pcs
	Long outrigger				16 pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	sets	1.00 m	50×3.0	CS289×289	pcs
7.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2 pcs
		2.00 m	50×3.0	CS289×289	pcs
		1.00 m	50×3.0	CS289×289	1 pcs
12.00 m Arch Beam	sets	3.00 m	50×3.0	CS289×289	pcs
		2.00 m	50×3.0	CS289×289	pcs
		.00 m	50×3.0	CS289×289	pcs
12.00 m Ladder truss	3 sets	3.00 m	50×3.0	CL30,289*50	10 pcs
		2.00 m	50×3.0	CL30,289*50	pcs
		.00 m	50×3.0	CL30,289*50	pcs
Roof Components		spigot multi cube, use for roof beam truss		CS289×289	pcs
		Connect plate with clamp			pcs
		Single clamp			40 pcs
		Double clamp			pcs
		roof canopy material:pvc, Blue Colour or customized.		167.36	1 pcs
