Custom 8 × 8 m Lighting Exhibition Booth Truss Design for a Trade Show
Introduction
Exhibition booths are more than temporary display spaces—they are powerful marketing tools that help companies showcase their products, strengthen their brand image, and attract potential customers.
For this project, Dragon Stage worked with a lighting manufacturer that required a customized truss structure for an 8 × 8 m standard exhibition booth. The client wanted a clean, modern design that would highlight their lighting products while remaining easy to transport, assemble, and reuse for future exhibitions.
Using a combination of circular and square truss structures, we developed a modular Event Truss System that balanced visual impact with practical functionality.
Project Requirements
Before starting the design, the client provided several key objectives:
Standard booth size of 8 × 8 meters
A distinctive structure to attract visitors
Dedicated areas for lighting demonstrations
Fast installation and dismantling
Modular components for repeated use
Strong structural stability for suspended lighting fixtures
Rather than using a conventional exhibition booth frame, the client chose a custom aluminum truss system to create a more open and professional appearance.
Structural Design Concept

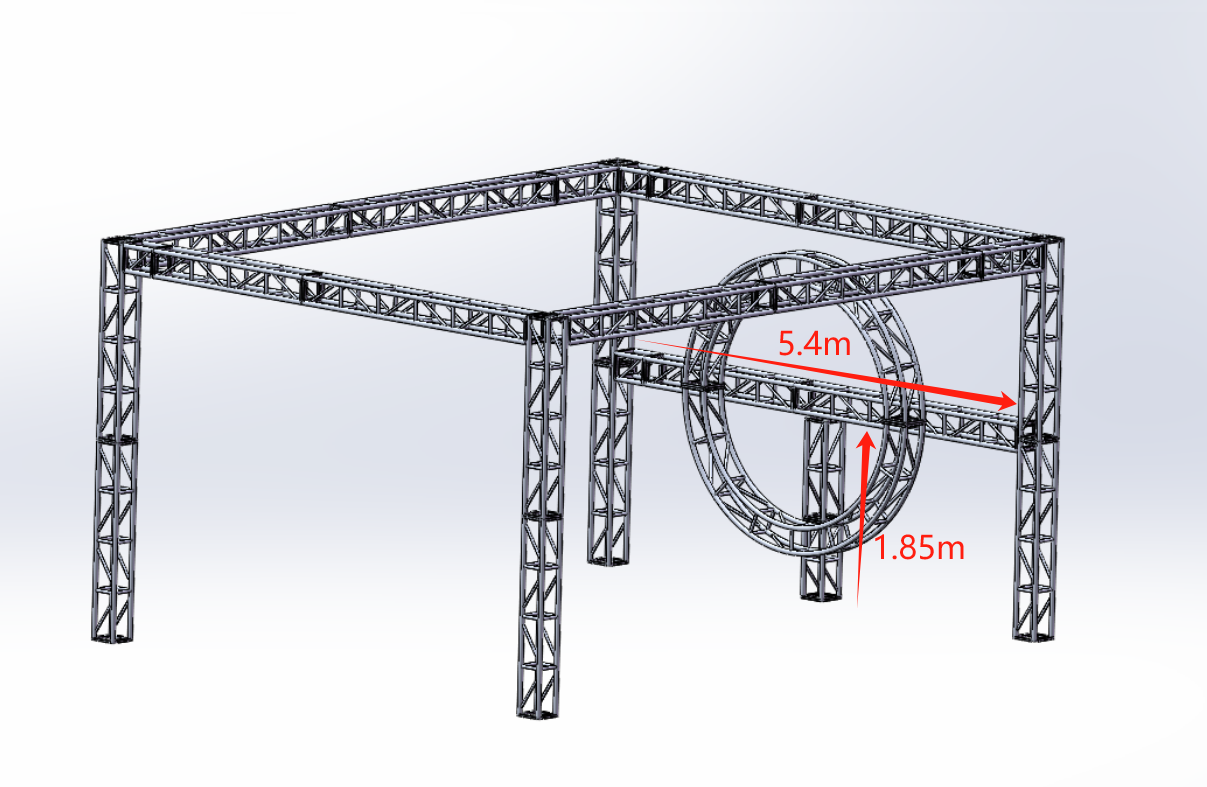

The centerpiece of the booth is a circular truss positioned within a square truss framework.
This combination serves both aesthetic and functional purposes.
The circular truss creates a visual focal point that immediately attracts attention, while the surrounding square frame provides additional hanging positions for lighting fixtures, promotional displays, and branding elements.
The modular design also allows the booth layout to be adapted for future exhibitions with minimal modifications.
Lighting Demonstration Area
One side of the circular structure was designed as the primary product demonstration area.
A lighting display wall was installed together with programmable moving-head fixtures capable of creating dynamic lighting effects such as rotating beams and circular patterns.
This arrangement allows visitors to experience the lighting products under realistic operating conditions while keeping the booth layout clean and organized.
Engineering Considerations
Although exhibition booths appear lightweight, the supporting structure must safely carry multiple suspended loads.
During the design process, special attention was given to:
Structural stability
Load distribution
Suspension points
Assembly efficiency
Transportation requirements
Reusability
These engineering considerations are essential when developing customized **Truss Design & Configuration solutions for exhibition projects.
Why Choose a Custom Truss Booth?
Compared with traditional exhibition booth systems, a custom aluminum truss structure offers several advantages:
Greater structural strength
Flexible lighting positions
Larger suspended load capacity
Modern industrial appearance
Easy transportation
Fast assembly
Long-term reusability
For companies participating in multiple trade shows each year, a reusable truss system can significantly reduce long-term exhibition costs while maintaining a consistent brand image.
Project Outcome
The completed booth successfully combined product presentation with architectural design.
The circular feature immediately attracted visitors, while the surrounding truss system provided sufficient space for lighting demonstrations and promotional displays.
The modular structure also allows the client to reuse the system for future exhibitions by adjusting individual components to suit different booth layouts.
Conclusion
This project demonstrates how a customized truss system can transform a standard exhibition booth into an attractive and highly functional display space.
By combining engineering principles with creative design, Dragon Stage delivered a reusable exhibition solution that supports product demonstrations, improves visitor engagement, and enhances brand presentation.
For lighting manufacturers and other exhibitors seeking a professional exhibition presence, a customized aluminum truss system offers both visual impact and long-term value.
