10.30x1.63m Straight Aluminum Stage Production Loading Ramp for Road Cases & AV Equipment

packing weight:780kg

packing volume:6cbm

Product Information

Product Description

The DragonStage 10.30x1.63m Straight Aluminum Production Loading Ramp is designed for temporary stages where there is enough linear space to create a direct route from ground level to the platform.

Unlike L-shaped or switchback ramps, this configuration does not require a turning area. Equipment and personnel move in one continuous direction along the ramp.

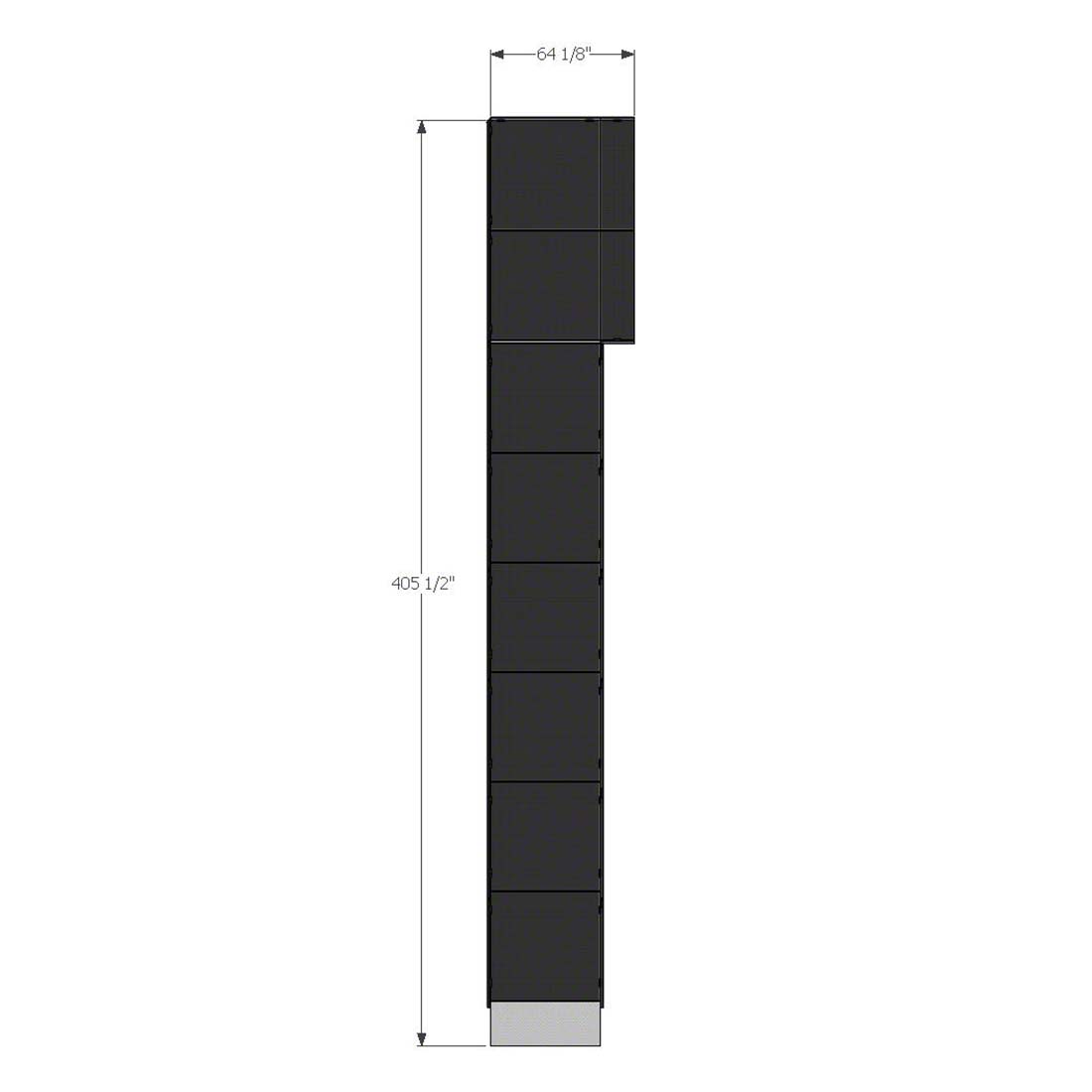

The overall external dimensions are approximately:

33 ft 9½ in × 5 ft 4⅛ in
10.30m × 1.63m

The ramp uses standard 4 × 4 ft / 1.22 × 1.22m modular deck sections, allowing the system to be transported, stored, installed, and reused as part of a modular event-stage inventory.

For other stage-ramp layouts, see Typical Aluminum Ramp.

For matching event-platform systems, see Stage Platform.

Straight-Line Access for Production Equipment

The main advantage of this configuration is simplicity.

There are no 90-degree turns and no switchback sections, so suitable wheeled equipment can move directly toward or away from the stage.

Typical equipment may include:

• road cases

• lighting cases

• AV equipment carts

• audio equipment

• cable trunks

• control cases

• production trolleys

• event hardware

The actual allowable equipment weight should be confirmed according to the final support configuration.

Why Choose a Straight Ramp?

A straight ramp is usually the simplest arrangement when sufficient ground space is available.

Compared with a ramp that changes direction, it offers:

• no turning point

• simpler cart movement

• easier equipment alignment

• direct stage approach

• straightforward crew circulation

• simpler installation layout

It is especially practical behind stages or along venue walls where a long linear working area is available.

Standard 4 × 4 ft Modular Deck Sections

Each standard ramp deck measures:

4 × 4 ft / approximately 1.22 × 1.22m

Using the same repeatable panel size throughout the system simplifies:

• packing

• transportation

• storage

• setup

• dismantling

• individual component replacement

• future configuration changes

The final number of deck sections and supports depends on the confirmed stage height and ramp geometry.

Dual-Side Guardrails

Guardrails are installed along both sides of the ramp route.

Confirmed guardrail height:

3.28 ft / 1.0m

The guardrails create a continuous defined passage along the access route for event crew, personnel, and suitable wheeled equipment.

Compact Width for Backstage Areas

Although the ramp is approximately 10.30m long, its overall external width is only about 1.63m.

This makes the straight configuration practical in areas such as:

• behind a concert stage

• beside an event platform

• along a venue wall

• between technical areas

• alongside backstage storage

• inside temporary production zones

Its long, narrow footprint serves a very different site condition from the wider L-shaped ramp products.

Main Features

• Overall size approx. 10.30 × 1.63m

• Imperial size approx. 33 ft 9½ in × 5 ft 4⅛ in

• Straight / inline configuration

• Standard 1.22 × 1.22m / 4 × 4 ft modular deck sections

• Aluminum support structure

• Guardrails on both sides

• Guardrail height 1m / 3.28ft

• Direct route for wheeled equipment

• Suitable for road cases and AV carts

• Suitable for technicians and stage crew

• Modular and reusable

• Custom configuration available

Typical Applications

• Road case loading

• AV equipment access

• Concert production stages

• Touring productions

• Backstage technical access

• Lighting equipment movement

• Audio equipment movement

• Festival production

• Exhibition stages

• Corporate events

• Church productions

• Temporary stage service routes

Road Case and AV Equipment Access

For touring and production work, one of the main benefits of a ramp is that suitable equipment can remain on wheels.

Instead of lifting cases over steps, production crews can move wheeled equipment along a continuous inclined surface.

This can be useful for:

• moving-head cases

• mixer cases

• lighting-control cases

• audio racks

• video-production cases

• cable trunks

• AV carts

For other stage access products, see Stage Accessories.

Modular Aluminum Structure

The ramp is designed as a reusable temporary structure rather than a permanent fixed installation.

Individual components can therefore be:

• packed separately

• transported between venues

• stored after an event

• installed repeatedly

• replaced individually

• reconfigured for another project

This is particularly useful for event rental companies and touring production suppliers.

How to Confirm the Final Ramp Configuration

Before production, please provide:

• finished stage height

• available straight-line ground space

• stage connection position

• equipment type

• approximate equipment weight

• wheel or cart dimensions

• indoor or outdoor use

DragonStage can then confirm the final slope, support heights, deck quantity, and connection arrangement.

Important Product Note

The confirmed product configuration includes:

• overall dimensions: 405½ × 64⅛ in

• metric dimensions: approximately 10.30 × 1.63m

• standard deck size: 4 × 4 ft / 1.22 × 1.22m

• straight-line configuration

• aluminum structure

• guardrails on both sides

• guardrail height: 1m / 3.28ft

The final stage height, ramp slope, allowable load, support arrangement, and stage connection details should be confirmed according to the actual project.

FAQ

What is the overall size of this ramp?
The external size is approximately 405½ × 64⅛ in, equal to approximately 33 ft 9½ in × 5 ft 4⅛ in, or about 10.30 × 1.63m.

What type of ramp is this?
It is a straight / inline modular aluminum stage-access ramp.

What size is each standard deck section?
Each standard deck measures approximately 4 × 4 ft / 1.22 × 1.22m.

How high are the guardrails?
The guardrail height is approximately 1m / 3.28ft.

Are there guardrails on both sides?
Yes. Both sides of the ramp route are equipped with guardrails.

What is this ramp mainly designed for?
This version is positioned for road cases, AV equipment, production carts, technicians, and backstage stage-service access.

Can lighting flight cases use this ramp?
Yes, subject to the actual equipment weight and final ramp load configuration.

Can personnel also use the ramp?
Yes. Technicians, performers, and event staff can also use the continuous access route.

Why choose a straight ramp instead of a switchback ramp?
A straight ramp is simpler when sufficient linear space is available and allows wheeled equipment to move without making turns.

Can the ramp length be customized?
Yes. The number of modular deck sections can be adjusted according to stage height and available space.

Can DragonStage supply the matching stage?
Yes. The ramp can be supplied together with a complete Stage Platform system

Why Choose DragonStage

DragonStage supplies modular stage platforms together with ramps, stairs, guardrails, and related stage accessories.

For a straight production ramp, the important considerations are stage height, available linear space, equipment type, cart dimensions, and required load. These factors determine the final configuration more accurately than outside dimensions alone.

Soft CTA

For quotation, please provide:

• stage height

• available straight-line space

• equipment type

• approximate equipment weight

• cart or wheel dimensions

• indoor or outdoor use

DragonStage can then confirm the suitable straight-ramp configuration.
