Integrated Ringlock Stage System with 2 Line Array Towers, 10x10m Stage, and Rear Loading Ramp
50 Reviews

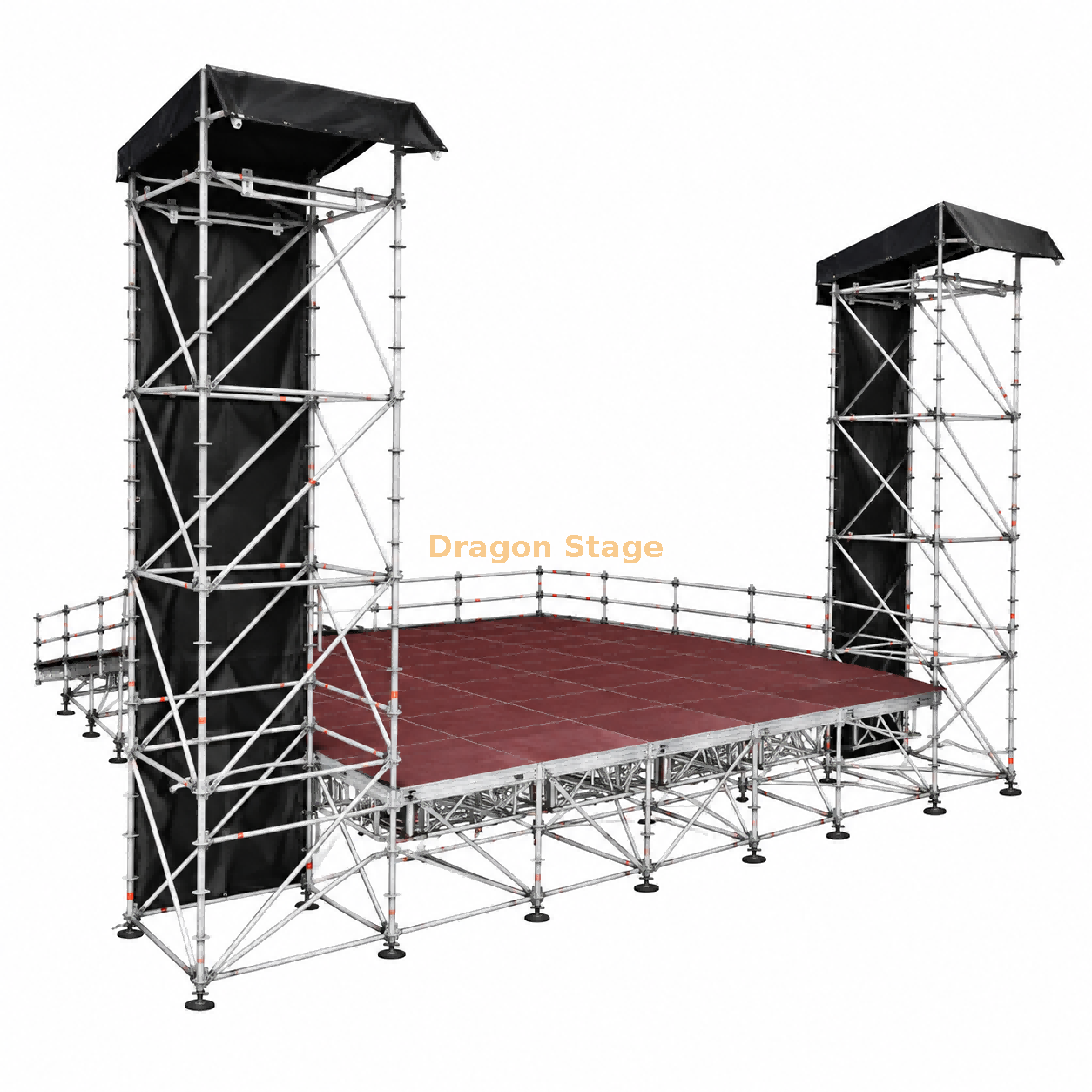

This integrated ringlock structure system is mainly composed of four functional parts: two line array towers, one central stage platform, and one large rear sloped ringlock loading structure for stage equipment handling. The two line array towers are each 2m wide, 2m deep, and 9m high. The central stage platform is 10m long, 10m wide, and 2m high. Behind the stage, a large inclined ringlock structure is arranged to support the loading and unloading of stage equipment. This type of combined solution is suitable for concerts, outdoor performances, touring productions, and temporary event staging projects.
This product is a combined ringlock staging and support structure designed for event applications that need more than just a simple platform. It combines stage performance space, speaker support, and backstage equipment handling into one overall system.
The structure mainly includes four parts:
2 left and right ringlock line array towers
1 central ringlock stage platform
1 rear large sloped ringlock loading structure
1 integrated layout for stage performance and backstage equipment movement
Each line array tower measures 2m wide × 2m deep × 9m high, providing suspended sound support positions on both sides of the stage area.
The central stage platform measures 10m long × 10m wide × 2m high, offering a large performance area for concerts, speeches, ceremonies, and event presentations.
Behind the stage, a large inclined ringlock loading ramp structure is added. This part is especially useful when the project needs to move stage equipment, cases, technical materials, or production items up and down the rear side of the stage more efficiently. Compared with a stage-only layout, this combined structure improves the overall functionality of the event system.
Combined ringlock solution with multiple event functions
Two independent line array tower positions
Large 10m × 10m stage area
2m high performance platform
Rear sloped ringlock structure for stage equipment loading and unloading
Modular design for temporary event installation
Suitable for large event layouts requiring both front-stage and backstage functionality
Can be adjusted according to project dimensions and equipment arrangement
What This Product Is Good For
This product is suitable for customers who do not only need a stage, but also need a more complete event structure layout.
Typical uses include:
concert stages
music festivals
church crusades
outdoor performance projects
touring events
public celebrations
temporary production stages
event systems requiring speaker towers and rear loading access
If the customer needs a simpler stage-only structure, they can also check our Ringlock Stage System page. If the customer needs a more complete supporting framework, they can continue browsing our Ringlock Structure System range.
Why This Combination Is Practical
A normal stage platform only solves the performance area. This integrated system solves several practical problems at the same time:
where to place the line array support towers
how to organize the stage performance area
how to move equipment behind the stage
how to combine front-stage and backstage functions in one modular ringlock system
For many medium and large projects, this kind of combined structure is more useful than ordering separate independent products.
Main Components
The exact BOQ can vary by project, but the combined system usually includes:
ringlock vertical standards
ringlock ledgers
ringlock diagonal braces
stage decks
stage support components
line array suspension parts
access elements if required
rear loading ramp structure components
base plates and adjustable feet
optional handrails, stairs, and side protection
Customization Notes
This product is a project-type structure. The final design can be adjusted based on:
speaker size and weight
whether line array needs manual hoist or direct hanging point
stage deck type
stage loading requirement
whether guardrails are needed
whether stairs are needed on one side or both sides
rear loading ramp width and slope arrangement
backstage operation requirement
roof or cover requirement if any
If you send us your stage layout, speaker requirement, and site usage details, we can help organize a more suitable combination proposal.
FAQ
What are the main parts of this product? This product mainly includes two line array towers, one 10m × 10m ringlock stage, and one large rear sloped ringlock loading structure.
What is the size of each line array tower? Each tower is 2m wide × 2m deep × 9m high.
What is the size of the stage? The stage platform is 10m long × 10m wide × 2m high.
What is the rear sloped structure used for? It is mainly used for loading and unloading stage equipment behind the stage, making backstage movement more practical.
Is this only for concerts? No. It can also be used for festivals, public events, worship events, performances, and other temporary event applications.
Can the dimensions be customized? Yes. The tower size, stage size, and loading ramp configuration can all be adjusted according to the project.
Can this system include stairs and handrails? Yes. Access stairs, handrails, and other stage accessories can be included according to your requirement.
Is this a standard product or a project product? It is better understood as a project-type modular product. The concept is clear, but the final component list usually depends on the real job requirement.
Can it be supplied as one full solution? Yes. We can organize it as one integrated ringlock event structure solution.
For customers who need more than a simple stage, this kind of combined ringlock system is practical because it brings together performance space, speaker support, and backstage handling structure in one layout.
