Ringlock Stage System

Heavy-Duty Modular Structures for Events, Concerts and Public Venues

Ringlock Stage Systems provide a versatile structural solution for concert stages, church platforms, grandstands, camera towers, FOH platforms and temporary event structures, such as lighting rigs, speaker tower, led supports, audiences seats, dj booth, and exhibition stands.

Designed allround modular ringlock connections, these systems combine high load capacity, installation flexibility and scalable configurations for demanding event environments with safe, reliable, and flexible truss system.

Request Project Consultation

What Is a Ringlock Stage System?

A Ringlock Stage System is a modular steel support structure that uses ringlock connections to create stable event platforms and temporary structures. It is commonly used for large concert stages, festival platforms, church stages, spectator seating, camera platforms and heavy-duty support applications where load capacity and structural reliability are critical.

dragonstage layher truss

dragonstage layher truss

dragonstage layher truss

Layher truss horizontal pipe

View More

Layher truss pillar

View More

Layher truss diagonal pipe

View More

Layher truss disk & clip lock

View More

Layher truss adjustable base & joint pipe

View More

Layher truss disk & locks

View More

dragonstage layher truss

dragonstage layher truss

dragonstage layher truss

Why Choose Ringlock Stage Systems

01

High Structural Capacity

Suitable for elevated

platforms, large audience

loads and multi-level event

structures.

04

Fast Installation

Standardized components reduce assembly time and simplify logistics.

02

Modular Configuration

Flexible layouts for stages, seating systems, camera positions and support towers.

03

Long-Term Durability

Galvanized steel components provide excellent resistance to wear and outdoor environments.

Ringlock System Components

LEARN MORE

The Evolution of Ringlock System: Unveiling the Multifunctional Event Ringlock Stage System

The journey of the Event Ringlock Stage system from a typical structure to a multifunctional design marvel showcases the ever-evolving nature of event production. Its newfound flexibility, coupled with easy installation and adaptability to various accessories, has elevated the standards for stage setups. As the event industry continues to embrace innovation, the Event Ringlock Stage system stands as a testament to the transformative power of design in creating unforgettable experiences for audiences worldwide.

Unlocking Design Possibilities:
This truss system's newfound adaptability empowers event planners to create distinctive and captivating structures, deviating from the limitations of traditional designs.

Versatility through Accessories:
The integration of various accessories and parts enhances the Event Ringlock Stage system, making it a multifunctional powerhouse that seamlessly accommodates stage equipment, including sound and lighting.

Ease of Installation:
A standout feature is the user-friendly nature of the system, simplifying the installation process and saving time and resources for event organizers.

Revolutionizing Events:
With enhanced design and multifunctional capabilities, the Event Layher Truss has revolutionized the event industry. Its dynamic canvas for creativity allows organizers to experiment with layouts and create immersive experiences.

The foundational component of the Ringlock Stage pillar's adjustable base, the base collar plays a crucial role. Its primary purpose is to ensure that the first layer of the Ringlock Stage system's truss is perfectly leveled, preventing tilting and potential falls as the system is assembled to greater heights. While one might argue that long pillars can also serve this purpose, the efficiency of using the base collar becomes evident during leveling tasks with machinery. To expedite the process, two individuals collaborate: one operates the level machine, while the other follows instructions to precisely adjust the level of the initial Ringlock disc. This streamlined approach becomes particularly advantageous when working with 2-meter trusses, as their weight and complexity can make the task challenging for a smaller team, potentially necessitating the involvement of three or four individuals.

Ringlock Stage Pillar Base Collar

The Horizontal-Diagonal Ledger serves as a crucial assembly aid, ensuring precision in establishing rectangularity in the ground plan. Its primary function is to facilitate the creation of a straight and square configuration for each layer of the truss cubical system, resulting in a consolidated and uniform Ringlock Stage system across all six faces.
In addition to its role in ensuring geometric integrity, the horizontal-diagonal braces offer valuable bracing effects in various structures. The O-ledgers' horizontal-diagonal configuration is designed with straight-welded wedge heads to achieve a square ground plan. Alternatively, obliquely welded wedge heads are incorporated when aiming for a rectangular ground plan. This versatile design accommodates different structural requirements, providing adaptability and efficiency in the assembly process.

Horizental-Diagonal Ledger

Full Staging & Platform

Ringlock Stage is a popular choice for constructing staging and platforms due to its durability and versatility. Ringlock Stage is a type of modular scaffolding system that can be assembled quickly

and easily, making it ideal for temporary structures like staging and platforms. Those are the main parts of an outdoor event stage. It is the backbone for all stage equipment in the whole stage design. Due to its strength, durability, versatility, lightweight design, and safety features. Ringlock Stage offers a flexible and customizable solution to nowadays large-scale concerts or events.

Key Benefits of Using Ringlock Stage for Full Staging and Platform Construction

Our Ringlock Stage System can be built in kinds of stage, it can completely consistent with the designer's concept, it also can be built in a fast way beyond expectations, gives strong and wind stand structure.

Strong and durable: Ringlock Stage System is made from high-strength aluminum or steel, which makes it strong and durable. This means that it can support heavy loads and withstand harsh weather conditions.
Modular design: Ringlock Stage System is designed in a modular format, which means that it can be easily assembled and disassembled to create different configurations. This makes it ideal for constructing customized staging and platforms to suit your specific needs.
Versatile: Ringlock Stage System can be used to construct a wide range of structures, including stages, platforms, grandstands, and support towers. It is also compatible with a variety of accessories, such as handrails, stairs, and safety gates.

Lightweight: Despite its strength, Ringlock Stage System is lightweight and easy to transport. This makes it ideal for use in temporary structures that need to be set up and dismantled quickly.
Safe and reliable: Ringlock Stage System is designed to meet strict safety standards and is engineered to provide a safe and reliable working platform. This makes it a popular choice for events and shows where safety is a top priority.

The Ringlock Stage System are highly versatile and can be used both indoors and outdoors. With its modular construction feature, it is possible to construct small podiums for fashion shows, music performances, or even giant concert stages. The use of weather-resistant materials such as aluminium, hot-dip galvanized steel, and coated plywood panels ensures that the components are suitable for various weather conditions. The Allround stage can also be easily adapted to uneven surfaces, making it highly convenient. Moreover, the podium surface has a permissible loading capacity of up to 7.5 kN / m², while the height can be up to 10 m depending on the structural strength requirements on site and designer, or equipments suppliers.

Ringlock Stage System podiums and stages offer a secure performance area that meets all necessary requirements. We utilize series manufacturing and maintain high delivery readiness, enabling you to reduce costs and achieve economic success. Additionally, we excel at creating tailor-made special solutions whenever they are required, which is one of our core strengths.

The Ringlock seating stands are known for their sturdy material, excellent workmanship, long-lasting durability, quick assembly, and low transport volume. These important characteristics make the ringlock stands ideal for use in different locations. The lightweight and easy-to-assemble individual parts can be installed manually, as shown in the picture. The modular design of the seating stands also allows for easy adaptation to local conditions, and ensures it for public assembly places.

The FOH Tower Kit System offers the ideal solution for your Front-Of-House needs. Its clever use of materials allows for swift and effortless assembly. The design is both practical and visually appealing, with meticulous attention given to every detail. The system can support up to three levels without the need for a central support, and is fully enclosed with keder tarpaulins.

The ringlock video wall assembly system provides concert-goers with an up-close view of performers at major outdoor events. The system can withstand strong winds and it does not need to remove the video screen. Furthermore, the bolt-free pin and wedge connection technology allows for quick and easy assembly without using a crane.

First-class quality

This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.

Typical Ringlock Stage System Parts & Cases

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

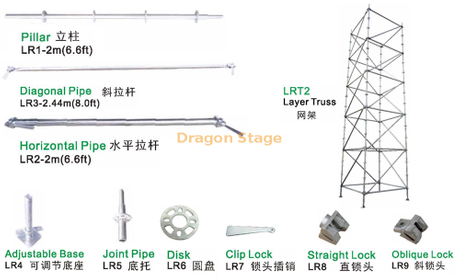

20ft Layer Truss Iron Trusses Prices Audio Tower 2x2x6m

this 20ft layer truss iron trusses prices audio tower, the sizes are 2m wide,2m deep and 6m high

we provide without or with hoist options and electrical hoist option.

Speaker Truss/Audio Line Array Truss/Layer Truss Iron And Steel Scaffolding for Event Stage 10x8m

2 groups

the front group 10m long 8m high and 2m wide

the second group 10m long 6m high and 2m wide

Steel Stage Lighting Truss, Layer Truss for Large Outdoor Concert Event Stage Equipment 6x8m

2 groups

the front group 6m long 8m high and 2m wide

the second group 6m long 6m high and 2m wide

Line Array Speaker Truss/Audio Truss/Layer Truss/Steel Iron Truss Scaffolding for Event

3 meters high from the ground, 6 meters wide, and 50 meters long3 meters high from the ground, 6 meters wide, and 50 meters long

Layer Truss for Line Array with Hoist 12m

The layer truss is designed to withstand heavy loads and provide stability, ensuring the safety of the line array speakers. With a hoist of 12m, it allows for the speakers to be elevated to a considerable height, maximizing their reach and impact.

Steel Board for Layer Truss Speaker Truss Platform Board

Steel Board for Layer Truss Speaker Truss Platform Board with hooks

2m long 0.25m wide 0.05m thickness 8kg/p

Hot galvanized scaffold board for construction site

10m Concert Steel Iron Metal Layer Truss Line Array Tower

this is a 10m Concert Steel Iron Metal Layer Truss Line Array Tower, there are 2 four meters high auxiliary towers.

Steel Iron Layer Truss Scaffold for Sound Speaker Audio System 8m High

width and length is 2m

Ringlock Stage System Types

Fork Connector Ringlock Stage

This is the most common and selected type of Ringlock Stage System. It has fork at each vertical truss top to connect adjacent stage decks.
Steel Beam Connector Ringlock Stage

This is steel beam connector has a slot on the top, it help the workers to put 2 adjacent decks to fit in and make the total deck as a perfect whole.
Aluminum Beam Connector Ringlock Stage

This is newly designed Ringlock Stage System with light-weight aluminum beam connector. It is similar to above steel Ringlock Stage System with steel beam which has a slot on the top.
Ringlock Stage Guardrails

This is a stage guardrail for Ringlock Stage System. We can custom-produce the railings to meet clients' needs.

Ringlock Stage Platform

Heavy Duty 2X2m Ringlock Stage Deck

Ringlock Stage Platform Frame Custom Design

For ringlock stage platform frame, you have the freedom to design your stage platform according to your requirements. Whether you need a specific size, shape, or height, Ringlock Stage System can accommodate your preferences. Such as edge cutting, corner fitting and different stage leg clamps （round tube and square tube）. These allow you to create a stage that perfectly fits your event space and enhances the overall experience for performers and audiences alike.

How To Place LED Screen on Ringlock Stage System in Common Way

We would like to share the most common method of LED screen installation on Ringlock Stage System

To hang the led screen, the Ringlock Stage System structure have a group of top sections to hoist and motors are needed to work together after the led screen pieced up on the group.

Ringlock Structure Before Hanging LED

Before the led screen has been correctly positioned as needed height, there are should be counter weights on the base of ringlock structure avoiding turn over.

LED Installed on Ringlock Structure

Ways to Hang Line Array On Concert Ringlock Stage System

We would like to list the most common 3 kinds of system to hang line array sound system

single tower

this single independent speaker tower structure is mostly used for small or some medium concerts

group tower

for more than 10 meters high and heavy line arrays, the concerts holder would use group of truss tower

tower wall

for large concerts and there would be groups of line arrays are need, the tower wall is a indispensable structure

Truss Hanging Line Array

it is a Ringlock Stage System and aluminum truss beam combination structure, the line array is hanging and built from trussing beam top.
Long Section Hanging Line Array

it is a Ringlock Stage System and steel long section beam combination structure, the line array is hanging and built from long section steel top.

Bridge Ledger Truss

Ringlock Stage System Guarding Rails

This is a 1500kg loading test carried out in Dragon Stage factory for one piece 2m long bridge ledger truss. This truss is widely used for those places where heavy equipments shall be installed, such as line array, led screen and hault structures. Check the video on the right.

Contact Us

Aluminum Ringlock Stage System

It represents a novel type of truss system. Typically, when Ringlock Stage System are mentioned, they are associated with steel Ringlock Stage System. They are favored for their modular design, rapid assembly, robustness, and adaptability. However, they have a drawback - they are quite heavy to set up and transport.

to address this issue, we opted to utilize aluminum alloy instead of steel. As a result, aluminum Ringlock Stage System inherit the advantages of steel Ringlock Stage System while offering the benefits of being lightweight and resistant to corrosion. Although aluminum alloy may not match the strength of steel in all scenarios, in most cases, aluminum Ringlock Stage System can effectively replace their steel counterparts.

Professional Technical Team Cases

We have an excellent technical team, which can be designed according to customers' requirements.

Important Notice Regarding Ringlock Stage System Compatibility

Ensuring Safe and Reliable Integration

Ringlock Stage Systems are widely used for event stages, grandstands, camera platforms, temporary structures and industrial access applications. Although Ringlock technology follows a common connection principle, dimensional details and component specifications can vary significantly between manufacturers.

Before producing components intended to connect with an existing Ringlock Stage System, Dragon Stage strongly recommends obtaining the original drawings, technical specifications or detailed measurements of the existing structure.

Why Compatibility Verification Is Important

Manufacturer-Specific Dimensions

Different manufacturers may use different dimensions for:

* Standards (vertical posts)
* Ledgers (horizontal members)
* Diagonal braces
* Rosettes and connection discs
* Wedge heads and locking components
* Deck support beams and accessories

Even small dimensional differences can affect assembly performance and connection compatibility.

Structural Safety

Ringlock structures rely on precise connections to transfer loads safely throughout the system. Components produced according to different specifications may not fit correctly or may create unintended stresses within the structure.

Verifying compatibility before production helps reduce installation risks and ensures safe operation.

Existing System Expansion

Many customers purchase additional components to expand or modify an existing Ringlock Stage System. In these situations, compatibility verification becomes particularly important to ensure that new and existing components work together as a complete structural system.

Information Required

To evaluate compatibility, we recommend providing:

* General arrangement drawings
* Component drawings
* Technical specifications
* Product manuals
* Photographs with dimensions
* Existing supplier documentation

If original drawings are unavailable, detailed measurements and photographs may help our engineering team perform a preliminary assessment.

Engineering Review

After receiving the available information, Dragon Stage engineers will review the specifications and provide guidance regarding:

* Compatibility assessment
* Structural feasibility
* Connection requirements
* Recommended solutions

Our objective is to help customers achieve safe and reliable integration when expanding or modifying existing Ringlock Stage Systems.

Important: Compatibility cannot be guaranteed without reviewing the relevant specifications. Engineering verification is strongly recommended before production and installation.

Knowlege About Our Ringlock Stage System

we would like to share the information and news on our Ringlock Stage System production and building cases on large-scale events

How To Install Exhibition Booth with Layher Truss.jpg

How To Install A Exhibition Booth with Layher Truss

In the exhibition construction industry, safety always remains the top priority. Layher scaffolding, with its exceptional safety and stability, has become the preferred choice for numerous construction projects. Taking our liquor exhibition booth construction as an example, the entire process fully

How To Install And Fix LED Screens on Layher Truss

In modern stage design and performances, layher truss and LED screens have become indispensable combinations. They not only provide powerful visual effects but also bring immersive experiences to the audience. However, how to firmly combine these two is a process that requires professional knowledge

How are steel Layher trusses installed and what are the safety considerations that must be taken into account?

Steel Layher trusses are typically installed using a combination of specialized equipment, skilled labor, and strict safety protocols. The exact installation process will depend on the specific design of the truss and the requirements of the project, but there are some general considerations and saf

what is steel Layher truss

If you're looking for a versatile and reliable steel truss system for your next ooutdoor large scale event, look no further than Layher Truss. Layher truss is nowadays most welcome high-quality truss systems that are perfect for large event and concerts, also it has wide applications from small exhi

How To Install Led Display on The Layher Truss System

## Integrating LED Displays with Layher Truss Systems: A Comprehensive Guide to Installation MethodsThe Layher truss system, renowned for its robust construction and adaptability, provides a versatile platform for integrating LED displays in various events and installations. This essay will delve i

What are the advantages of using steel Layher trusses in construction projects?

There are several advantages of using steel Layher trusses in construction projects:High strength and load-bearing capacity: Steel Layher trusses are designed to be strong and durable, and can support heavy loads with ease.Lightweight construction: Despite their strength, steel Layher trusses are li

How does steel Layher truss differ from other types of trusses?

Steel Layher trusses differ from other types of trusses in several ways. Some of the key differences include:Modular design: Steel Layher trusses are designed to be modular, with interchangeable components that can be easily assembled and disassembled. This makes them a versatile and flexible choice

How do steel Layher trusses contribute to the overall structural integrity of a building or structure?

Steel Layher trusses are a type of prefabricated steel structure that are commonly used in construction projects to provide support for roofs, bridges, and other structures. These trusses contribute significantly to the overall structural integrity of a building or structure in several ways:Load-bea

What are some common applications for steel Layher trusses in construction projects?

Steel Layher trusses are a versatile and flexible choice for many different types of construction projects. Some common applications for steel Layher trusses include:Roof structures: Steel Layher trusses are often used to support roof structures in both commercial and residential buildings. They can

What materials are used in the construction of Layher trusses and how are they manufactured?

Layher trusses can be constructed from a variety of materials, including aluminum and steel. The specific material used in the construction of Layher trusses will depend on the specific application and requirements of the project.Aluminum Layher trusses are typically constructed from high-strength,

How do steel Layher trusses compare in terms of cost and efficiency to other types of trusses?

The cost and efficiency of steel Layher trusses compared to other types of trusses will depend on a variety of factors, including the specific requirements of the project and the availability of materials and labor. However, there are some general considerations to keep in mind when comparing steel

What are the load-bearing capabilities of steel Layher trusses and how are they tested?

The load-bearing capabilities of steel Layher trusses will depend on a variety of factors, including the specific design of the truss and the materials used in its construction. Generally, steel Layher trusses are known for their high load-bearing capacity and strength, which make them a popular cho

what is FOH in layher truss

FOH stands for Front of House, which refers to the area where the mixing console and sound equipment are located in a live event or concert. In the context of Layher truss, FOH may refer to the placement of a truss system at the front of the stage to support lighting and sound equipment, as well as

What is steel Layher truss and what are its main features?

A steel Layher truss is a type of Layher truss that is constructed using steel components rather than aluminum. Steel Layher trusses offer several advantages over aluminum Layher trusses, including greater strength and durability, as well as the ability to support heavier loads.The main features of

how to produce steel layher truss for event

Producing steel Layher trusses for events follows a similar process to producing steel Layher trusses for construction projects. However, there are some additional considerations that need to be taken into account when producing trusses specifically for events, such as the need for easy assembly and

Tackling the Bending Issue of Layher Rod: Ensuring Structural Stability and Safety

During the construction or usage process, it was discovered that the Layher rod had exhibited a bending phenomenon. As an important supporting and connecting component, the bent Layher rod affected the stability and safety of the overall structure. For this maintenance, a hydraulic jack was selected

How Steel Clear Arch Roof Truss Combine with Layher Stage

How Steel Clear Arch Roof Truss Combine with Layher StageIn the world of event staging and construction, innovation is key to creating memorable and functional spaces. One such innovation is the combination of a steel clear arch roof truss with a Layher stage system. This unique pairing offers a ble

Introducing The Next-Gen Adjustable LED Screen Bracket

Revolutionizing Event Installations: Introducing the Next-Gen Adjustable LED Screen Bracket In the fast-paced world of event production, efficiency and precision are paramount. Ensuring flawless visual displays—whether for concerts, exhibitions, or corporate stages—often hinges on reliable infrastr

1
2
»

How Stage Constructed for Kinshasa Maajabu Mike Kalambay - Live Explo Célébration on 27th 2024

Dragonstage produced and give instructions on the construction of Stage for Kinshasa Maajabu Mike Kalambay - Live Explo Célébration on 27th 2024.
for future large outdoor stage construction work, we made videos and pictures to explain.
