16x2x8m Ringlock LED Background Wall with 12.2x7.32m Aluminum Stage and 14x10x6m Lighting Truss Roof
50 Reviews

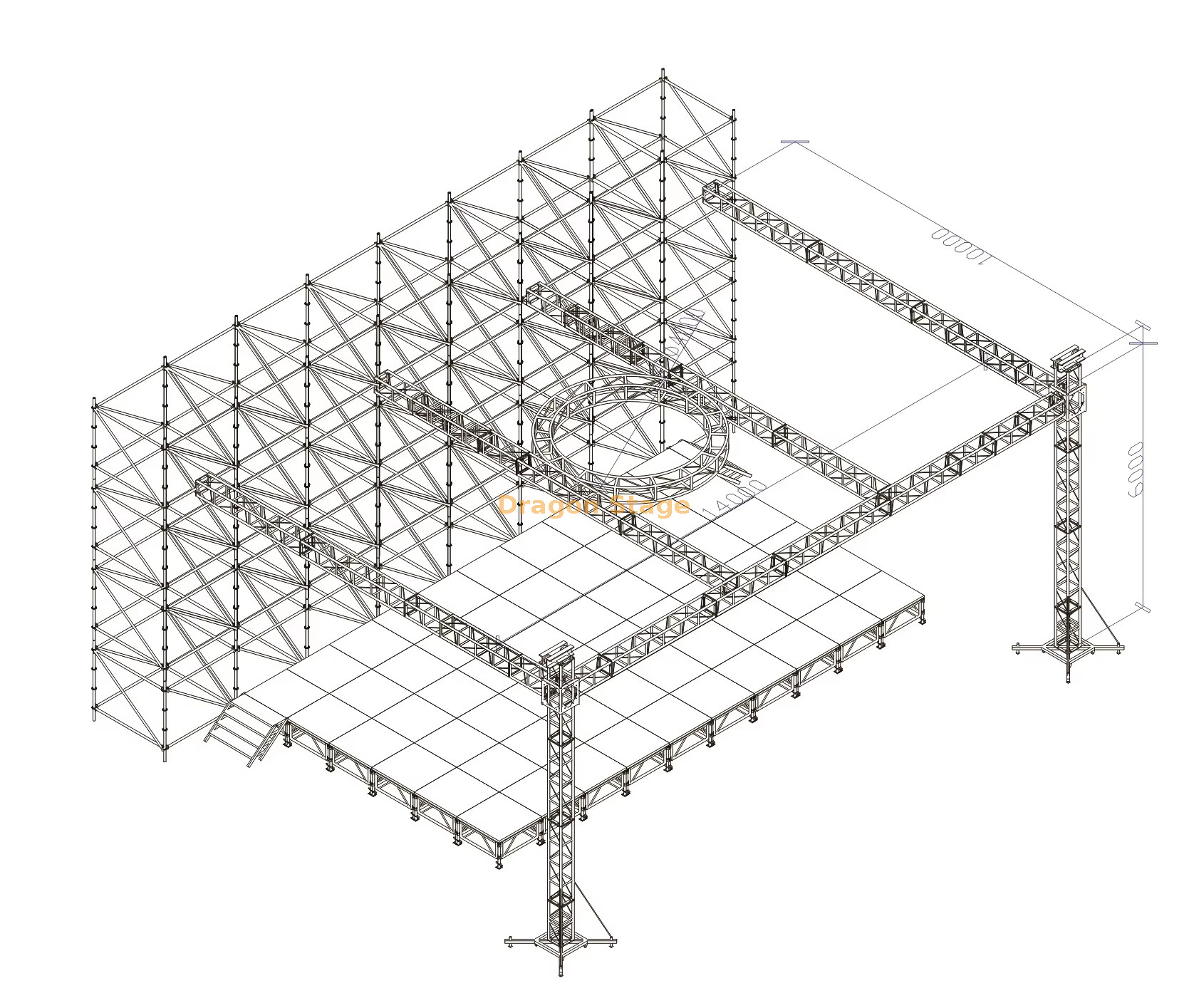

DragonStage 16x2x8m ringlock background structure combined with a 12.2x7.32m aluminum stage and a 14x10x6m aluminum bolt truss lighting roof. The system includes a 4m diameter circular truss, 1.22x1.22m stage decks, and 2 stage stairs, making it suitable for concerts, ceremonies, brand events, and temporary performance setups.
This product is a combined stage system made of three main parts: a ringlock LED background structure, an aluminum modular stage platform, and an aluminum bolt truss lighting roof.
The rear structure is a 16m wide, 2m deep, and 8m high ringlock wall, which can be used as a background support frame for LED screens, lighting effects, decoration panels, or event branding.
In front of the background wall is an aluminum stage platform measuring 12.2m wide x 7.32m deep x 1m high. The stage uses 1.22x1.22m stage decks, forming a clean rectangular performance area. The system also includes 2 stairs for performer and crew access.
Above the stage is an aluminum lighting truss roof structure with an overall size of 14m wide x 10m deep x 6m high. The roof is made of aluminum bolt truss, using 400mm truss for the main horizontal beams and 300mm truss for the vertical pillars.
At the center of the roof structure, there is a 4m diameter circular truss, which creates a focal point for lighting, decoration, special effects, or themed stage design.
This combination is suitable for projects that need both a strong rear structure and an independent front lighting system. For more related systems, you may also check Ringlock Stage System and Aluminum Truss.
Main Features
Combined ringlock wall + aluminum stage + truss roof system
Rear 16x2x8m ringlock background structure
Front 12.2x7.32m modular aluminum stage
Stage height 1m with 2 stairs
Roof structure size 14x10x6m
Main beams in 400mm aluminum bolt truss
Main pillars in 300mm aluminum bolt truss
Includes 4m diameter circular truss in the center
Suitable for temporary concerts, event shows, and stage productions
Modular design for transport, assembly, and project-based customization
Main Components
Ringlock background wall structure
Aluminum modular stage decks
Stage substructure and supports
2 aluminum stage stairs
Aluminum bolt truss roof frame
400mm beam trusses
300mm tower trusses
4m circular truss
Connection hardware and related accessories
Typical Applications
Concert stages
Live performance stages
Ceremony stages
Festival stages
Brand event stages
Outdoor and indoor show stages
LED background performance stages
Lighting-focused temporary stages
Why This Combination Works
This system is practical because each part serves a different purpose:
The ringlock background wall provides a large rear support structure.
The aluminum stage provides a clean and modular performance platform.
The lighting truss roof creates a separate overhead rigging area for lighting and visual design.
The 4m circular truss adds a strong visual center and gives the stage a more custom appearance.
This makes the system suitable for customers who want a stage that is more than a simple roof-and-platform combination.
Important Note
The dimensions listed here are based on the provided project information:
Ringlock wall: 16m x 2m x 8m
Stage: 12.2m x 7.32m x 1m
Lighting truss roof: 14m x 10m x 6m
Circular truss: 4m diameter
If the project needs LED screen installation, roofing material, side wings, sound support, or detailed accessory lists, those can be confirmed separately according to the final event requirement.
FAQ
What is included in this stage system? It includes a ringlock LED background wall, an aluminum modular stage, 2 stairs, an aluminum lighting truss roof, and a 4m circular truss.
What is the size of the ringlock background structure? The ringlock background structure is 16m wide, 2m deep, and 8m high.
What is the size of the aluminum stage? The stage is 12.2m wide, 7.32m deep, and 1m high.
What size are the stage decks? Each stage deck is 1.22m x 1.22m.
How many stairs are included? This stage system includes 2 stairs.
What is the size of the lighting truss roof? The lighting truss roof is 14m wide, 10m deep, and 6m high.
What truss sizes are used for the roof? The main roof beams use 400mm aluminum bolt truss, and the vertical pillars use 300mm aluminum bolt truss.
What is the circular truss size? The circular truss has a 4m diameter.
Can this system be customized? Yes. The wall size, stage size, roof size, stage height, circular truss size, and accessories can all be adjusted according to project needs.

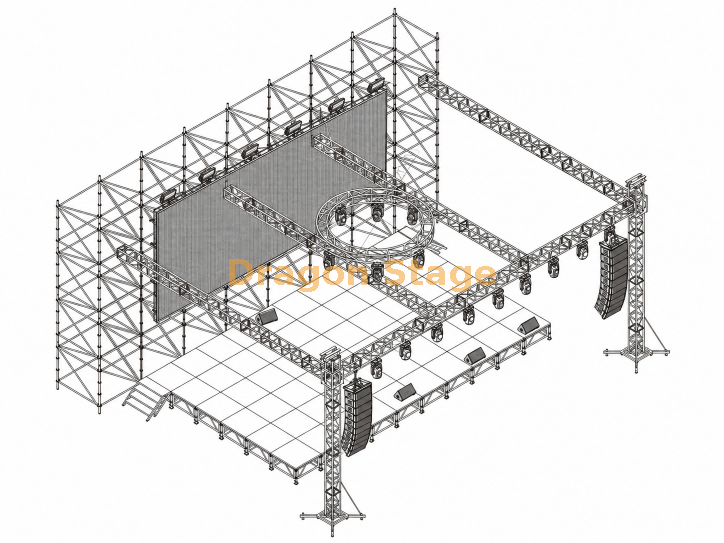

Can it be used for LED screen and lighting decoration? Yes. The rear ringlock wall can support background applications, and the roof truss can be used for lighting and decorative layout based on the final design.
Why Choose DragonStage
Experience with combined stage + truss + ringlock systems
Custom production based on project dimensions
Flexible modular structure for temporary events
Practical solutions for concerts and event staging
One supplier for different structural parts of the same project
Inquiry Suggestion
If you want us to quote this system, please send:
Event location
Indoor or outdoor use
Whether LED screen will be installed
Whether roofing cover is needed
Whether side wings or speaker towers are required
Required loading or equipment to be hung on the truss
