3795-BS300 Standard Round Tube Bolt-Connected Aluminum Truss Design for Lighting Structure
Drawing File Reference
Drawing Index
3795 and so on
Related Drawing File

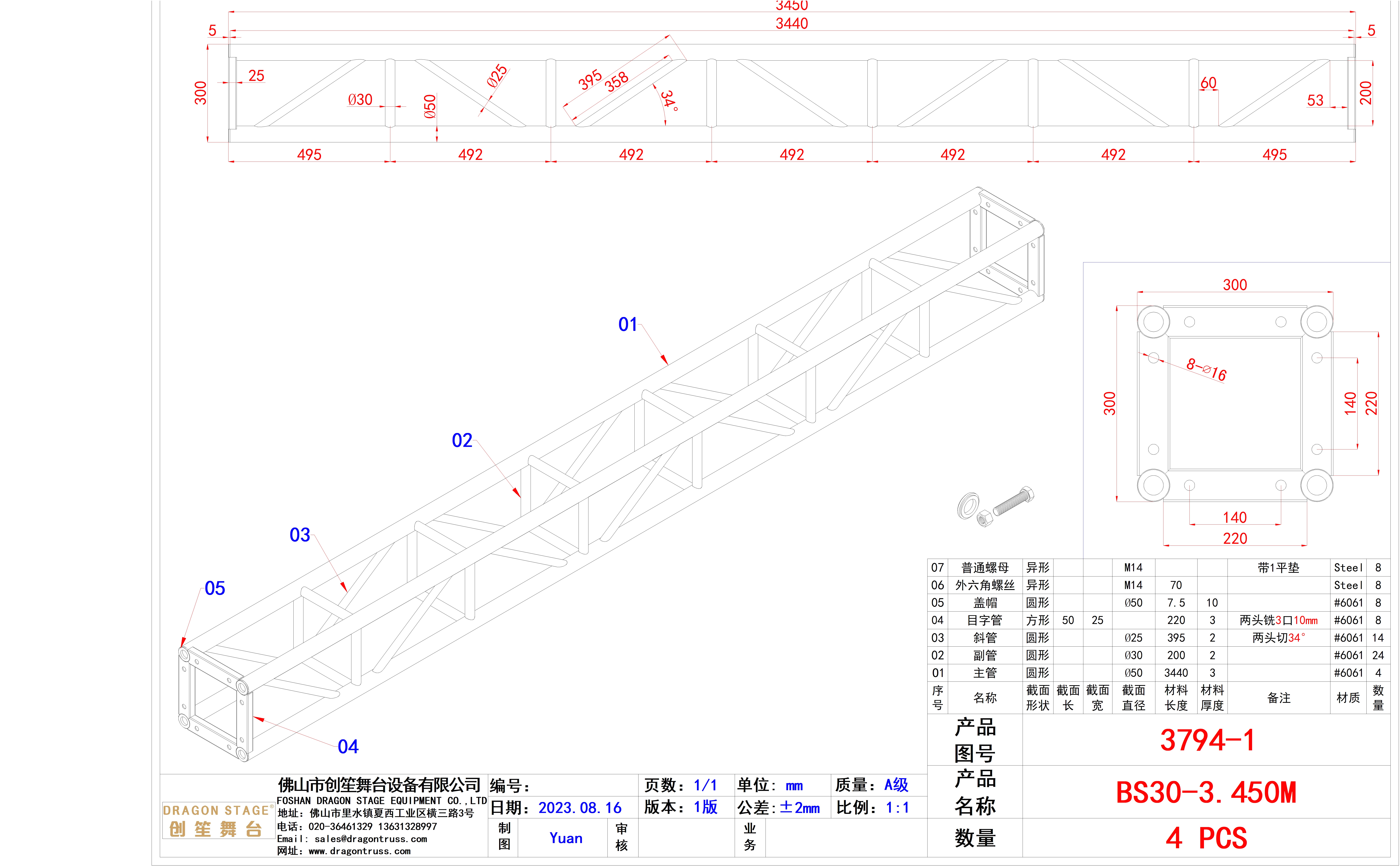

3795-BS30(3.450m) Bolt Truss.jpg
The above drawing represents a standard BS300 round tube bolt-connected aluminum truss design developed for lighting structures, exhibition frameworks and decorative installations.
The drawing index is used as a reference for locating related CAD drawings, production records and customized BS300 truss configurations.
Modular Lighting and Structural Framework Component
3795-BS300 Standard Round Tube Bolt-Connected Aluminum Truss Design for Lighting Structure
Introduction
This drawing archive presents the 3795-BS300 standard round tube bolt-connected aluminum truss system developed for professional lighting structures, exhibition frameworks and customized event installations.
The drawing index is registered under reference 3795, and the related CAD drawing represents the standard structural configuration of the BS300 bolt-connected truss series.
The BS300 system adopts a 300mm × 300mm square profile with 50mm aluminum round tube main chords, providing a compact and practical solution for applications requiring lightweight construction, modular installation and flexible configuration.
Unlike permanent welded structures, the bolt-connected design allows the truss system to be transported, stored and assembled efficiently for temporary and semi-permanent applications.
Design Overview
The 3795-BS300 adopts a modular straight round tube bolt-connected aluminum truss structure.
The main structural characteristics include:
300mm × 300mm compact square profile;
50mm diameter aluminum round tube main chords;
Aluminum alloy construction;
Bolt-connected end plate system;
Modular length configuration.
Compared with fixed welded structures, bolt-connected truss components provide advantages in:
Transportation efficiency;
Storage convenience;
Flexible installation;
Customized structural configuration.
The BS300 series is suitable for applications where visual appearance, installation flexibility and structural adaptability are important considerations.
Typical applications include:
Stage lighting structures;
Exhibition hall frameworks;
Indoor decorative structures;
Bar and entertainment lighting systems;
Customized display structures.
The connection method is an important factor when selecting temporary structure components. Different connection systems, such as spigot connection, bolt connection and plate connection, are selected according to application requirements.
More information about truss connection methods can be found in:
For modular truss structures, the BS300 component is only one part of the complete system.
The final structural configuration depends on:
Overall span;
Equipment loading;
Installation environment;
Supporting structure;
Connection method.
The bolt-connected system provides flexibility for repeated assembly and customized layouts. However, the actual application should consider the intended use, loading requirements and installation conditions.
Aluminum alloy is widely used in exhibition and event structures because of:
Lightweight characteristics;
Corrosion resistance;
Clean appearance;
Ease of transportation.
More information about aluminum materials used in truss systems can be found in:
For future purchasing applications, this drawing archive can be connected with:
BS300 Round Tube Bolt-Connected Aluminum Truss Series
Possible product configurations:
BS300 Truss × 0.44m
BS300 Truss × 0.46m
BS300 Truss × 0.56m

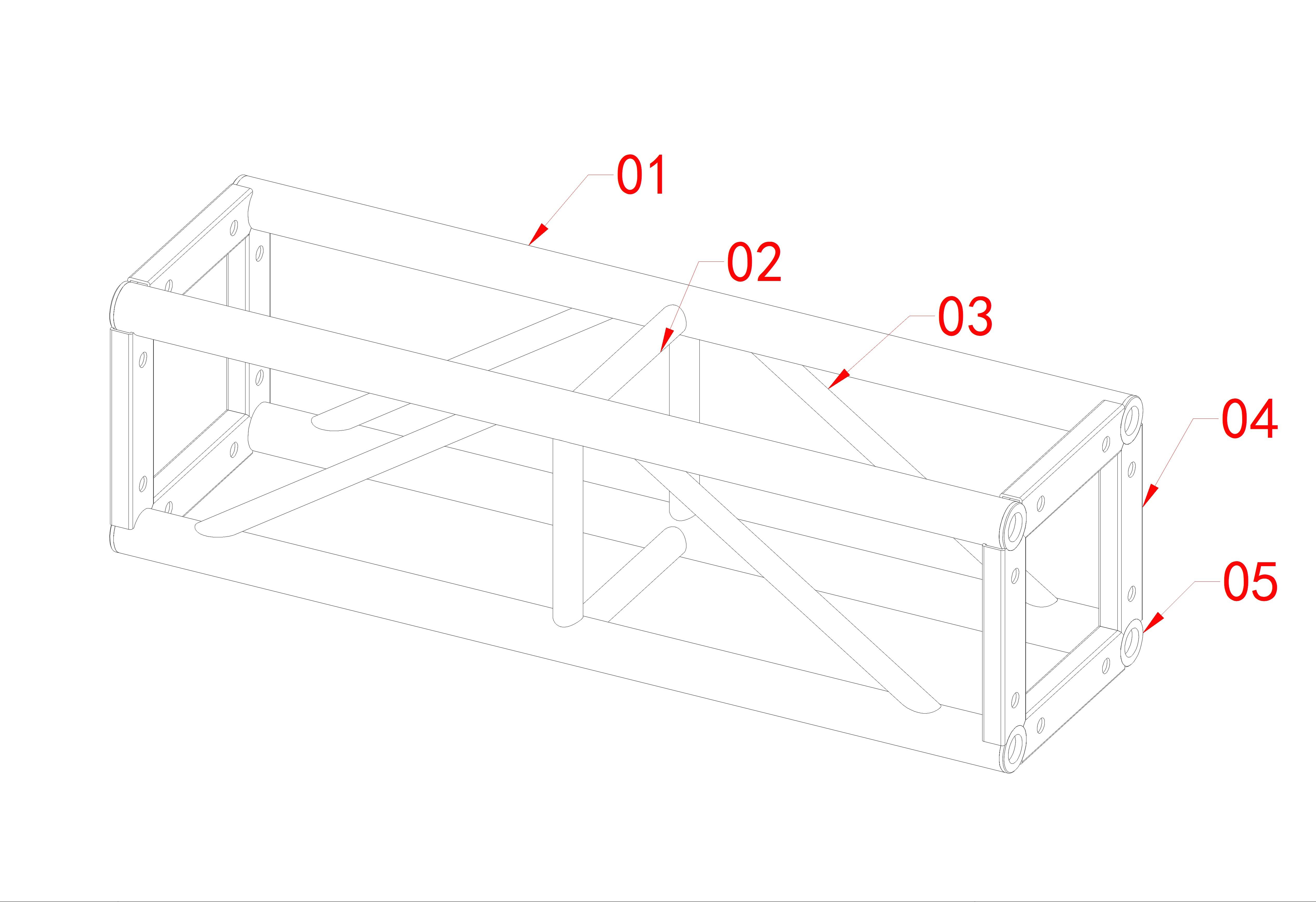

BS300 Truss × 1.2m
BS300 Truss × 1.4m

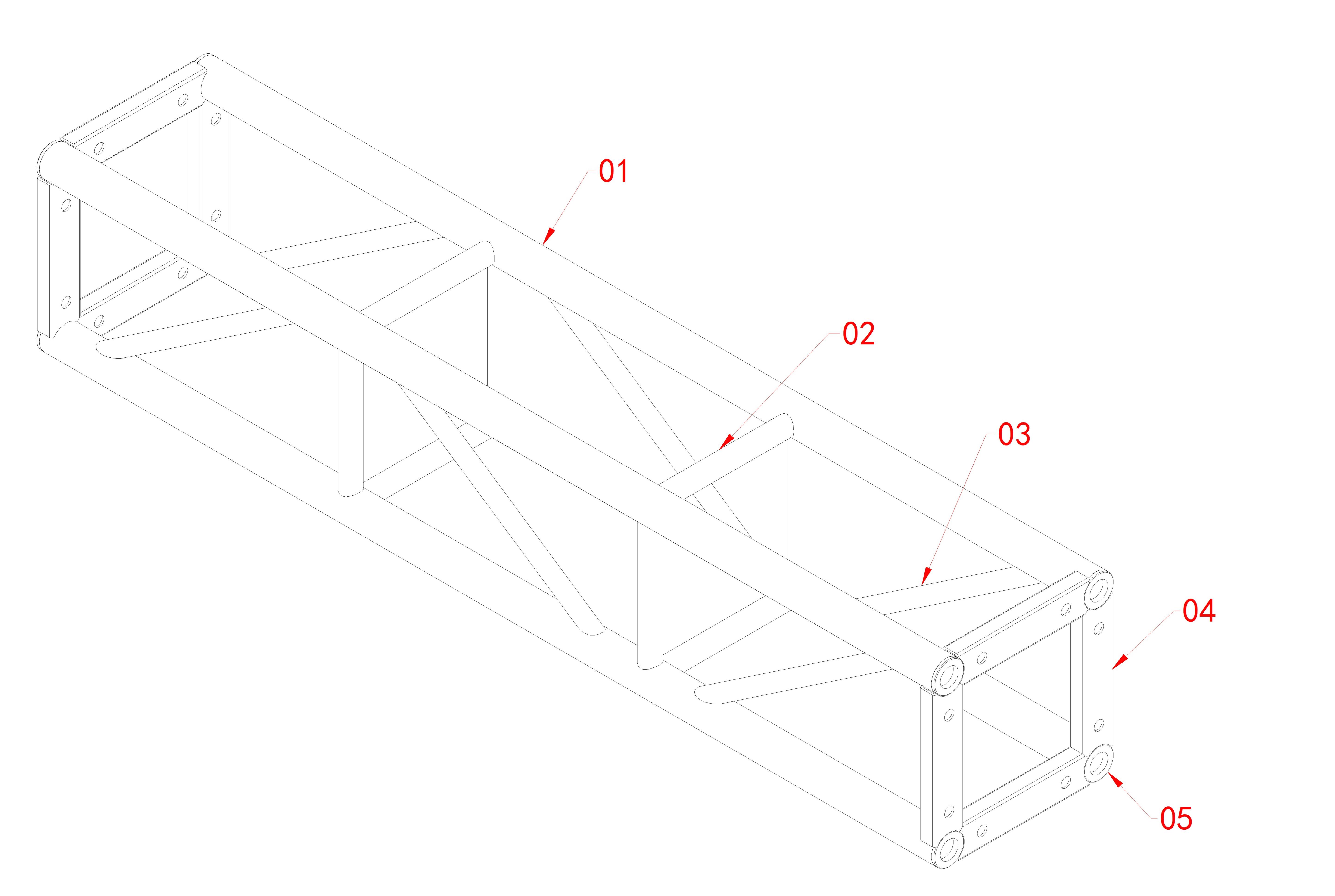

BS300 Truss × 1.41m
BS300 Truss × 3.45m
Related applications:
Exhibition Lighting Truss;
Decorative Structure;
Indoor Event Framework;
Entertainment Lighting System.
The drawing archive demonstrates Dragon Stage's custom design and manufacturing capability, while product pages provide purchasing information and specifications.
FAQ
1. What is the 3795-BS300 truss mainly used for?
The 3795-BS300 truss is mainly designed for lighting structures, exhibition frameworks, decorative installations and entertainment venue applications.
2. What is the difference between BS300 and larger truss systems?
BS300 uses a compact 300mm × 300mm profile, making it suitable for lightweight lighting and decorative structures where transportation and appearance are important.
3. Can Dragon Stage customize BS300 truss lengths?
Yes. The BS300 system can be customized according to required lengths, structural configurations and project applications.
4. Why choose bolt-connected truss instead of welded truss?
Bolt-connected truss provides advantages in transportation, storage and flexible installation, making it suitable for temporary and modular structures.
5. Can BS300 truss be used outdoors?
Yes. Aluminum truss can be used for outdoor applications. However, outdoor structures require consideration of environmental conditions, equipment loading and installation requirements.
Design Notice
The drawings shown in this archive are provided for reference purposes to demonstrate Dragon Stage's custom design and manufacturing capability.
Final structural design should be confirmed according to actual project requirements, loading conditions, installation environment and applicable safety requirements.
