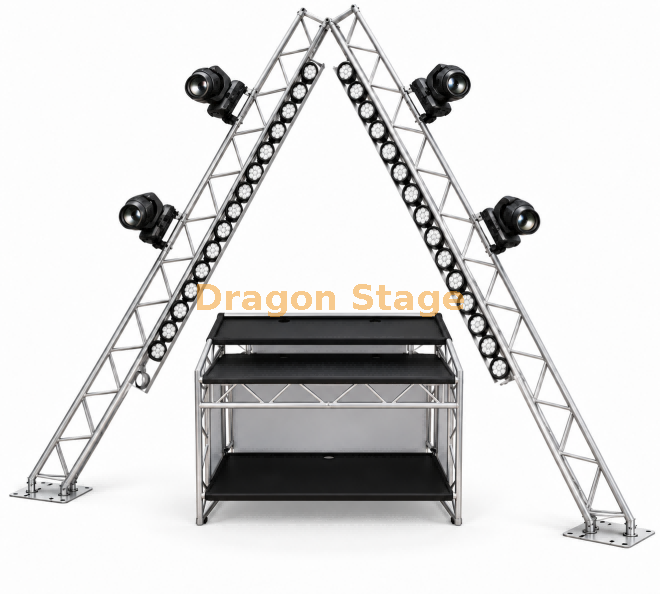

The DragonStage A-Frame DJ Booth is a custom decorative DJ workstation built from two 3m-long, 300×300mm bolt truss sections, joined at the top through a folding book-style corner and supported by two floor bases.
An integrated DJ table creates a practical working position for mixers, controllers, laptops, and related performance equipment, while the large A-shaped truss frame becomes part of the stage visual design.
Suitable for clubs, concerts, DJ performances, branded events, exhibitions, and custom stage installations.
Product Information
| Item | Specification |
| Brand | DragonStage |
| Product Type | A-Frame Truss DJ Booth |
| Structural Shape | Large A / Triangle Frame |
| Main Truss | 300 × 300mm Bolt Truss |
| Truss Length | 3m / 9.84ft each side |
| Main Truss Quantity | 2 pcs |
| Top Connection | Folding Book-Style Corner |
| Floor Supports | 2 Bases |
| DJ Work Surface | 1 Integrated Booth Table |
| Connection Type | Bolt Truss |
| Packing Weight | Approx. 95kg / 209lb |
| Packing Volume | Approx. 1m³ |
| Overall Assembled Dimensions | To Be Confirmed from Final Drawing |
| Work Table Dimensions | To Be Confirmed |
| Finish | To Be Confirmed |
| Allowable Equipment Load | To Be Confirmed |
| Customization | Available |
The confirmed component configuration and packing information are taken from the current DragonStage product page.
This trussing system features a distinctive shape that sets it apart from traditional trussing systems, making it a standout piece that is sure to impress both audiences and fellow industry professionals.
At the heart of this trussing system is its triangular shape, which not only adds a modern and sleek aesthetic to any stage setup but also provides added stability and support for equipment such as lighting fixtures, speakers, and other accessories. The triangular shape of the trussing system allows for greater versatility in positioning and placement, making it easier to create dynamic and visually stunning stage designs that will captivate and engage audiences.
One of the standout features of the Custom Triangle DJ Stand Trussing is its folding book corner on the top, which adds a touch of elegance and sophistication to the overall design. This unique feature not only enhances the visual appeal of the trussing system but also provides added functionality by allowing for easy attachment of additional equipment such as projectors, screens, or signage. The folding book corner can be easily adjusted and customized to suit the specific needs of the performer, making it a versatile and practical addition to any stage setup.
In addition to its unique shape and folding book corner, the Custom Triangle DJ Stand Trussing also features bases that allow for easy and seamless rotation of the trussing system. This feature is especially useful for performers who need to quickly and efficiently adjust the position of their equipment during a live performance, ensuring that they can deliver a flawless and professional show every time. The bases also provide added stability and support, ensuring that the trussing system remains secure and steady throughout the performance.
packing weight: 95kg
packing sizes: 1cbm
2p 3m bolt truss 300x300mm
1p book corner
2p base
1p booth table
The DragonStage A-Frame Bolt Truss DJ Booth is designed for DJs who want the support structure itself to become part of the visual presentation.
Instead of using a conventional rectangular DJ table or compact folding booth, this design uses two long truss sections to create a large triangular A-shaped frame.
The system is built around four main elements:
The result is a DJ workstation combined with a large decorative event-truss feature.
For other DJ workstation styles, see Typical DJ Booth Stand.
Large A-Frame Visual Design
The most distinctive feature of this booth is its triangular geometry.
Two 3m truss sections rise from separate floor bases and meet at the upper connection point, creating a recognizable A-shaped silhouette.
This gives the booth a much larger visual presence than a conventional DJ table.
It can be useful when the DJ position is intended to act as:
a performance focal point
part of the stage scenery
an event branding feature
a lighting feature structure
a decorative entrance or display element
This is why the product should be positioned as a feature DJ truss structure, not simply as another portable DJ desk.
For other custom-shape structures, see Typical Feature Truss System.
300×300mm Bolt Truss Construction
The current product uses:
2 pcs × 3m long
300 × 300mm bolt truss
The bolt-truss construction creates the two main sides of the A-frame.
Unlike a compact folding DJ booth, these are conventional event-truss sections connected into a custom workstation configuration.
For customers already using bolt truss inventory, connection compatibility should be confirmed by:
Nominal 300×300mm dimensions alone do not guarantee compatibility with every bolt-truss system.
For related components, see Standard Bolt Truss.
Folding Book-Style Top Corner
The two inclined truss sections connect at the top through a folding book-style corner component.
This connection allows the two truss sections to form the characteristic A geometry.
The old product page describes this component as a “folding book corner.”
Its main function should be understood as the top geometry connection of the A-frame.
The existing page also suggests using this corner for projectors, screens, or signage, but no verified load or mounting specification is provided. For that reason, the upgraded page should not promise those applications as standard.
Any additional equipment attached near the top connection should be checked according to the actual component design and allowable loads.
Integrated DJ Work Table
A separate DJ booth table is included in the listed configuration.
The work surface creates a central operating position inside the A-shaped frame for equipment such as:
DJ controllers
mixers
laptops
playback equipment
small accessories
The supplied information does not currently establish:
table width
table depth
finished working height
tabletop material
verified tabletop load
These specifications should be added after checking the production drawing or current BOM.
Two Floor Bases
The structure uses two bases, one under each inclined truss section.
These provide the floor interface for the A-frame.
The previous page claims that the bases allow the structure to rotate easily, but the published product information does not provide a rotation mechanism or technical detail supporting that statement.
I therefore recommend deleting that claim.
The bases should simply be described as the support points for the two truss sections unless the actual product includes a confirmed rotating mechanism.
Designed for Visual DJ Performances
This product is particularly suitable where the DJ booth is expected to be visually prominent.
Typical applications include:
For general event-truss applications, see Event Truss.
A-Frame Booth vs. Conventional DJ Table
A normal DJ table focuses primarily on creating a compact working surface.
This product serves a different purpose.
| Conventional DJ Table | A-Frame Truss DJ Booth |
| Compact workstation | Large visual structure |
| Usually table-height only | Extends well above performer |
| Primarily supports DJ equipment | Combines workstation and stage design |
| Easier for small mobile setups | Better for visually prominent events |
| Minimal structural appearance | Truss becomes part of the event scenery |
Customers who only need a portable working table may not need this large structure.
This product is more appropriate when visual impact is part of the buying requirement.
Packing Information
The current product page lists:
Packing Weight: approx. 95kg / 209lb
Packing Volume: approx. 1m³
These values should be reconfirmed if the tabletop, bases, surface finish, or custom truss configuration is changed.
Main Features
Distinctive large A-frame shape
Two 3m truss sides
300×300mm bolt truss construction
Folding top corner connection
Two floor bases
Integrated DJ work table
Combines DJ workstation with decorative truss design
Suitable for custom stage and performance applications
Modular component-based construction
Custom finish and configuration can be discussed
Important Product Note
The current product page confirms:
2 pcs 3m bolt truss
300×300mm truss size
1 folding book-style top corner
2 bases
1 DJ booth table
approx. 95kg packing weight
approx. 1m³ packing volume
The current information does not establish:
These details should not be inferred from other 300mm truss products.
FAQ
What is this A-Frame DJ Booth made from?
The current configuration uses two 3m-long, 300×300mm bolt truss sections, one top folding corner, two bases, and one DJ table.
Why is it called an A-Frame DJ Booth?
The two truss sections rise from separate floor bases and connect at the top, forming a large A-shaped or triangular frame around the DJ position.
How long is each truss section?
Each main truss section is 3m long, approximately 9.84ft.
What size truss is used?
The current product uses 300×300mm bolt truss.
Is the DJ table included?
Yes. The original component list includes one booth table.
What are the overall assembled dimensions?
The old page does not provide reliable finished width and height dimensions. These should be confirmed from the production drawing.
Can lights be mounted on the A-frame?
Lighting or other equipment may be considered as part of a custom configuration, but allowable loads and attachment positions must be confirmed before use.
Can signage or branding be added?
A custom event-design arrangement can be discussed, but the mounting method and additional loads should be confirmed for the actual structure.
Can the booth be made in black?
Finish customization can be discussed. The standard finish for the current SKU should be confirmed before publication.
Is this booth foldable?
The top connection is described as a folding book-style corner. The two 3m truss sections themselves should not be described as a compact folding booth unless the complete structure has a confirmed folding procedure.
Can I use my existing 300mm bolt truss with this booth?
Possibly, but compatibility depends on the connection plates, bolt-hole spacing, truss geometry, and hardware—not just the nominal 300×300mm size.
What information is required for quotation?
Please provide the required quantity, preferred finish, DJ equipment dimensions, desired tabletop size, and whether lighting, signage, or other equipment will be attached to the frame.
Why Choose DragonStage
DragonStage manufactures standard aluminum truss as well as custom event structures and DJ booth configurations.
For an A-frame DJ booth, the value is not simply the amount of truss used.
The top connection geometry, floor bases, table position, and finished visual proportion need to work together as one product.
This allows the booth to function both as a DJ workstation and as a recognizable stage-design element.
Request a Quotation
Please provide:
DragonStage can then confirm the final configuration and quotation.
