25x10m Ringlock Grandstand Seating System with Two Aisles and 3-Side Guardrails
50 Reviews

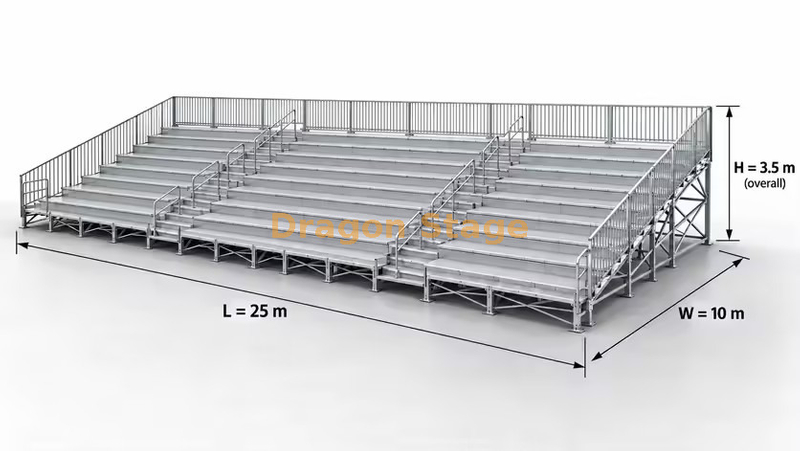

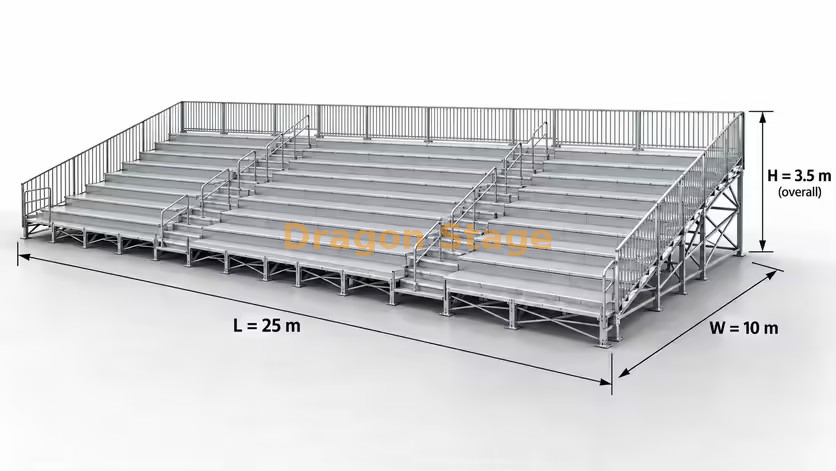

The DragonStage 25x10m Ringlock Grandstand is a large modular spectator-seating system designed for temporary sports events, school competitions, festivals, public performances, and other audience gatherings. Measuring 25m wide × 10m deep, the illustrated configuration features tiered seating, two access aisles, and three-sided guardrails. The specified main height is 2.5m, with an overall height of 3.5m. The modular Ringlock system can be configured according to the required seating layout, access arrangement, and project conditions.
The DragonStage 25x10m Ringlock Grandstand is designed for venues that require a broad, tiered seating area for spectators. Its 25m-wide frontage provides a substantial viewing area, while the 10m depth accommodates multiple seating tiers within a defined footprint.
The configuration shown combines a modular Ringlock support system with tiered seating rows, two access aisles, and guardrails along three sides. This arrangement separates the seating area into sections and provides defined routes for spectators to move between rows.

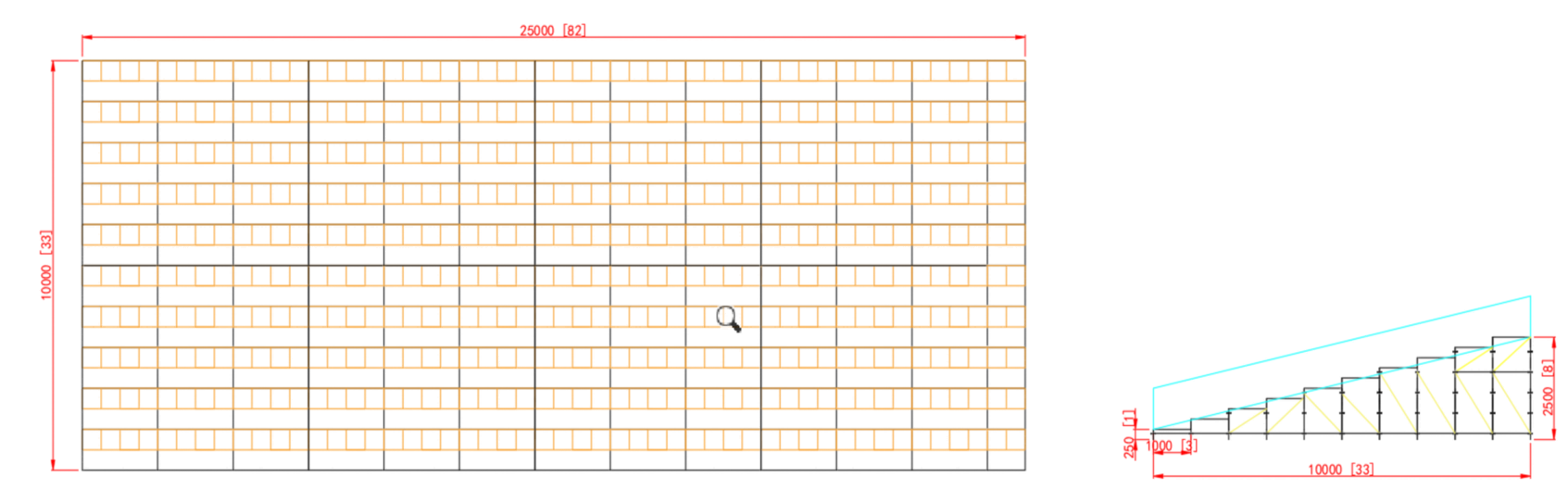

The main dimensions are:
Width: 25m / approximately 82.0ft
Depth: 10m / approximately 32.8ft
Main height specified: 2.5m / approximately 8.2ft
Overall height: 3.5m / approximately 11.5ft
Footprint area: approximately 250m² / 2,691ft²
The final seating-row arrangement, access details, component quantities, and connection configuration should follow the approved production drawings.
Designed for Large-Scale Spectator Seating
This grandstand configuration is intended for events where spectators need an elevated, organized viewing area rather than a flat standing platform.
Typical applications include:
Sports events and competitions
School and university events
Community festivals
Outdoor performances and public shows
Ceremonies and public gatherings
Temporary spectator areas at event venues
The final application should be matched to the venue layout, ground conditions, expected crowd use, and project-specific structural requirements.
25m-Wide Seating Layout
With a 25m-wide frontage and 10m depth, this configuration provides a broad spectator-facing layout. The tiered arrangement helps organize the viewing area into multiple rows rather than a single flat platform.
The overall footprint is approximately 250m². Actual usable seating space depends on the final aisle widths, guardrail positions, seating geometry, and other layout details.
The number of seats or spectators should not be estimated from the footprint alone. It must be established from the final seating plan.
Two Access Aisles
The illustrated configuration includes two access aisles running through the seating area. These aisles divide the grandstand into separate seating sections and provide routes for movement between the tiers.
For event organizers, aisle placement is an important part of the overall layout. It affects how the seating sections are divided, how spectators reach their places, and how the available width is used.
The final aisle widths, stair geometry, handrail details, and connection points should be confirmed in the production drawings.
Three-Sided Guardrails
The configuration includes guardrails on three sides, as specified for this product. The arrangement shown protects the rear and outer edges while keeping the main viewing side open.
Guardrail dimensions, connections, and detailed arrangement should be confirmed against the final drawings. Any additional edge protection or changes to the access layout should be included in the final configuration rather than assumed to be part of the standard package.
Modular Ringlock Structure
The grandstand uses a modular Ringlock system. This approach allows the supporting structure to be assembled from connected system components according to the required geometry.
For a large seating structure, the complete configuration involves more than the seating surface itself. The supporting arrangement, tier elevations, access aisles, guardrails, connections, and ground interface all need to work together.
Because the supplied image does not include a complete bill of materials, exact component quantities, tube dimensions, material grades, surface finishes, and connection specifications should be confirmed from the current production BOM.
Configuration and Customization
The illustrated 25x10m layout provides a starting point for a project-specific grandstand. Before production, the final configuration should define:
Overall width and depth
Main height and overall height
Seating-row geometry
Number and position of access aisles
Guardrail arrangement
Seating or deck surface specification
Supporting components and connections
Ground interface and installation conditions
Changes to the seating layout or aisle positions can affect the arrangement and quantities of the supporting components. The final configuration should therefore be checked as a complete system.
The dimensions and visible configuration in this product description are based on the information supplied for this product. The current information does not establish a verified seating capacity, allowable load, wind resistance, foundation or anchoring requirements, or project-specific engineering approval.
These items must be confirmed using the final drawings, component specifications, site conditions, and appropriate engineering verification. Do not use the overall dimensions alone to determine how many spectators the grandstand can accommodate.
What is the overall size of this Ringlock grandstand?
The specified footprint is 25m wide × 10m deep, approximately 82.0ft × 32.8ft, covering around 250m².
What are the height specifications?
The supplied information specifies a main height of 2.5m and an overall height of 3.5m. The final drawing should clarify the measurement datum for each height.
How many access aisles does the grandstand have?
The illustrated configuration has two access aisles dividing the tiered seating area into separate sections.
Does the grandstand include guardrails?
Yes. The specified configuration has guardrails on three sides. Final guardrail dimensions and connection details should be confirmed from the production drawings.
How many spectators can it accommodate?
The seating capacity has not been confirmed. It depends on the final number of rows, usable seating width, aisle layout, and approved design. Capacity should be established from the final seating plan and relevant engineering verification.
What material are the seating surfaces made from?
The supplied information does not specify the seating-surface material. This should be confirmed from the production BOM before ordering.
Can the Ringlock grandstand be customized?
The layout can be discussed according to the required dimensions, height, seating arrangement, aisle positions, and guardrail configuration. Changes must be reflected in the final drawings and component list.
Is the grandstand suitable for outdoor use?
Outdoor suitability depends on the site, ground conditions, weather exposure, anchoring or foundation arrangements, and project-specific structural verification. These requirements cannot be determined from the product image alone.
Why Choose DragonStage
DragonStage supplies modular stage and temporary event structure systems for different venue layouts and project requirements. For a Ringlock grandstand, the key is to coordinate the seating tiers, access aisles, guardrails, supporting components, and overall dimensions as one complete configuration.
The 25x10m layout provides a clear starting point for customers planning a large spectator-seating area, with the final details confirmed against the production drawings and project requirements.
Soft CTA
For a quotation, please provide the required grandstand dimensions, main and overall heights, seating layout, aisle positions, guardrail requirements, intended application, and project location. If a seating-capacity target is required, include that target so the layout and structural requirements can be reviewed together.
