Elevated Dual-Level Modular Platform with Integrated Seating & Access Stairs 14x4.88x3m

5 0 Reviews

The Elevated Dual-Level Modular Platform is a versatile, truss-supported structure designed for events, festivals, and temporary venues. Featuring two spacious deck levels with integrated bench seating on the lower tier and open upper deck for VIP viewing or equipment, this custom-engineered solution ensures safety, accessibility, and rapid deployment. Supported by robust vertical trusses and equipped with a secure side staircase, it maximizes space efficiency while maintaining structural integrity. Ideal for concerts, sports events, outdoor activations, or production zones, this portable platform adapts to diverse site requirements. Built for durability and ease of assembly, it’s the premium choice for event organizers seeking elevated functionality and audience engagement. Fully customizable—contact us to tailor dimensions, capacity, and finishes to your project.

Price: ￥ 93500


Availability:



Inquire

Brand:
Dragonstage

Product Description

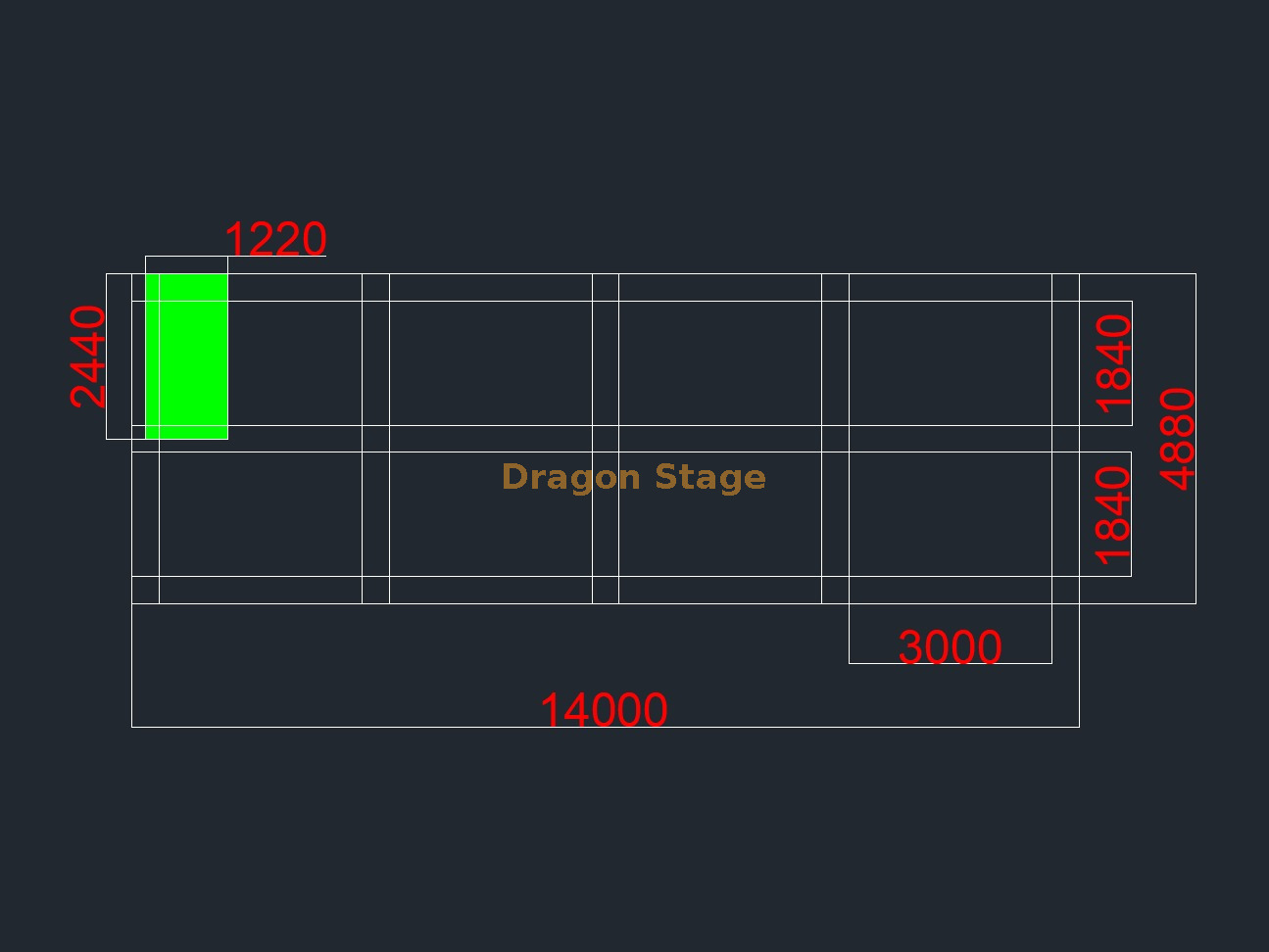

side view of vip stage Concert VIP Staging Platform

No.	items	QTY
1	Truss de perno 400x400mm 1.84m largo	10
2	Truss de perno de 400x400mm de 3m de largo	27
3	400x400mm cubo de cierre de perno	15
4	1.22x2.44m cubierta de escenario	22
5	escaleras con barandillas 3m de altura	2
6	barandillas 28m+2.44m	30

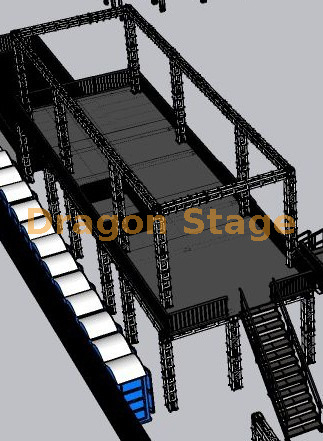

This product is an Elevated Dual-Level Modular Platform with Integrated Seating & Access Stairs designed for events and festivals, serving as a VIP viewing deck or temporary functional structure.

1. Key Specifications

Specification	Detail
Type	Dual-Level Modular Platform/Viewing Deck
Dimensions	14m (Length) x 4.88m (Width) x 3m (Height)
Structure	Truss-supported (Bolt Truss)
Features	Two spacious deck levels, Integrated bench seating on the lower tier, Open upper deck, Secure side staircase
Application	Concerts, festivals, sports events, outdoor activations, production zones

2. Structural Components

The platform is constructed using robust bolt-connected aluminum trussing for the vertical support and sub-frame.

Truss Components (Bolt Truss 400x400mm)

Item	Specification	Quantity
Truss de perno 400x400mm	1.84m length	10
Truss de perno de 400x400mm	3m length	27
400x400mm cubo de cierre de perno	Bolt Connecting Cube	15

Note: The Spanish titles translate to 400x400mm bolt truss sections.

Deck and Access Components

Item	Specification	Quantity
cubierta de escenario	Stage Deck	22
escaleras con barandillas	Stairs with Handrails	2
barandillas	Guardrails / Handrails (28m + 2.44m combined length)	30

Note: The stage decks are 1.22x2.44m (approx. 4ft x 8ft) sections, totaling over 65 square meters of deck surface.

3. Product Features and Advantages

Dual-Level Functionality: The two-tier design maximizes the platform's use, providing a lower level that includes integrated bench seating for a designated area and an elevated open deck (at 3m height) for optimal VIP viewing or for use as a camera/FOH mixing platform.
Modular and Customizable: The system uses standard truss and decking modules, allowing it to be easily reconfigured or the dimensions to be tailored to specific site or capacity requirements.
Safety and Accessibility: It includes two complete 3m stair units with full handrails and numerous guardrail sections (30 pieces ) to ensure safe access and perimeter security for the elevated structure.
Durability and Portability: The entire structure is truss-supported, offering high structural integrity and stability while being modular for rapid deployment and strike.
