spigot truss

packing volume:9cbm

packing weight:1020kg

bolt truss

packing weight:1100kg

packing volume: 10cbm

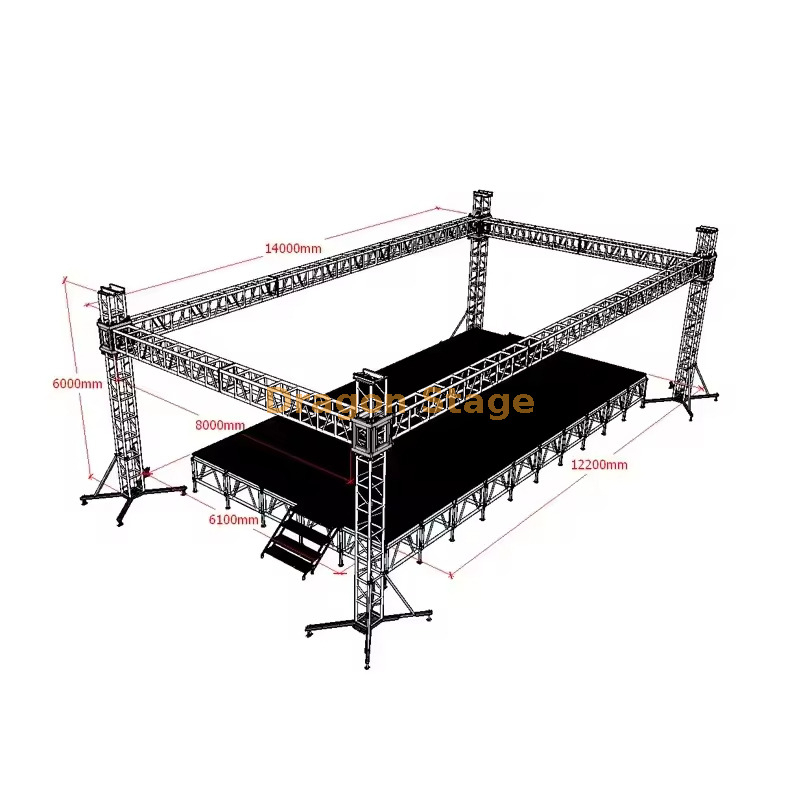

Professional Large-Scale Event Truss System (14m x 8m x 6m)

Elevate your production value with our premium 14m wide by 8m deep aluminum lighting truss system. Standing at a clear height of 6m, this robust structure is engineered for high-capacity loading, making it the ideal choice for professional lighting rigs, LED screen support, and massive audio arrays.

Constructed from high-grade, aircraft-quality aluminum alloy, this truss system offers the perfect balance of lightweight portability and extreme structural integrity. The modular design allows for rapid assembly and teardown, while the reinforced corner blocks and outrigger stabilizers ensure maximum safety for both indoor and outdoor venues.

Key Technical Specifications:

• Total Width: 14,000mm (14m)

• Total Depth: 8,000mm (8m)

• Total Height: 6,000mm (6m)

• Material: High-strength Aluminum Alloy

• Application: Concerts, Festivals, Trade Shows, and Corporate Events

• Features: Integrated leveling feet, heavy-duty square trussing, and multi-point rigging capability.

Whether you are hosting a music festival or a large corporate product launch, this 14m x 8m truss provides the professional framework needed to support your vision safely and stylishly.

Professional 14x8x6m Heavy-Duty Aluminum Event Lighting Truss System (6m Height)

1. Introduction

For regional festival promoters and event production companies, the overhead structure is the backbone of the technical show. The 14x8x6m Heavy-Duty Aluminum Event Lighting Truss System by DragonStage is a premier engineering solution, providing 112 square meters of professional covered performance area. Featuring a versatile 6-meter vertical clearance and a high-strength 14-meter clear span, this system is optimized for productions that demand high-capacity rigging for lighting, audio, and large-format LED screens. Utilizing a precision spigot-connection framework and industrial-grade aluminum, this structure delivers a commanding stage presence with the rapid deployment capabilities required for modern event touring.

2. Challenges & Solutions

A major challenge for 14-meter horizontal spans is managing structural "sag" or deflection under the combined weight of the roof and rigged technical equipment. DragonStage solves this by utilizing 6061-T8 aluminum alloy, which offers significantly higher hardness and yield strength than standard alloys, ensuring the 14-meter beams remain rigid under load. Another critical concern for 6-meter high structures is stability against lateral wind loads in outdoor environments. Our ground support towers feature reinforced bases with extended outriggers and heavy-duty leveling jacks to provide a secure center of gravity. To mitigate weather risks, the pitched roof geometry facilitates high-velocity water runoff, preventing the dangerous weight accumulation of water pockets on the PVC canopy during heavy rain.

3. Key Features & Benefits

This 14x8x6m system is manufactured from aerospace-grade 6061-T8 aluminum alloy. This specialized material is solution heat-treated and cold-worked to provide the ultimate strength-to-weight ratio, ensuring the structure remains a professional, long-term asset (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).

The system features a professional 4-tower ground support lift. This allows the entire 14x8m grid to be rigged with beam lights, audio line arrays, and cabling at waist height before being safely hoisted to its 6-meter apex. According to international safety standards, the use of a spigot (conical) connection system is superior for high-vibration concert environments because it creates a solid, unified join that eliminates structural play (Source:https://www.plasa.org).

To ensure a complete venue environment, this trussing is designed for seamless integration with our modular aluminum stage platforms. These decks feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional grade of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).

4. FAQ Section

Q: Is 14x8m a standard size for regional outdoor festivals?A: Yes. This footprint provides a professional 112sqm stage area that comfortably accommodates full bands, backline setups, and technical monitor positions.

Q: Can this 6-meter structure support heavy LED screens?A: Absolutely. The 6061-T8 heavy-duty box truss is specifically engineered for high-capacity rigging. For your specific panel weight, please contact our engineers for a verified load-calculation report.

Q: Is the PVC canopy fire-retardant and waterproof?A: Yes. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets international B1/M2 fire-retardant safety standards.

Q: How do we raise the 14-meter span?A: The system utilizes a tower lift system. For a grid of this size, we recommend using synchronized electric chain hoists to ensure a safe, level, and efficient lift.

5. Strong Call to Action (CTA)

Ensure your next production is built on a foundation of elite engineering and industrial safety. Contact DragonStage’s engineering team today for a custom quote on the 14x8x6m Heavy-Duty Event Lighting Truss System. Download our technical specifications and start planning your most successful concert season yet.
