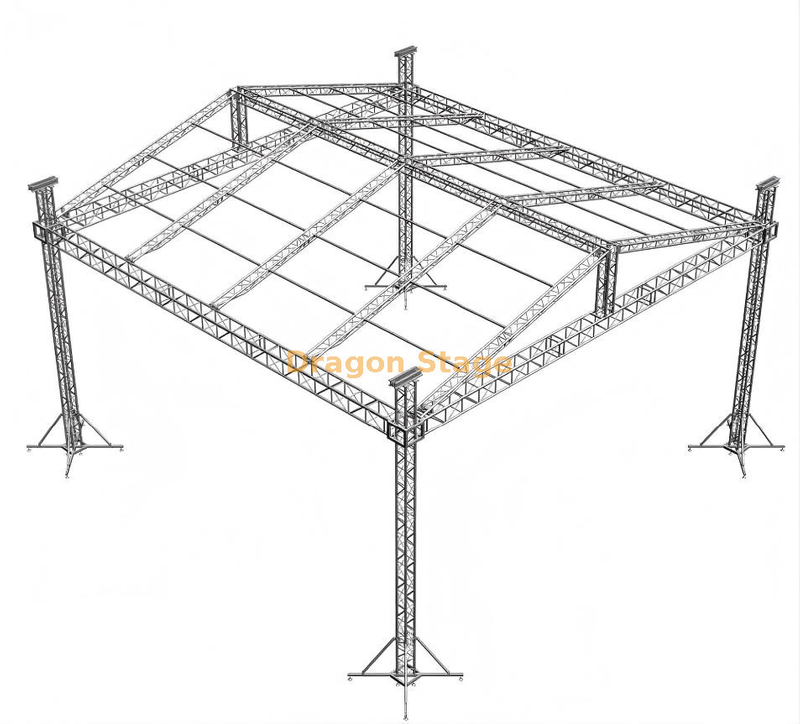

Aluminum Truss Lighting Truss System with Roof 8x6x6m
packing volume: 10cbm
packing weight: 1300kg
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 8.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 2 pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 4 pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 4 pcs | ||||||
| Steel Base S | 4 pcs | |||||||
| Top Section S | 4 pcs | |||||||
| Manual hoist,BA05 2Tons | 4 pcs | |||||||
| Spigot Hinge Section,Height 1m | 4 pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4 pcs | |||||||
| Long outrigger | 16 pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | .80 m | 50×3.0 | CS289×289 | 2 pcs | |||
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 4.20 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 1.20 m | 50×3.0 | CS289×289 | 4 pcs | |||||
| 4.20 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4 pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | pcs | |||||
| 1.20 m | 50×3.0 | CL30,289*50 | 4 pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2 pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | pcs | ||||||
| Connect plate with clamp | 2 pcs | |||||||
| Single clamp | 8 pcs | |||||||
| Double clamp | 8 pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 103.36 | 1 pcs | ||||||
For regional festivals, outdoor corporate launches, and mid-sized concerts, the 8x6x6m Aluminum Truss Lighting System is the industry standard for reliable performance. Providing 48 square meters of covered area with a substantial 6-meter vertical clearance, this DragonStage system is designed to meet the rigorous demands of professional lighting designers and event organizers. In the outdoor event sector, the primary challenge is creating a high-impact visual environment that remains safe under unpredictable weather conditions. This modular aluminum structure offers the perfect balance of expansive rigging capacity and rapid on-site deployment, serving as a versatile foundation for any professional show.
One of the main pain points for event contractors is the labor-intensive nature of assembling large overhead structures. Traditional steel rigs are heavy and require cranes, whereas small-scale trussing often lacks the height for modern beam lights. DragonStage solves this by using high-strength, lightweight aluminum alloys and a tower-based lifting system. This allows the lighting grid to be built at ground level and hoisted safely to 6 meters. Additionally, outdoor rigs often suffer from water accumulation on the roof during storms. Our solution features a precision-tensioned PVC canopy and a pitched roof geometry that facilitates immediate water runoff, protecting your expensive lighting and audio equipment from moisture damage.
The 8x6x6m system is fabricated from premium 6082-T6 aluminum, which provides a superior strength-to-weight ratio and exceptional resistance to environmental corrosion (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures that the 8-meter horizontal spans can support heavy lighting plots without significant deflection.
The system utilizes a 290mm or 390mm square truss profile depending on the load requirements, featuring high-precision conical couplers for a vibration-resistant fit. According to global safety standards for temporary structures, the use of a four-tower ground support system significantly enhances lateral stability against wind loads (Source:https://www.prolyte.com).
To provide a complete production environment, this trussing is fully compatible with our height-adjustable aluminum stage platforms. These modular decks feature anti-slip surfaces and high load-bearing capacities, ensuring a level and professional performance area beneath the lighting rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). The 6-meter height is specifically optimized to allow for clear sightlines while providing enough distance for "Pro Light" beam effects to reach their full potential.
Q: What is the load capacity of the 8m main span?A: The standard 8m span can support a distributed load of approximately 600kg to 800kg, depending on the truss series selected.
Q: Can this be used in high-wind coastal areas?A: Yes. When used with our heavy-duty base plates and proper ballast/guy-wiring, the system is designed for high-wind stability. However, we recommend removing the canopy if winds exceed 70km/h.
Q: Is the PVC canopy waterproof and fire-safe?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1 fire-retardant safety standards.
Q: How do we raise the roof?A: The system comes with specialized sleeve blocks and can be operated using manual hand-winches or electric chain hoists for synchronized lifting.
Take your outdoor event production to the next level with a rig built for safety and professional impact. Contact DragonStage’s engineering team for a custom quote on the 8x6x6m Aluminum Truss Lighting System. Download our technical specifications today and start planning your next festival with confidence.
