packing weight: 2200kg

packing volume: 17cbm

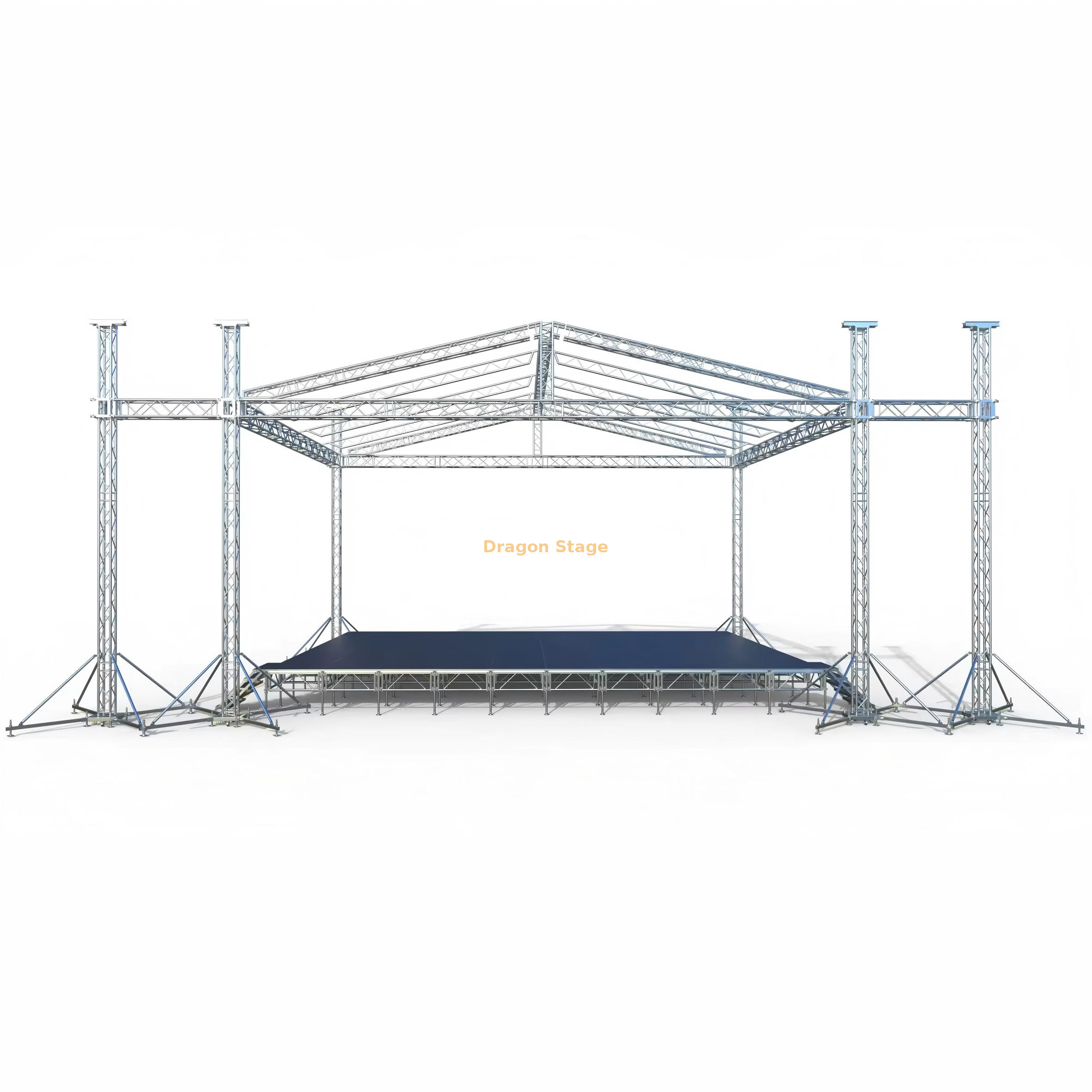

Heavy-Duty 12x10x8m Aluminum Stage Truss Roof: 6-Pillar Professional Lighting & Audio System

1. Introduction

Executing a professional outdoor concert requires a structural rig that can handle massive equipment loads while standing tall against the elements. The 12x10x8m Aluminum Stage Truss Roof by DragonStage is engineered for high-tier production environments. Featuring a robust 6-pillar support architecture and specialized 2m wings for audio arrays, this system provides the necessary 8-meter clearance for complex lighting plots and large-scale visual effects. For event contractors and rental houses, this structure represents the ideal balance of expansive stage coverage and the mechanical redundancy required for public safety in outdoor settings.

2. Challenges & Solutions

The most significant challenge for outdoor stage builds is the "sail effect" caused by the roof canopy in high-wind conditions. A standard 4-pillar system can sometimes struggle with lateral stability at an 8m height; DragonStage addresses this by utilizing a 6-pillar configuration, which distributes the downward force and increases wind resistance. Additionally, hanging heavy line array speakers often requires separate towers, which increases costs and setup time. Our solution integrates 2m cantilever wings directly into the roof grid, allowing audio and lighting to be raised simultaneously. This modular approach eliminates the need for extra ground-support equipment, streamlining logistics and reducing the overall footprint of the stage area.

3. Key Features & Benefits

Precision-built from 6082-T6 aluminum alloy, the 12x10x8m system offers the high-tensile strength required for professional touring (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This alloy is specifically chosen for its excellent weldability and structural memory, ensuring the truss returns to its original shape even after supporting maximum loads.

The system features a 12m x 10m roof grid that serves as a versatile mounting surface for "Pro Lights" and LED backdrops. The 2m wings are reinforced to handle the dynamic loads of line array speakers, keeping the audio clear of the performance area for better sightlines. According to technical safety standards for temporary structures, a 6-pillar design significantly improves the distribution of static and dynamic loads across the base plates (Source:https://www.prolyte.com).

To ensure a level performance surface beneath this massive rig, the system is designed to pair perfectly with our height-adjustable aluminum stage platforms, which feature anti-slip surfacing and high load-bearing capacities (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). This integrated ecosystem ensures that every component, from the ground up to the 8m peak, works in structural harmony.

4. FAQ Section

Q: Why use 6 pillars instead of 4 for a 12x10m roof?A: The additional two pillars provide critical center-span support and significantly increase the total load capacity and stability of the structure against wind and heavy rain.

Q: Can the 2m audio wings be removed if not needed?A: Yes, the system is modular. The 2m cantilever wings can be detached for smaller events where line arrays are not required.

Q: What type of lifting mechanism is recommended for this height?A: Given the 8m height, we recommend using electric chain hoists for synchronized lifting of the roof grid, though manual sleeve block systems are also available.

Q: Is the roof canopy waterproof?A: Yes, we provide a heavy-duty, fire-retardant PVC canopy designed to shed water efficiently and protect your lighting and audio gear.

5. Strong Call to Action (CTA)

Take your outdoor productions to a professional level with a rig designed for durability and scale. Contact DragonStage’s engineering team for a custom consultation on the 12x10x8m 6-pillar truss system. Download our technical load tables today and start planning your next major festival with confidence.
