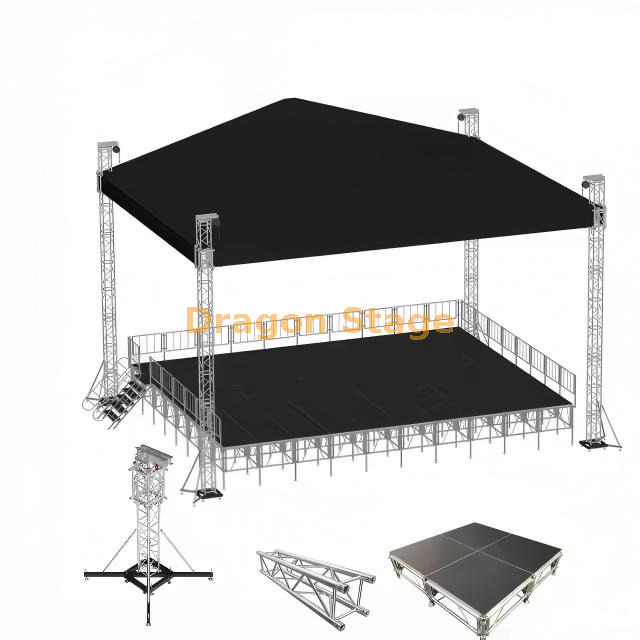

Aluminum Outdoor Stage Truss System with Canopy 7x6x6m

5 0 Reviews

The stage system is lightweight and easy to assemble. The aluminum construction is rust-resistant and durable. The top canopy is easy to assemble and has UV protection. It can be removed for more open air. The stage is perfect for outdoor events.

Price: ￥ 44446.4


Availability:



Inquire

Model:
CXM-11
Brand:
Dragon Stage

Product Description

Aluminum Outdoor Stage Truss System with Canopy 7x6x6m

packing volume: 9cbm

packing weight: 1250kg

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
7.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
6.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
5.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.70 m	50×3.0	CS289×289	2pcs
6.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
3.70 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.70 m	50×3.0	CS289×289	4pcs
3.70 m Ladder truss	4 sets	3.00 m	50×3.0	CL30,289*50	0pcs
		2.00 m	50×3.0	CL30,289*50	4pcs
		1.70 m	50×3.0	CL30,289*50	4pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
		Connect plate with clamp			2pcs
		Single clamp			8pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		92.26	1pcs

Professional 7x6x6m Aluminum Outdoor Stage Truss System with Canopy

1. Introduction

In the world of regional festivals, community concerts, and corporate outdoor events, the 7x6x6m footprint is widely considered the "versatile workhorse." The Aluminum Outdoor Stage Truss System by DragonStage is meticulously engineered to provide a high-clearance, professional-grade rigging environment for performers and production teams alike. With a 6-meter apex, this system allows for dynamic lighting plots and clear sightlines, ensuring that even medium-sized events deliver a "big-budget" visual impact. For event organizers, the challenge is balancing structural safety with ease of transport, a gap that this precision-built aluminum system fills with industry-leading reliability.

2. Challenges & Solutions

One of the primary challenges for outdoor events is the unpredictable nature of weather. A sudden downpour can lead to water accumulation on the roof, creating dangerous weight loads, while high winds can destabilize a structure that lacks proper anchoring. DragonStage solves these issues by utilizing a pitched-roof design with high-tension PVC that ensures immediate water runoff. Furthermore, our 7x6x6m system features reinforced sleeve blocks and heavy-duty outriggers that extend the footprint's stability, providing a secure foundation on various terrains. For crews facing tight setup windows, the modular aluminum components are significantly lighter than steel, allowing for rapid assembly without the need for heavy lifting machinery.

3. Key Features & Benefits

The 7x6x6m structure is manufactured from premium 6082-T6 aluminum alloy. This material is the global industry standard for temporary structures due to its exceptional tensile strength and natural resistance to corrosion, ensuring the system remains a long-term asset (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).

The roof system is covered by an 850g/m² PVC canopy that is both waterproof and fire-retardant. To ensure maximum safety during live performances, the system utilizes a tower-and-hoist mechanism, allowing the entire lighting grid to be pre-rigged at waist height before being elevated to its 6-meter working position. According to industry rigging standards, this "ground-support" method significantly reduces the risks associated with working at heights (Source:https://www.plasa.org).

This truss system is also designed for perfect synergy with our modular aluminum stage platforms. These platforms feature height-adjustable legs and anti-slip surfaces, providing a stable and professional floor that complements the overhead rigging (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). This total-system approach ensures that all components—from the ground to the roof—work in structural harmony.

4. FAQ Section

Q: Is the 7x6x6m truss large enough for a four-piece band?A: Yes, the 42-square-meter footprint is ideal for small-to-medium musical acts, DJ setups, or corporate presentations.

Q: Can I hang heavy moving lights from the 7m span?A: Absolutely. The 290mm or 390mm square trussing used in this system is designed to support significant distributed loads for professional lighting fixtures.

Q: How do you handle wind safety?A: The system includes dedicated attachment points for guy-wires and is designed to be used with ballast weights to ensure stability during high-wind conditions.

Q: Does it come with assembly instructions?A: Yes, DragonStage provides detailed technical drawings and assembly guides to ensure your crew can set up the system safely and efficiently.

5. Strong Call to Action (CTA)

Elevate your next outdoor production with a rig that combines professional scale with uncompromised safety. Contact DragonStage’s engineering team for a custom quote on the 7x6x6m Outdoor Stage Truss System. Download our detailed technical specifications today and start planning your most successful event season yet.
