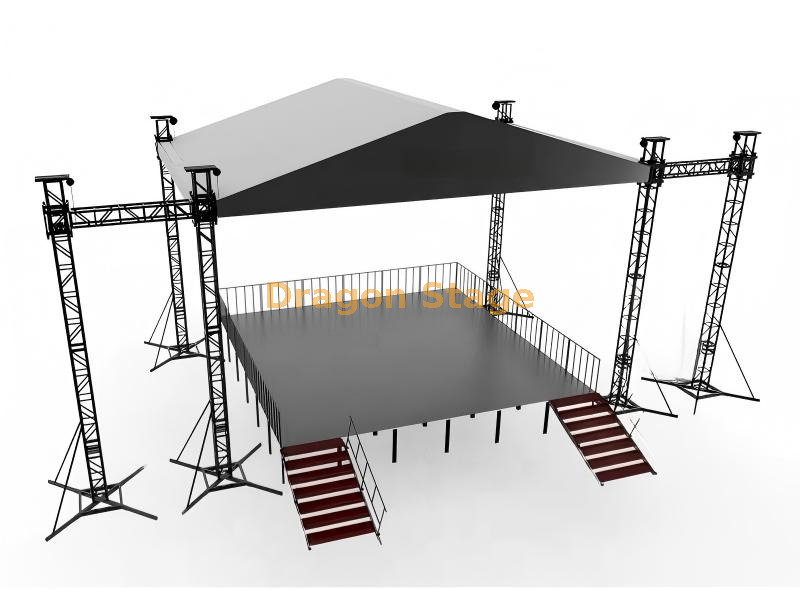

Custom Portable Truss Led with Stage And Roof System 6x4x5m

5 0 Reviews

stage 5x4m height 0.4-0.8m with 2 stairs

Price: ￥ 9110 - 51226


Features:	Roof System 6x4x5m stage 5x4m height 0.4-0.8m with 2 stairs
Availability:



Inquire

Brand:
Dragon Stage

Product Description

packing weight:1500kg

packing volume:11cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
6.00 m Beam(front)	2 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
4.00 m Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	4pcs
beam cube	Spigotcube 289x289				0pcs
Frame Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	2 sets	.60 m	50×3.0	CS289×289	2pcs
4.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	1pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	1pcs
3.20 m Oblique Beam	4 sets	3.00 m	50×3.0	CS289×289	0pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.20 m	50×3.0	CS289×289	4pcs
3.20 m Ladder truss	2 sets	3.00 m	50×3.0	CL30,289*50	0pcs
		2.00 m	50×3.0	CL30,289*50	2pcs
		1.20 m	50×3.0	CL30,289*50	2pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	0pcs
		Connect plate with clamp			2pcs
		Single clamp			4pcs
		Double clamp			8pcs
		roof canopy material:pvc, Blue Colour or customized.		63.76	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
5.00 m Wings Beam	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	2pcs
		1.00 m	50×3.0	CS289×289	0pcs
4.00 m Wings Pillar	2 sets	3.00 m	50×3.0	CS289×289	2pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	2pcs
Wings Tower	Spigot Sleeve Block S				2pcs
	Steel Base S				2pcs
	Top Section S				2pcs
	Manual hoist,BA05 2Tons				2pcs
	Spigot Hinge Section,Height 1m				2pcs
	Fibre sling,BA04,2 tons 3m				2pcs
	Long outrigger				8pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

packing weight; 450kg

packing volume:3cbm

Height(m)	Length(m)	Width(m)	each stage size: 1.22*2.44m					stage Unit	Length
0.4-0.8	5.00 m	4.00 m	each stage size: 1.22*2.44m					stage Unit	2 pcs
NO.	Picture	Item	Specification						Quantity
1		Aluminium assembly stage	topping: 4x8ft (1.22x2.44m)		wooden				6 pcs
2			1.22m stage brace						9 pcs
3			2.44m stage brace						8 pcs
4			stand with extendable tube						12 pcs
5			Stage adjustable base						12 pcs
6		Stage Stair	wooden topping	total	3	steps	adjustable to the stage height		2 pcs
