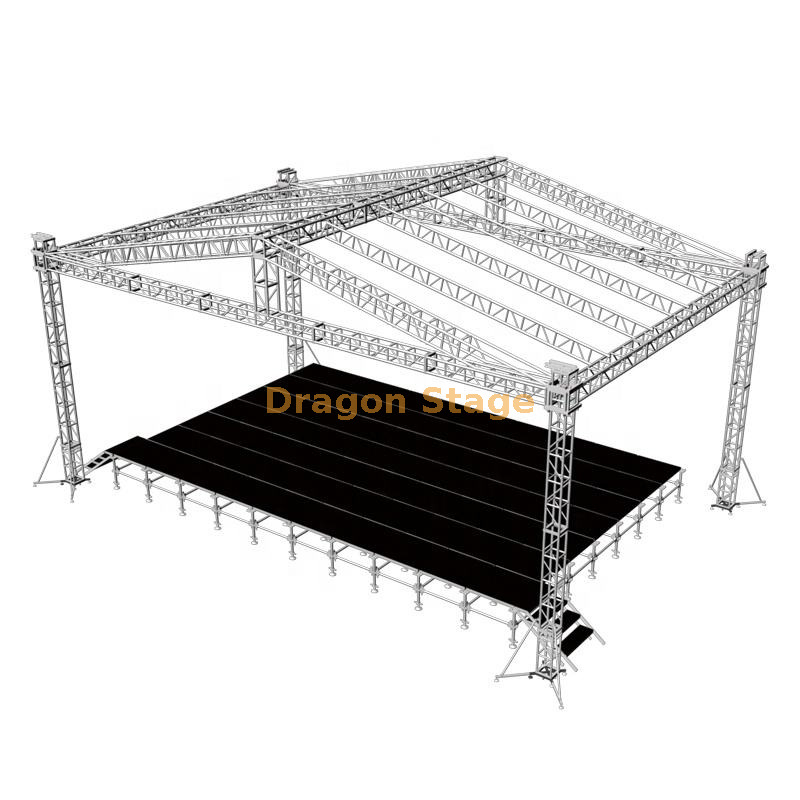

Custom Portable Concert Outdoor Stage Truss with Canopy for Sale 15x10x9m
packing weight: 1850kg
packing volume: 17cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 15.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 10pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 10.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 4pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 8.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||
| Steel Base S | 4pcs | |||||||
| Top Section S | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | 1.50 m | 50×3.0 | CS289×289 | 2pcs | |||
| 10.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 7.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 8pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.70 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 7.70 m Ladder truss | 8 sets | 3.00 m | 50×3.0 | CL30,289*50 | 16pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
| 1.70 m | 50×3.0 | CL30,289*50 | 8pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
| Connect plate with clamp | 2pcs | |||||||
| Single clamp | 16pcs | |||||||
| Double clamp | 8pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 257.86 | 1pcs | ||||||
Organizing a large-scale outdoor concert or festival requires a structural foundation that balances immense scale with uncompromising safety. The 15x10x9m Custom Outdoor Concert Stage Truss with Canopy from DragonStage is engineered for high-impact performances that demand significant clearance and heavy rigging capacity. With a 15-meter width and a 9-meter apex, this system provides the professional "big stage" aesthetic while offering a secure environment for high-end audio-visual equipment. Designed to meet the needs of touring professionals and event contractors, this all-in-one stage and roof solution addresses the complexities of outdoor production, providing a reliable centerpiece for any major event.
One of the primary challenges for outdoor event organizers is managing structural integrity against environmental variables like wind uplift and rain. A 9-meter high canopy acts as a large sail, requiring precise engineering to prevent instability. DragonStage solves this through a heavy-duty tower system and high-grade aluminum bracing that anchors the structure firmly. Another common pain point is the "rigging bottleneck"—the time it takes to fly lighting and sound. Our modular truss design allows for ground-level assembly of the roof grid, which is then hoisted using synchronized motors, significantly reducing working-at-height risks and speeding up the setup timeline. Additionally, our weather-resistant PVC canopy ensures that expensive gear remains dry and protected, regardless of unpredictable weather.
The DragonStage 15x10x9m system is constructed from premium 6082-T6 aluminum alloy, a material favored in the global touring industry for its superior yield strength and durability compared to standard alloys (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures the 15-meter horizontal spans can support heavy line arrays and LED screens without significant deflection.
The canopy itself is made from high-density, waterproof, and fire-retardant PVC, offering essential protection for both performers and equipment. For structural safety, the system utilizes a modular "bolt" or "spigot" connection system, allowing for flexible configurations while maintaining a rigid frame. Professional stage builds must adhere to strict safety protocols, including calculated load-bearing limits for temporary structures to ensure public safety (Source:https://en.wikipedia.org/wiki/Truss).
The integrated stage platform features adjustable legs that can be leveled on uneven festival grounds, providing a perfectly flat performance surface (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). This synergy between the stage floor and the overhead trussing creates a unified, "plug-and-play" environment for technicians, allowing for faster integration of power and data cabling.
Q: What is the maximum load the roof truss can support?A: The 15m span is designed to support up to 2,000kg of distributed load, though specific rigging points for line arrays should be verified with our engineering team based on your specific configuration.
Q: Is the canopy included in the price?A: Yes, the 15x10m system typically includes the aluminum truss framework and the customized, weather-resistant PVC canopy.
Q: Can this stage be assembled on grass or soft ground?A: Absolutely. Our adjustable leg system and heavy-duty base plates are designed to distribute weight effectively, though we recommend using outriggers or ballast for high-wind conditions.
Q: How do you transport a 15x10x9m structure?A: Despite its large assembled size, the system is fully modular and breaks down into components that fit into a standard 20ft or 40ft shipping container.
Ensure your next festival is built on a foundation of safety and professional engineering. Contact DragonStage’s engineering team for a custom quote on our 15x10x9m outdoor stage truss system. Download our full technical specifications today and take the first step toward a seamless event production.
