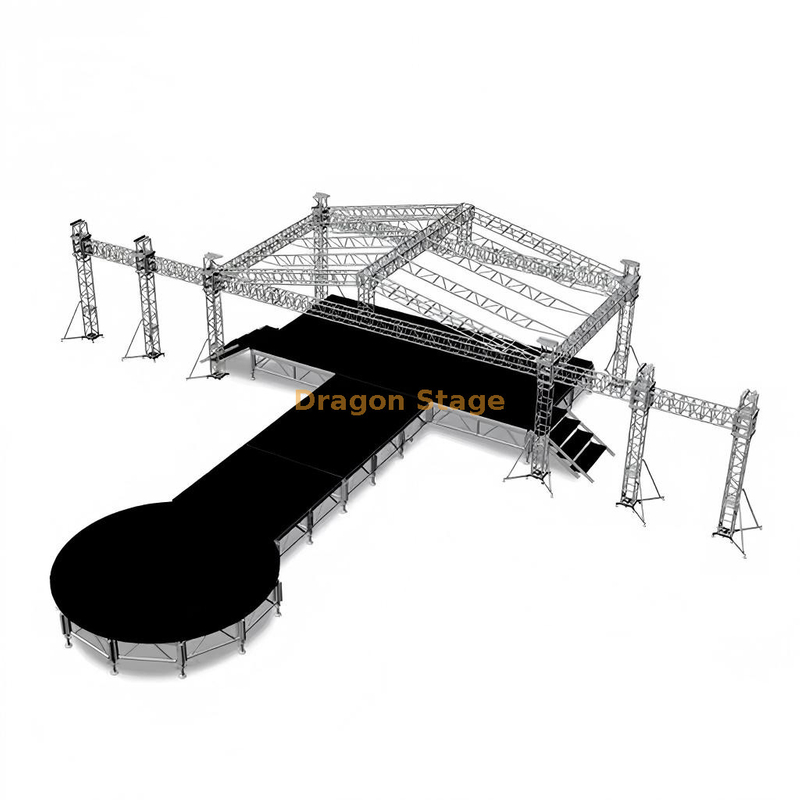

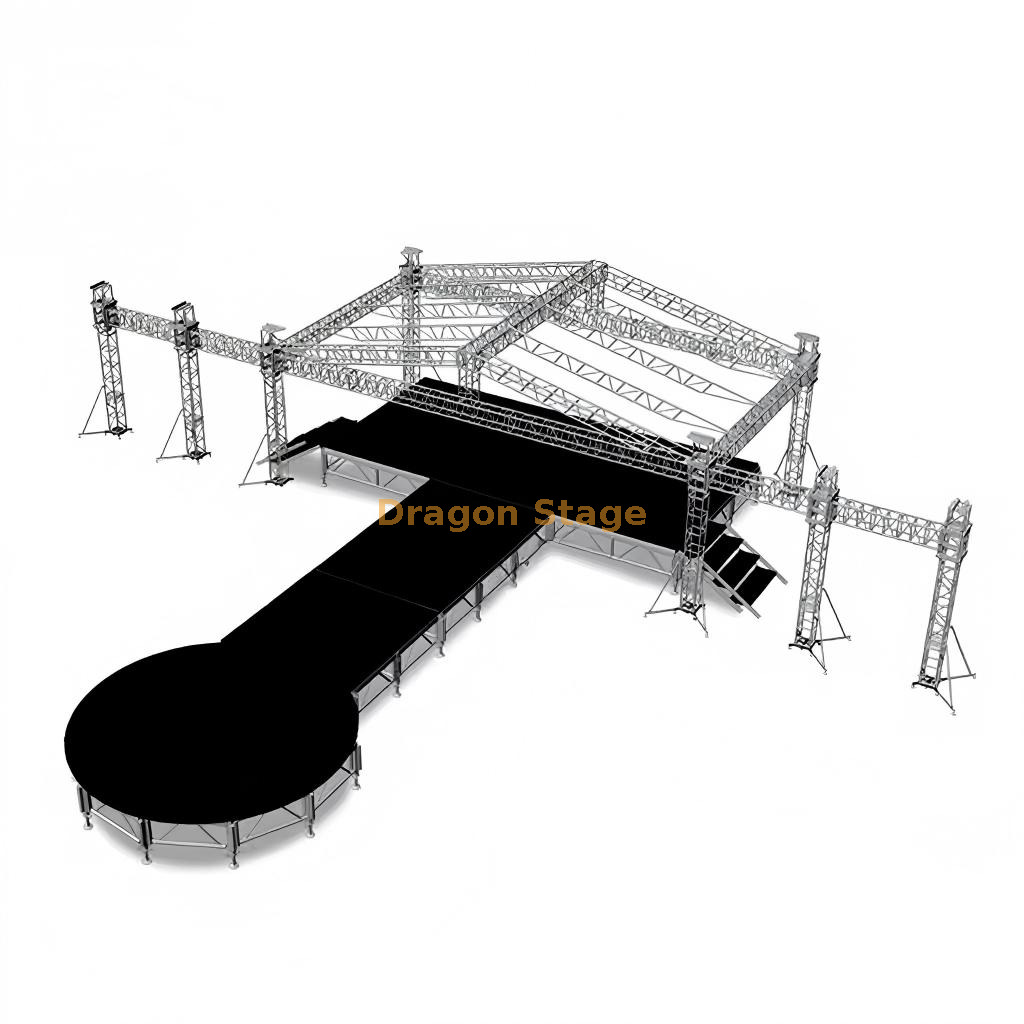

Square Aluminum Church Lighting Truss 14x12x6m with Wings of Led Screen 7m And Line Array 3m

5 0 Reviews

Price: ￥ 65640 - 130930


features:	truss system stage
Availability:



Inquire

Brand:
Dragon Stage

Product Description

packing weight: 3500kg

packing volume: 26cbm

Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
14.00 m Beam(front)	3 sets	3.00 m	50×3.0	CS389×389	12pcs
		2.00 m	50×3.0	CS389×389	3pcs
		1.00 m	50×3.0	CS389×389	0pcs
12.00 m Beam(side)	2 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	0pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Pillar	6 sets	3.00 m	50×3.0	CS289×289	6pcs
		2.00 m	50×3.0	CS289×289	6pcs
		1.00 m	50×3.0	CS289×289	0pcs
beam cube	Spigot cube 389x389				0pcs
Frame Tower	Spigot Sleeve Block S				6pcs
	Steel Base S				6pcs
	Top Section S				6pcs
	Manual hoist,BA05 2Tons				6pcs
	Spigot Hinge Section,Height 1m				6pcs
	Fibre sling,BA04,2 tons 3m				6pcs
	Long outrigger				24pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
Roof Pillar	3 sets	1.40 m	50×3.0	CS289×289	3pcs
12.00 m Top Beam	1 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.00 m	50×3.0	CS289×289	0pcs
7.20 m Oblique Beam	6 sets	3.00 m	50×3.0	CS289×289	12pcs
		2.00 m	50×3.0	CS289×289	0pcs
		1.20 m	50×3.0	CS289×289	6pcs
7.20 m Ladder truss	8 sets	3.00 m	50×3.0	CL30,289*50	16pcs
		2.00 m	50×3.0	CL30,289*50	0pcs
		1.20 m	50×3.0	CL30,289*50	8pcs
Roof Components		roof conner 4 ways, use for roof beam truss		CS289×289	2pcs
		roof conner 5 ways, use for roof beam truss		CS289×289	1pcs
		Connect plate with clamp			3pcs
		Single clamp			16pcs
		Double clamp			12pcs
		roof canopy material:pvc, Blue Colour or customized.		274.96	1pcs
Item		Specification(squre truss)			Qty
		length	main tube(mm)	size(mm)
10.00 m Wings Beam	4 sets	3.00 m	50×3.0	CS389×389	8pcs
		2.00 m	50×3.0	CS389×389	8pcs
		1.00 m	50×3.0	CS389×389	0pcs
5.00 m Wings Pillar	4 sets	3.00 m	50×3.0	CS289×289	4pcs
		2.00 m	50×3.0	CS289×289	4pcs
		1.00 m	50×3.0	CS289×289	0pcs
Wings Tower	Spigot Sleeve Block S				4pcs
	Steel Base S				4pcs
	Top Section S				4pcs
	Manual hoist,BA05 2Tons				4pcs
	Spigot Hinge Section,Height 1m				4pcs
	Fibre sling,BA04,2 tons 3m				4pcs
	Long outrigger				16pcs
Truss Accessory		Conical coupler & Safrty clip & pin			whole set

packing weight: 2800kg

packing volume: 19cbm

Item	Specification					Quantity
Aluminium assembly stage	topping: 4x8ft (1.22x2.44m)		wooden			45 pcs
	1.22m stage brace					54 pcs
	2.44m stage brace					50 pcs
	stand with extendable tube					60 pcs
	Stage adjustable base					60 pcs
Stage Stair	wooden topping	total	8	steps	adjustable to the stage height	2 pcs

Professional 14x12x6m Square Aluminum Church Lighting Truss with Integrated LED & Audio Wings

1. Introduction

Modern worship environments demand sophisticated production capabilities that rival professional concert venues. The 14x12x6m Square Aluminum Church Lighting Truss from DragonStage is a purpose-built solution designed to integrate lighting, high-definition LED video walls, and line array audio systems into a single, cohesive structure. With 7m dedicated wings for LED screens and 3m outriggers for audio, this system provides the vertical and horizontal clearance necessary for immersive worship experiences. For church technical directors, the challenge is often finding a system that offers high load capacity without sacrificing the aesthetic and safety requirements of a permanent or semi-permanent indoor installation.

2. Challenges & Solutions

One of the primary difficulties in church production is the "cluttered" look of multiple independent stands for speakers, screens, and lights. This not only wastes floor space but creates multiple points of potential failure. DragonStage solves this by providing a unified, heavy-duty square truss grid that manages all three elements simultaneously. Safety is a paramount concern, especially in public gathering spaces; our engineering team utilizes reinforced corner blocks and specialized wing stabilizers to handle the off-center loading of 3m line array cantilevers. Furthermore, the modular nature of our aluminum components allows for installation in facilities with limited access, as every piece can be hand-carried through standard double doors before being assembled into the final large-scale rig.

3. Key Features & Benefits

The 14x12x6m system is constructed using high-grade 6082-T6 aluminum, which offers the highest strength-to-weight ratio for indoor structural applications (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures that the 14m main span can support a dense array of moving head lights and specialized stage effects without compromising structural integrity.

A standout feature is the dual-wing design. The 7m LED screen wings are engineered with reinforced horizontal members to support the significant weight of high-resolution video panels. Simultaneously, the 3m audio wings are positioned to provide optimal acoustic coverage for the congregation. According to industry standards for theatrical rigging, maintaining a balanced center of gravity is essential when using cantilevered wings to prevent structural torque (Source:https://www.plasa.org).

The stage surface below this rig is equally robust, utilizing our modular aluminum stage platforms that feature a non-slip, professional finish suitable for both speakers and musical performers (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). This total system approach ensures that the visual, audio, and physical foundations of the church stage are perfectly synchronized.

4. FAQ Section

Q: Can the 3m audio wings support any brand of line array?A: Yes, the 3m cantilever is designed with universal rigging points, though we recommend providing your speaker weight specifications to our engineers for final verification.

Q: Is the truss available in a black finish to hide it from the audience?A: Absolutely. We offer professional powder coating in matte black or other custom colors to ensure the structure blends seamlessly into your church's architecture.

Q: How is the 6m high grid raised?A: The system can be configured with manual hand-winch towers or electric chain hoists, depending on your frequency of use and budget.

Q: Are the wings for the LED screens adjustable?A: The 7m wings are modular; they can be positioned at various points along the main towers to accommodate different screen sizes and aspect ratios.

5. Strong Call to Action (CTA)

Transform your sanctuary into a world-class worship space with a structure designed for modern ministry. Contact DragonStage’s engineering team for your custom church truss solution. Download our detailed specifications today to see how the 14x12x6m system can be tailored to fit your specific venue requirements.
