CXM-11
Dragon Stage

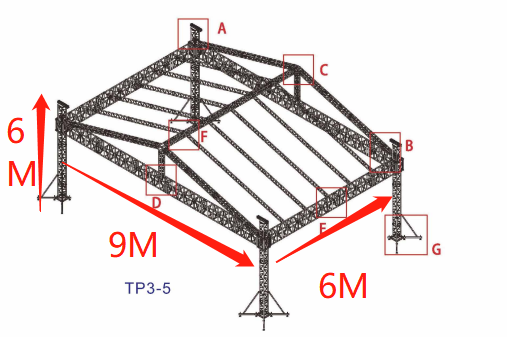

Spigot Box Truss Roof 9x6x6m 4 Pillars with Roof
weight: 1400kg
volume: 11cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 9.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 4 pcs | |||||
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 4 pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 4 pcs | ||||||
| Steel Base S | 4 pcs | |||||||
| Top Section S | 4 pcs | |||||||
| Manual hoist,BA05 2Tons | 4 pcs | |||||||
| Spigot Hinge Section,Height 1m | 4 pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4 pcs | |||||||
| Long outrigger | 16 pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | .90 m | 50×3.0 | CS289×289 | 2 pcs | |||
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 2 pcs | |||||
| 4.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4 pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | pcs | |||||
| 1.70 m | 50×3.0 | CS289×289 | 4 pcs | |||||
| 4.70 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4 pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | pcs | |||||
| 1.70 m | 50×3.0 | CL30,289*50 | 4 pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2 pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | pcs | ||||||
| Connect plate with clamp | 2 pcs | |||||||
| Single clamp | 8 pcs | |||||||
| Double clamp | 8 pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 114.66 | 1 pcs | ||||||
In the demanding world of outdoor event production, the efficiency of setup and the reliability of the structure are the twin pillars of success. The 9x6x6m Spigot Box Truss Roof System by DragonStage is engineered for professional organizers who require a high-capacity rigging environment with a rapid deployment timeline. Featuring a 54-square-meter covered area and a commanding 6-meter vertical clearance, this system is optimized for mid-sized concerts, corporate activations, and regional festivals. By utilizing a high-precision spigot (conical) connection system, this roof truss minimizes assembly labor while maximizing structural rigidity, providing a safe and sleek foundation for any professional show.
One of the primary challenges for event crews is the "time-to-stage" bottleneck. Traditional bolt-trussing requires multiple tools and significantly more time to align and secure, which can be critical during tight festival changeovers. DragonStage solves this with a spigot-based box truss design that allows for tool-free, hammer-only assembly, drastically reducing setup hours. Another common outdoor pain point is water accumulation; a flat roof can become a safety hazard during heavy rain. Our 9x6x6m system features a pitched roof geometry and high-tension PVC that ensures immediate water runoff. Furthermore, for events held on unpaved terrain, our 4-pillar system includes heavy-duty adjustable leveling jacks to ensure a perfectly plumb and stable rig on any surface.
The 9x6x6m system is fabricated from premium 6082-T6 aluminum alloy. This grade is the international gold standard for temporary structures due to its exceptional tensile strength and natural resistance to environmental oxidation, ensuring the rig remains a long-term professional asset (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html).
The structure utilizes a modular ground-support design. This allows the horizontal roof grid to be assembled at waist height, where technicians can safely rig beam lights, audio, and cabling before hoisting the entire grid to its 6-meter apex. According to industry safety guidelines for temporary event structures, this ground-support method significantly reduces the risks associated with working at height (Source:https://www.prolight-sound.com).
This trussing is also designed for perfect synergy with our modular aluminum stage platforms. These platforms feature 18mm anti-slip surfaces and high load-bearing capacities, providing a stable foundation that matches the professional grade of the overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html).
Q: Why choose spigot trussing over bolt trussing?A: Spigot connections are much faster to assemble and provide better resistance to vibration, which is ideal for touring and frequent setups.
Q: Can this 9m span support heavy LED screens?A: Yes. The box truss profile is designed for heavy-duty applications. However, we recommend a distributed load approach; please consult our technical charts for specific weight limits.
Q: Is the PVC canopy fire-retardant?A: Absolutely. Our canopies are made from 850g/m² PVC that is waterproof, UV-resistant, and meets B1 fire safety standards.
Q: How do we raise the 6-meter pillars?A: The system utilizes specialized sleeve blocks and can be operated with either manual hand-winches or electric chain hoists for synchronized lifting.
Ensure your next production is built on a foundation of professional engineering and rapid efficiency. Contact DragonStage’s engineering team for a custom quote on the 9x6x6m Spigot Box Truss Roof System. Download our technical specifications today and start planning your next festival with absolute confidence.
