CXM-10
Dragon Stage
packing weight:
packing volume:
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 14.00 m Beam(front) | 3 sets | 3.00 m | 50×3.0 | CS389×389 | 12pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 3pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 14.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS389×389 | 8pcs | |||
| 2.00 m | 50×3.0 | CS389×389 | 2pcs | |||||
| 1.00 m | 50×3.0 | CS389×389 | 0pcs | |||||
| 11.00 m Pillar | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 18pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 6pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 6pcs | ||||||
| Steel Base S | 6pcs | |||||||
| Top Section S | 6pcs | |||||||
| Manual hoist,BA05 2Tons | 6pcs | |||||||
| Spigot Hinge Section,Height 1m | 6pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 6pcs | |||||||
| Long outrigger | 24pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 3 sets | 1.40 m | 50×3.0 | CS289×289 | 3pcs | |||
| 14.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 1pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 7.20 m Oblique Beam | 6 sets | 3.00 m | 50×3.0 | CS289×289 | 12pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.20 m | 50×3.0 | CS289×289 | 6pcs | |||||
| 7.20 m Ladder truss | 10 sets | 3.00 m | 50×3.0 | CL30,289*50 | 20pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
| 1.20 m | 50×3.0 | CL30,289*50 | 10pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 1pcs | ||||||
| Connect plate with clamp | 3pcs | |||||||
| Single clamp | 20pcs | |||||||
| Double clamp | 12pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 308.56 | 1pcs | ||||||

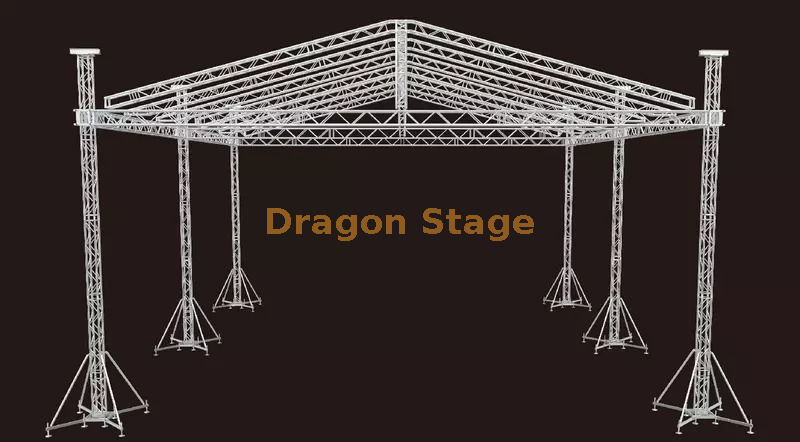

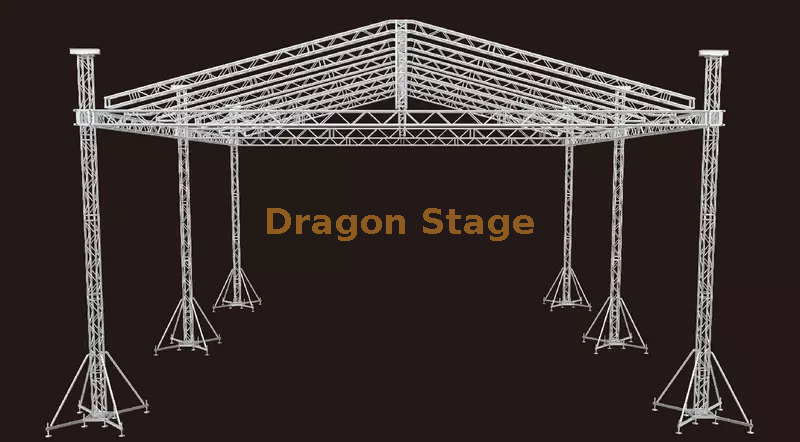

For major festivals and large-scale touring productions, vertical clearance and horizontal span are the two most critical factors in stage design. The 14x14x12m Aluminum Stage Frame Truss Structure by DragonStage is a premier engineering solution designed to dominate the skyline of any outdoor event. With a commanding 12-meter height and a massive 196-square-meter covered area, this 6-pillar system provides the structural volume necessary for complex lighting plots, multi-layered LED screens, and heavy audio rigging. As event organizers push for more immersive "stadium-style" experiences, this heavy-duty frame ensures that your production has the overhead capacity to support even the most ambitious technical riders.
The primary challenge of a 14-meter clear span is managing structural deflection and lateral stability at extreme heights. A standard 4-pillar rig often reaches its safety limit at these dimensions, especially under high wind loads. DragonStage solves this by utilizing a 6-pillar (6-tower) configuration, which drastically increases the structure's load-bearing capacity and provides essential mid-span support. Another pain point for large builds is the safety risk associated with overhead work. Our solution features a modular sleeve block system that allows the entire 14x14m roof grid to be assembled and rigged at ground level. This grid is then hoisted to its 12-meter peak using synchronized electric motors, ensuring a safe, efficient, and precise setup.
This system is manufactured from aerospace-grade 6082-T6 aluminum alloy, offering the highest strength-to-weight ratio in the industry and natural protection against oxidation in humid outdoor environments (Source:https://www.dragontruss.com/Aluminum-Truss-System-pd413987768.html). This ensures that the structure remains a safe and professional asset for years of continuous touring.
The 6-pillar design not only adds strength but also allows for the integration of dedicated "fly-points" for heavy line array speakers and side-screens without compromising the integrity of the main roof. According to international engineering standards for temporary structures, a 6-tower ground support system provides superior resistance to "twisting" forces during wind gusts compared to traditional 4-tower designs (Source:https://www.prolight-sound.com).
Furthermore, the 14x14m footprint is perfectly compatible with our modular aluminum stage platforms. These platforms feature 18mm anti-slip surfaces and heavy-duty adjustable legs, providing a stable foundation for performers that aligns with the massive overhead rig (Source:https://www.dragontruss.com/Aluminum-Stage-Platform-pd463987768.html). This synergy ensures that every element of the stage, from the floor to the 12m apex, works in mechanical harmony.
Q: Why choose 6 pillars instead of 4 for this 14x14m system?A: The 6-pillar design provides critical mid-point support for the 14m spans, allowing for significantly higher weight capacities for lighting and LED walls while increasing overall wind stability.
Q: Can this structure support line array speakers?A: Yes. The 6-pillar configuration is ideal for adding cantilever wings or using the side towers to fly heavy audio systems.
Q: Is the 12m height adjustable?A: The tower system is modular; while 12m is the maximum recommended height for this series, it can be safely operated at lower heights depending on your venue requirements.
Q: Is the PVC roof canopy included?A: Yes, a professional-grade, fire-retardant, and waterproof PVC canopy is provided, designed specifically for the 14x14m frame dimensions.
Take your production to the next level with a structure built for elite performance and absolute safety. Contact DragonStage’s engineering team for a custom consultation on the 14x14x12m 6-Pillar Truss System. Download our detailed load-bearing charts today and start planning your most ambitious event yet.
