How to Build a Truss Stage: Step-by-Step Assembly Guide
Truss stages are widely used for concerts, festivals, exhibitions, corporate events, and outdoor productions. A typical truss stage system consists of base sections, vertical columns, roof beams, chain hoists, and diagonal braces. Proper installation is essential to ensure safety, stability, and efficient operation.
This guide explains the basic steps involved in assembling a professional aluminum truss stage.
Main Components of a Truss Stage
Before installation, it is important to understand the main components:
Base sections
Hinged sections
Sleeve blocks
Vertical truss columns
Roof beam trusses
Chain hoists or motors
Diagonal braces
Lighting and audio equipment
Each component works together to form a stable and safe structure.
Step 1: Position and Level the Bases
Place the four base sections in their approximate positions according to the stage layout.
Adjust the leveling feet to ensure all bases are on the same horizontal plane. A level foundation is critical for the overall stability of the truss structure.
Step 2: Install Hinges and Sleeve Blocks
Attach the hinged sections to the bases and install the sleeve blocks.
Make sure the orientation of all hinged sections is consistent with the design requirements.
Step 3: Assemble the Roof Beam on the Ground
Connect the beam trusses while they are still on the ground.
Ground assembly offers several advantages:
Easier inspection
Faster installation
Improved worker safety
After assembly, connect both ends of the beam to the sleeve blocks.
Step 4: Assemble the Vertical Columns
Connect the column trusses on the ground.
Install the chain hoists or motors before raising the structure. Proper preparation at this stage reduces work at height and improves efficiency.
Step 5: Raise the Columns
Several workers should carefully lift the columns and secure them to the hinged bases.
During this process:
Raise the columns slowly.
Avoid excessive force.
Ensure all connections are secured properly.
Step 6: Connect the Chain Hoists
Using slings, connect the chain hoist hooks to the roof beam truss.
Inspect all connections before lifting.
Step 7: Lift the Beam to Working Height
Raise the beam slowly and evenly to approximately head height.
This working height allows technicians to safely install:
Stage lighting
Speakers
LED screen frames
Cables and accessories
Installing equipment before the final lift significantly improves safety and efficiency.
Step 8: Raise the Structure to Final Height
After all equipment has been installed, gradually lift the roof system to its design height.
Ensure that all hoists operate evenly to prevent twisting or uneven loading.
Step 9: Install Diagonal Braces
Connect the diagonal braces between the columns and the bases.
Diagonal braces greatly improve the rigidity and lateral stability of the entire structure and help resist wind loads.
Important Safety Considerations
When building a truss stage, always follow these safety principles:
Ensure the ground is level and stable.
Inspect all truss connections before lifting.
Never exceed the designed load capacity.
Lift the structure evenly.
Install diagonal braces before use.
Follow local regulations and wind load requirements.
Regularly inspect chain hoists and motors.
Use qualified personnel for installation and operation.
Conclusion
Building a truss stage requires careful planning and proper installation procedures. By assembling the structure systematically and following appropriate safety measures, event organizers can create reliable and efficient stage systems for concerts, festivals, exhibitions, and various live events.
Related Articles
If you would like to learn more about stage systems and installation, the following articles may also be helpful:
How to Build a Stage Platform explains the basic principles of modular stage construction and common stage components.

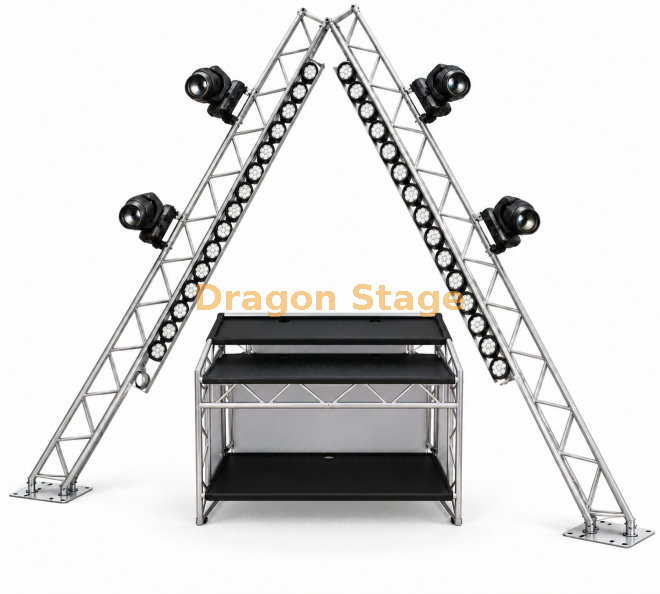

this is a Custom Triangle Dj Stand Trussing, the shape is a big A with a folding book corner on the top and bases.
