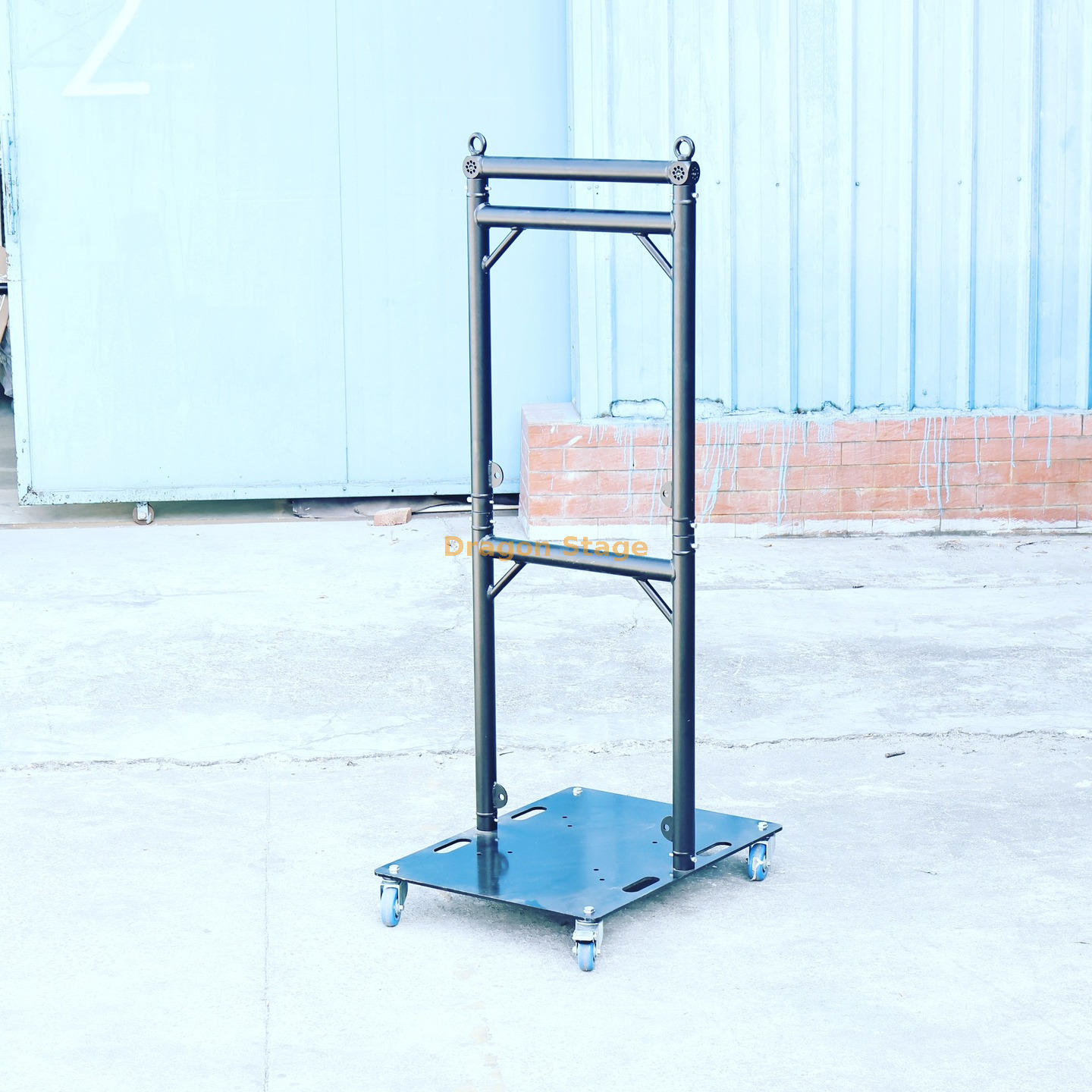

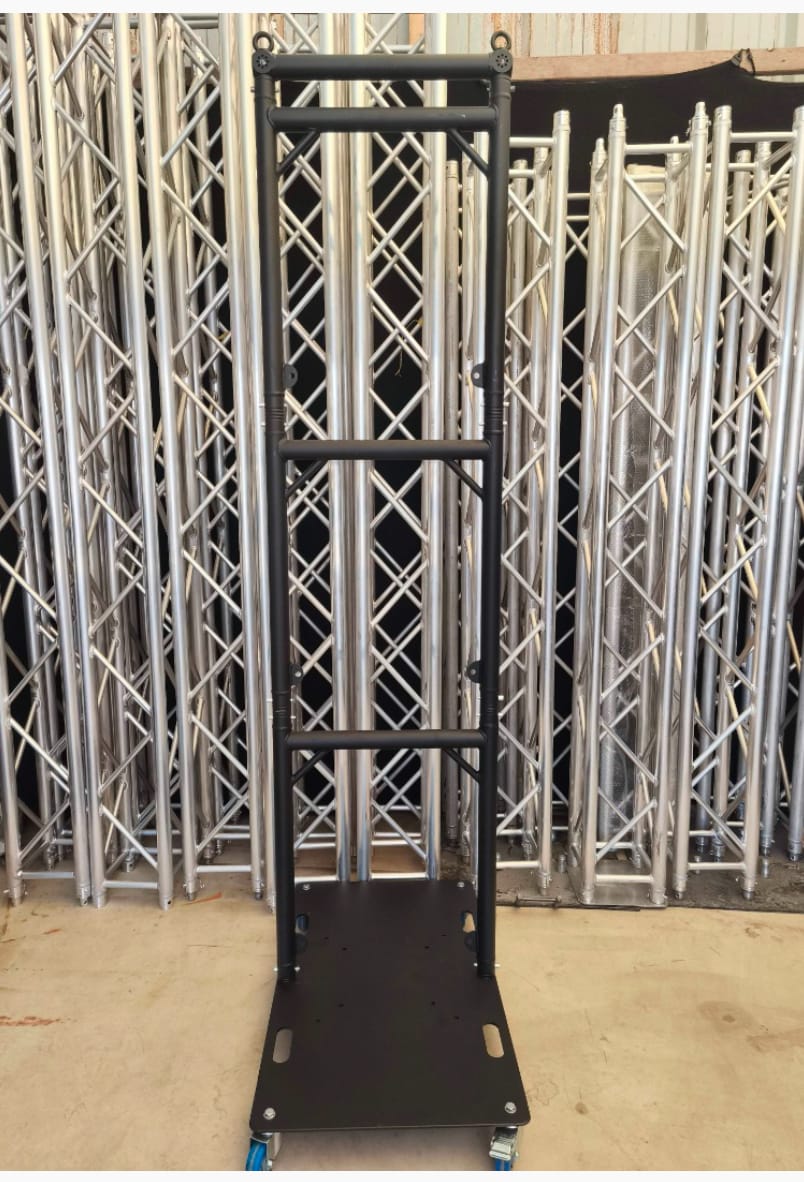

600x760mm 3-Module Aluminum U-Frame Moving Head Lighting Stand Kit with Wheeled Base

Short Description

The DragonStage 3-Module U-Frame Lighting Stand Kit is a complete modular floor-lighting system combining 3 aluminum U-Frames, 1 U-Top, 1 mobile base plate, 4 wheels, and connection accessories. Each U-Frame measures approximately 600×760×50mm, creating a vertical lighting structure for moving heads, LED fixtures, club lighting, concerts, DJ productions, exhibitions, and stage visual effects.

Product Information

The current product page confirms the three-frame kit, U-Top, wheeled base, dimensions, 6082-T6 material, packing information, and black/silver options.

Complete 3-Module Lighting Kit

The confirmed package includes:

• 3 aluminum U-Frame modules

• 1 U-Top

• 1 mobile base plate

• 4 wheels

• connecting hardware

This means the customer does not need to purchase the frame, top module, and base separately when a complete three-module floor structure is required.

600×760mm Modular U-Frames

Each U-Frame measures approximately:

600 × 760 × 50mm

with an internal fixture space of approximately:

500 × 650mm

The individual U-Frame weighs approximately 3.7kg and is listed as 6082-T6 aluminum alloy.

The frame can provide an individual mounting zone for compatible fixtures such as:

• moving-head beam lights

• moving-head wash lights

• LED effects

• compact stage lights

• decorative lighting fixtures

The actual fixture dimensions and weight should be confirmed before installation.

Vertical Lighting Positions

The main advantage of using three U-Frames is that the lighting fixtures do not all need to sit on one horizontal beam.

Instead, fixtures can be distributed vertically.

This can create:

• stacked moving-head positions

• vertical lighting effects

• symmetrical stage-side lighting

• club lighting towers

• DJ lighting displays

• scenic lighting structures

• exhibition lighting features

For compatible fixtures, see Stage Light.

U-Top Upper Module

The kit includes one U-Top module measuring approximately:

600 × 50 × 110mm including the eyebolt

The U-Top completes the upper section of the modular frame and provides an additional connection point for the assembled lighting structure.

Because the top section remains a separate module, it can also be replaced independently if required.

Mobile Wheeled Base

The complete kit includes a mobile base measuring approximately:

800 × 610 × 120mm

with four wheels.

This allows the assembled lighting structure to be repositioned during:

• stage preparation

• rehearsal

• exhibition setup

• studio work

• DJ installation

• backstage arrangement

The wheels make the structure more convenient to handle than a permanently fixed lighting tower.

Why Use a Mobile U-Frame Tower?

A conventional lighting truss often positions fixtures along one horizontal line.

A modular U-Frame tower creates a different visual effect by arranging fixtures vertically.

This is useful when the lighting structure itself becomes part of the stage design.

The mobile base also means the position can be adjusted more easily during production setup.

Black or Silver Finish

This kit is available in:

Black
Silver

Black is often selected where the support structure should visually disappear into a dark stage environment.

Silver can be useful when the aluminum structure itself is intended to remain visible as part of an exhibition, stage, or decorative installation. The current page lists both color options.

Modular Connection System

Each U-Frame uses conical connection elements with pins and safety clips.

Because the structure remains modular, individual sections can be:

• assembled

• dismantled

• replaced

• transported

• reconfigured

• stored separately

For other connectors and mounting hardware, see Truss Accessories.

Useful for Rental and Touring Companies

A fixed welded lighting tower only provides one configuration.

A modular U-Frame system gives rental companies more flexibility.

The same U-Frame components can potentially be reorganized for:

• three-level floor towers

• shorter lighting stands

• individual fixture frames

• hanging lighting drops

• other modular visual structures

This makes the system especially useful where lighting layouts change from one production to another.

For other unconventional modular truss products, see Typical Feature Truss System.

Main Features

• Complete 3-U-Frame lighting kit

• U-Frame size approximately 600×760×50mm

• Approx. 500×650mm internal space

• 6082-T6 aluminum U-Frame construction

• One upper U-Top module

• Mobile base with 4 wheels

• Black and silver options

• Modular conical connections

• Multiple vertical lighting positions

• Suitable for moving heads and LED fixtures

• Easy to dismantle for transport and storage

• Designed for repeated event use

Typical Applications

• Concert lighting

• DJ lighting

• Club lighting

• Touring productions

• Exhibition lighting

• Stage-side moving-head towers

• Corporate events

• Studio lighting

• Fashion shows

• Visual-effect lighting

• Rental lighting systems

Packing Information

The existing product information lists approximately:

Packing weight: 45kg
Packing size: 81 × 62 × 23cm
Packing volume: 0.12cbm

Final packing information should be reconfirmed if the configuration, color, base, or accessory package is changed.

Important Product Note

The current public page also lists a 50kg center-point loading for both the U-Frame and U-Top.

However, the same page contains clearly copied third-party wording and an absolute compatibility claim with other manufacturers. Because of that, I recommend not treating the 50kg figure as a confirmed DragonStage engineering value unless you have your own test, drawing, or calculation for this exact product.

The final allowable fixture weight, total tower configuration, and mobile-use condition should be confirmed according to the actual lighting equipment and complete assembly.

FAQ

What is included in this U-Frame lighting kit?
The kit includes 3 U-Frames, 1 U-Top, 1 mobile base, 4 wheels, and connection accessories.

What size is each U-Frame?
Each frame is approximately 600×760×50mm.

What is the internal fixture space?
The internal dimensions are approximately 500×650mm.

What material is used for the U-Frame?
The current specification lists 6082-T6 aluminum alloy.

What is the U-Top size?
The U-Top is approximately 600×50×110mm including the eyebolt.

Does the kit include wheels?
Yes. The complete configuration includes 4 wheels.

Can moving-head lights be installed?
Yes. Moving heads are one of the main applications, provided the fixture dimensions and weight match the selected configuration.

Can fixtures be installed at different heights?
Yes. The three stacked U-Frames create multiple vertical fixture positions.

Can the U-Frames be used separately?
Yes. They are modular components and can be dismantled from the complete tower.

Is black available?
Yes. The current page lists both black and silver options.

Is the mobile base included?
Yes. The complete product configuration includes a wheeled base.

Can I order a different number of U-Frames?
Yes. The modular concept allows other configurations to be discussed according to the required lighting layout.

Why Choose DragonStage

DragonStage supplies individual Lighting Truss components as well as complete modular lighting systems.

For this product, the advantage is that the U-Frame, top module, base, and wheels are supplied as one coordinated kit. Customers who need a complete vertical moving-head lighting structure therefore do not need to assemble the system from unrelated parts.

Soft CTA

For quotation, please provide:

• lighting fixture model

• fixture dimensions

• fixture weight

• required number of U-Frames

• black or silver finish

• required quantity

DragonStage can then confirm the suitable complete U-Frame lighting configuration.
