7.84x1.23m Narrow Straight Aluminum Performer & Crew Access Ramp for Event Stages

packing weight:740kg

packing volume:6cbm

Product Information

Product Description

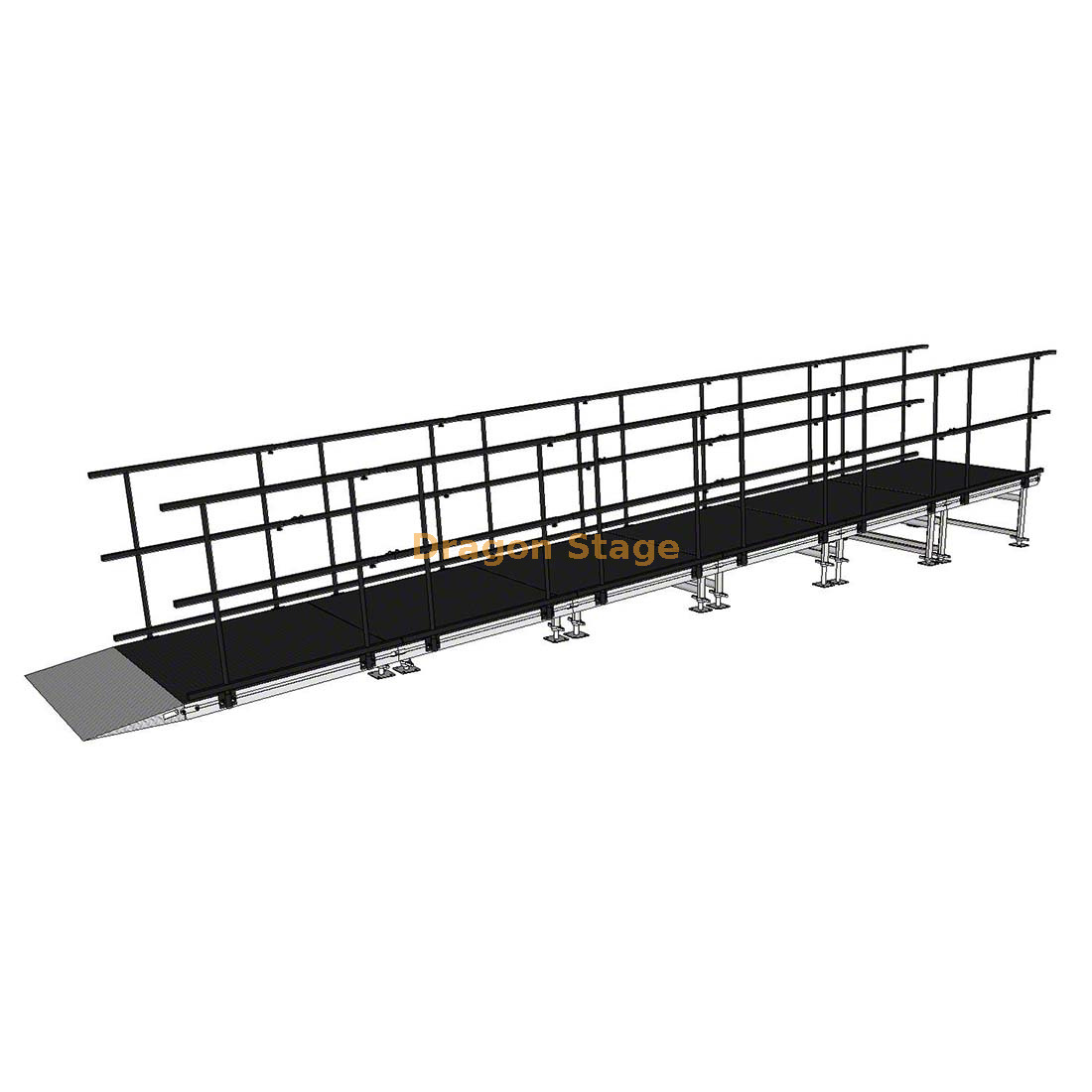

The DragonStage 7.84x1.23m Narrow Straight Aluminum Stage Ramp is designed for temporary stages that need a simple personnel-access route without occupying a large backstage or side-stage area.

The overall external dimensions are approximately:

25 ft 8⅝ in × 4 ft ⅜ in
7.84m × 1.23m

Unlike L-shaped or switchback ramp systems, this model follows one continuous straight route from the ground toward the stage.

Its relatively narrow width makes it useful where space beside the stage is limited but performers, speakers, technicians, or staff still need an alternative to stairs.

For other modular ramp layouts, see Typical Aluminum Ramp.

For compatible event stages, see Stage Platform.

Designed for Performer and Crew Access

This model is primarily positioned as a personnel-access ramp rather than an equipment-loading ramp.

Typical users can include:

• performers

• presenters

• speakers

• technicians

• backstage staff

• event crew

• production personnel

The continuous inclined route can be useful when stairs are not the preferred access method or when the backstage layout requires a more gradual approach to the platform.

Straight-Line Layout

The key characteristic of this product is its simple straight configuration.

There are:

• no 90-degree turns

• no switchback sections

• no intermediate turning landing

Users move directly from one end of the ramp to the other.

This makes the layout easy to understand and practical for venues that have enough straight-line space beside or behind the stage.

Slim 1.23m Overall Width

The external width is only approximately:

48⅜ in / 4 ft ⅜ in / 1.23m

This relatively narrow footprint is especially useful for:

• backstage side passages

• venue walls

• stage-side access

• hotel ballrooms

• exhibition halls

• temporary production corridors

• school or church event stages

It occupies much less lateral space than the wider L-shaped and switchback ramp systems.

Standard 4 × 4 ft Modular Ramp Decks

The ramp uses standard:

4 × 4 ft / 1.22 × 1.22m modular deck sections

Using the same standard deck size provides a common modular logic across DragonStage ramp systems.

This helps with:

• transportation

• storage

• repeated installation

• replacement of individual components

• future extension

• reconfiguration for other projects

The final deck quantity and support arrangement depend on the confirmed stage height.

Dual-Side Guardrails

Guardrails are installed along both sides of the complete ramp route.

Confirmed guardrail height:

3.28 ft / 1.0m

The dual-side guardrail arrangement creates a clearly defined passage between the ground and stage.

Why Choose a Narrow Straight Ramp?

Not every event needs a large equipment-loading ramp.

For many smaller events, the requirement is simply to provide a dedicated access route for people while preserving as much backstage space as possible.

This configuration is particularly useful when:

• stage-side space is narrow

• only personnel access is required

• a straight approach is available

• large carts or road cases are not the main purpose

• the event needs a cleaner dedicated access path

The result is a simpler and more compact stage-access solution.

Main Features

• Overall footprint approx. 7.84 × 1.23m

• Imperial size approx. 25 ft 8⅝ in × 4 ft ⅜ in

• Narrow straight-line configuration

• Standard 1.22 × 1.22m / 4 × 4 ft modular decks

• Aluminum support structure

• Guardrails on both sides

• Guardrail height 1m / 3.28ft

• Designed for performers and event crew

• Compact side-stage footprint

• Modular and reusable construction

• Easy to transport and store

• Custom configuration available

Typical Applications

• Performer stage access

• Speaker and presenter access

• Backstage crew access

• Event staff routes

• Corporate event stages

• Wedding stages

• School performances

• Graduation platforms

• Church stages

• Exhibition stages

• Hotel event platforms

• Temporary performance stages

Performer Ramp vs. Equipment Loading Ramp

A production loading ramp and a performer access ramp may use similar modular construction, but they do not necessarily solve the same problem.

This 1.23m-wide version is primarily suited to personnel circulation.

For projects where the main requirement is moving flight cases, AV carts, or larger production equipment, a wider loading-ramp configuration may be more appropriate.

For other stage-access components, see Stage Accessories.

Modular Aluminum Structure

The ramp is designed as a temporary modular system rather than a permanently fixed access structure.

Individual sections can therefore be:

• transported separately

• stored after the event

• installed repeatedly

• replaced individually

• extended when required

• reused for future stage projects

This makes the product practical for venues, rental companies, and event production suppliers.

How to Confirm the Final Ramp Configuration

Before production, please provide:

• finished stage height

• available straight-line space

• stage connection position

• expected users

• required load

• indoor or outdoor use

DragonStage can then confirm the final deck quantity, slope, support height, and connection arrangement.

Important Product Note

The confirmed configuration includes:

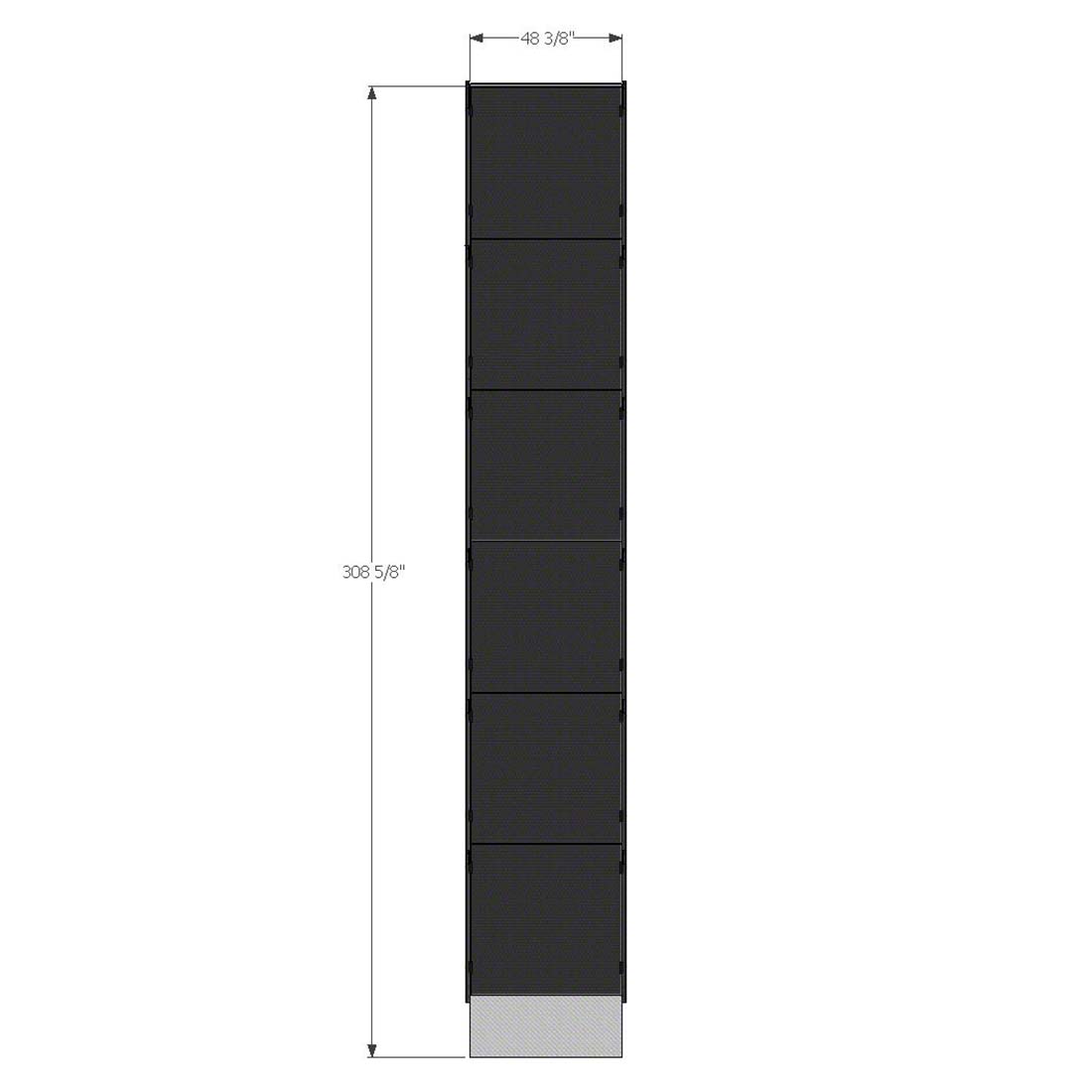

• overall dimensions: 308⅝ × 48⅜ in

• metric dimensions: approximately 7.84 × 1.23m

• standard deck size: 4 × 4 ft / 1.22 × 1.22m

• straight-line configuration

• aluminum structure

• guardrails on both sides

• guardrail height: 1m / 3.28ft

The final stage height, ramp slope, allowable load, support arrangement, and stage connection details should be confirmed according to the actual project.

FAQ

What is the overall size of this ramp?
The external size is approximately 308⅝ × 48⅜ in, equal to approximately 25 ft 8⅝ in × 4 ft ⅜ in, or about 7.84 × 1.23m.

What type of ramp is this?
It is a narrow straight / inline modular aluminum stage-access ramp.

What size is each standard ramp deck?
Each standard deck is 4 × 4 ft / approximately 1.22 × 1.22m.

How high are the guardrails?
The guardrail height is 1m / approximately 3.28ft.

Are guardrails installed on both sides?
Yes. Guardrails are installed along both sides of the access route.

Who is this ramp mainly designed for?
This version is primarily intended for performers, presenters, technicians, event staff, and production crew.

Why is this ramp narrower than some other models?
Its main purpose is personnel access rather than large equipment loading, so the compact width helps save side-stage and backstage space.

Can carts use this ramp?
Suitable small carts may be possible, but if equipment movement is the main requirement, the equipment dimensions and weight should be provided before the final configuration is selected.

Why choose a straight ramp?
A straight configuration provides the simplest direct route when sufficient linear space is available.

Can the ramp length be customized?
Yes. The number of modular sections can be adjusted according to stage height and available site space.

Can DragonStage supply the stage together with this ramp?
Yes. The ramp can be supplied together with a complete Stage Platform system.

Why Choose DragonStage

DragonStage supplies modular stages together with ramps, stairs, guardrails, and other access accessories.

For a personnel-access ramp, the goal is not always to make the structure as large as possible. A narrower ramp can be more practical when the real requirement is performer and crew circulation within a limited backstage footprint.

Soft CTA

For quotation, please provide:

• stage height

• available straight-line space

• intended users

• required ramp position

• required load

• indoor or outdoor use

DragonStage can then confirm the suitable ramp configuration.
